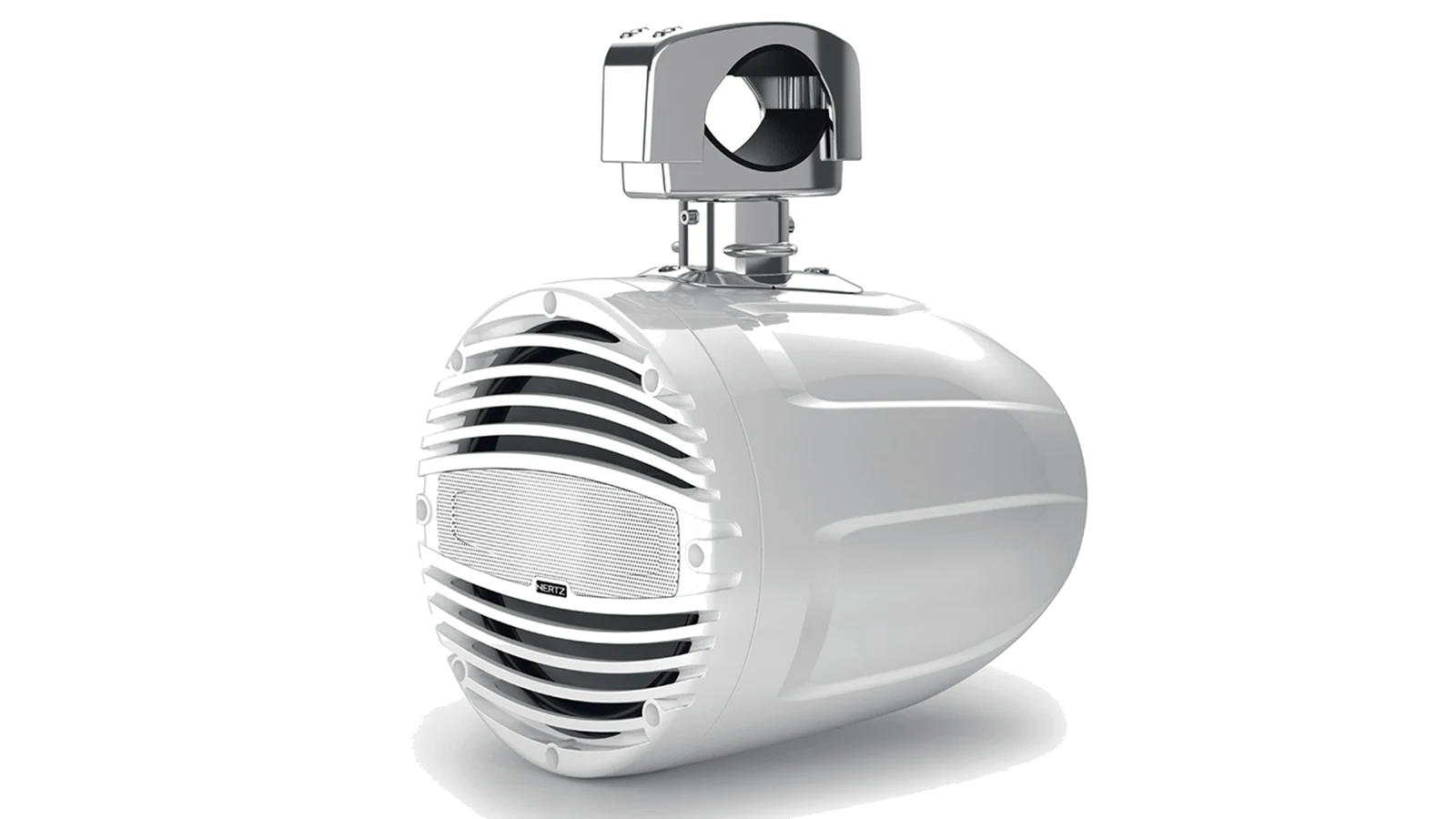

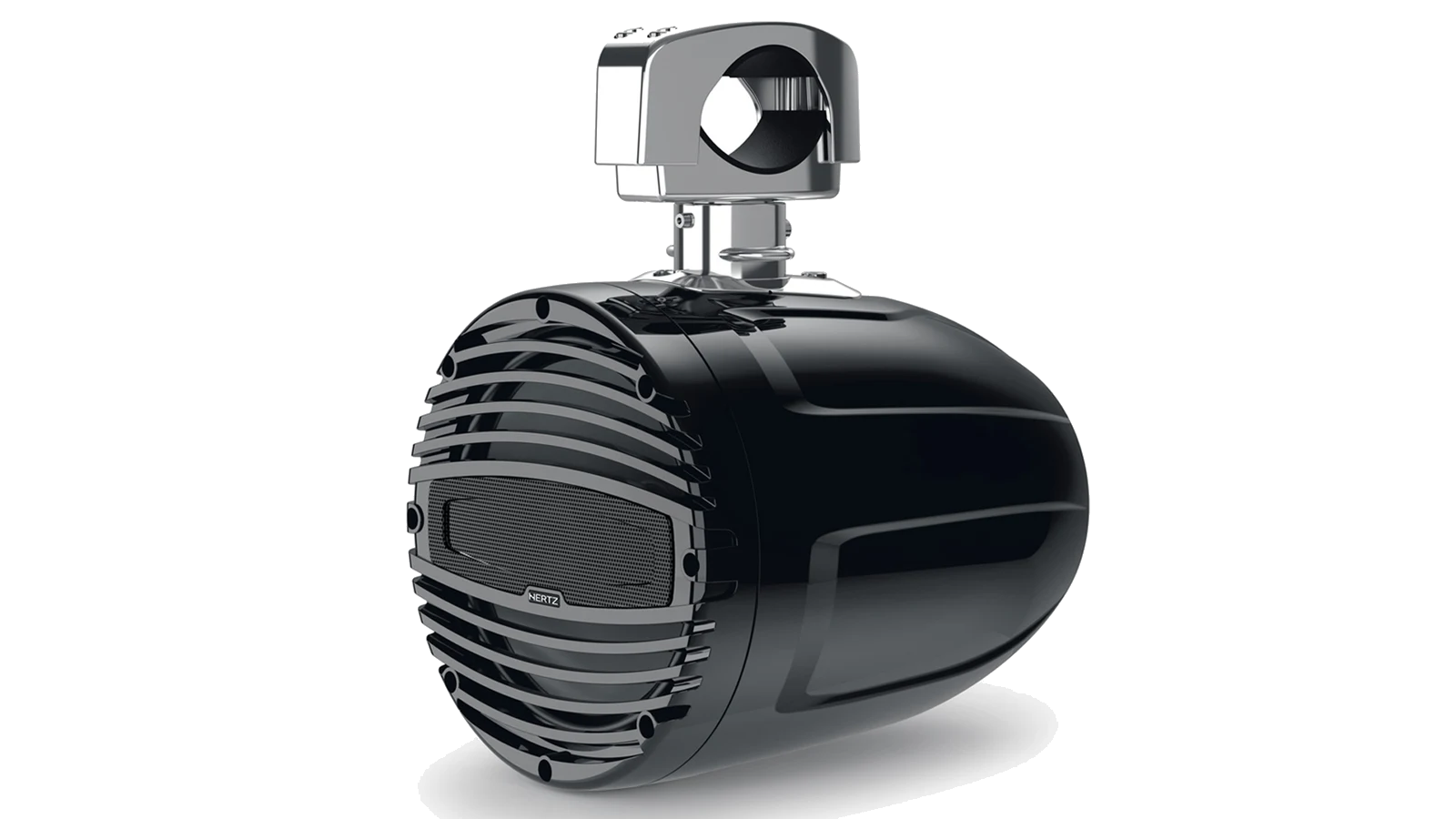

Hertz HTX 8 M-CL-TW / TCHTX 8 M-CL-TW And The Charcoal Version HTX 8 M-CL-TC
HTX 8 M-CL-TW and the charcoal version HTX 8 M-CL-TC feature a tone-on-tone front mesh matching the grille colour. RGB LEDs lighting option will make your sport and leisure outings unforgettable, thanks to impressive audio performance and cool color lighting.
Highlights
- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- Equipped with dedicated 8” coaxial speaker featuring a long-throw 32 mm (1.26”) voice coil woofer with polypropylene cone injected with UV inhibitors and 1.4” Neodymium magnet tweeter.
- RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel. Front RGB lighting is included built-in the front grille, while rear RGB lighting is an add-on with the specifically developed HTX RGB LOGO.1 accessory (available both in black and white color).
- Q-OS² (Quick Orientation & Release for Sound & Safety) technology.
Key specs
Full specs- Component
- LED CLAMP TOWER
- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
- Impedance Ohm
- 4
- Depth mm (in.)
- 288 (11.34 in.)
- Woofer Voice Coil Ø mm (in.)
- 32 (1.26)
- Tweeter Voice Coil Ø mm (in.)
- 20 (0.8)
Key specs
Full specs- Component
- LED CLAMP TOWER
- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
Highlights
Overview- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- Equipped with dedicated 8” coaxial speaker featuring a long-throw 32 mm (1.26”) voice coil woofer with polypropylene cone injected with UV inhibitors and 1.4” Neodymium magnet tweeter.
- RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel. Front RGB lighting is included built-in the front grille, while rear RGB lighting is an add-on with the specifically developed HTX RGB LOGO.1 accessory (available both in black and white color).
Overview
HTX 8 M-CL-TW and the charcoal version HTX 8 M-CL-TC feature a tone-on-tone front mesh matching the grille colour.
RGB LEDs lighting option will make your sport and leisure outings unforgettable, thanks to impressive audio performance and cool color lighting.
The solid 316-Stainless steel clamp mounting is ideal for Round or Square profile pipe applications where sound needs to be easily oriented and quickly released.
This is possible thanks to Q-OS² (Quick Orientation & Release for Sound & Safety) patent pending technology.
“Adjustable logo” allows for several tower positioning without affecting the correct Hertz logo orientation. Front and rear logo can be oriented within 64 steps.
RGB LEDs lighting option will make your sport and leisure outings unforgettable, thanks to impressive audio performance and cool color lighting.
The solid 316-Stainless steel clamp mounting is ideal for Round or Square profile pipe applications where sound needs to be easily oriented and quickly released.
This is possible thanks to Q-OS² (Quick Orientation & Release for Sound & Safety) patent pending technology.
“Adjustable logo” allows for several tower positioning without affecting the correct Hertz logo orientation. Front and rear logo can be oriented within 64 steps.
Highlights
Key features
- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- Equipped with dedicated 8” coaxial speaker featuring a long-throw 32 mm (1.26”) voice coil woofer with polypropylene cone injected with UV inhibitors and 1.4” Neodymium magnet tweeter.
- RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel. Front RGB lighting is included built-in the front grille, while rear RGB lighting is an add-on with the specifically developed HTX RGB LOGO.1 accessory (available both in black and white color).
- Q-OS² (Quick Orientation & Release for Sound & Safety) technology.
- – Durability thanks to the solid tone-on-tone front mesh matching the grille colour ;
- – Tower can be quickly oriented within 18 steps (20° each) along horizontal axis for best sound projection and diffusion over the listening area;
- – Quick Mechanical/Electrical release for security/anti-theft and cleaning;
- – Multi-pole high current connection self-contained into the clamp structure;
- – Clamp structure includes rubber inserts for vibrations damping and fits both round roll-bar [38 mm, 76 mm (1-1/2” to 3”)] and square roll-bar or roof mounting by detaching clamp basement upper part. Optional fitting accessories available for major OEM brands.
- “ Adjustable logo ” allows for several tower positioning without affecting the correct Hertz logo orientation. Front and rear logo can be oriented within 64 steps.
- RGB MULTICOLOR
- IP 65 CERTIFICATION
Technologies
RGB MULTICOLOR
Built-in RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel.
IP 65 CERTIFICATION
WATER JET TESTED
Hertz Marine tower are totally protected against water jets of different entities, making them highly performant
UV RESISTANT
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products
SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to
Specs
Technical Specs
17
| Component | LED CLAMP TOWER |
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 288 (11.34 in.) |
| Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 5,4 (11.9) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±8,5 (0.33) |
Electro-acoustic Specs
12
| D mm | 174 |
| Re Ohm | 3,4 |
| Fs Hz | 51 |
| Le mH | 0,46 |
| Vas I | 26,1 |
| Mms g | 30 |
| Cms mm/N | 0,33 |
| BL T*m | 6,33 |
| Qts | 0,78 |
| Qes | 0,82 |
| Qms | 14,7 |
| Spl dB | 91 |
Physical Specs
5
| A | 225 mm | 8.86 in. |
| B | 288 mm | 11.34 in. |
| D | 50 mm | 1.97 in. |
| G | 38-76 mm | 1.5-3 in. |
| H | 12 mm | 0.47 in. |
