Hertz

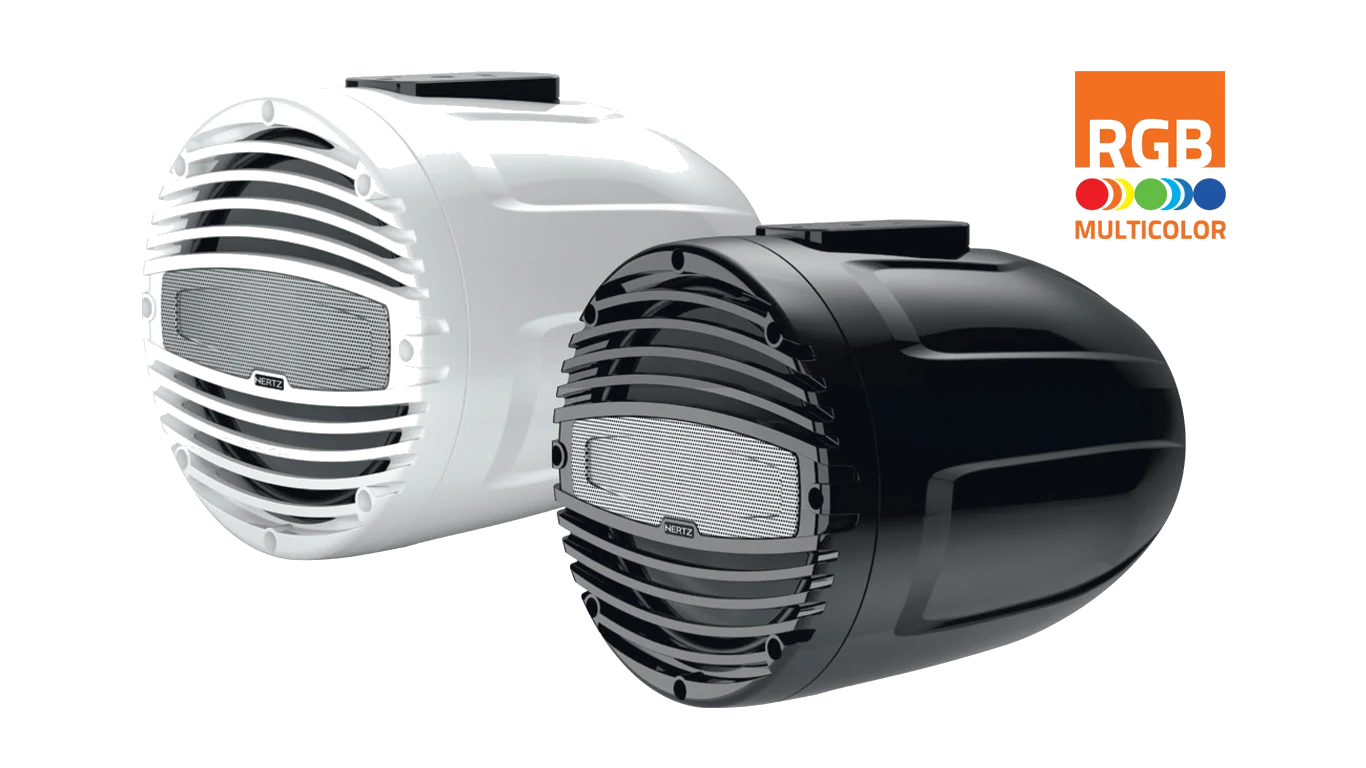

Hertz HTX 8 M-FL-W / C
Are you ready to enjoy your favorite track at high output level during your daily water ski session? Hertz Marine Towers will make your sport and leisure outings unforgettable, thanks to impressive audio performance and cool color lighting.
Highlights
- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- Equipped with dedicated 8” coaxial speaker featuring a long-throw 32 mm (1.26”) voice coil woofer with polypropylene cone injected with UV inhibitors and 1.4” Neodymium magnet tweeter.
- RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel. Front RGB lighting is included built-in the front grille, while rear RGB lighting is an add-on with the specifically developed HTX RGB LOGO.1 accessory (available both in black and white color).
Key specs
Full specs- Component
- LED FLAT TOWER
- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
- Impedance Ohm
- 4
- Depth mm (in.)
- 231 (9.09)
- Tweeter diaphragm mm (in.)
- 36 (1.4)
- Woofer Voice Coil Ø mm (in.)
- 32 (1.26)
Key specs
Full specs- Component
- LED FLAT TOWER
- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
Highlights
Overview- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- Equipped with dedicated 8” coaxial speaker featuring a long-throw 32 mm (1.26”) voice coil woofer with polypropylene cone injected with UV inhibitors and 1.4” Neodymium magnet tweeter.
- RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel. Front RGB lighting is included built-in the front grille, while rear RGB lighting is an add-on with the specifically developed HTX RGB LOGO.1 accessory (available both in black and white color).
Overview
Are you ready to enjoy your favorite track at high output level during your daily water ski session? Hertz Marine Towers will make your sport and leisure outings unforgettable, thanks to impressive audio performance and cool color lighting.
Flat mounting option has been specifically developed for installations where compactness is required to minimize the total height. Enclosure and grilles are made of High-Impact & UV-resistant ASA polymer for the best durability under severe environmental conditions.
“Adjustable logo” allows for several tower positioning without affecting the correct Hertz logo orientation. Front and rear logo can be oriented within 64 steps.
Flat mounting option has been specifically developed for installations where compactness is required to minimize the total height. Enclosure and grilles are made of High-Impact & UV-resistant ASA polymer for the best durability under severe environmental conditions.
“Adjustable logo” allows for several tower positioning without affecting the correct Hertz logo orientation. Front and rear logo can be oriented within 64 steps.
Highlights
Key features
- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- Equipped with dedicated 8” coaxial speaker featuring a long-throw 32 mm (1.26”) voice coil woofer with polypropylene cone injected with UV inhibitors and 1.4” Neodymium magnet tweeter.
- RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel. Front RGB lighting is included built-in the front grille, while rear RGB lighting is an add-on with the specifically developed HTX RGB LOGO.1 accessory (available both in black and white color).
- RGB MULTICOLOR
- IP 65 CERTIFICATION
- WATER JET TESTED
- UV RESISTANT
- SALT FOG TESTED
Technologies
RGB MULTICOLOR
Built-in RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel.
IP 65 CERTIFICATION
WATER JET TESTED
Hertz Marine tower are totally protected against water jets of different entities, making them highly performant
UV RESISTANT
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products
SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to
Specs
Technical Specs
18
| Component | LED FLAT TOWER |
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 231 (9.09) |
| Tweeter diaphragm mm (in.) | 36 (1.4) |
| Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 5,4 (11.9) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±8,5 (0.33) |
Electro-acoustic Specs
12
| D mm | 174 |
| Re Ohm | 3,4 |
| Fs Hz | 51 |
| Le mH | 0,46 |
| Vas I | 26,1 |
| Mms g | 30 |
| Cms mm/N | 0,33 |
| BL T*m | 6,33 |
| Qts | 0,78 |
| Qes | 0,82 |
| Qms | 14,7 |
| Spl dB | 91 |
Physical Specs
4
| A | 225 mm | 8.86 in |
| B | 288 mm | 11.34 in |
| C | 231 mm | 9.09 in. |
| D | 6 mm | 0.24 in. |
