Hertz

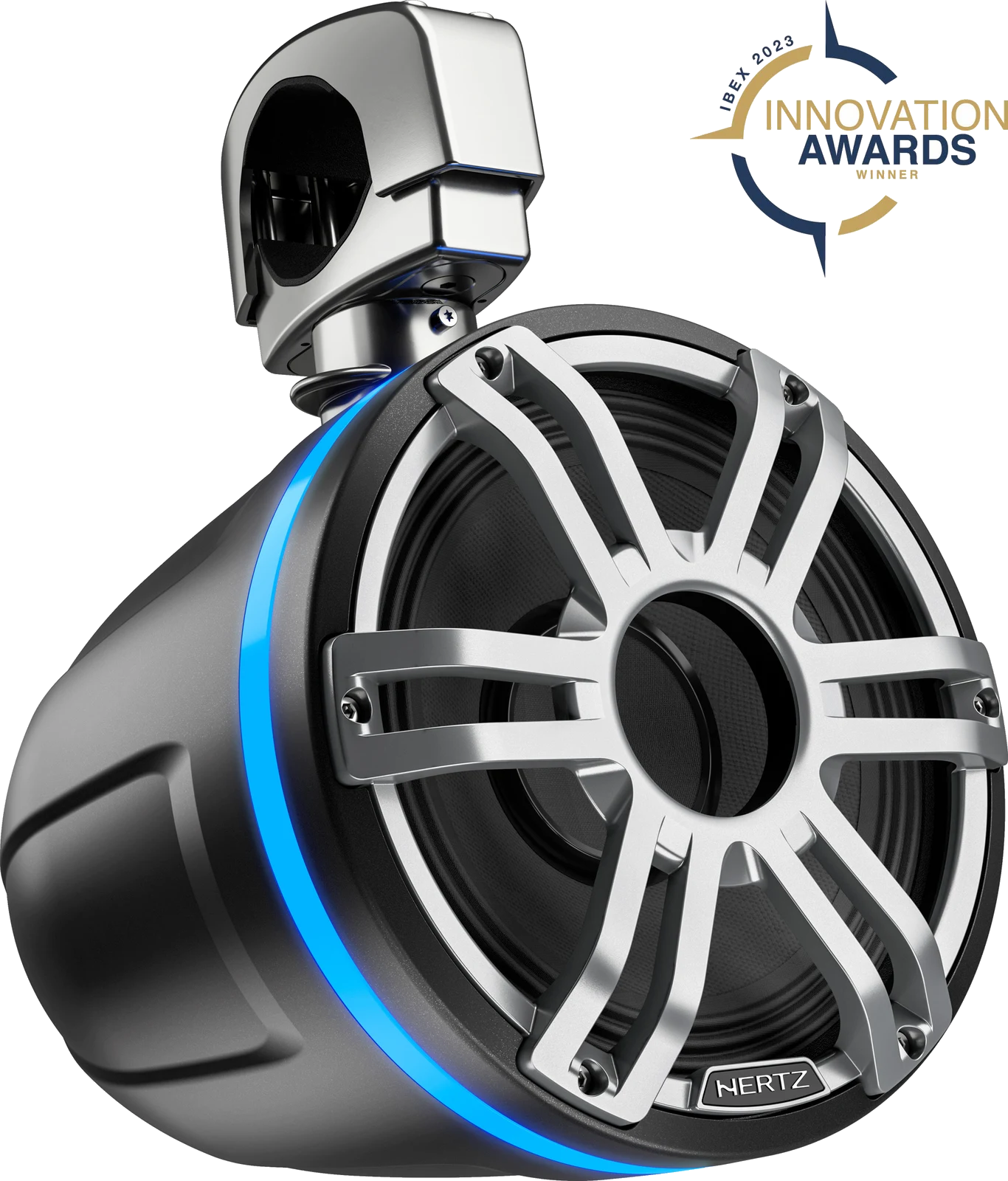

Hertz HTX 8H S-FL-G
Introducing the revolutionary Hertz Marine Common Motor Compression Driver Tower Speakers, a groundbreaking addition to the world of marine audio technology.
Highlights
- Common Motor Driver technology allows for improved acoustical performances with significant reduction in size and weight.
- 400 W peak power with a stunning sensitivity of 98 dB SPL for the ultimate listening experience.
- FEM optimized wave guide boasting a focused and very linear SPL response ensuring full range sound quality at 100 feet and beyond.
- Waterproof acoustically transparent screen dust cup for maximum protection
Key specs
Full specs- Component
- LED FLAT COMMON MOTOR TOWER
- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 200
- Power Handling - Peak W
- 400
- Impedance Ohm
- 4
- Depth mm (in.)
- 288 (11.34)
- Woofer Voice Coil Ø mm (in.)
- 51 (2)
- Frequency Response Hz
- 45 ÷ 25k
Key specs
Full specs- Component
- LED FLAT COMMON MOTOR TOWER
- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 200
- Power Handling - Peak W
- 400
Highlights
Overview- Common Motor Driver technology allows for improved acoustical performances with significant reduction in size and weight.
- 400 W peak power with a stunning sensitivity of 98 dB SPL for the ultimate listening experience.
- FEM optimized wave guide boasting a focused and very linear SPL response ensuring full range sound quality at 100 feet and beyond.
Overview
Introducing the revolutionary Hertz Marine Common Motor Compression Driver Tower Speakers, a groundbreaking addition to the world of marine audio technology. Engineered to perfection and built with uncompromising precision, these speakers redefine the concept of high-performance marine audio systems, delivering an unparalleled listening experience for boating enthusiasts and water sports aficionados. At the heart of these extraordinary tower speakers lies their cutting-edge common motor compression driver technology. The precisely engineered waveguide optimizes the dispersion of sound waves, enabling enhanced sound projection and increased efficiency. The result is clear, distortion-free audio that carries over long distances, allowing you to enjoy your favorite music with a level of clarity and fidelity that is second to none.
Highlights
Key features
- Common Motor Driver technology allows for improved acoustical performances with significant reduction in size and weight.
- 400 W peak power with a stunning sensitivity of 98 dB SPL for the ultimate listening experience.
- FEM optimized wave guide boasting a focused and very linear SPL response ensuring full range sound quality at 100 feet and beyond.
- Waterproof acoustically transparent screen dust cup for maximum protection
- Long-throw 51 mm (2”) voice coil woofer fine-tuned for sealed box applications.
- Sealed built-in crossover with resettable solid-state tweeter protection circuit.
- RGB MULTICOLOR
- IP 65
- WATER JET TESTED
- UV RESISTANT
- SALT FOG TESTED
More info
400 W Power Handling
HTX H
COMMON MOTOR COMPRESSION DRIVER TOWER RAISES THE AUDIO PERFORMANCE TO THE NEXT LEVEL!
Introducing the revolutionary Hertz Marine Common Motor Compression Driver Tower Speakers, a groundbreaking addition to the world of marine audio technology.
Engineered to perfection and built with uncompromising precision, these speakers redefine the concept of high-performance marine audio systems, delivering an unparalleled listening experience for boating enthusiasts and water sports aficionados.
At the heart of these extraordinary tower speakers lies their cutting-edge common motor compression driver technology. The precisely engineered wave guide optimizes the dispersion of sound waves, enabling enhanced sound projection and increased efficiency. The result is clear, distortion-free audio that carries over long distances, allowing you to enjoy your favorite music with a level of clarity and fidelity that is second to none.
Whether you’re cruising at low speeds or racing across the water, these speakers provide rich bass, vibrant midrange, and crystal-clear highs, allowing you to experience your music the way it was meant to be heard.
HTX 8H S-FL-G
Rgb Leds Marine Tower Horn 8’’
Flat Sport Grey
HTX 8H S-FL-SW
Rgb Leds Marine Tower Horn 8’’
Flat Sport Silver-White
KEY FEATURES
- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- 400 W peak power with a stunning sensitivity of 98 dB SPL for the ultimate listening experience.
- FEM optimized wave guide boasting a focused and very linear SPL response ensuring full range sound quality at 100 feet and beyond.
- Waterproof acoustically transparent screen dust cup for maximum protection
- Common Motor Driver technology allows for improved acoustical performances with significant reduction in size and weight.
- RGB led lighting for a never-ending color wheel adding a whole new level of personalization and swagger to your set up.
- Long-throw 51 mm (2”) voice coil woofer fine-tuned for sealed box applications.
- Sealed built-in crossover with resettable solid-state tweeter protection circuit.
The powerful drivers integrated into the Hertz Marine Tower Speakers are expertly tuned to deliver a wide frequency response, ensuring every note, beat, and melody is reproduced faithfully, showing a focused and very linear SPL response at the listening position with an horizontal directivity of 60° starting from 2kHz up to the top end.
-30% WEIGHT AND DEPTH
Hertz Marine proprietary Common Motor Driver allows for improved acoustical performances with significant reduction in size and weight.
Technologies
RGB MULTICOLOR
RGB led lighting for a never-ending color wheel adding a whole new level of personalization and swagger to your
IP 65
Hertz Marine tower features IP65 certification.
WATER JET TESTED
Hertz Marine tower are totally protected against water jets of different entities, making them highly performant
UV RESISTANT
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine Towers are
SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to
Specs
Technical Specs
15
| Component | LED FLAT COMMON MOTOR TOWER |
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 200 |
| Power Handling - Peak W | 400 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 288 (11.34) |
| Woofer Voice Coil Ø mm (in.) | 51 (2) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 140 x 62 x 22 (5.5 x 2.4 x 0.87) |
| Weight of one speaker kg (lb.) | 5.7 (12.6) |
| Woofer Magnet | High density flux ferrite common motor |
| Tweeter Magnet | High density flux ferrite common motor |
| Cone | Pressed paper water repellent |
| Dome | Polyamide |
| Xmech mm (in.) | 8.3 (0.32) |
Electro-acoustic Specs
8
| D mm | 166 |
| Re Ohm | 3.3 |
| Le mH | 0.28 |
| Vas I | 10 |
| Mms g | 20.5 |
| Cms mm/N | 0.15 |
| BL T*m | 9 |
| Spl dB | 98 |
Physical Specs
3
| A | B | C | D |
| 225 | 308.2 | 231 | 6 | mm |
| 8.86 | 12.13 | 9.09 | 0.24 | in. |
Frequency response
Visual spec reference.
