Hertz

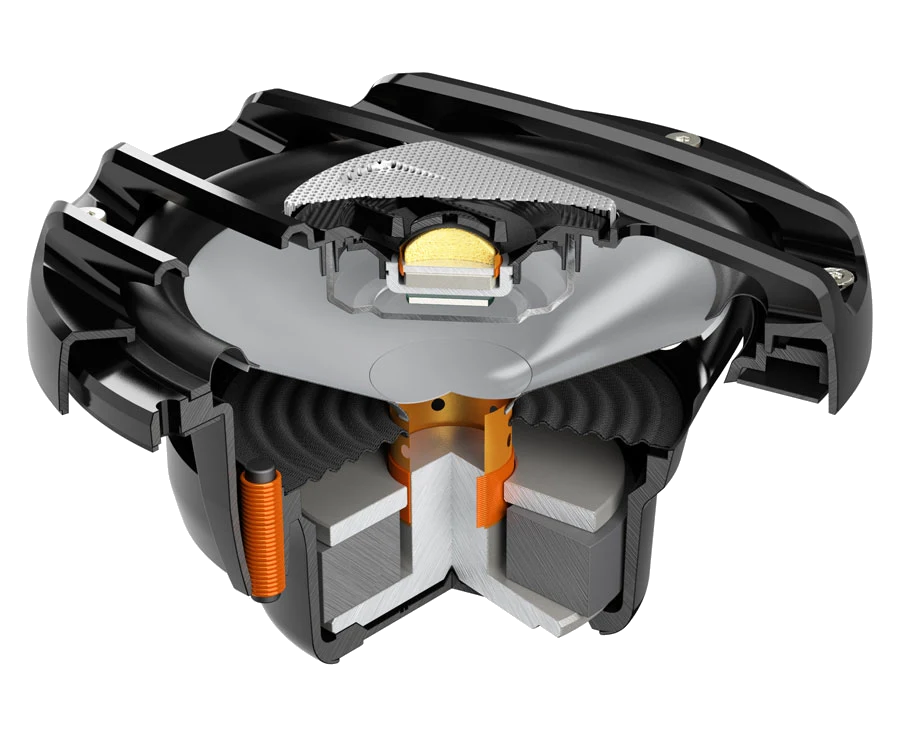

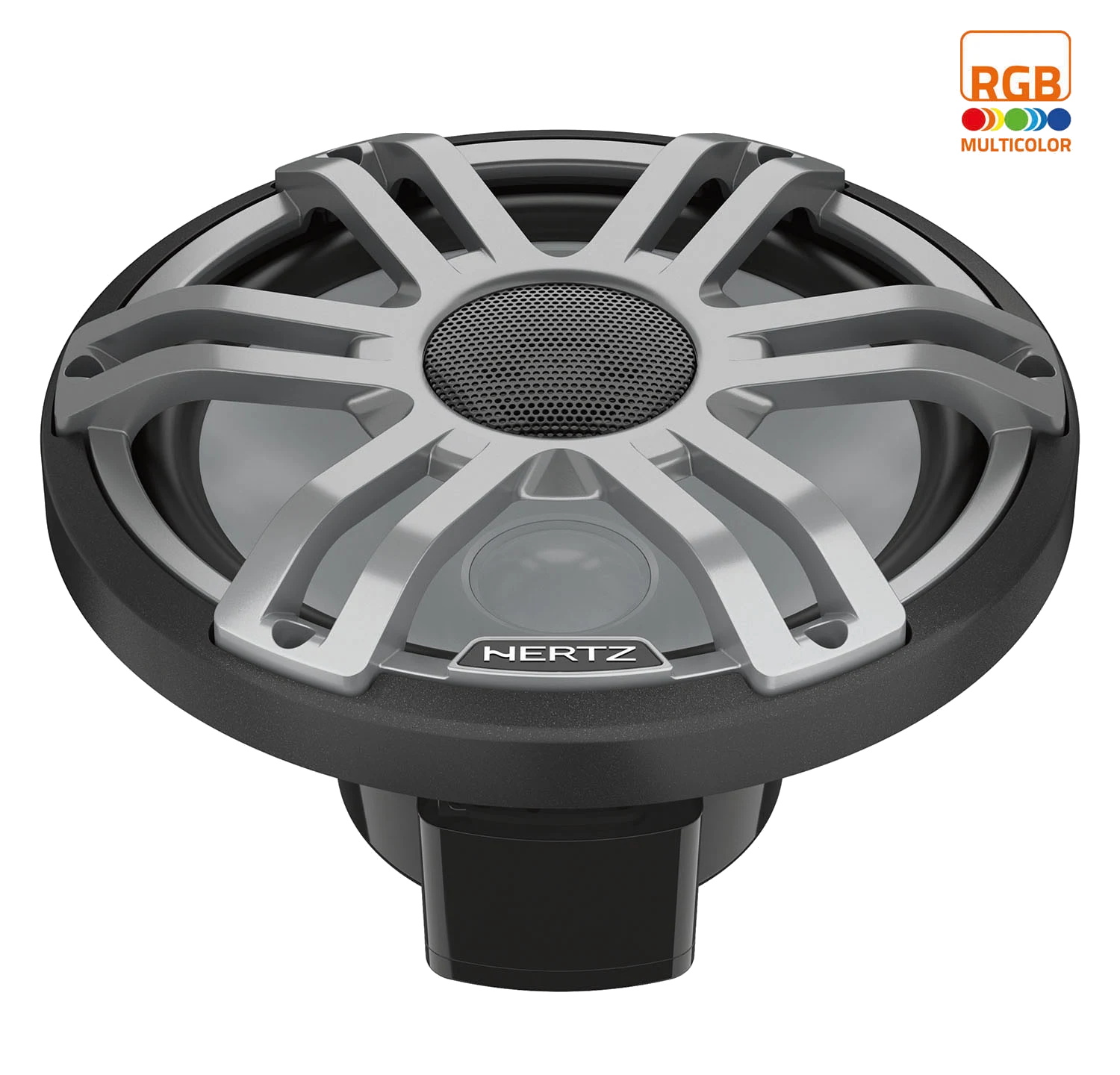

Hertz HMX 8 S-LD-GMarine Coaxial Speaker
HMX 8 S-LD-G marine coaxial speaker features a sports paintable grille for a perfect match with sporty boats.
Highlights
- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- 4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
- Sound-transparent sport grille providing efficient high-frequency transfer, eye-catching look, and rock-solid protection.
- Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle applications.
Key specs
Full specs- Component
- HI-END LED COAX
- Size mm (in.)
- 224 (8.8)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
- Impedance Ohm
- 4
- Depth mm (in.)
- 123 (4.84)
- Tweeter diaphragm mm (in.)
- 36 (1.4)
- Woofer Voice Coil Ø mm (in.)
- 32 (1.26)
Key specs
Full specs- Component
- HI-END LED COAX
- Size mm (in.)
- 224 (8.8)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
Highlights
Overview- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- 4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
- Sound-transparent sport grille providing efficient high-frequency transfer, eye-catching look, and rock-solid protection.
Overview
HMX 8 S-LD-G marine coaxial speaker features a sports paintable grille for a perfect match with sporty boats. The coaxial speaker is engineered to operate in open water, pleasing you with the incomparable emotions of music for years on end thanks to the special ASA plastic grilles and polypropylene cone with co-molded Santoprene surround. The Aramid fiber spider with silicone-insulated lead wire ensures durability and constant performance over time. Parts and assembly methods are designed to meet high-humidity marine environments, ensuring the best audio performance season after season.
Highlights
Key features
- Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- 4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
- Sound-transparent sport grille providing efficient high-frequency transfer, eye-catching look, and rock-solid protection.
- Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle applications.
- Sealed built-in crossover with resettable solid-state tweeter protection circuit.
- Gold-plated corrosion-resistant terminals.
- RGB MULTICOLOR
- IP 65 CERTIFICATION
- WATER JET TESTED
- UV RESISTANT
- SALT FOG TESTED
Technologies
RGB MULTICOLOR
Built-in RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel.
IP 65 CERTIFICATION
WATER JET TESTED
The protection grade IP65 for speakers define all the Hertz Marine products as totally protected against water
UV RESISTANT
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products
SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to
Specs
Technical Specs
18
| Component | HI-END LED COAX |
| Size mm (in.) | 224 (8.8) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 123 (4.84) |
| Tweeter diaphragm mm (in.) | 36 (1.4) |
| Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 1,66 (3.66) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±8,5 (0.33) |
Electro-acoustic Specs
12
| D mm | 174 |
| Re Ohm | 3,1 |
| Fs Hz | 50 |
| Le mH | 0,52 |
| Vas I | 29,46 |
| Mms g | 27,3 |
| Cms mm/N | 0,37 |
| BL T*m | 6,6 |
| Qts | 0,58 |
| Qes | 0,61 |
| Qms | 11 |
| Spl dB | 91 |
Physical Specs
5
| A | 225 mm | 8.86 in. |
| B | 180 mm | 7.09 in. |
| C | 128.6 mm | 5.06 in |
| D | 91 mm | 3.58 in. |
| F | 37.6 mm | 1.48 in. |
Frequency response
Visual spec reference.
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Accessories
HM RGB 1 BK
Similar products
Compare nearby options
Memphis Audio

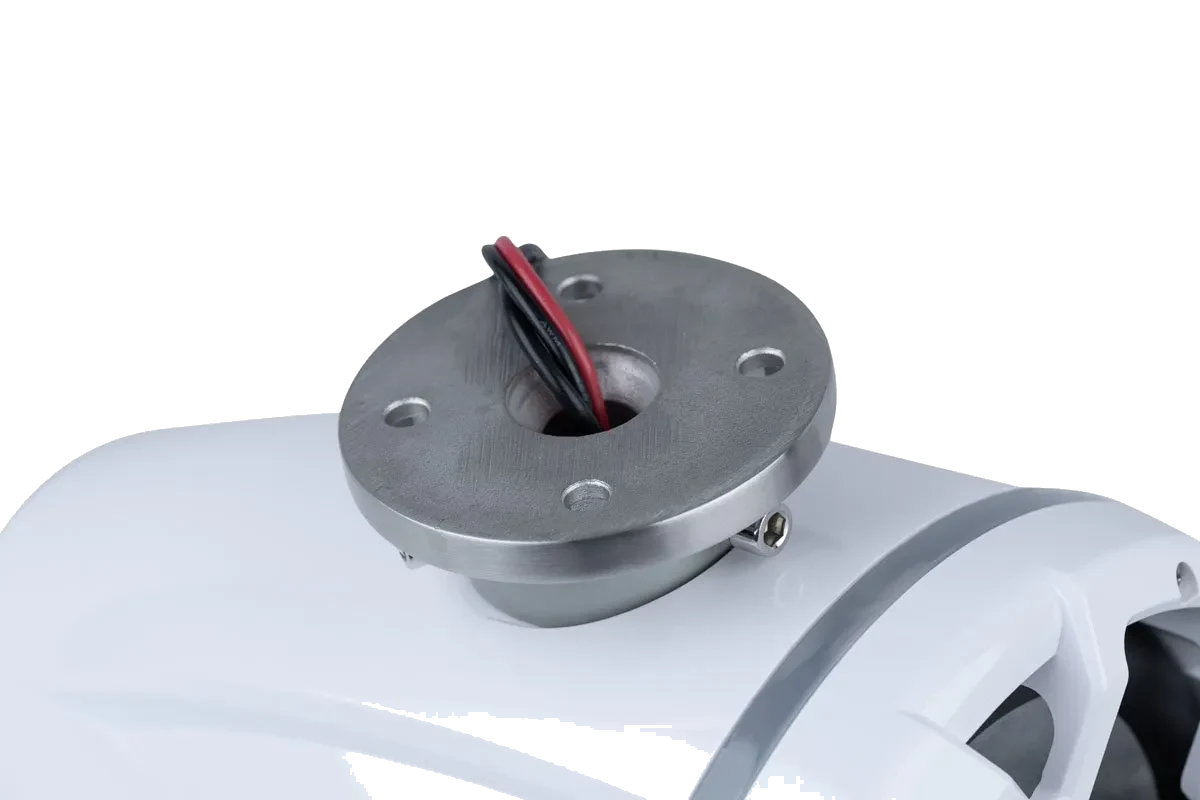

MMSMTBK Speaker
$229.95CAD
$279.95
In stock
Memphis Audio

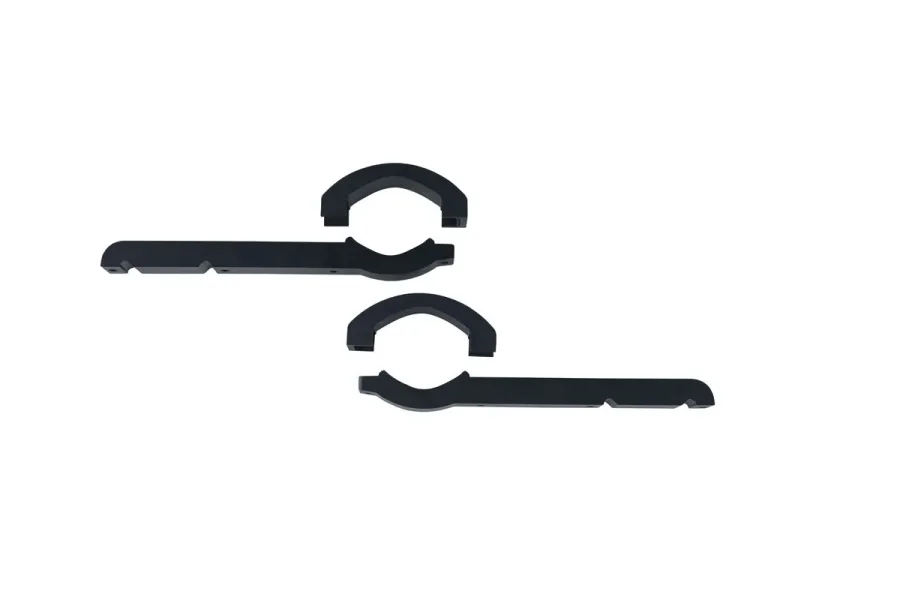

MX6EXTBK Speaker
$159.95CAD
$179.95
In stock
Memphis Audio

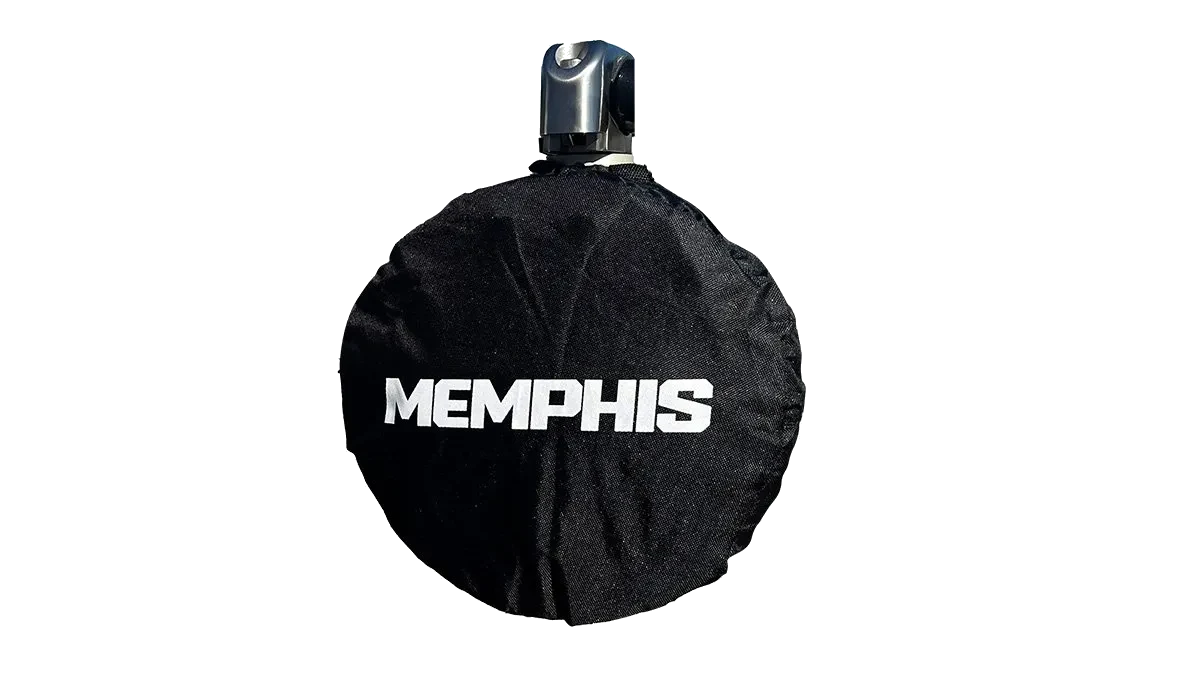

MM105TCVR Speaker
$79.95CAD
$119.95
In stock
Cerwin Vega

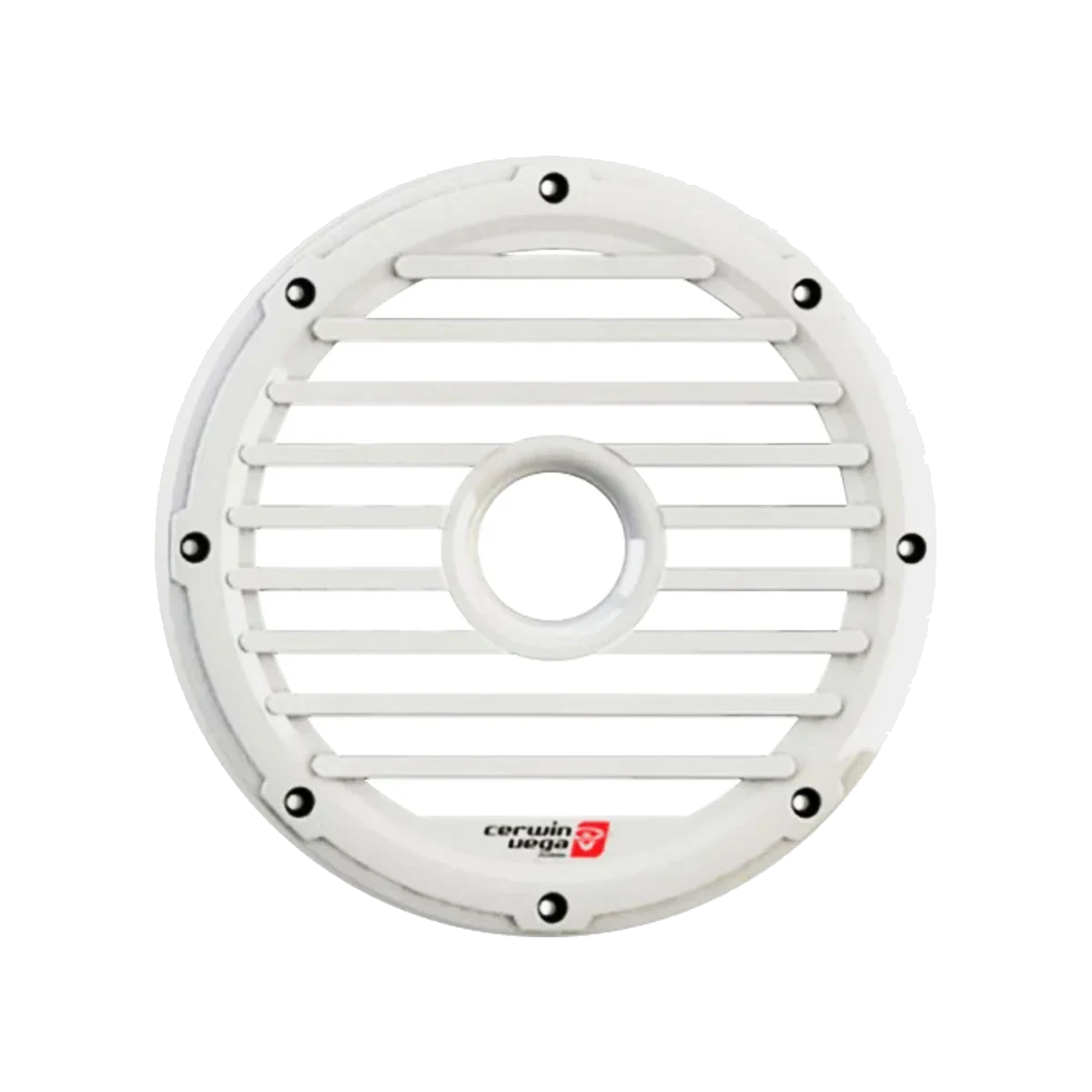

SMG52WHT 5.25" RPM Marine Grade Compliant Speaker Grills (White)
$44.99CAD
Backorder
Cerwin Vega

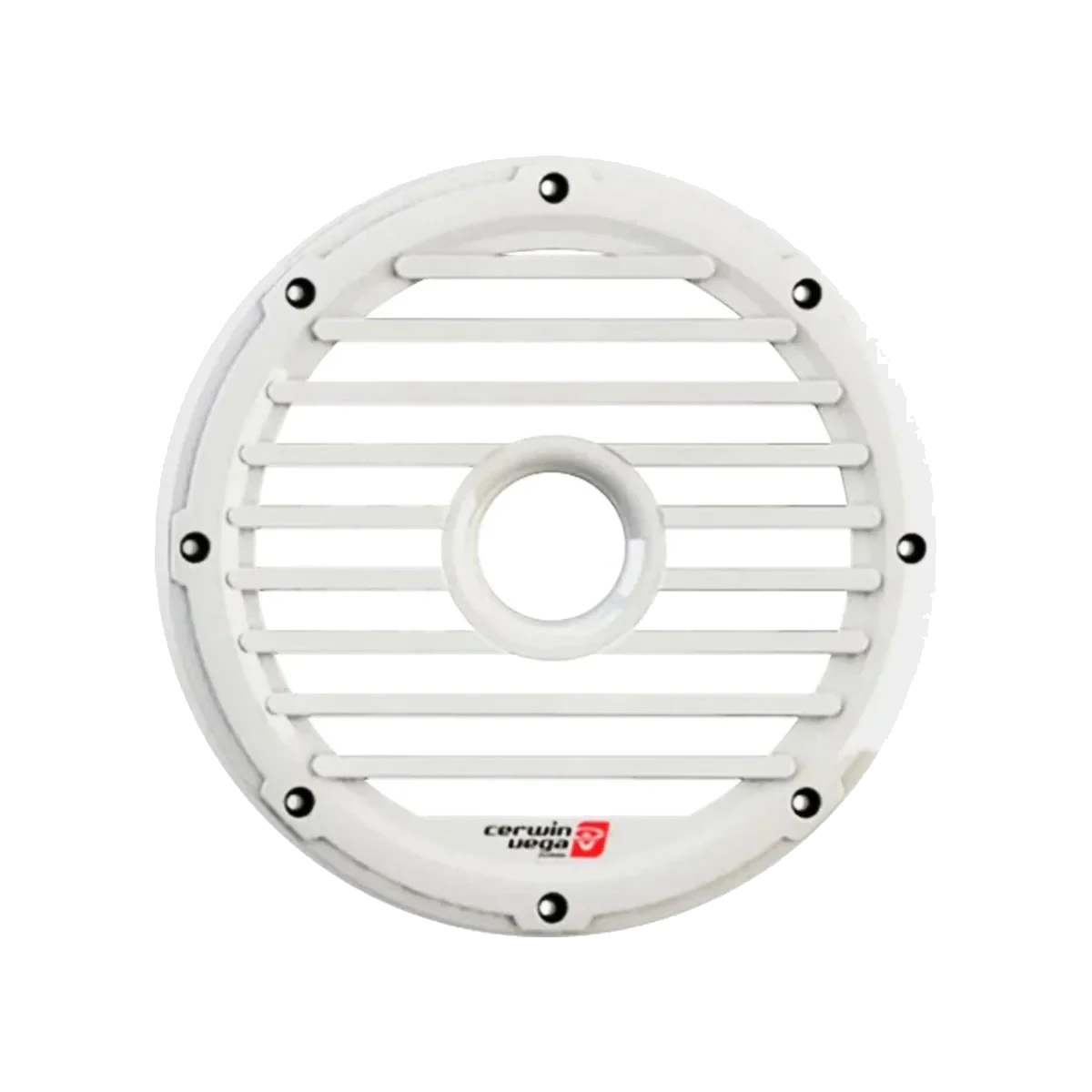

SMG65WHT 6.5" RPM Certified Marine Grade Compliant Speaker Grills (White)
$53.99CAD
Backorder
Cerwin Vega
SMG8WHT 8" RPM Certified Marine Grade Compliant Speaker Grill (White)
$66.99CAD
Backorder
Memphis Audio

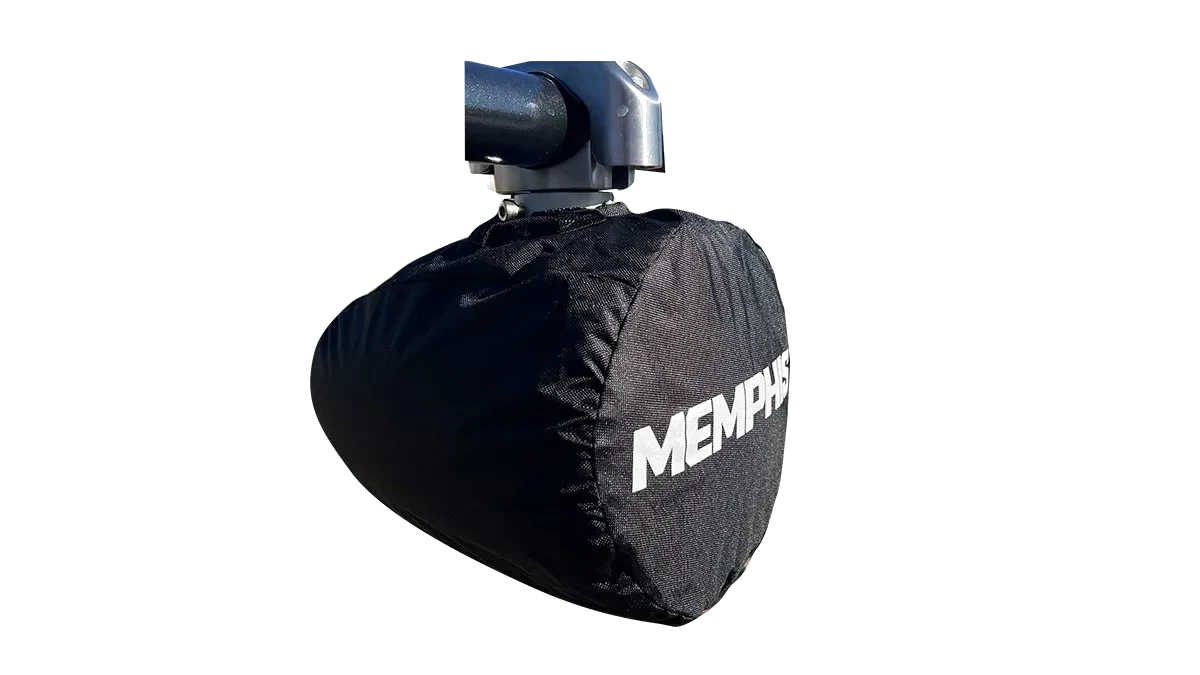

MM84TCVR Speaker
$79.95CAD
$119.95
Backorder
Cerwin Vega

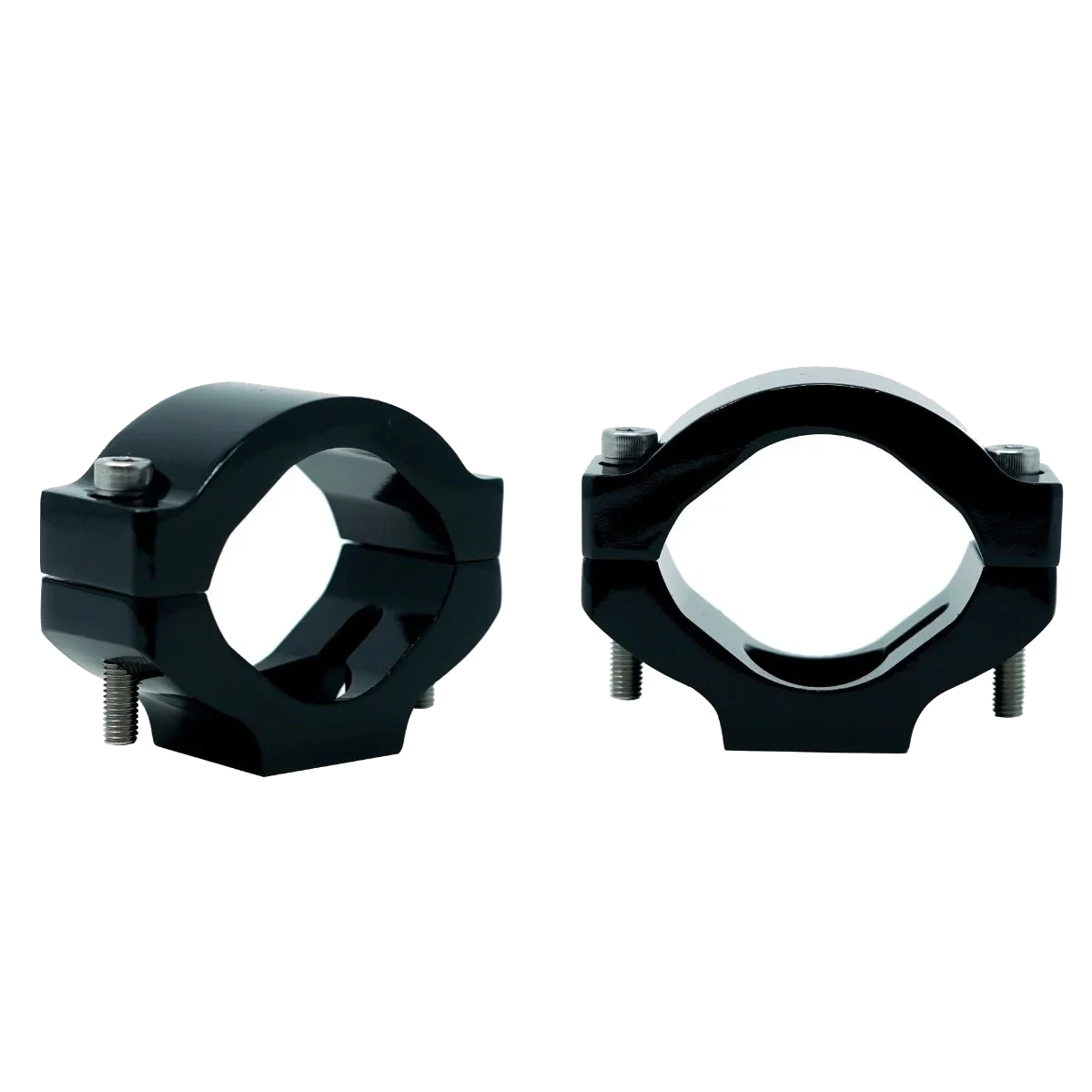

TCLRGBLK Large Diameter Mounting Clamp for RPM Series Marine Wake Tower Speaker Black
