Hertz

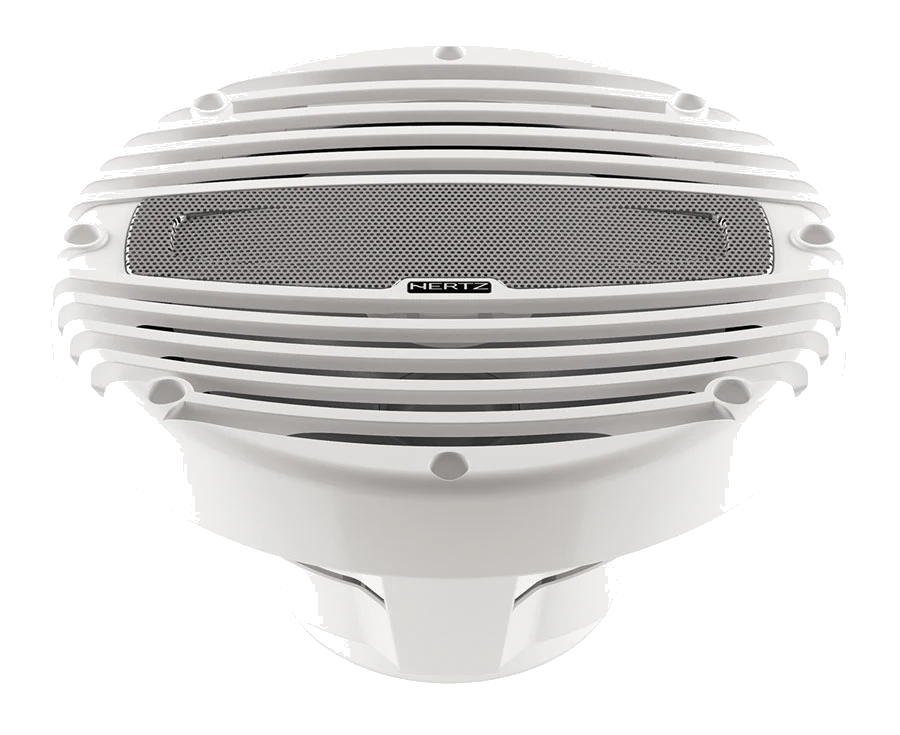

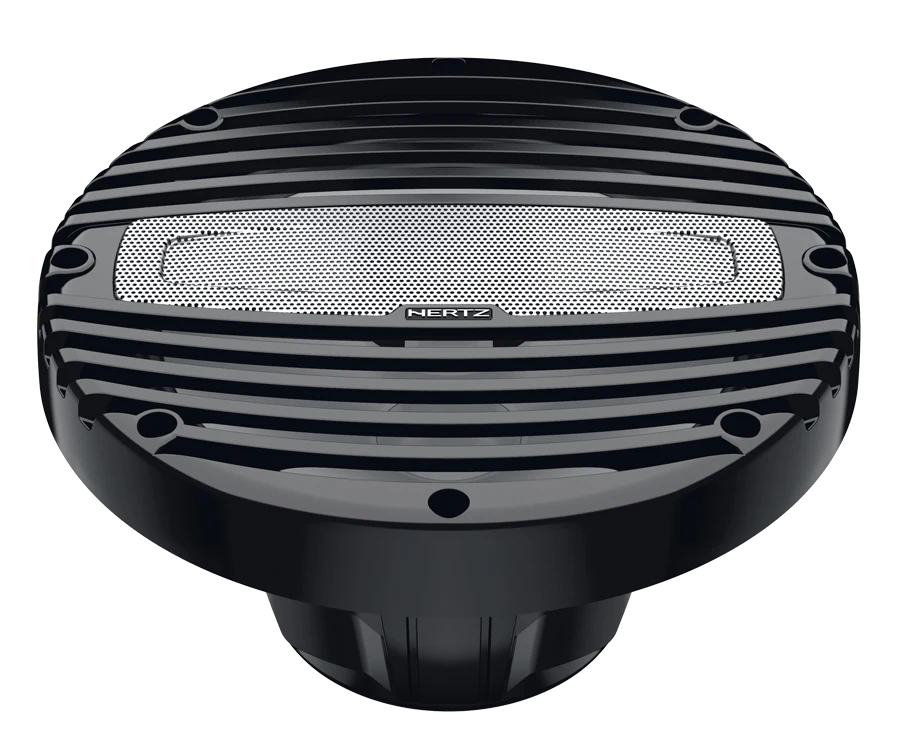

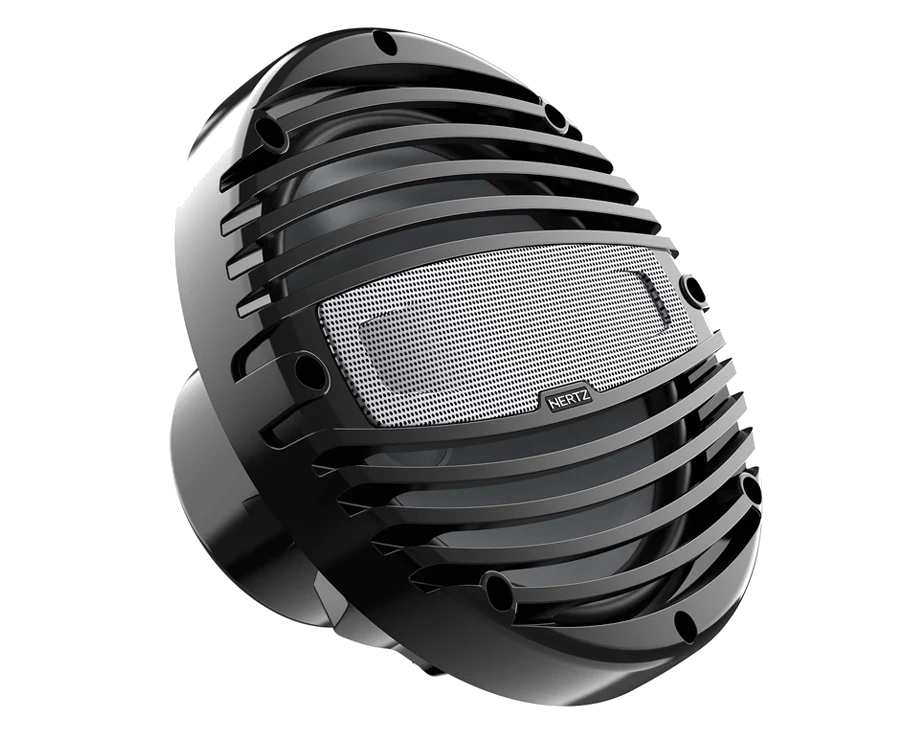

Hertz HMX 8 / CHMX 8 Hi-Performance Marine Coaxial Speakers
The HMX 8 hi-performance marine coaxial speakers, also available in the black option HMX 8-C, is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The tweeter feature an acoustic lens optimized for best off-axis dispersion and maximized SPL.
Highlights
- Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
- 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
- Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
- Long-throw 32 mm (1.26”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
Key specs
Full specs- Component
- HI-END COAX
- Size mm (in.)
- 224 (8.8)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
- Impedance Ohm
- 4
- Depth mm (in.)
- 123 (4.84)
- Woofer Voice Coil Ø mm (in.)
- 32 (1.26)
- Tweeter Voice Coil Ø mm (in.)
- 20 (0.8)
Key specs
Full specs- Component
- HI-END COAX
- Size mm (in.)
- 224 (8.8)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
Highlights
Overview- Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
- 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
- Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
Overview
The HMX 8 hi-performance marine coaxial speakers, also available in the black option HMX 8-C, is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The tweeter feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection. The UV resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Highlights
Key features
- Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
- 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
- Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
- Long-throw 32 mm (1.26”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
- Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
- FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
- Sealed built-in crossover with resettable solid-state tweeter protection circuit.
- Gold-plated corrosion resistant terminals.
- IP 65 CERTIFICATION
- WATER JET TESTED
- UV RESISTANT
- SALT FOG TESTED
Technologies
IP 65 CERTIFICATION
‘
WATER JET TESTED
The protection grade IP65 for speakers define all the Hertz Marine products as totally protected against water
UV RESISTANT
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products
SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to
Specs
Technical Specs
17
| Component | HI-END COAX |
| Size mm (in.) | 224 (8.8) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 123 (4.84) |
| Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 1,66 (3.66) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±8,5 (0.33) |
Electro-acoustic Specs
12
| D mm | 174 |
| Re Ohm | 3,1 |
| Fs Hz | 50 |
| Le mH | 0,52 |
| Vas I | 29,46 |
| Mms g | 27,3 |
| Cms mm/N | 0,37 |
| BL T*m | 6,6 |
| Qts | 0,58 |
| Qes | 0,61 |
| Qms | 11 |
| Spl dB | 91 |
Physical Specs
5
| A | 225 mm | 8.86 in. |
| B | 180 mm | 7.09 in. |
| C | 123 mm | 4.84 in. |
| D | 91 mm | 3.58 in. |
| F | 32 mm | 1.26 in. |
Frequency response
Visual spec reference.
