Easy to install and retain handlebar controls with clear, tunable audio and Bluetooth streaming; however many owners add an external amp for higher volume and this unit is not CB-compatible.
Buyer confidence
85%Highlights
- 2-Year Warranty
- Software updatable via USB
- 1998-2013 Harley-Davidson® direct replacement digital media receiver
- A2DP and AVRCP Bluetooth® Wireless Streaming
Key specs
Full specs- Crossover
- Sub-Out variable from 60 Hz - 120 Hz
- Channel Separation
- RCA: > 50 dB High-Level: > 50 dB
- Output Impedance
- < 500 Ohms
- Signal-to-Noise Ratio
- RCA 2V: > 85 dB High Level (CEA-2006): > 75 dB Max Wrms: > 80 dB
- Output Power
- CEA-2006 Power Rating25W x 4 @ 4Ω RMS50W x 4 @ 2Ω MAX≤1.0% THD+N
- RCA Output Voltage
- Front: 4 V Max Rear: 4 V Max Sub: 4 V Max
- Frequency Response
- RCA: 20Hz - 20 kHz High-Level: 20Hz - 20 kHz
- Idle Current
- < 2 Amps
Key specs
Full specs- Crossover
- Sub-Out variable from 60 Hz - 120 Hz
- Channel Separation
- RCA: > 50 dB High-Level: > 50 dB
- Output Impedance
- < 500 Ohms
- Signal-to-Noise Ratio
- RCA 2V: > 85 dB High Level (CEA-2006): > 75 dB Max Wrms: > 80 dB
Highlights
Overview- 2-Year Warranty
- Software updatable via USB
- 1998-2013 Harley-Davidson® direct replacement digital media receiver
Review highlights
Based on customer reviewsClear, plug-and-play Harley head unit — great tuning controls, but plan for an amp and CB loss
Easy to install and retain handlebar controls with clear, tunable audio and Bluetooth streaming; however many owners add an external amp for higher volume and this unit is not CB-compatible.
What buyers praise
- True plug-and-play installation that preserves handlebar controls
- Clear, detailed sound that many reviewers prefer over stock units
What to watch for
- Many owners found peak volume modest and opted to add a separate amplifier and wiring kit to reach desired loudness
Overview
Direct-replacement digital media receiver engineered for select 1998–2013 Harley-Davidson motorcycles. Features a 3-inch full-color ultra-bright display with day/night modes, oversized buttons, and 4-volt pre-amp outputs designed to avoid clipping.
Best for
- Riders replacing a factory source unit on compatible 1998–2013 Harley-Davidson models
- Users who want modern media features (Bluetooth audio, Pandora, iPod/iPhone support) while retaining OEM controls
- Installers seeking a plug-and-play unit that works with the factory wiring harness
Key points
- 3-inch full-color, ultra-bright display with day/night modes
- Oversized buttons for easier control while riding
- 4-Volt pre-amp outputs designed to avoid clipping
- Bluetooth audio streaming, Pandora® support, Made for iPod/iPhone compatibility
- Certifications and ratings include FCC, CE RED, IC, RCM, CISPR 25 Class 3 EMI, ASTM D4329 UV, and IPX4/IPX6 water intrusion ratings
Fit and use
Plug-and-play installation with the OEM electrical system; no cutting of factory harnesses required when vehicle is compatible Retains factory thumb controls when used with compatible factory wiring Requires factory wiring harness and connectors to retain full functionality Systems needing rear speaker-line outputs may require an additional harness (sold separately) Not compatible with factory amplified systems, CB,…
What to know
Estimated installation time is about 1 hour. Installation requires intact factory harnesses and connectors for full functionality. Verify vehicle compatibility and any additional harness or accessory needs before ordering. Software updates and the owner's manual are available from the manufacturer.
Highlights
Key features
- 2-Year Warranty
- Software updatable via USB
- 1998-2013 Harley-Davidson® direct replacement digital media receiver
- A2DP and AVRCP Bluetooth® Wireless Streaming
- Pandora® Internet Radio Control
- SiriusXM-Ready® satellite radio (requires SXV300 tuner)
- Digital AM/FM tuner with presets
- USB Input with 1.5A USB Charging
- AUX Input
- 3" Full Color TFT Display with Day/Night Mode
- Retains factory thumb control functionality
- Voltage gauge with Low voltage Warning
More info
Manufacturer details
Direct replacement digital media receiver for select 1998 - 2013 Harley-Davidson® motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls. Refer to our COMPATIBILITY chart to verify fitment before purchasing.

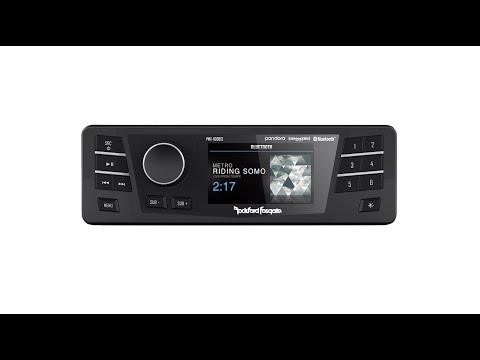

PMX-HD9813 Overview
PMX-HD9813 H-D Road Glide Upgrade
PMX-HD9813 Tuning Guide
PMX-HD9813 Software Downloads
Additional details
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems. Estimated Installation Time: 1 HOUR.
Technologies
ASTM D4329 UV Certified
ASTM D4329 test standard is intended to induce property changes associated with end-use conditions, including the
IPX4 Water Intrusion Rating
Protects from splashing water, no matter the direction.
CISPR 25 Class 3 EMI Compliant
Vehicles, boats and internal combustion engines – Radio disturbance characteristics – Limits and methods of
FCC, CE RED, IC, and RCM Certified
IPX6 Water Intrusion Rated
A device with a level 6 water resistance rating can survive strong water jets projected by a 12.5mm nozzle at any
Made for iPod/iPhone
This device supports the Apple "Made for iPod/iPhone" protocol.
Pandora® Internet Radio
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
Bluetooth™ Audio Streaming
Wirelessly stream audio to your unit with any compatible Bluetooth® device.
USB Playback
This source unit supports playback from a USB device.
Showing the main technologies for this product.
Specs
Specifications
23
| Crossover | Sub-Out variable from 60 Hz - 120 Hz |
| Channel Separation | RCA: > 50 dB High-Level: > 50 dB |
| Output Impedance | < 500 Ohms |
| Signal-to-Noise Ratio | RCA 2V: > 85 dB High Level (CEA-2006): > 75 dB Max Wrms: > 80 dB |
| Output Power | CEA-2006 Power Rating25W x 4 @ 4Ω RMS50W x 4 @ 2Ω MAX≤1.0% THD+N |
| RCA Output Voltage | Front: 4 V Max Rear: 4 V Max Sub: 4 V Max |
| Frequency Response | RCA: 20Hz - 20 kHz High-Level: 20Hz - 20 kHz |
| Idle Current | < 2 Amps |
| Operating Voltage | 9.5 - 16 VDC |
| THD+N | 4-Ohms: < 1.0 % |
| USB Version | 2.0 |
| Bluetooth® | 3.0+EDR A2DP 1.3 |
| FM Tuner | Range: 87.9 - 107.9 MHz Sensitivity: 8 dB Frequency Response: 20 - 15 kHz |
| AM Tuner | Range: 530 - 1710 kHz Sensitivity: 40 dB Frequency Response: 45 to 2.4 kHz |
| Clock | Yes |
| USB Capacity | 32 Gb max 255 Folders max 999 Songs max Format Win USB as FAT32 Format Mac USB as MS-DOS (FAT) |
| USB Output Current | 1.5A |
| Display Size: | Nominal Size: 3" Color TFT Resolution: 960 x 240 Brightness: 380 nits Contrast: 400 Pixels: 320 x 240 View Angle: 120 |
| Supported Media Formats | MP3 WMA |
| Shipping Weight | 4.75 Lbs. (2.15 Kg) |
| Made for iPhone Models | iPhone XS Max iPhone XR iPhone 8 Plus iPhone 7 Plus iPhone SE iPhone 6s iPhone 6 iPhone 5c iPhone XS iPhone X iPhone 8 iPhone 7 iPhone 6s Plus iPhone 6 Plus iPhone 5s iPhone 5 |
| Made for iPod Models | iPod touch (5th generation) iPod touch (6th generation) |
| Dimensions (HxWxD) | Faceplate: 2.7" x 8.4" x 0.7" (68.4 mm x 213 mm x 17.1 mm) Chassis: 2.5" x 8.2" x 7.5" (63.5 mm x 209.3 mm x 191 mm) |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Compatibility
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness available in the RFK-HD9813 or separately with the 1130-72997-01.
1 Not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.
| YEAR | MAKE | MODEL |
|---|---|---|
| 2006-2013 | Harley Davidson® | Street Glide®1 |
| 1998-2013 | Harley Davidson® | Road Glide®1 |
| 1998-2013 | Harley Davidson® | Electra Glide®1 |
Videos

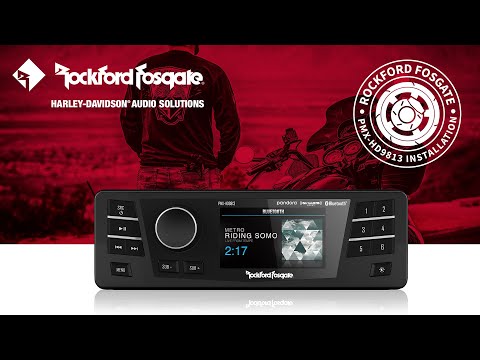

PMX-HD9813 | Road Glide Radio Upgrade
A walk-thru on the installation of Rockford Fosgate's PMX-HD9813 source unit in a 2010 Harley-Davidson® Road Glide® model. Make sure this kit fits your Harley-Davidson model by checking our Compatibility Chart on the details page below.
