Boss Elite

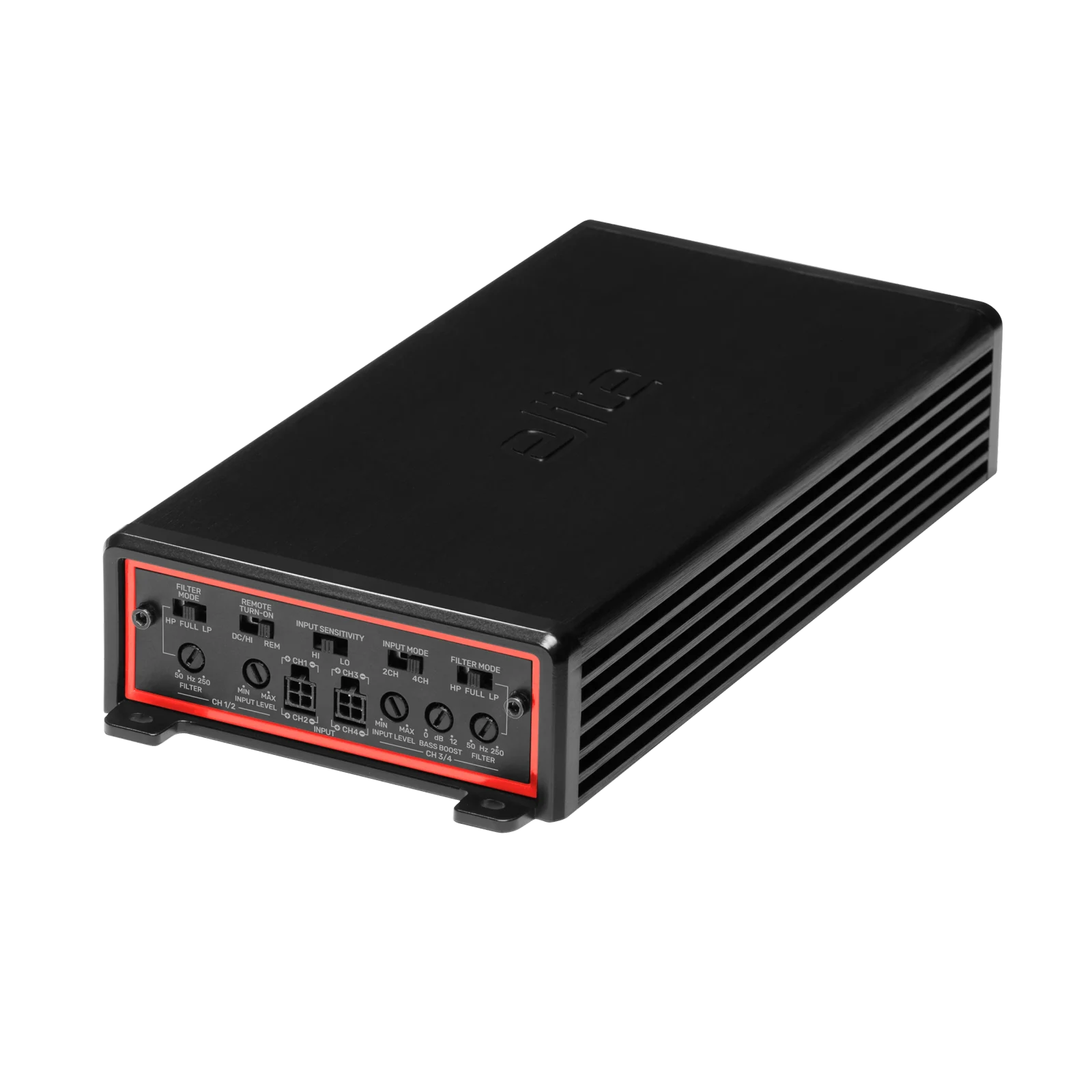

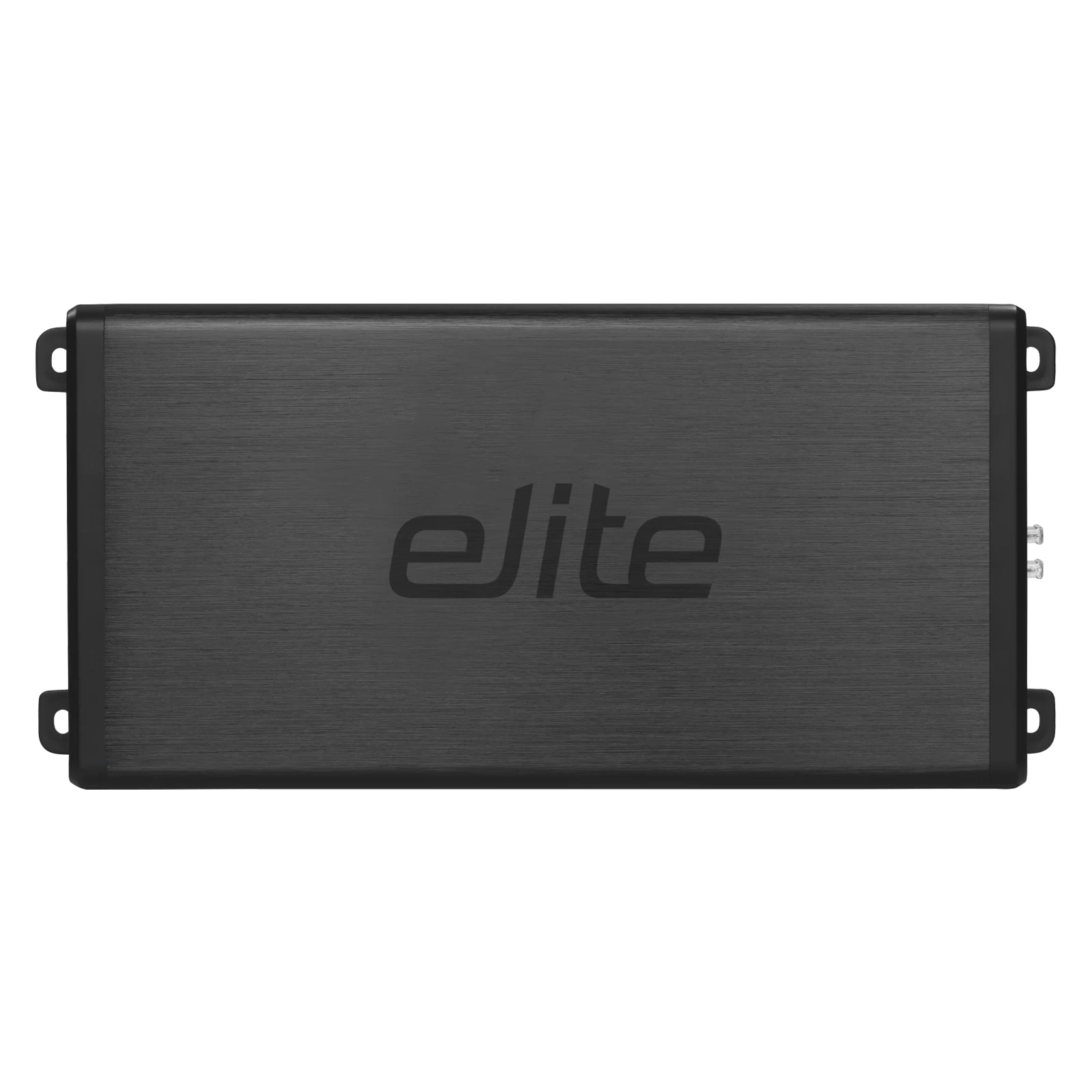

BE600.4D4-Channel Class D Amplifier
The Boss Elite BE600.4D is organized here as a 4-Channel Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front.
Highlights
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Full Range 4-Channel Class D Amplifier
- High Pass and Low Pass Filters 50Hz-250Hz
Key specs
Full specs- Amp Topology
- Full Range, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 600 Watts
- Peak Power @ 2 Ω
- 350 Watts
- Peak Power @ 4 Ω
- 200 Watts
- RMS Power @ 2 Ω
- 350 Watts
- RMS Power @ 4 Ω
- 200 Watts
- Speaker Impedance
- 1 Ω
Key specs
Full specs- Amp Topology
- Full Range, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 600 Watts
- Peak Power @ 2 Ω
- 350 Watts
Highlights
Overview- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Full Range 4-Channel Class D Amplifier
Overview
The Boss Elite BE600.4D is organized here as a 4-Channel Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include PWM MOSFET Power Supply, Thermal, Short and Overload Protection Circuits, Full Range 4-Channel Class D Amplifier.
Best for
- Amplifiers - 4ch
- car audio power upgrades
- Car audio upgrades
- Powering multi-speaker car audio systems
Key points
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Full Range 4-Channel Class D Amplifier
- High Pass and Low Pass Filters 50Hz-250Hz
- Bass Boost 0dB- +12dB
- RCA or Speaker Level Inputs
Fit and use
Check the listed dimensions, connection options, and power ratings against the vehicle and system plan before ordering. The specification table keeps the source measurements and electrical details available for comparison.
What to know
This content is normalized from Boss Elite product data and Automob category/inventory data. Use the specs and manuals on the page for final confirmation before installation.
Highlights
Key features
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Full Range 4-Channel Class D Amplifier
- High Pass and Low Pass Filters 50Hz-250Hz
- Bass Boost 0dB- +12dB
- RCA or Speaker Level Inputs
More info
- Bridgeable
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Full Range 4-Channel Class D Amplifier
- High Pass and Low Pass Filters 50Hz-250Hz
- Bass Boost 0dB- +12dB
- RCA or Speaker Level Inputs
- Low Level Input Voltage 400mV-4V
- High Level Input Voltage 4V-40V
- 100W RMS X 4 CH @ 4Ω
- 150W RMS X 4 CH @ 2Ω
- 300W RMS x 2 CH @ 4Ω Bridged
Specs
General Specs
2
| Amp Topology | Full Range, Class D |
| Power Supply Type | MOSFET Power Supply Watts |
Performance Specs
9
| Total Power Output | 600 Watts |
| Peak Power @ 2 Ω | 350 Watts |
| Peak Power @ 4 Ω | 200 Watts |
| RMS Power @ 2 Ω | 350 Watts |
| RMS Power @ 4 Ω | 200 Watts |
| Speaker Impedance | 1 Ω |
| T.H.D. (Total Harmonic Distortion) | 0.01 % |
| Channel Separation ≥ | 90 dB |
| Frequency Response | 10 Hz to 20 kHz ±1 dB |

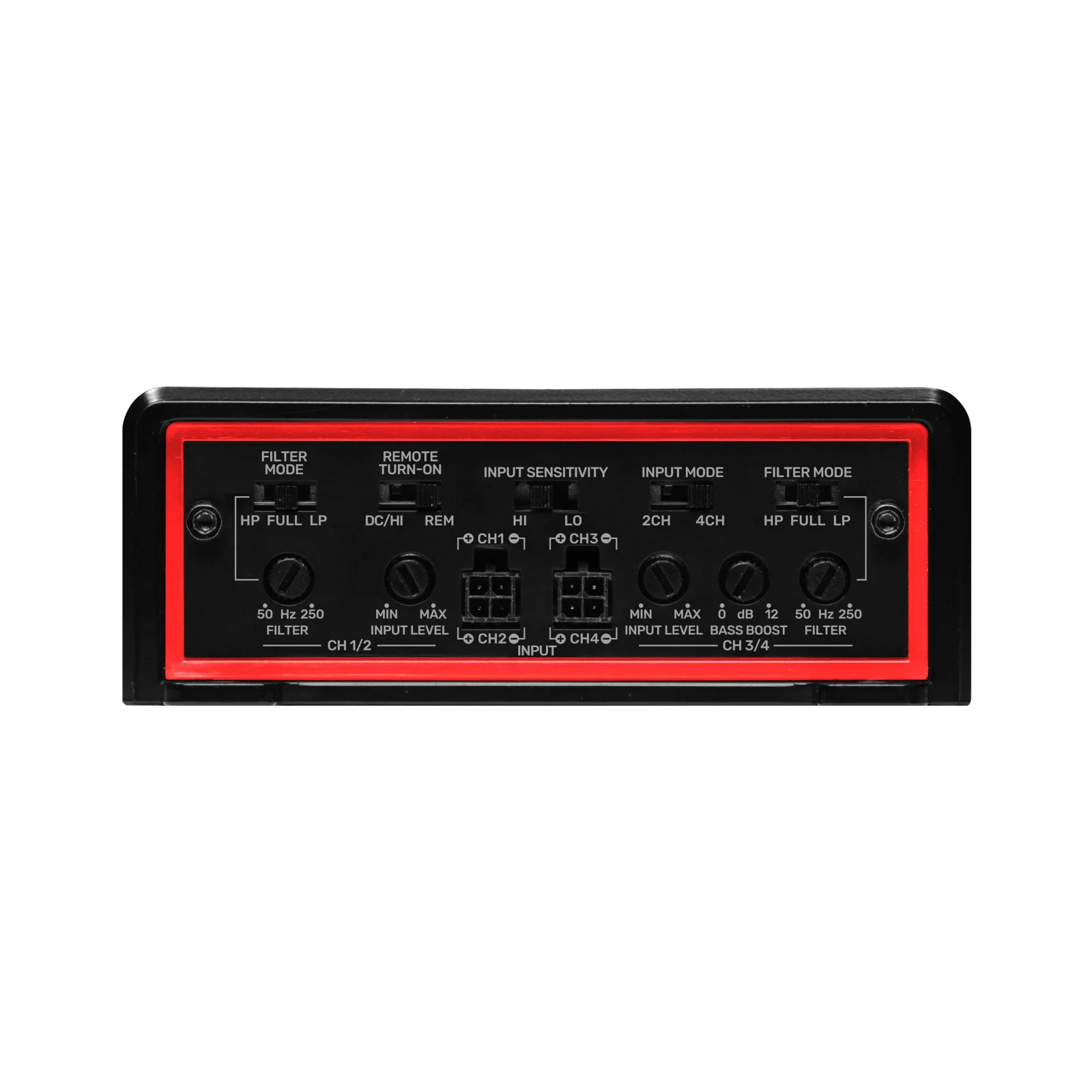

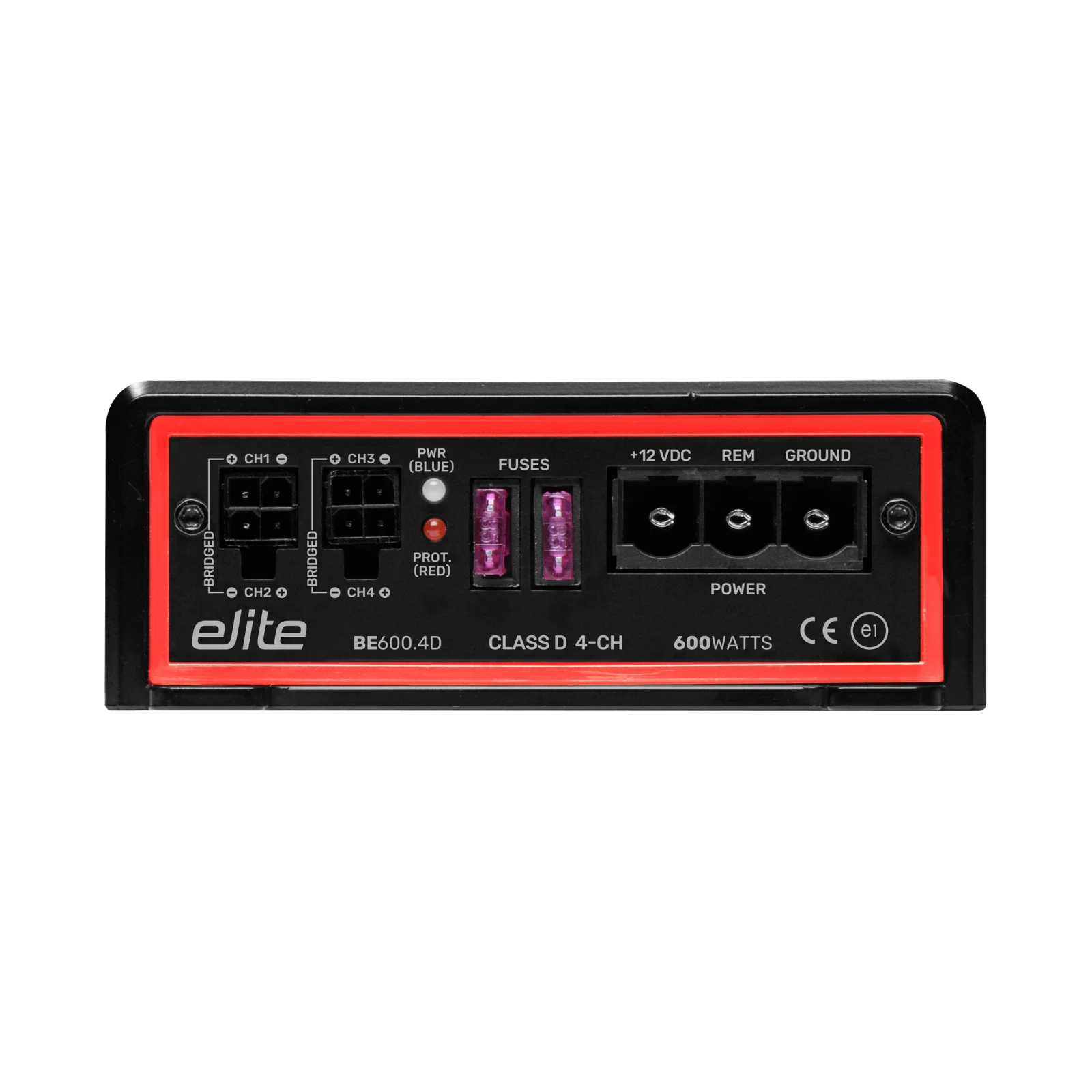

Connections, Controls, and Processing
8
| RCA Inputs | 4 Channel |
| High Level Inputs | YES |
| Low Pass Filter | 50 Hz |
| High-Pass Filter | Variable |
| Bass Boost | Variable |
| Subwoofer Level Control | YES |
| Input Sensitivity Switch | YES |
| Thermal/Overload/Short Protection | YES |
Measurement
2
| Length | 4.57 " |
| Width | 9.76 " |
Additional Specs
2
| Unit Weight lbs | 3.0 |
| Qty Comes In Box | 1 |
