Boss Elite

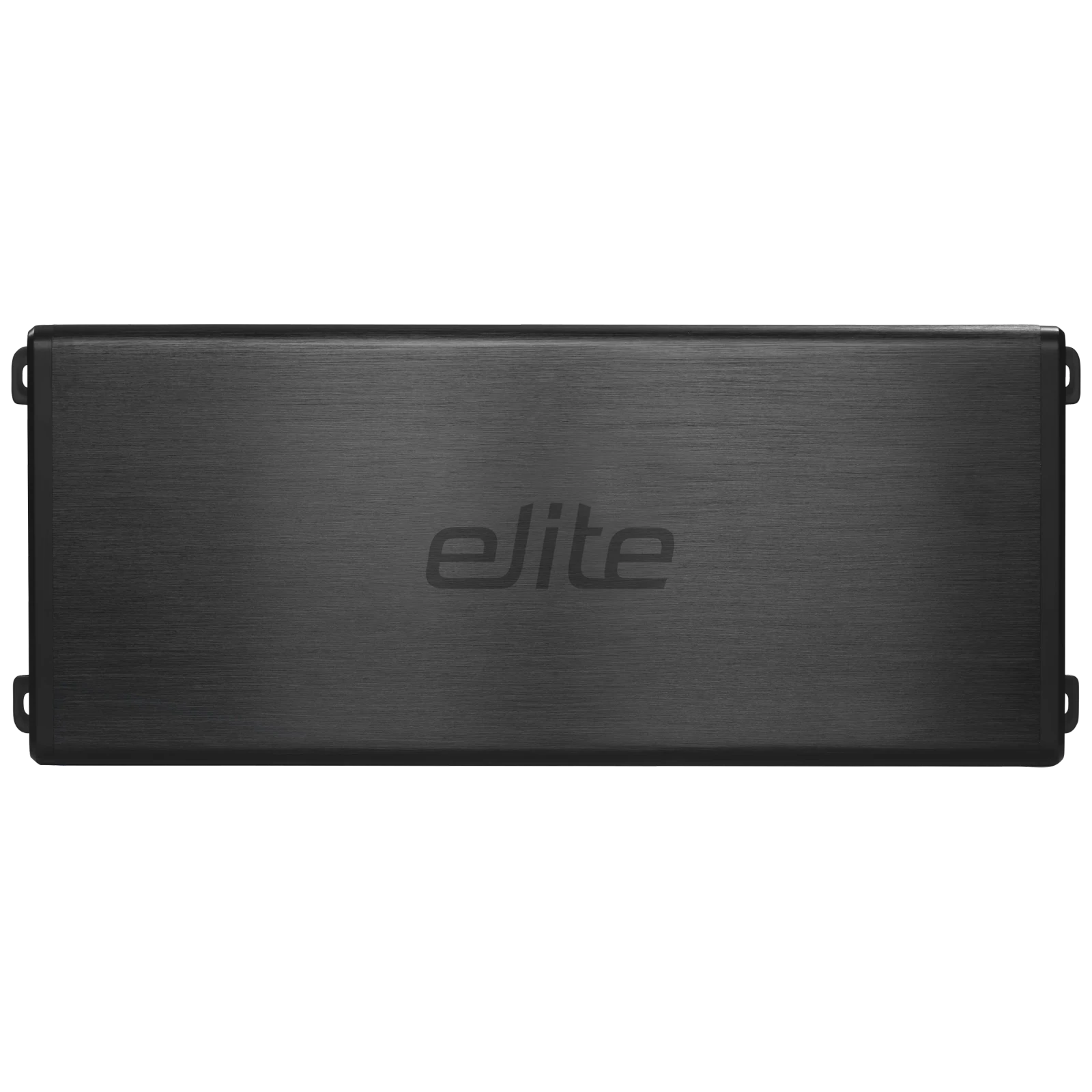

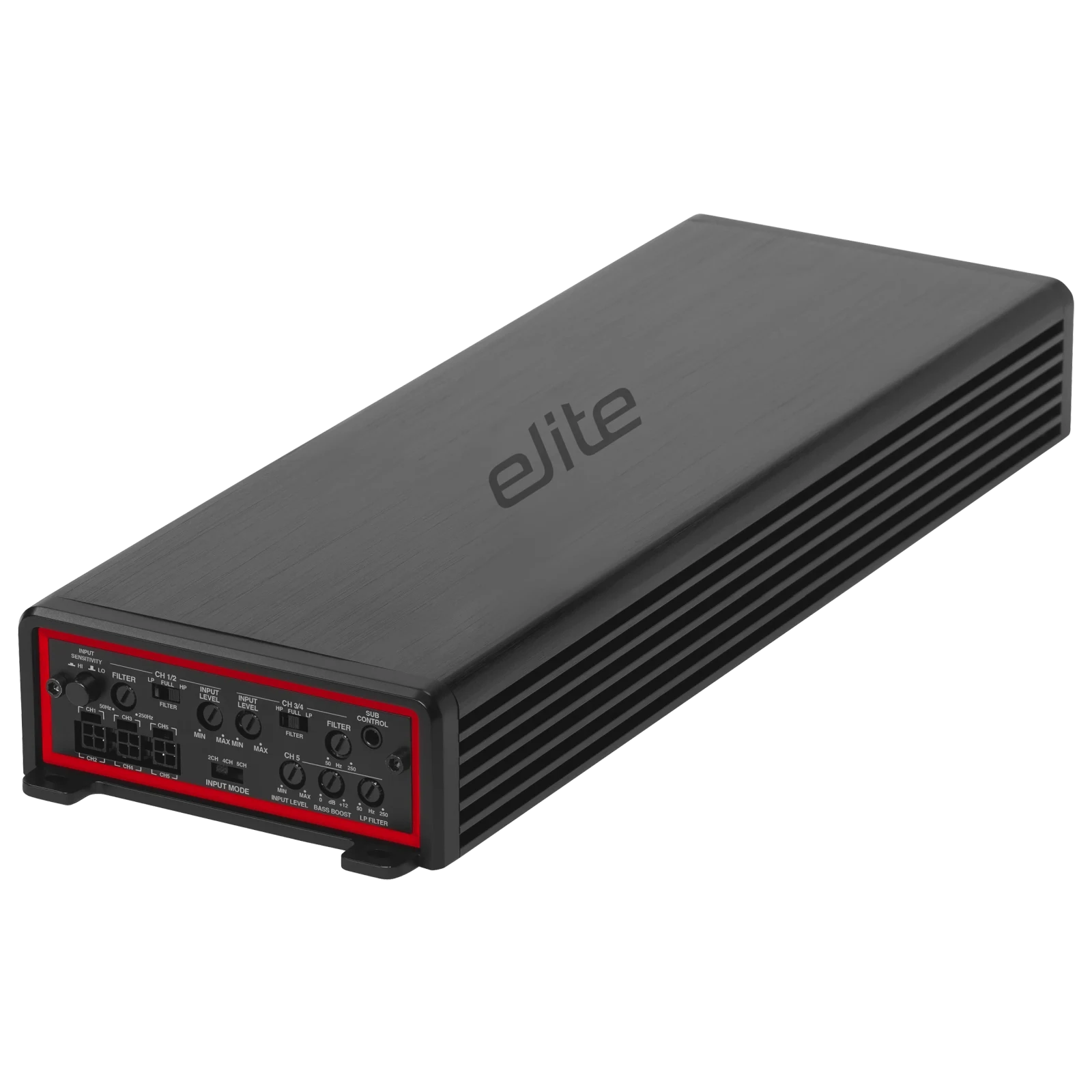

BE830.5D5-Channel Class D Amplifier
The Boss Elite BE830.5D is organized here as a 5-Channel Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include Full Range 5 Channel Class D Amplifier, High Pass and Low Pass Filters, Bass Boost.
Highlights
- Full Range 5 Channel Class D Amplifier
- High Pass and Low Pass Filters
- Bass Boost
- RCA & Speaker Level Inputs
Key specs
Full specs- Amp Topology
- Full Range, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 830 Watts
- Peak Power @ 2 Ω
- 95 Watts
- Peak Power @ 4 Ω
- 60 Watts
- Bridged Power @ 4 Ω
- 190 Watts
- RMS Power @ 2 Ω
- 95 Watts
- RMS Power @ 4 Ω
- 60 Watts
Key specs
Full specs- Amp Topology
- Full Range, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 830 Watts
- Peak Power @ 2 Ω
- 95 Watts
Highlights
Overview- Full Range 5 Channel Class D Amplifier
- High Pass and Low Pass Filters
- Bass Boost
Overview
The Boss Elite BE830.5D is organized here as a 5-Channel Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include Full Range 5 Channel Class D Amplifier, High Pass and Low Pass Filters, Bass Boost.
Best for
- Amplifiers - 5ch
- car audio power upgrades
- Car audio upgrades
- Powering multi-speaker car audio systems
Key points
- Full Range 5 Channel Class D Amplifier
- High Pass and Low Pass Filters
- Bass Boost
- RCA & Speaker Level Inputs
- PWM MOSFET Power Supply
- Remote Subwoofer Control
Fit and use
Check the listed dimensions, connection options, and power ratings against the vehicle and system plan before ordering. The specification table keeps the source measurements and electrical details available for comparison.
What to know
This content is normalized from Boss Elite product data and Automob category/inventory data. Use the specs and manuals on the page for final confirmation before installation.
Highlights
Key features
- Full Range 5 Channel Class D Amplifier
- High Pass and Low Pass Filters
- Bass Boost
- RCA & Speaker Level Inputs
- PWM MOSFET Power Supply
- Remote Subwoofer Control
More info
- Full Range 5 Channel Class D Amplifier
- High Pass and Low Pass Filters
- Bass Boost
- RCA & Speaker Level Inputs
- Bridgeable
- PWM MOSFET Power Supply
- Remote Subwoofer Control
- LED Illuminated End Panels
- Thermal, Short and Overload Protection Circuits
- High Pass and Low Pass Filters 50Hz-250Hz
- Bass Boost 0dB- +12dB
- Remote Subwoofer Level Control
- RCA or Speaker Level Inputs
- Low Level Input Voltage 400mV-4V
- High Level Input Voltage 4V-40V
- 60W RMS X 4 CH @ 4Ω
- 95W RMS X 4 CH @ 2Ω
- 190W RMS x 2 CH @ 4Ω Bridged
Specs
General Specs
2
| Amp Topology | Full Range, Class D |
| Power Supply Type | MOSFET Power Supply Watts |
Performance Specs
11
| Total Power Output | 830 Watts |
| Peak Power @ 2 Ω | 95 Watts |
| Peak Power @ 4 Ω | 60 Watts |
| Bridged Power @ 4 Ω | 190 Watts |
| RMS Power @ 2 Ω | 95 Watts |
| RMS Power @ 4 Ω | 60 Watts |
| Bridged RMS Power @ 4 Ω | 190 Watts |
| Speaker Impedance | 2 to 8 Ω |
| T.H.D. (Total Harmonic Distortion) | 0.01 % |
| Channel Separation ≥ | 90 dB |
| Frequency Response | 10 Hz to 20 kHz ±1 dB |
Connections, Controls, and Processing
8
| RCA Inputs | 6 Channel |
| High Level Inputs | YES |
| Low Pass Filter | 50 Hz |
| High-Pass Filter | Variable |
| Bass Boost | Variable |
| Subwoofer Level Control | YES |
| Input Sensitivity Switch | YES |
| Thermal/Overload/Short Protection | YES |
Extra Features
1
| SPECS_01 | External fuse and fuse holder not included. |
Measurement
2
| Length | 4.57 " |
| Width | 11.34 " |
Additional Specs
2
| Unit Weight lbs | 4.06 |
| Qty Comes In Box | 1 |
