1 / 6
Cerwin Vega

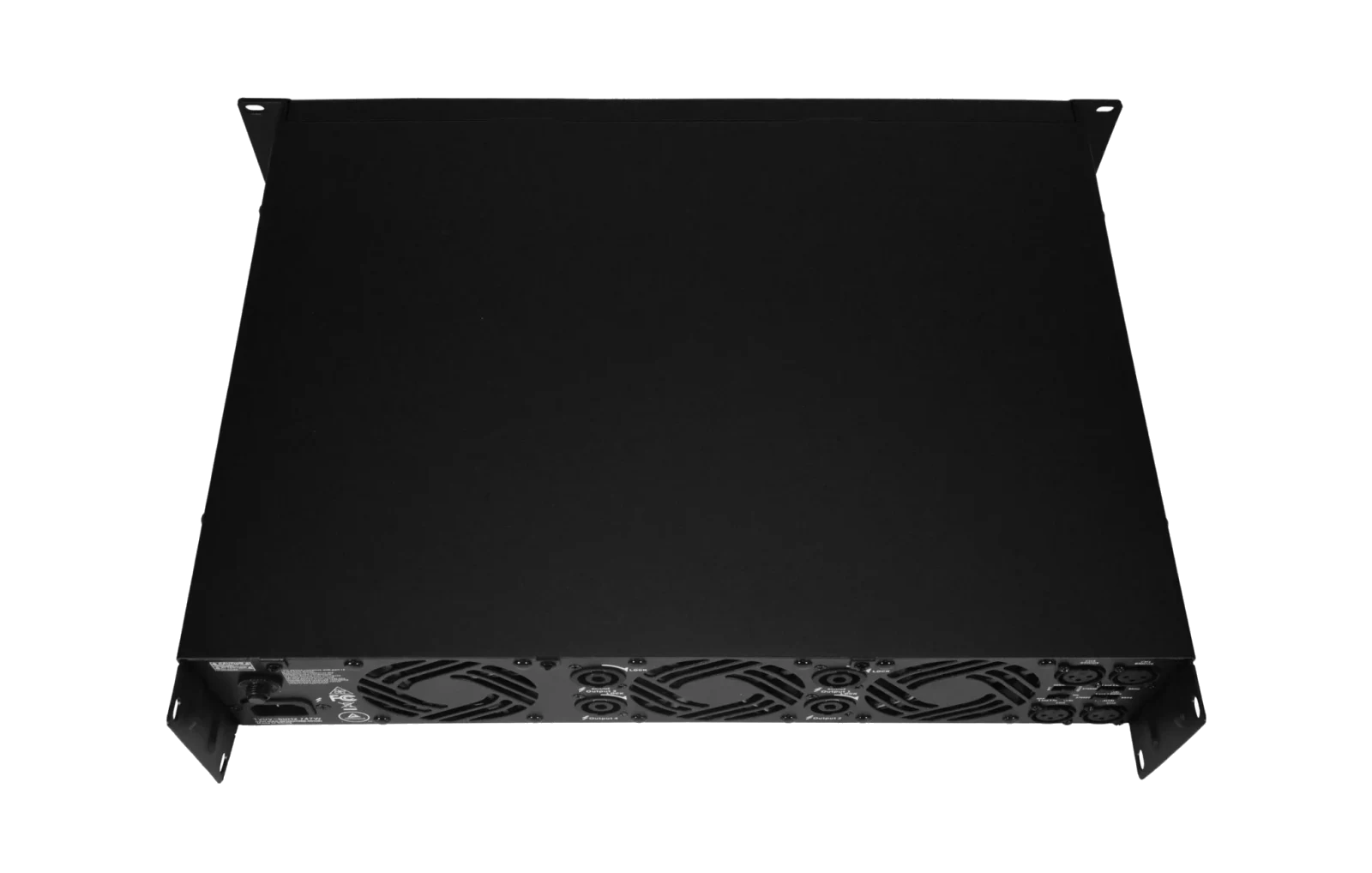

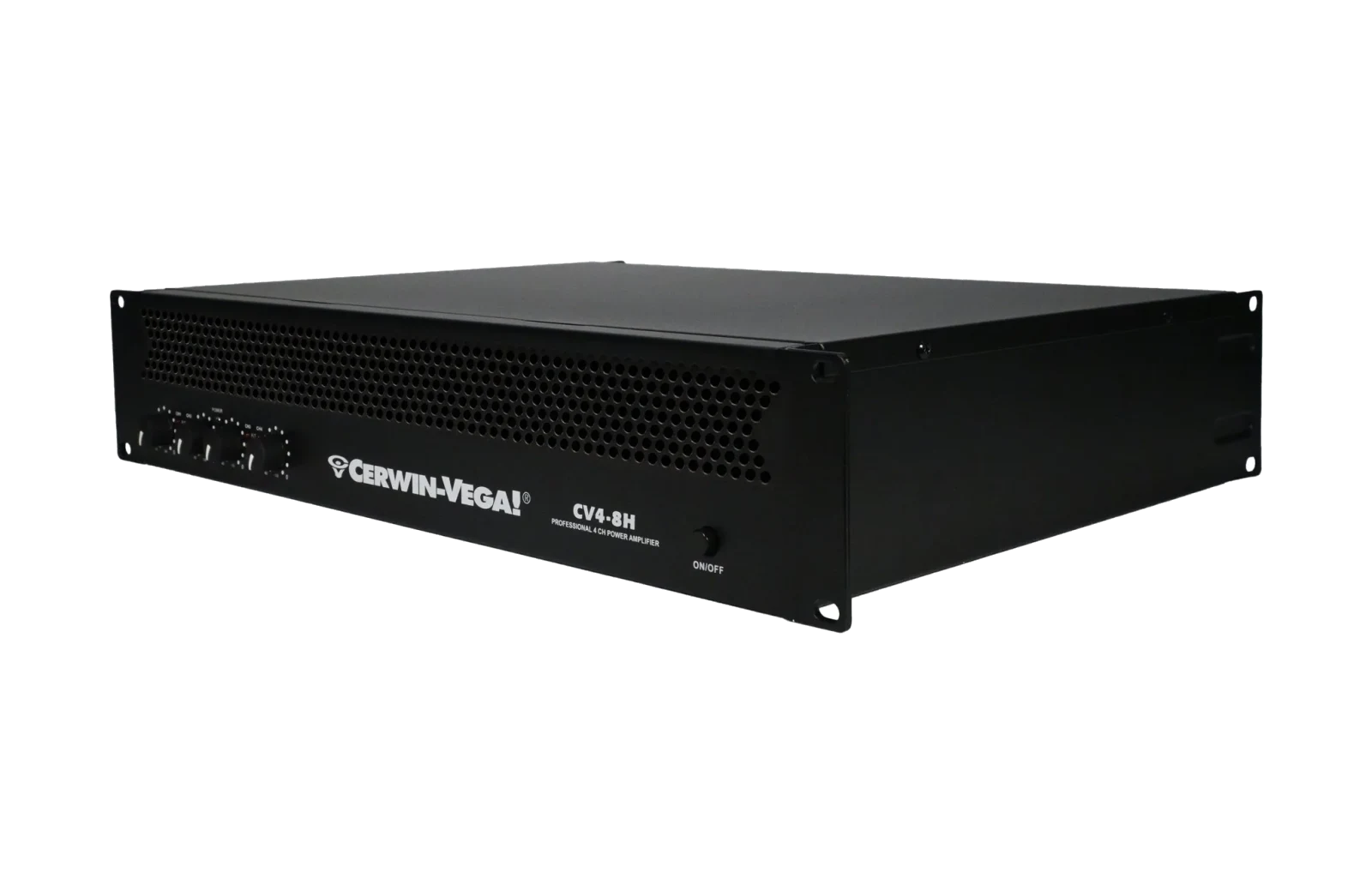

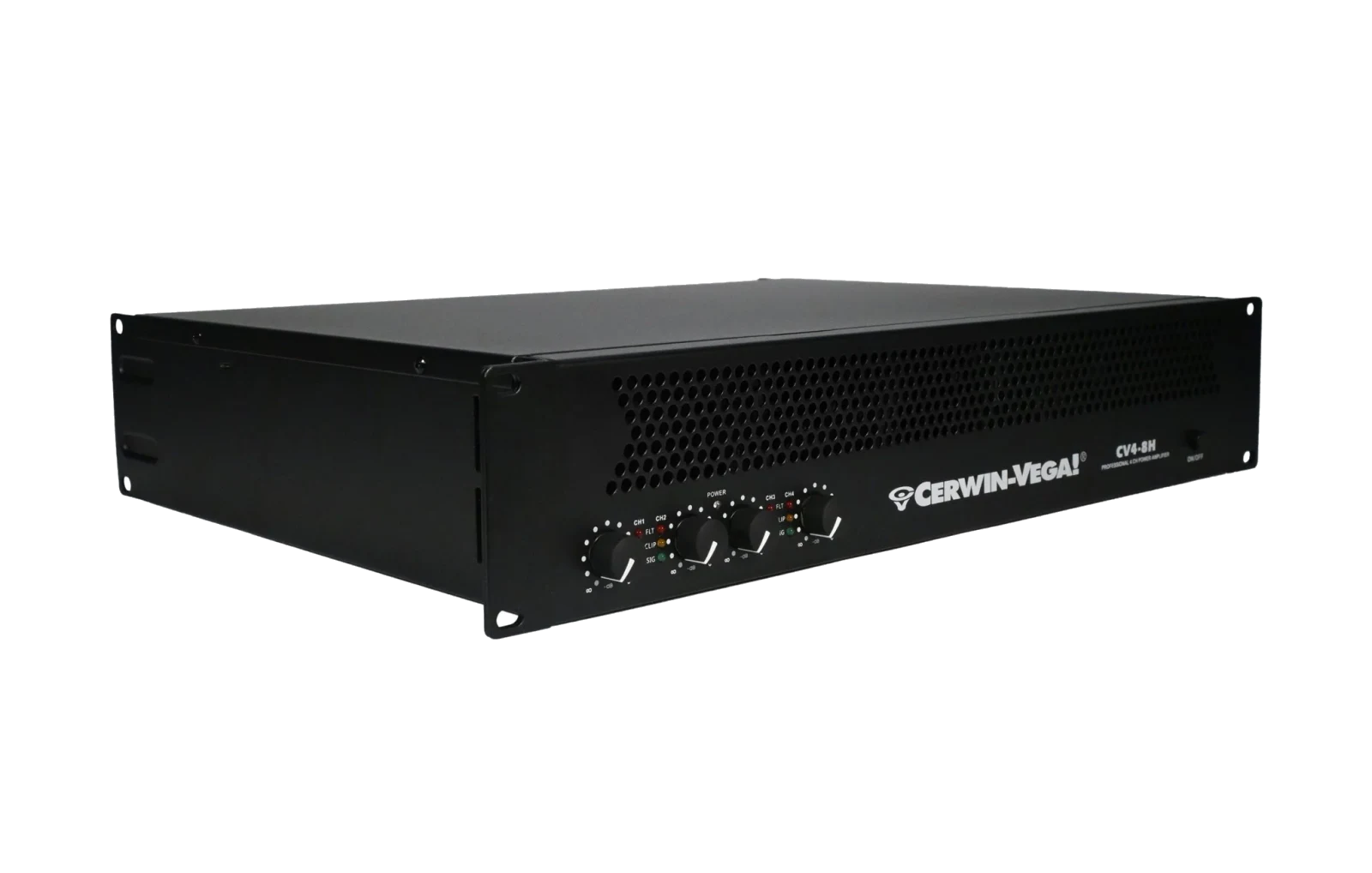

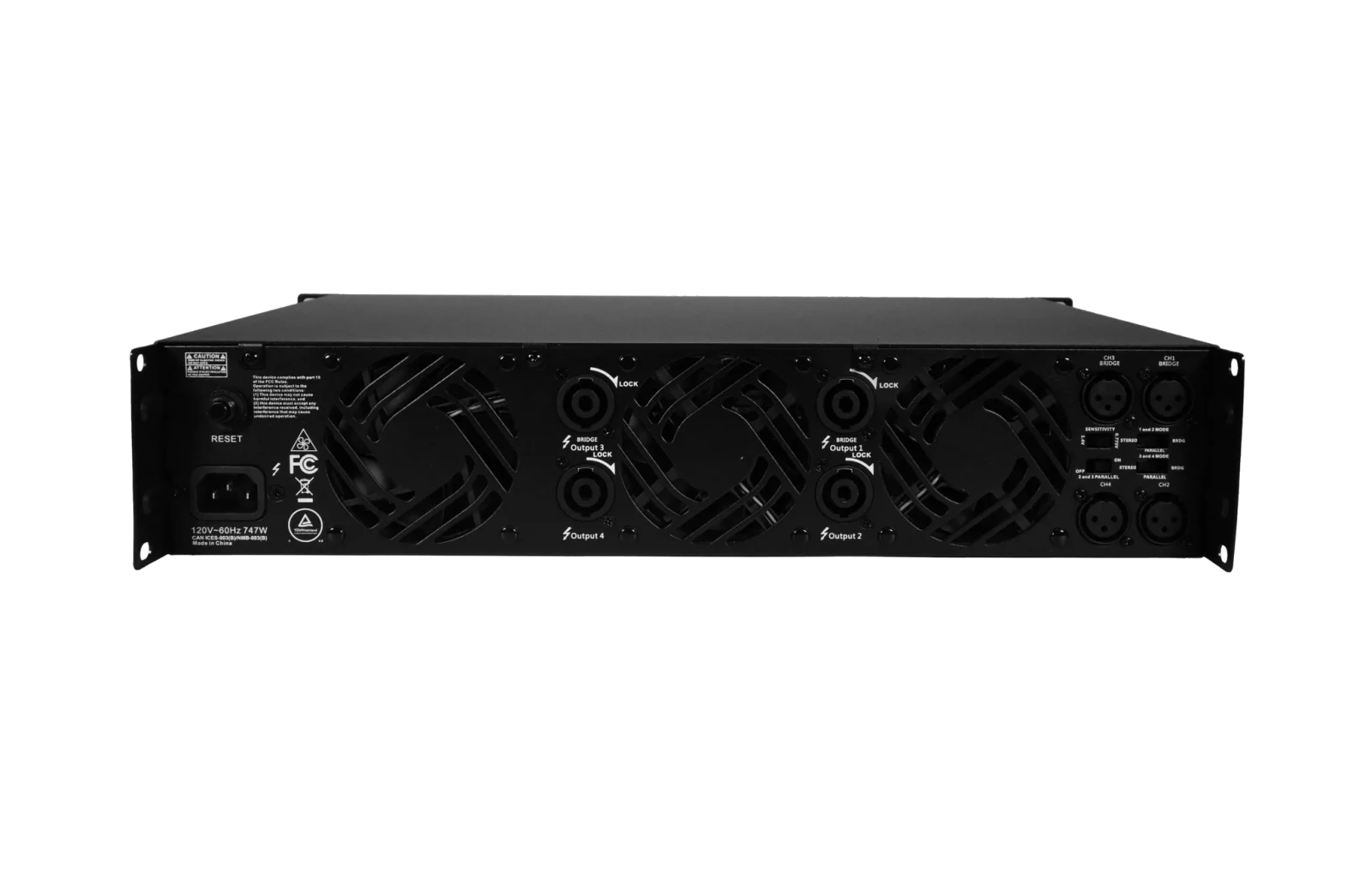

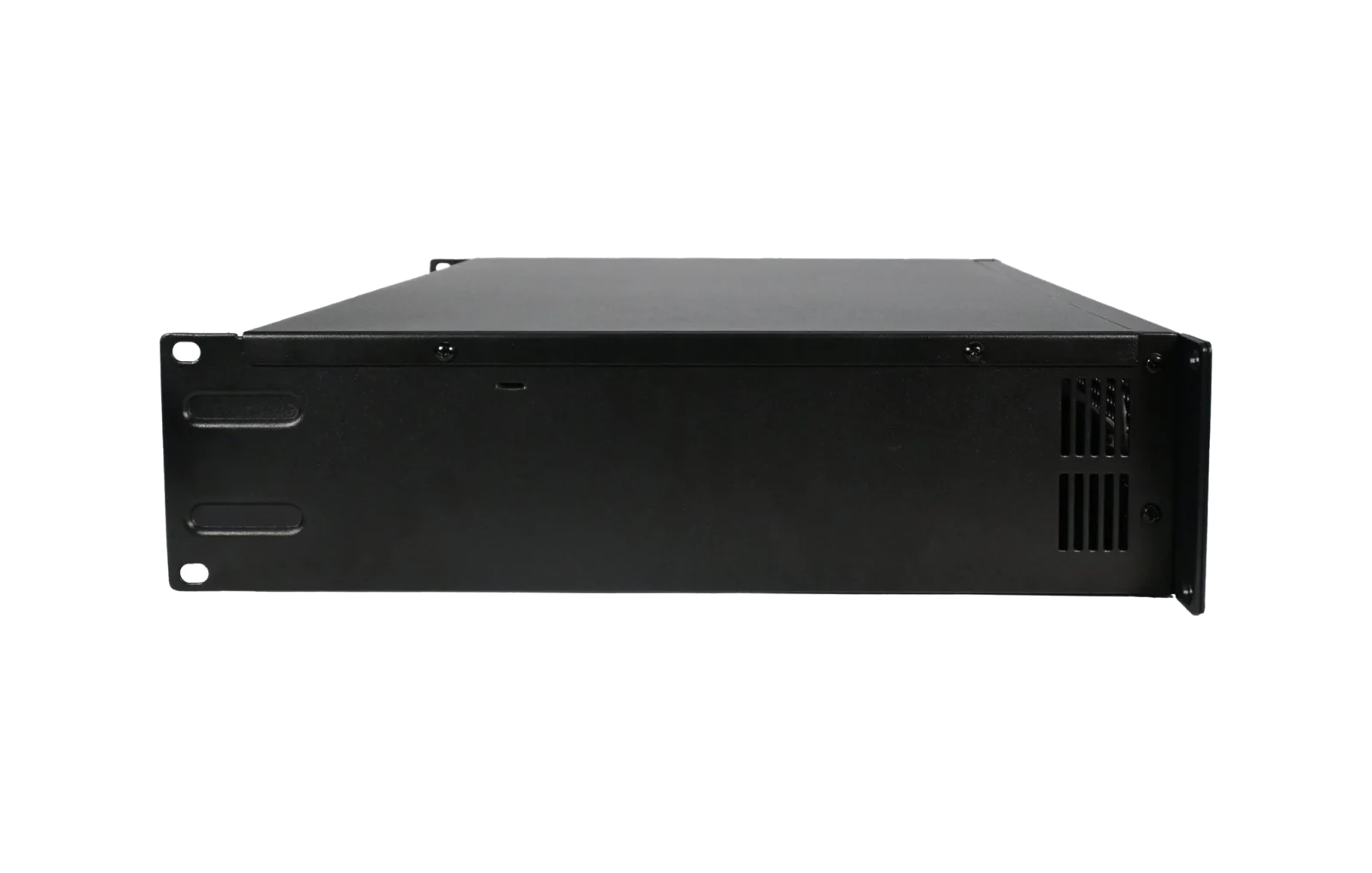

Cerwin Vega CV4-8HCV4-8H 4-CH Power Audio Amplifier, 1420W
4 Channel Power Amplifier, 1420W 120V-bridging 8Ω Command the stage with the Cerwin-Vega CV2 & CV4 Series, the professional power amplifiers engineered for the demands of any DJ set, live band, or large-scale event.
Key specs
Full specs- Frequency Response
- 20Hz - 20kHz, +0/-1dB (at 1 Watt)
- Signal-to-Noise Ratio
- >100dB (A-weighted)
- Total Harmonic Distortion (THD)
- <0.5%, 20Hz - 20kHz
- Intermodulation Distortion (IMD)
- <0.35% (60Hz & 7kHz at 4:1 from full output to -30dB)
- Damping Factor
- >200 (at 8Ω, 10Hz - 400Hz)
- Crosstalk
- -75dB at 1kHz, -58dB at 20kHz
- Slew Rate
- >20V/μs
- Voltage Gain
- 33dB
Key specs
Full specs- Frequency Response
- 20Hz - 20kHz, +0/-1dB (at 1 Watt)
- Signal-to-Noise Ratio
- >100dB (A-weighted)
- Total Harmonic Distortion (THD)
- <0.5%, 20Hz - 20kHz
- Intermodulation Distortion (IMD)
- <0.35% (60Hz & 7kHz at 4:1 from full output to -30dB)
Overview
4 Channel Power Amplifier, 1420W 120V-bridging 8Ω
Command the stage with the Cerwin-Vega CV2 & CV4 Series, the professional power amplifiers engineered for the demands of any DJ set, live band, or large-scale event. These powerhouses deliver massive, clean wattage with breathtaking headroom, ensuring your sound remains crystal-clear and free of distortion, even when pushed to the limit. With exceptional audio fidelity and ultra-low distortion, the CV2 & CV4 Series reproduces every note with the stunning impact and clarity that your live performance deserves.
Built to withstand the rigors of the road, each amplifier features a rugged 2U rack-mountable chassis, advanced flow-through cooling, and comprehensive protection circuitry for tour-grade reliability. Choose the 2-channel CV2 Series to drive your main speakers or subs with authority, or select the versatile 4-channel CV4 Series to effortlessly power a complete stage setup of mains and monitors from a single, efficient unit. Power your passion with the unflinching performance of the Cerwin-Vega CV Series.
Specs
Specifications
20
| Frequency Response | 20Hz - 20kHz, +0/-1dB (at 1 Watt) |
| Signal-to-Noise Ratio | >100dB (A-weighted) |
| Total Harmonic Distortion (THD) | <0.5%, 20Hz - 20kHz |
| Intermodulation Distortion (IMD) | <0.35% (60Hz & 7kHz at 4:1 from full output to -30dB) |
| Damping Factor | >200 (at 8Ω, 10Hz - 400Hz) |
| Crosstalk | -75dB at 1kHz, -58dB at 20kHz |
| Slew Rate | >20V/μs |
| Voltage Gain | 33dB |
| 8Ω Stereo Power (per Ch.) | 2 x 320W |
| 4Ω Stereo Power (per Ch.) | 2 x 490W |
| Bridge Mono Power | 1420W |
| Input Sensitivity | 0.775V or 1.4V |
| Input Impedance | 20kΩ (Balanced), 10kΩ (Unbalanced) |
| Chassis | Standard E.I.A International Standard, 2U Rack Mountable |
| Dimensions (H) | 88 mm (3.5 inches) |
| Protection | Short circuit, no-load, on/off muting, RF interference |
| Cooling | Flow-through ventilation with forced air and thermal protection |
| Power Cord | Plug: 10A, 120VAC / Wire: 3x1.0mm² |
| Net Weight | 8 kg/ 17.64 lbs. |
| Chassis Dimensions | 482 x 227 x 88mm |
