Audison

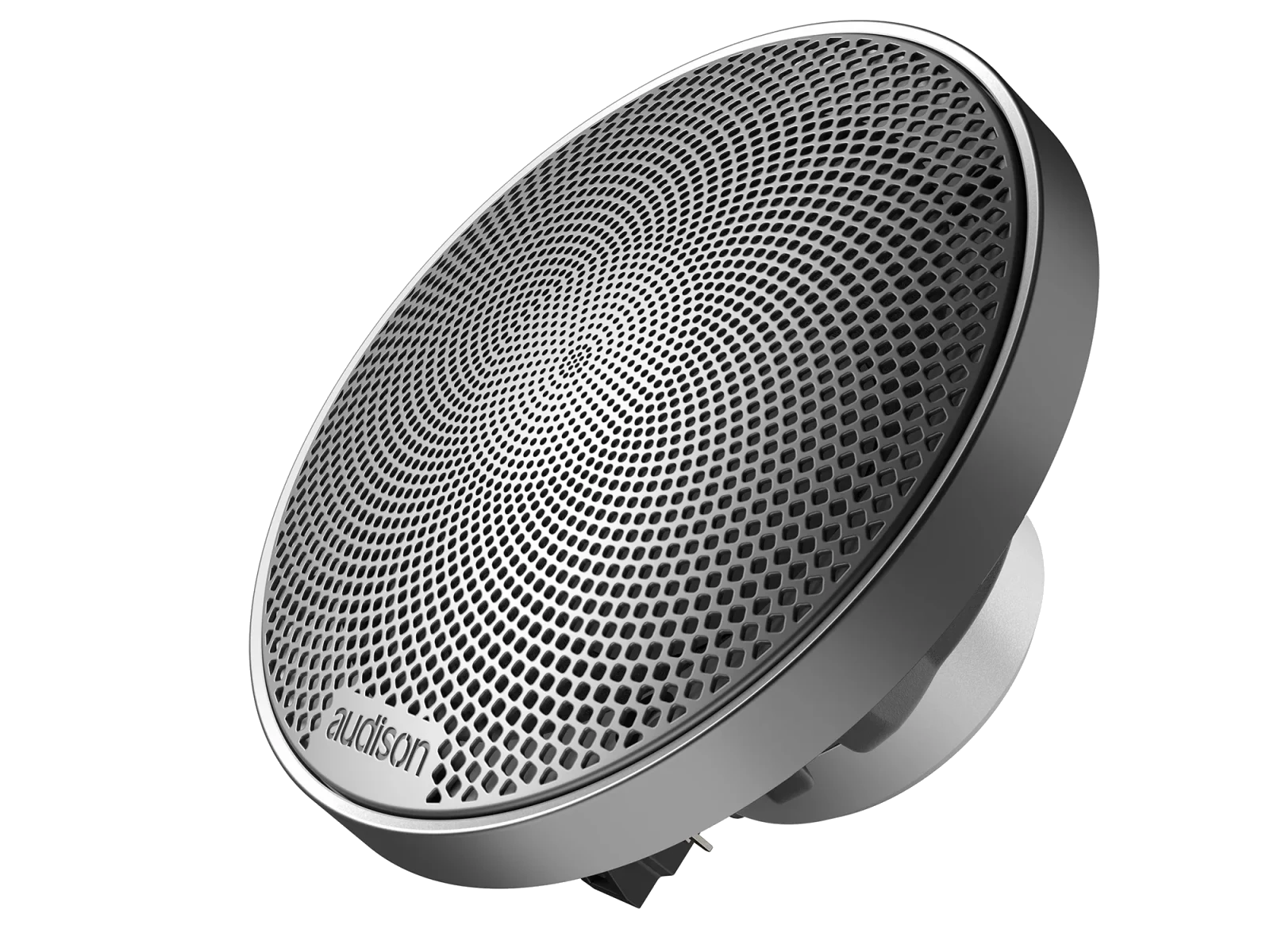

AV3.0IIAV3.0II Speaker Grille
FEM-Designed Cone Geometry: Ensures uniform sound dispersion across all listening angles, optimizing directivity and reducing irregularities for an impeccable listening experience.
Highlights
- FEM-Designed Cone Geometry: Ensures uniform sound dispersion across all listening angles, optimizing directivity and reducing irregularities for an impeccable listening experience.
- Oversized Neodymium Magnet: Provides exceptional thermal stability, ensuring consistent dynamic performance and optimal power reserve under all listening conditions.
- Magnetic Circuit Geometry Optimized with FEM: Maximizes efficiency by focusing the magnetic field on the coil for more precise, dynamic sound and improved midrange response.
- Semi-Pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for clean, undistorted midrange reproduction with a wide frequency response, enhancing sound clarity.
Key specs
Full specs- Nominal diameter
- 70 mm (3 in)
- Minimum Impedance
- 3.2 Ohm
- Power Handling - Peak
- 100 W
- Power Handling - Continuous
- 50 W
- Sensitivity
- 90 dB
- Frequency Response
- 160 ÷ 13000 Hz
- Voice Coil Ø
- 26 mm
- Chassis Material
- ALUMINIUM
Key specs
Full specs- Nominal diameter
- 70 mm (3 in)
- Minimum Impedance
- 3.2 Ohm
- Power Handling - Peak
- 100 W
- Power Handling - Continuous
- 50 W
Highlights
Overview- FEM-Designed Cone Geometry: Ensures uniform sound dispersion across all listening angles, optimizing directivity and reducing irregularities for an impeccable listening experience.
- Oversized Neodymium Magnet: Provides exceptional thermal stability, ensuring consistent dynamic performance and optimal power reserve under all listening conditions.
- Magnetic Circuit Geometry Optimized with FEM: Maximizes efficiency by focusing the magnetic field on the coil for more precise, dynamic sound and improved midrange response.
Overview
- FEM-Designed Cone Geometry: Ensures uniform sound dispersion across all listening angles, optimizing directivity and reducing irregularities for an impeccable listening experience.
- Oversized Neodymium Magnet: Provides exceptional thermal stability, ensuring consistent dynamic performance and optimal power reserve under all listening conditions.
- Magnetic Circuit Geometry Optimized with FEM: Maximizes efficiency by focusing the magnetic field on the coil for more precise, dynamic sound and improved midrange response.
- Semi-Pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for clean, undistorted midrange reproduction with a wide frequency response, enhancing sound clarity.
- CCAW Voice Coil (Copper-Clad Aluminum Wire): the 1” (26 mm) CCAW (Copper-Clad Aluminum) voice coil optimizes magnetic force and heat dissipation, allowing for high power handling and detailed midrange reproduction, even at high volumes.

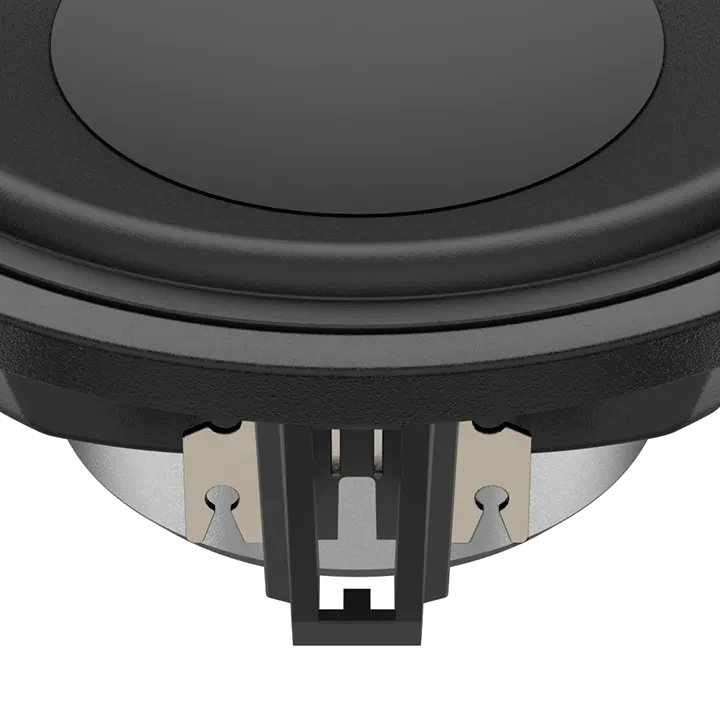

- Installation Flexibility: Equipped with OEM-style connectors, offering maximum installation versatility.
- Low Inductance Design: Optimizes upper midrange reproduction, enhancing the clarity of vocals and instruments, thanks to a copper shorting ring built-in motor.

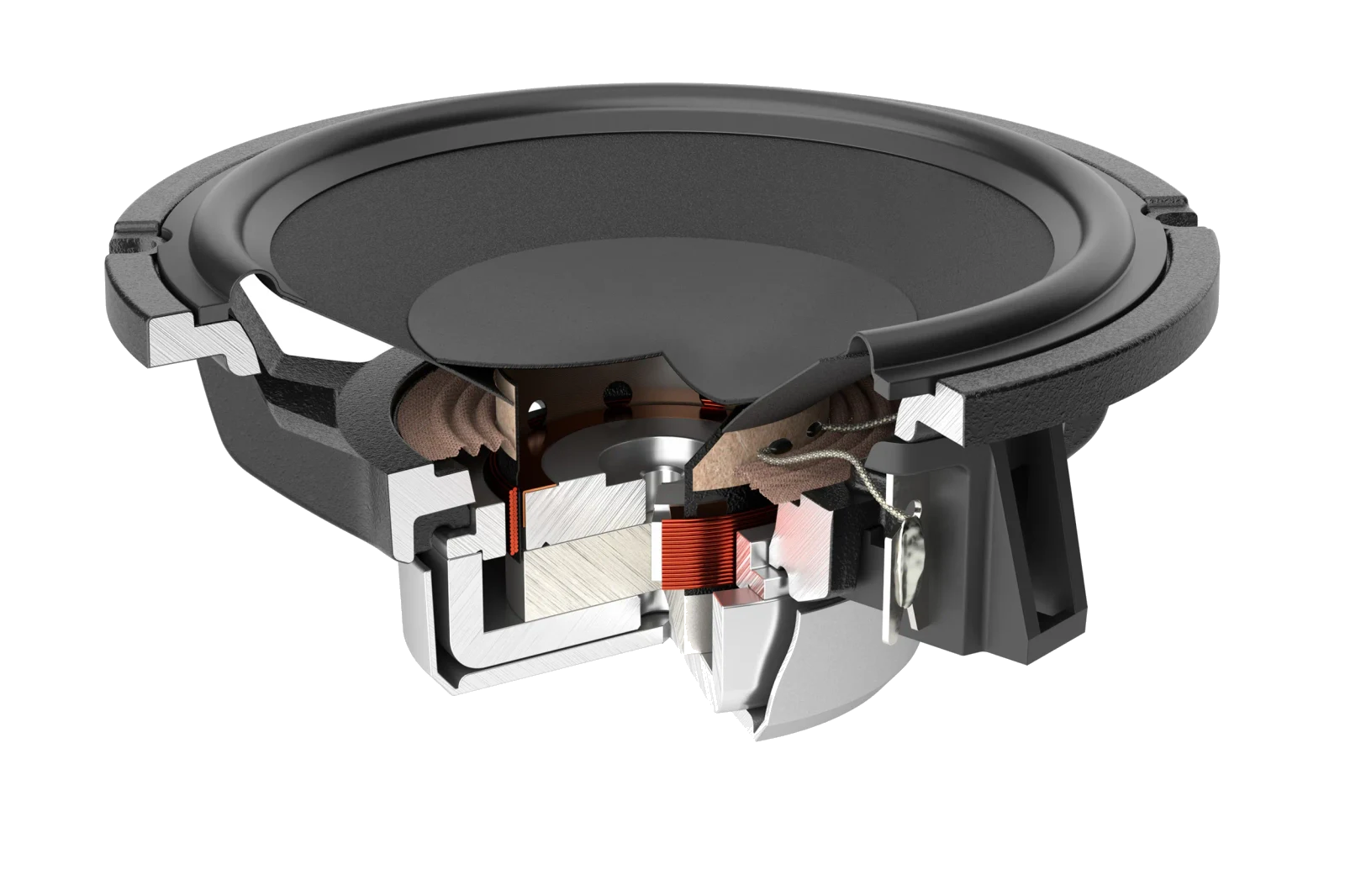

- Die-Cast Aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
- High Excursion Butyl Rubber Surround and Optimized Spider: Designed with advanced simulations for greater control over cone movement, reducing distortion even during intense sound excursions.

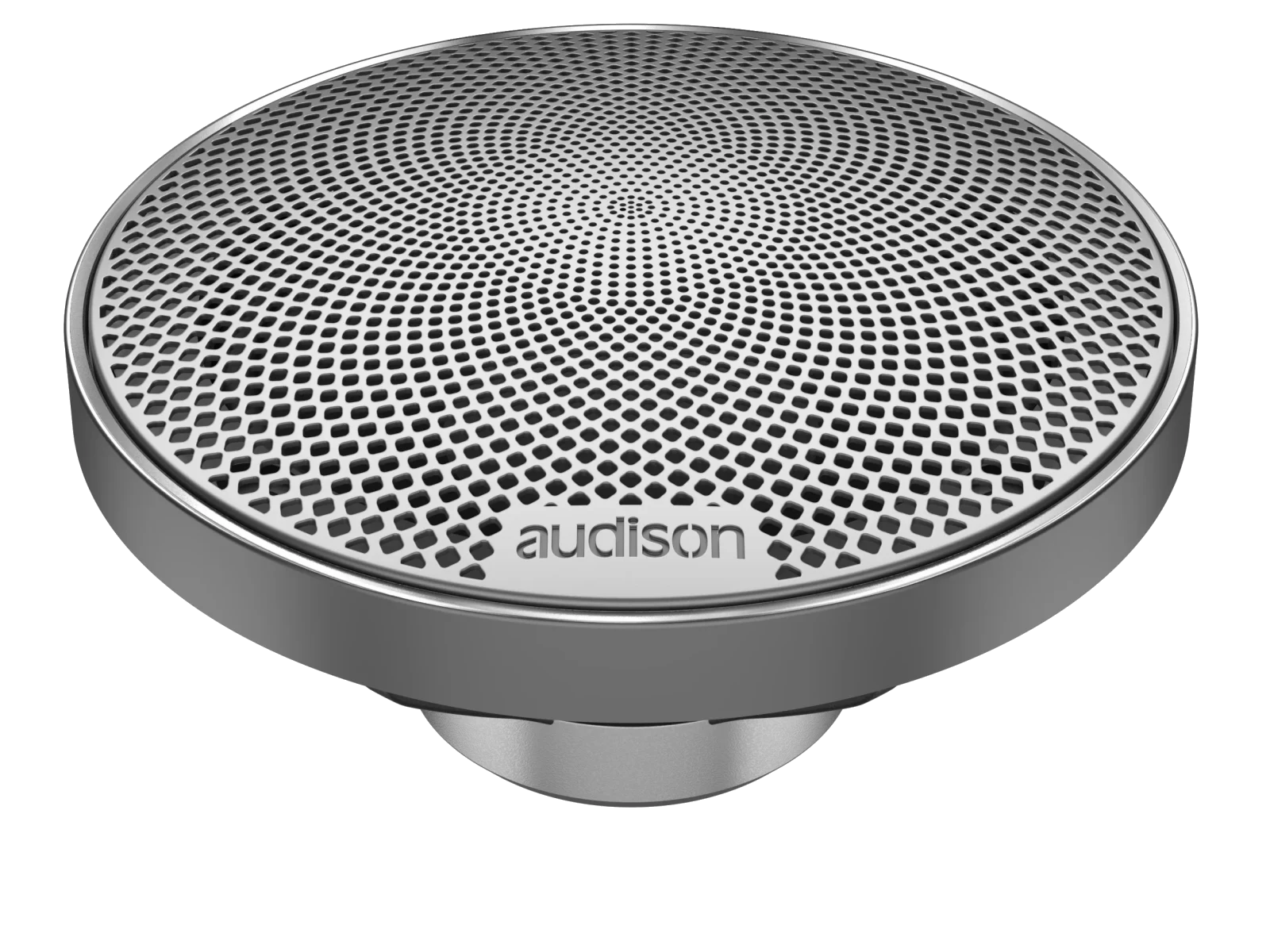

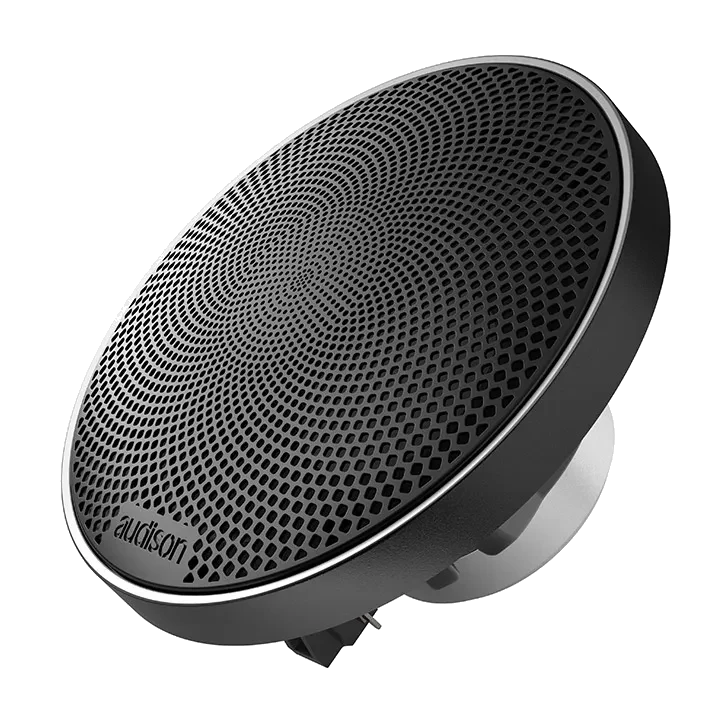

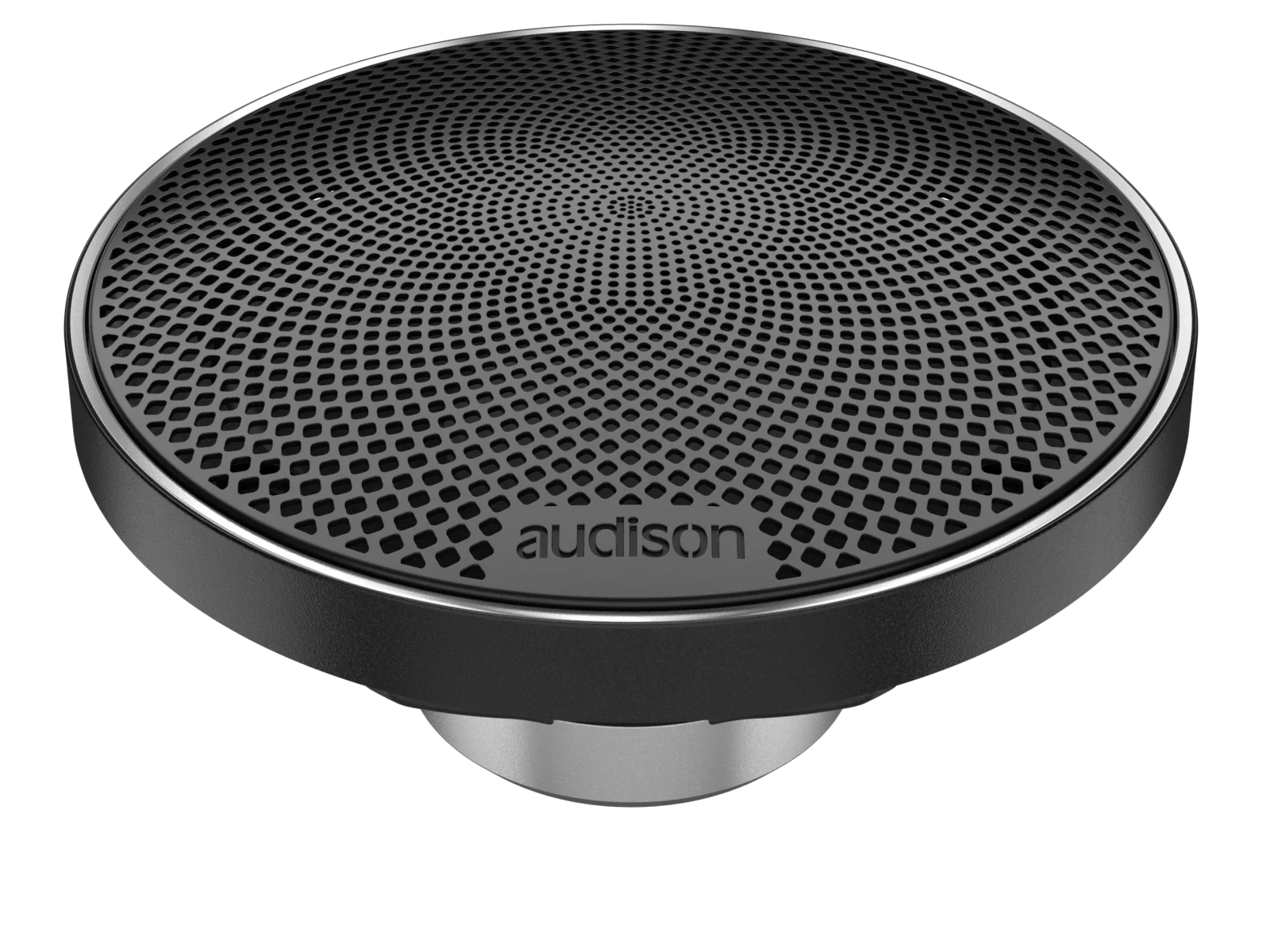

- Elegant Black Mesh Metal Grille Included: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect integration into the cabin. Includes two adhesive Audison logo badges, which are provided, allowing for personalized placement to enhance branding and aesthetics.
- eID Technology: Provides product traceability from production to the final owner, ensuring authenticity and security at every stage.

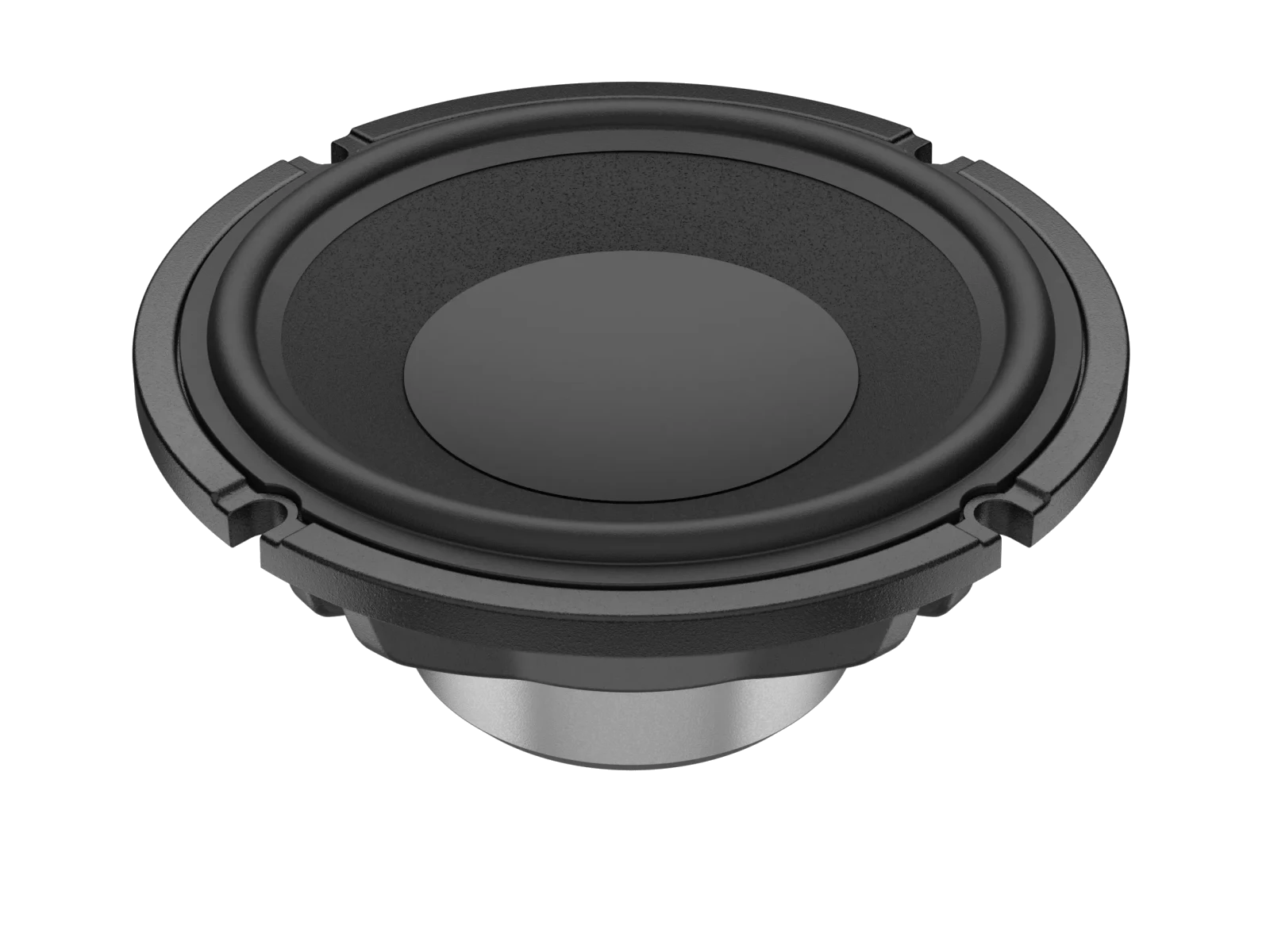

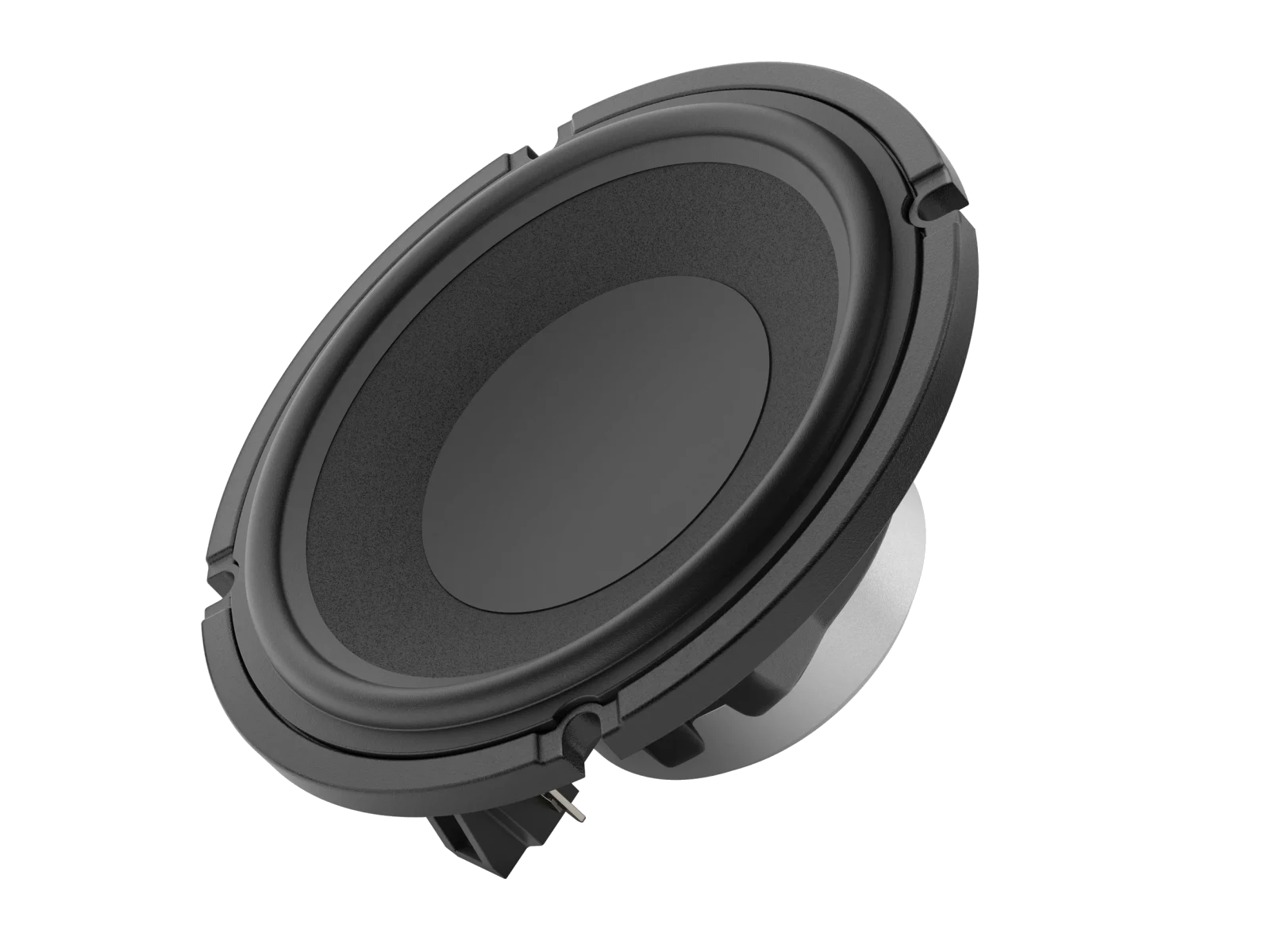

- The Audison VOCE II AV 3.0 II mid-range speaker is meticulously crafted to deliver exceptional clarity and rich detail in the crucial mid-frequency range. Featuring a specialized cone made from pressed paper with cotton fibers, the AV 3.0 II offers an ideal balance of rigidity and responsiveness, enhancing sound reproduction for today’s car audio enthusiasts. This mid-range unit integrates seamlessly into any system with its compact design and is equipped with OEM-style connectors, ensuring straightforward and versatile installation options.
Highlights
Key features
- FEM-Designed Cone Geometry: Ensures uniform sound dispersion across all listening angles, optimizing directivity and reducing irregularities for an impeccable listening experience.
- Oversized Neodymium Magnet: Provides exceptional thermal stability, ensuring consistent dynamic performance and optimal power reserve under all listening conditions.
- Magnetic Circuit Geometry Optimized with FEM: Maximizes efficiency by focusing the magnetic field on the coil for more precise, dynamic sound and improved midrange response.
- Semi-Pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for clean, undistorted midrange reproduction with a wide frequency response, enhancing sound clarity.
- CCAW Voice Coil (Copper-Clad Aluminum Wire): the 1” (26 mm) CCAW (Copper-Clad Aluminum) voice coil optimizes magnetic force and heat dissipation, allowing for high power handling and detailed midrange reproduction, even at high volumes.
- Installation Flexibility: Equipped with OEM-style connectors, offering maximum installation versatility.
- Low Inductance Design: Optimizes upper midrange reproduction, enhancing the clarity of vocals and instruments, thanks to a copper shorting ring built-in motor.
- Die-Cast Aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
- High Excursion Butyl Rubber Surround and Optimized Spider: Designed with advanced simulations for greater control over cone movement, reducing distortion even during intense sound excursions.
- Elegant Black Mesh Metal Grille Included: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect integration into the cabin. Includes two adhesive Audison logo badges, which are provided, allowing for personalized placement to enhance branding and aesthetics.
- eID Technology: Provides product traceability from production to the final owner, ensuring authenticity and security at every stage.
Specs
Technical Specs
19
| Nominal diameter | 70 mm (3 in) |
| Minimum Impedance | 3.2 Ohm |
| Power Handling - Peak | 100 W |
| Power Handling - Continuous | 50 W |
| Sensitivity | 90 dB |
| Frequency Response | 160 ÷ 13000 Hz |
| Voice Coil Ø | 26 mm |
| Chassis Material | ALUMINIUM |
| Magnet Material | NEODYMIUM |
| Magnet size D x d x h | 24.9-6 mm |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | SEMI-PRESSED PAPER |
| Surround Material | RUBBER |
| Xmax | 1.4 mm (0.06 in) |
| Xmech | 3.2 mm (0.13 in) |
| Voice Coil Winding Height | 5.3 mm (0.21 in) |
| Gap Height | 4.5 mm (0.18 in) |
| Crossover name | no |
Electric-acoustic Specs
12
| D | 35.6 cm² (5.518 in²) |
| Re | 2.9 Ohm |
| Fs | 150 Hz |
| Le | 0.1 mH |
| Vas | 0.61 l (0.022 ft) |
| Mms | 2.9 g (0.102 oz) |
| Cms | 0.39 mm/N |
| BL | 3.5 T•m |
| Qts | 0.58 |
| Qes | 0.65 |
| Qms | 5.45 |
| Flux Density | 0.78 |
General
1
| Weight | 0.15 kg |
Dimensions
5
| Dimension A | 84 mm (3.31 in) |
| Dimension B | 73 mm (2.87 in) |
| Dimension C | 35 mm (1.38 in) |
| Dimension D | 31.2 mm (1.23 in) |
| Hole diameter | 3.5 mm |
