Audison
TH1.5IITH1.5II 38 mm Tweeters
34 mm CCAW single layer voice coil combining light weight, stability at lower frequencies and total absence of musical transients compression. Extremely powerful custom N38″H-grade” Neodymium magnet providing 1.
Highlights
- 34 mm CCAW single layer voice coil combining light weight, stability at lower frequencies and total absence of musical transients compression.
- Extremely powerful custom N38″H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
- Exclusive air-loading system resulting in a resonance frequency below 800 Hz, for filter set-up starting as low as 1.5 kHz 12dB/Oct.
- 38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning and Finite Element Analysis methods for a smooth and extended response.
Key specs
Full specs- Nominal diameter
- 38 mm (1.5 in)
- Impedance
- 6 Ohm
- Power Handling - Peak
- 200 W
- Sensitivity
- 92.5 dB
- Frequency Response
- 800 ÷ 26k Hz
- Voice Coil Ø
- 34 mm (1.34 in)
- Magnet Material
- NEODYMIUM
- Dome Material
- TELOTON FIBRE
Key specs
Full specs- Nominal diameter
- 38 mm (1.5 in)
- Impedance
- 6 Ohm
- Power Handling - Peak
- 200 W
- Sensitivity
- 92.5 dB
Highlights
Overview- 34 mm CCAW single layer voice coil combining light weight, stability at lower frequencies and total absence of musical transients compression.
- Extremely powerful custom N38″H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
- Exclusive air-loading system resulting in a resonance frequency below 800 Hz, for filter set-up starting as low as 1.5 kHz 12dB/Oct.
Overview
- 34 mm CCAW single layer voice coil combining light weight, stability at lower frequencies and total absence of musical transients compression.
- Extremely powerful custom N38″H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
- Exclusive air-loading system resulting in a resonance frequency below 800 Hz, for filter set-up starting as low as 1.5 kHz 12dB/Oct.
- 38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning and Finite Element Analysis methods for a smooth and extended response.
- Frequency response up to 26 kHz optimized for off-axis installation.
- TH 1.5 II Violino Tuning System featuring two types of electroacoustic load: bottom case or bottom disk according to targets of highest performance as well as flexibility of in-car integration.
- Full solid metal construction structure with each part exclusively designed and produced for the Audison TH 1.5 II.

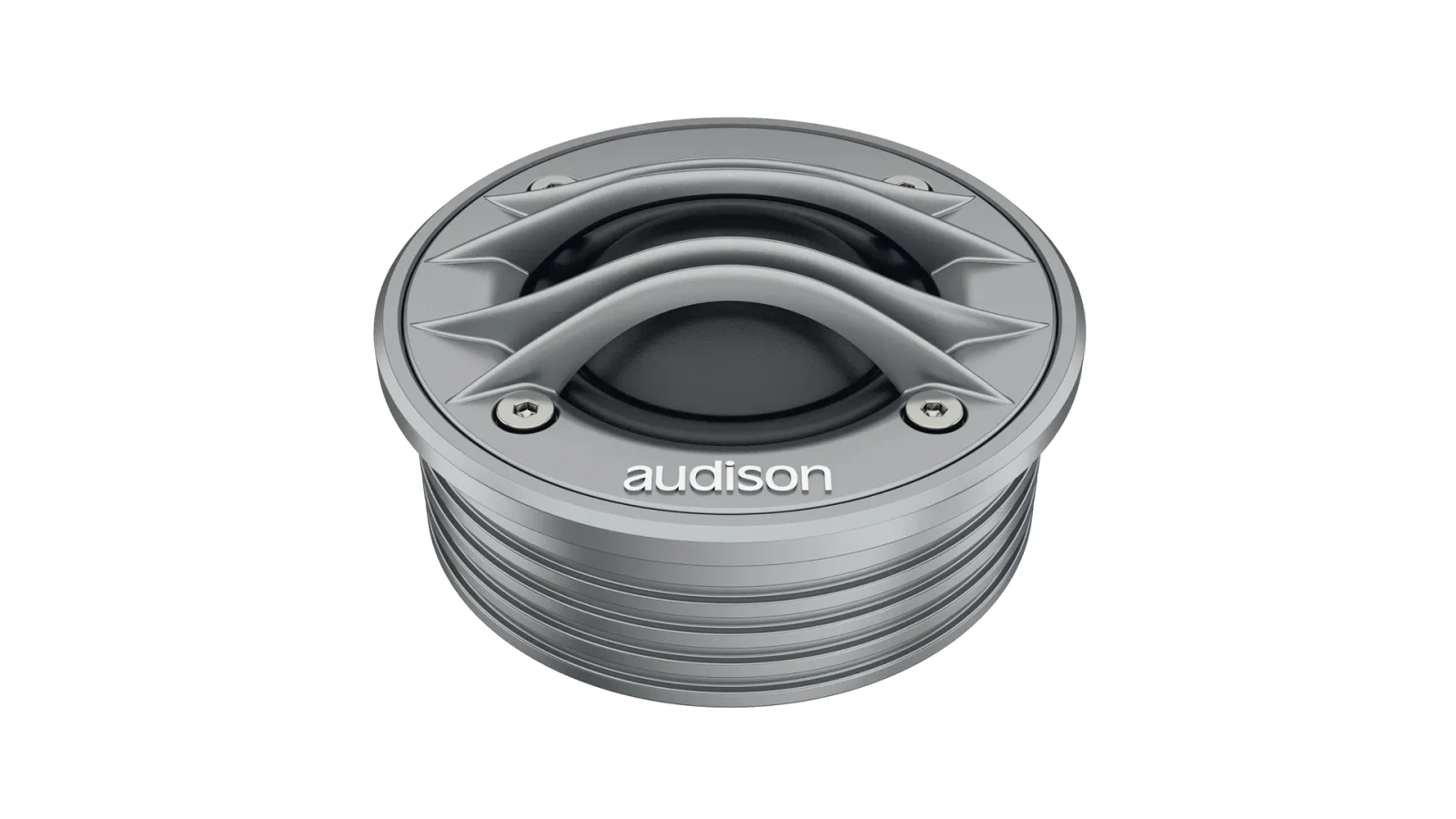

- FEM (Finite Element Method) optimized faceplate and front spokes for an improved dispersion pattern.

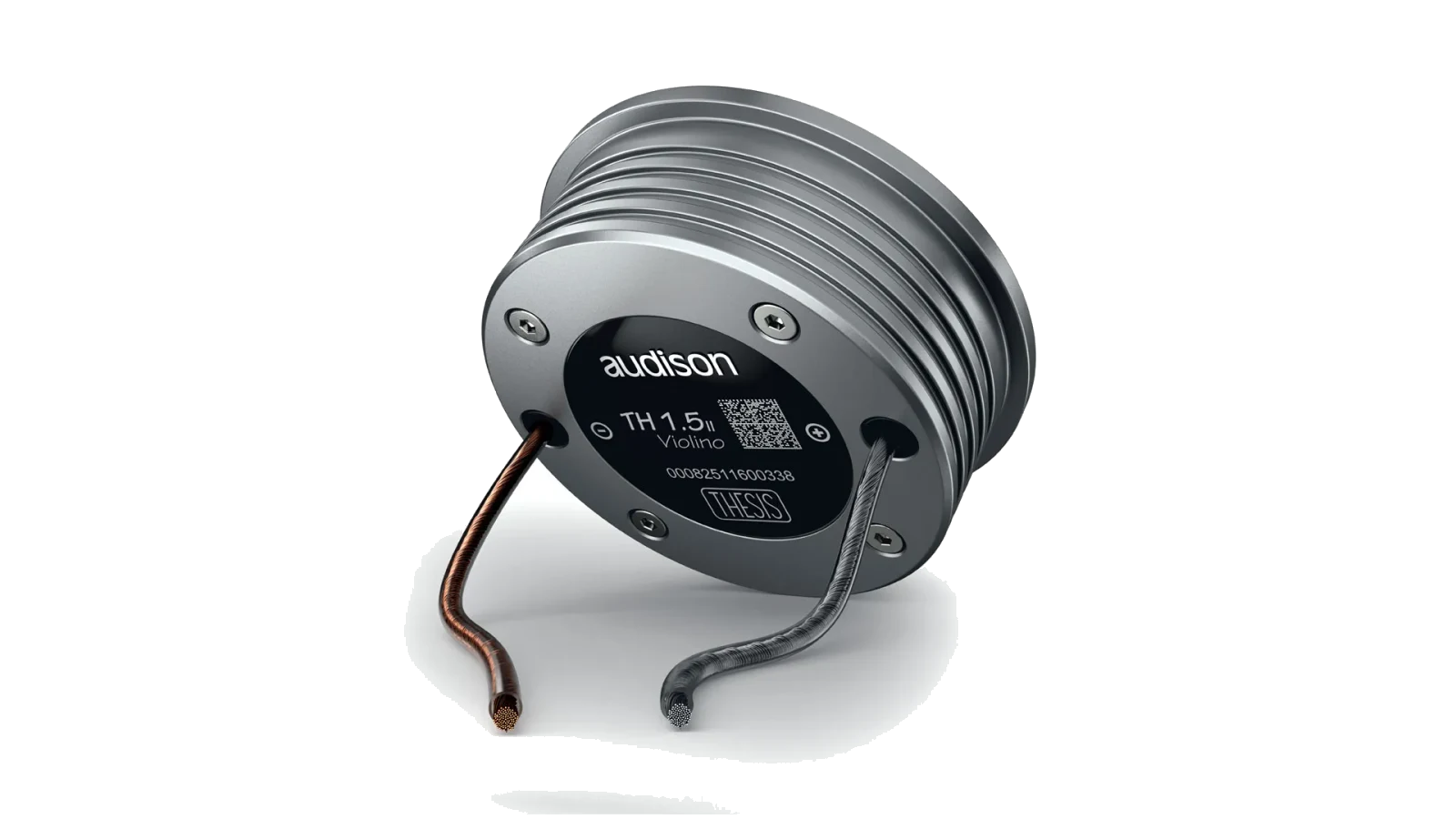

- eID technology providing TH 1.5 II traceability starting from the manufacturing stage up to the owner.
- TH 1.5 II Violino is an extraordinary tweeter featuring a 34 mm CCAW single layer voice coil combining light weight, stability at lower frequencies and total absence of musical transients compression.The extremely powerful custom N38 H-grade Neodymium magnet provides 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.The exclusive air-loading system resulting in a resonance frequency below 800 Hz, for filter set-up starting as low as 1.5 kHz “ 12dB/Oct. The 38 mm natural silk dome has been optimized with extensive material characterization, laser vibrometer scanning and Finite Element Analysis methods for a smooth and extended response. The frequency response is extended up to 26 kHz and is optimized for off-axis installation.The tuning System featuring two types of electro-acoustic load: bottom case or bottom disk according to targets of highest performance as well as flexibility of in-car integration.TH 1.5 II violino features a full solid metal construction structure with each part exclusively designed and produced for the Audison TH 1.5 II.The FEM (Finite Element Method) optimized faceplate and front spokes improve the dispersion pattern. Audison eID technology provides TH 1.5 II traceability starting from the manufacturing stage up to the owner.
Highlights
Key features
- 34 mm CCAW single layer voice coil combining light weight, stability at lower frequencies and total absence of musical transients compression.
- Extremely powerful custom N38″H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
- Exclusive air-loading system resulting in a resonance frequency below 800 Hz, for filter set-up starting as low as 1.5 kHz 12dB/Oct.
- 38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning and Finite Element Analysis methods for a smooth and extended response.
- Frequency response up to 26 kHz optimized for off-axis installation.
- TH 1.5 II Violino Tuning System featuring two types of electroacoustic load: bottom case or bottom disk according to targets of highest performance as well as flexibility of in-car integration.
- Full solid metal construction structure with each part exclusively designed and produced for the Audison TH 1.5 II.
- FEM (Finite Element Method) optimized faceplate and front spokes for an improved dispersion pattern.
- eID technology providing TH 1.5 II traceability starting from the manufacturing stage up to the owner.
Specs
Technical Specs
10
| Nominal diameter | 38 mm (1.5 in) |
| Impedance | 6 Ohm |
| Power Handling - Peak | 200 W |
| Sensitivity | 92.5 dB |
| Frequency Response | 800 ÷ 26k Hz |
| Voice Coil Ø | 34 mm (1.34 in) |
| Magnet Material | NEODYMIUM |
| Dome Material | TELOTON FIBRE |
| Cone Material | TETOLON FIBER |
| Power Handling Crossover | (Hi-Pass filtered @ 1,8kHz - 12 dB Oct.) |
Electric-acoustic Specs
11
| D | 38 cm² (5.89 in²) |
| Re | 6.1 Ohm |
| Fs | 780 Hz |
| Le | 0.025 mH |
| Vas | 0.019 l |
| Mms | 0.43 g (0.015 oz) |
| Cms | 0.09 mm/N |
| BL | 3.32 T•m |
| Qts | 0.83 |
| Qms | 2.9 |
| Reference Efficiency | 92.5 |
General
1
| Weight | 0.355 kg |
Dimensions
4
| Dimension A | 71.8 mm (2.83 in) |
| Dimension B | 66 mm (2.6 in) |
| Dimension C | 37.4 mm (1.47 in) |
| Dimension D | 22.4 mm (0.88 in) |
