1 / 4
Boss Elite
MPD380.44-Channel Class D Amplifier
The Boss Elite MPD380.4 is organized here as a 4-Channel Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front.
Highlights
- Full Range 4 Channel Class D Amplifier
- 380 Watts Max
- IP66-Rated (Dustproof/Weatherproof)
- High Pass and Low Pass Filters
Key specs
Full specs- Amp Topology
- Full Range, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 380 Watts
- Peak Power @ 2 Ω
- 95 Watts
- Peak Power @ 4 Ω
- 48 Watts
- Bridged Power @ 4 Ω
- 190 Watts
- RMS Power @ 2 Ω
- 71 Watts
- RMS Power @ 4 Ω
- 36 Watts
Key specs
Full specs- Amp Topology
- Full Range, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 380 Watts
- Peak Power @ 2 Ω
- 95 Watts
Highlights
Overview- Full Range 4 Channel Class D Amplifier
- 380 Watts Max
- IP66-Rated (Dustproof/Weatherproof)
Overview
The Boss Elite MPD380.4 is organized here as a 4-Channel Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include Full Range 4 Channel Class D Amplifier, 380 Watts Max, IP66-Rated (Dustproof/Weatherproof).
Best for
- Amplifiers - 4ch
- car audio power upgrades
- Car audio upgrades
- Powering multi-speaker car audio systems
Key points
- Full Range 4 Channel Class D Amplifier
- 380 Watts Max
- IP66-Rated (Dustproof/Weatherproof)
- High Pass and Low Pass Filters
- Bass Boost
- RCA Level Inputs
Fit and use
Check the listed dimensions, connection options, and power ratings against the vehicle and system plan before ordering. The specification table keeps the source measurements and electrical details available for comparison.
What to know
This content is normalized from Boss Elite product data and Automob category/inventory data. Use the specs and manuals on the page for final confirmation before installation.
Highlights
Key features
- Full Range 4 Channel Class D Amplifier
- 380 Watts Max
- IP66-Rated (Dustproof/Weatherproof)
- High Pass and Low Pass Filters
- Bass Boost
- RCA Level Inputs
More info
- Full Range 4 Channel Class D Amplifier
- 380 Watts Max
- IP66-Rated (Dustproof/Weatherproof)
- High Pass and Low Pass Filters
- Bass Boost
- RCA Level Inputs
- Bridgeable
- PWM MOSFET Power Supply
- LED Illuminated End Panels
- Thermal, Short and Overload Protection Circuits
- Up to 95 Watts X 4CH RMS @ 2Ω
- Up to 70 Watts X 4CH RMS @ 4Ω
- Up to 200 Watts X 2CH RMS Bridged @ 4Ω
Specs
General Specs
2
| Amp Topology | Full Range, Class D |
| Power Supply Type | MOSFET Power Supply Watts |
Performance Specs
11
| Total Power Output | 380 Watts |
| Peak Power @ 2 Ω | 95 Watts |
| Peak Power @ 4 Ω | 48 Watts |
| Bridged Power @ 4 Ω | 190 Watts |
| RMS Power @ 2 Ω | 71 Watts |
| RMS Power @ 4 Ω | 36 Watts |
| Bridged RMS Power @ 4 Ω | 143 Watts |
| Speaker Impedance | 2 to 8 Ω |
| T.H.D. (Total Harmonic Distortion) | 0.01 % |
| Channel Separation ≥ | 90 dB |
| Frequency Response | 9 Hz to 50 kHz ±1 dB |

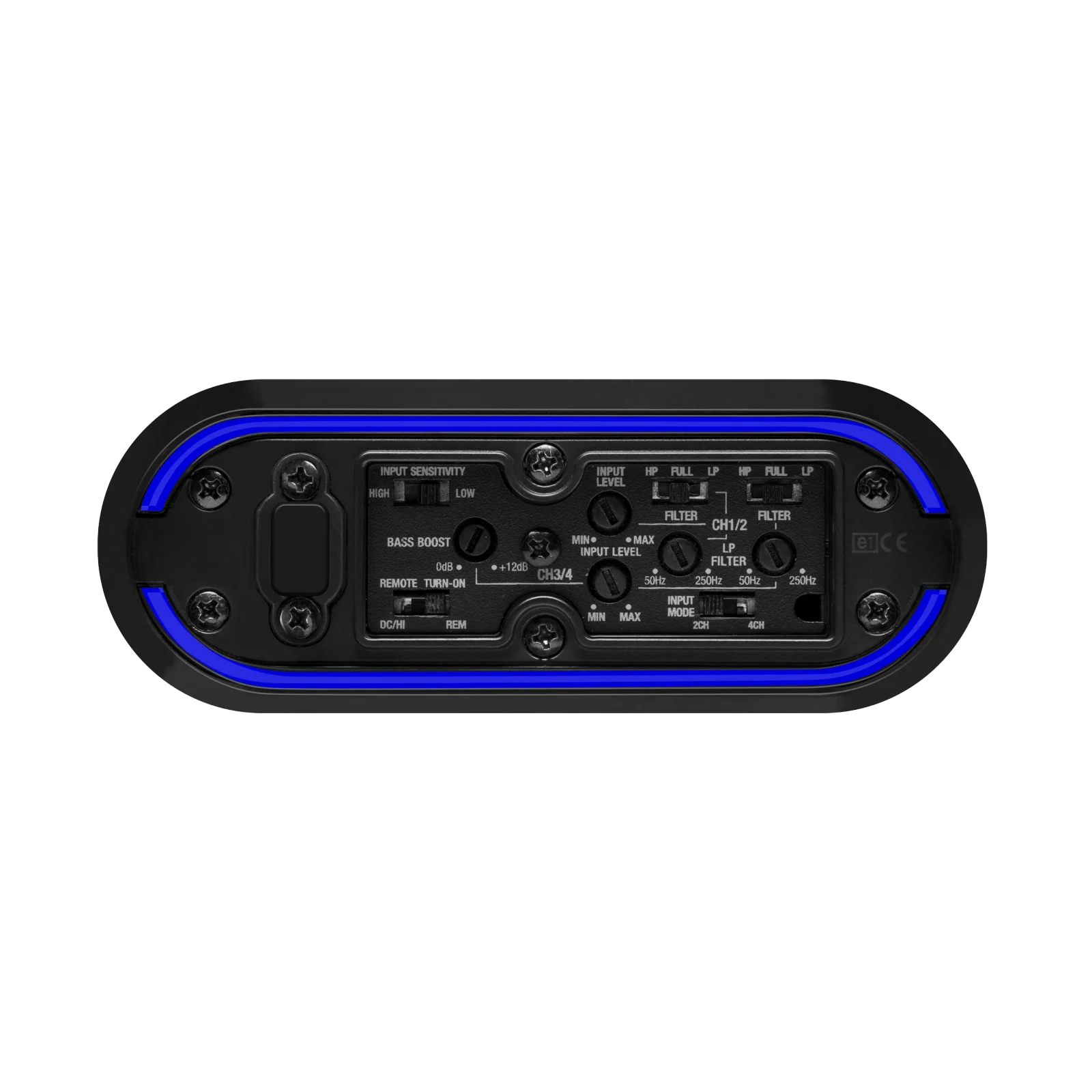

Connections, Controls, and Processing
7
| RCA Inputs | 4 Channel |
| High Level Inputs | YES |
| Low Pass Filter | 50 Hz |
| High-Pass Filter | Variable |
| Bass Boost | Variable |
| Input Sensitivity Switch | YES |
| Thermal/Overload/Short Protection | YES |
Extra Features
1
| SPECS_01 | IP66-Rated (Dustproof Weatherproof) |
Measurement
2
| Length | 9.75 " |
| Width | 5.12 " |
Additional Specs
1
| Unit Weight lbs | 4.12 |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Similar products
Compare nearby options
Memphis Audio
MX4004 Amplifier
$459.95CAD
$569.95
In stock
Cerwin Vega
HRPM360.4D RPM HED 4-Channel Marine Grade Class-D Amplifier
$810.99CAD
Backorder
Rockford Fosgate•Prime
M2-300X4 M2 300 Watt 4-Channel Element Ready™ Amplifier
5.03 reviews
$519.99CAD
$619.99
In stock
Memphis Audio
MM5004V Amplifier
$599.95CAD
$759.95
In stock
Memphis Audio
MX1502-24V Amplifier
$189.95CAD
$249.95
In stock
Rockford Fosgate
M5-800X4 800 Watt 4-Channel IPX6 Element Ready™ Amplifier
4.06 reviews
$999.99CAD
$1179.99
In stock
Rockford Fosgate•Punch

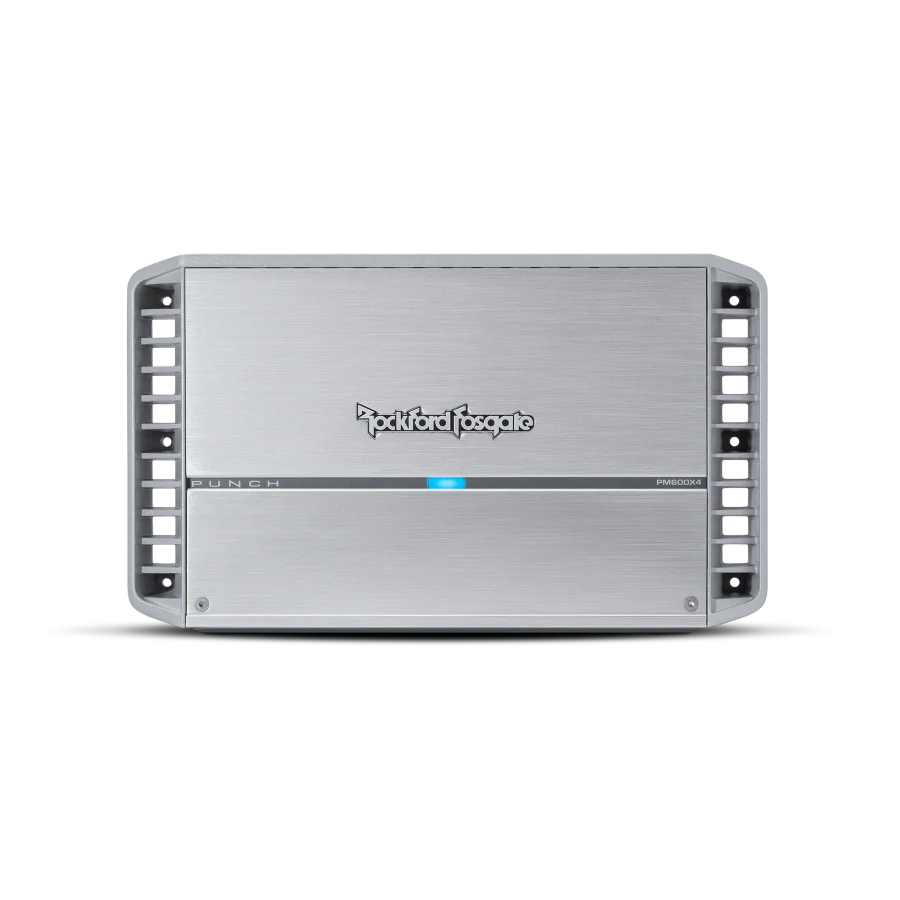

PM600X4 Punch Marine 600 Watt 4-Channel Amplifier
