The Rockford Fosgate Punch Marine PMX-8BB offers strong bass, per‑zone sub control and a wide set of analog inputs with straightforward installation and marine display compatibility; however it lacks digital audio outputs and some users report weaker radio reception than factory units.
Buyer confidence
74%Highlights
- 2-Year Warranty
- CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
- *Antenna not included
- Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
Key specs
Full specs- Operating Voltage
- 10.5V - 16V
- Device Type
- Digital-Media Black Box
- Fuse Rating
- 15A
- Remote Capacity
- (see Compatibility Chart)
- Power Output
- CEA-2006 Power Rating25W x 4 @ 4Ω RMS≤1.0% THD+N
- Speaker Impedance
- 2-Ohms
- Frequency Response
- 20 Hz - 20 kHz
- GENERAL
- N/A
Key specs
Full specs- Operating Voltage
- 10.5V - 16V
- Device Type
- Digital-Media Black Box
- Fuse Rating
- 15A
- Remote Capacity
- (see Compatibility Chart)
Highlights
Overview- 2-Year Warranty
- CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
- *Antenna not included
Review highlights
Based on customer reviewsRockford Fosgate Punch Marine PMX-8BB — punchy multi‑zone marine receiver
The Rockford Fosgate Punch Marine PMX-8BB offers strong bass, per‑zone sub control and a wide set of analog inputs with straightforward installation and marine display compatibility; however it lacks digital audio outputs and some users report weaker radio reception than factory units.
What buyers praise
- Strong bass performance
- Per‑zone sub and multi‑zone output flexibility (4 zones plus L/R)
What to watch for
- No digital (coaxial/optical) outputs — may complicate connection to external DSPs or hi‑res sources
Overview
The PMX-8BB is a hide-away digital media receiver black box designed to be paired with the PMX-8DH controller. It provides multi-zone marine audio source functionality with CANbus connectivity for NMEA2K integration when used with the PMX-CAN adapter.
Best for
- Boat owners who want a concealed source unit with remote display/control
- Systems requiring multi-zone audio distribution
- Installations needing CANbus/NMEA2K integration
Key points
- Designed for use with the PMX-8DH controller; compatible with its 5" ultra bright color TFT display
- Global AM/FM/WB tuner and SiriusXM-ready
- Full iOS/Android support; Made for iPod/iPhone
- Dual USB inputs with video playback plus A/V input and video output
- Built-in Bluetooth AVRCP 1.5 for audio control
- 2-source zone control and 4-zone volume control
Fit and use
This unit is a hide-away (black box) source component intended to be installed out of sight and controlled via a compatible display/controller such as the PMX-8DH. Use the PMX-CAN adapter for CANbus connection to NMEA2K systems. The PMX-8BB provides multi-zone outputs and companion inputs for integrating external video and audio equipment.
What to know
The PMX-8BB is a source (black box) unit and is intended to be paired with a compatible controller/display for user interaction. NMEA2K/CANbus integration requires the PMX-CAN adapter (refer to accessory info). Software updates and configuration information are available from the product resources; check those before…
Highlights
Key features
- 2-Year Warranty
- CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
- *Antenna not included
- Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
- Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
- Made for iPhone apple certified
- Bluetooth, A2DP only, AVRCP 1.4
- Simple secure pairing bluetooth profile for android & iOS
- Display album art from connected iPhones on the radios display
- Folder browsing via BT connected iPhones
- 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
- Internal power amplifier 4x50w 2 ohm stable
More info
Manufacturer details
The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to NMEA2K systems using PMX-CAN.
PMX-8BB | Software Downloads
PMX-8BB | Update Process
PMX-8BB | Configure Online
Additional details
Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Android, Made for iPod, Dual USB Input w/ Video Playback, Bluetooth AVRCP 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Pre-outs, 2 Channel Zone 3&4 4V Pre-outs, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready. Features CANbus functionality for connection to NMEA2K systems using the PMX-CAN adaptor (see Accessories tab.)
Technologies
Made for Android
This device supports the Google "Made for Android" protocol.
Pandora® Internet Radio
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
Element Ready™ | Source Units
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion &
CANbus
CAN (Controller Area Network) bus is a message-based protocol, designed originally for automotive applications,
SiriusXM-Ready®
This radio is ready to accept SiriusXM® satellite programming.
Made for iPod/iPhone
Made for iPod/iPhone certifies that this product has passed Apple certification for device compatibility.
USB Playback
This source unit supports playback from a USB device.
Built In Bluetooth®
FLAC
This is similar to how Zip works, except with FLAC you will get much better compression because it is designed
Specs
Specifications
38
| Operating Voltage | 10.5V - 16V |
| Device Type | Digital-Media Black Box |
| Fuse Rating | 15A |
| Remote Capacity | (see Compatibility Chart) |
| Power Output | CEA-2006 Power Rating25W x 4 @ 4Ω RMS≤1.0% THD+N |
| Speaker Impedance | 2-Ohms |
| Frequency Response | 20 Hz - 20 kHz |
| GENERAL | N/A |
| FEATURES | N/A |
| Display Size | N/A |
| SPEAKER OUTPUTS | YES |
| Dimensions (HxWxD) | H4.25" x W8.3" x D2.2" (108mm x 211mm x 56mm) |
| Clock (Yes/No) | No |
| Multi-Zone/Multi-Source (Yes/No) | Yes |
| Speaker Outputs (Yes/No) | Yes |
| Bluetooth® (Yes/No) | Yes 3.0+EDR, A2DP 1.3 |
| SiriusXM-Ready® (Yes/No) | YesRequires SXV300 |
| Pandora® Internet Radio (Yes/No) | Yes |
| AUX Input (Yes/No) | Yes |
| Steering Wheel Control Ready(Yes/No) | Yes |
| USB Charging (Yes/No) | Yes |
| AUX Input (Yes/No) | Yes |
| FM TUNER Frequency Range | 87.5 MHz - 107.9 MHz |
| TUNER Number Of Presets | 18 FM / 12 AM / 6 WB |
| WB TUNER Frequency Range | 162.40 - 162.55 (US & Canada) |
| TUNER | N/A |
| AM TUNER Frequency Range | 530 kHz - 1710 kHz |
| MEDIA PLAYER Audio Format Compatibility | MP3 WMA FLAC |
| MEDIA PLAYER | N/A |
| USB Version | 2.0 |
| USB Capacity | 32Gb max 999 Folders max 999 Songs max |
| USB Output Current | 1A |
| Android Compatibility | Bluetooth® Only |
| Made for iPod Models | iPod Touch (5th generation) iPod Touch (4th generation) iPod Nano (7th generation) iPod Nano (6th generation) |
| RCA OUTPUTS | N/A |
| Made for iPhone Models | iPhone XS (pending) iPhone XS Max iPhone XR (pending) iPhone X iPhone 8 iPhone 8 Plus iPhone 7 iPhone 7 Plus iPhone 6s iPhone 6s Plus iPhone 6 iPhone 6 Plus iPhone 5S iPhone 5C iPhone 5 iPhone 4 iPhone 4S Phone 3GS |
| RCA Output Voltage | 4V |
| RCA Output Impedance | 500Ω |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Compatibility
| MODEL | DESCRIPTION |
|---|---|
| PMX-8DH 1,2 | Punch Marine Full Function Wired 5" TFT Display Head |
| PMX-1R 1 | Punch Marine Full Function Wired Remote 2.7" Display |
| PMX-0R 1 | Punch Marine Wired Remote Control |
1 The PMX-8BB is compatible with (1) PMX-8DH and combination of (3) PMX-1R and/or PMX-0R remotes, 100 ft Total Wired Distance
2 25-ft. max cable to PMX-8BB. When using a PMX-8DH as your main display, it will not work with an extension cable longer than 25-feet in length. The PMX-8DH is supplied with a 10 foot cable (PMX10C) in the box. If you require a longer extension cable, you may use the PMX16C or PMC25C.
Videos

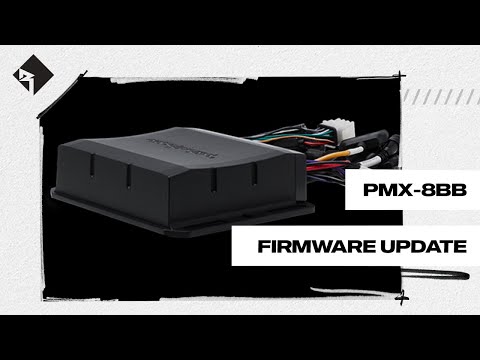

Firmware Update | PMX-8BB
