The Rockford Fosgate Saddlebag Kit for 2014+ Harley‑Davidson Models is widely praised for fit, finish and much-improved rear-speaker sound; installers report the template makes cutting and mounting easy, and many note best results when paired with Rockford amps or matching fairing speakers.
Buyer confidence
85%Highlights
- Includes Custom Cut Out Guide
- Includes all Installation Hardware and Accessories
- Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
- TMS69: 6x9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter
Key specs
Full specs- Included In The Box
- (2) TMS69 Speakers (2) Speaker Grilles (2) 6"x9" Basket Protectors (2) Mounting Rings (2) Cutting Templates (1) Main Harness (2) Saddlebag Harnesses Plastic Wire Tie Wraps Plastic Cable Tie Mounts (8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L (12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L
- Mounting Hardware
- Yes
- Grille/Trim Ring Included
- Yes
- Shipping Weight
- 8.65 Lbs. (3.92 Kg)
Key specs
Full specs- Included In The Box
- (2) TMS69 Speakers (2) Speaker Grilles (2) 6"x9" Basket Protectors (2) Mounting Rings (2) Cutting Templates (1) Main Harness (2) Saddlebag Harnesses Plastic Wire Tie Wraps Plastic Cable Tie Mounts (8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L (12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L
- Mounting Hardware
- Yes
- Grille/Trim Ring Included
- Yes
- Shipping Weight
- 8.65 Lbs. (3.92 Kg)
Highlights
Overview- Includes Custom Cut Out Guide
- Includes all Installation Hardware and Accessories
- Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
Review highlights
Based on customer reviewsClear, punchy saddlebag sound with a straightforward template install
The Rockford Fosgate Saddlebag Kit for 2014+ Harley‑Davidson Models is widely praised for fit, finish and much-improved rear-speaker sound; installers report the template makes cutting and mounting easy, and many note best results when paired with Rockford amps or matching fairing speakers.
What buyers praise
- Template-guided install makes cutting and mounting straightforward
- Good fit and finish for stock saddlebags
What to watch for
- Installation requires cutting the saddlebag covers (permanent modification)
Overview
The Rockford Fosgate TMS69BL14 saddlebag kit lets you add rear bag‑lid speakers to select 2014+ Harley‑Davidson motorcycles and integrate them with a compatible Rockford Fosgate front audio kit.
Best for
- Riders with 2014+ Harley‑Davidson models who want to add rear saddlebag audio and link it to a Rockford Fosgate front a…
Key points
- Retrofit solution for existing factory bag lids—no custom paint or color matching required.
- Designed to work with Rockford Fosgate front audio kits that use the Power T400X4ad, TM400X4ad, or M5-800X4 4-channel amplifiers.
- Centered around the TMS69 6x9" speaker design and compatible grille styling for saddlebags.
- Includes Element Ready™ and CEA-2031 (speakers) technologies references.
Fit and use
This kit plugs directly into compatible Rockford Fosgate front audio kits that use the listed 4-channel amplifiers. It is not designed for use with factory amplifiers. Verify motorcycle compatibility using the product compatibility information before purchasing.
What to know
You will need to flash your factory radio to use this kit. Confirm fitment against the compatibility chart and plan radio flashing in advance. Refer to the available installation resources and dealer list for radio flashing assistance; follow the manufacturer's installation guidance.
Highlights
Key features
- Includes Custom Cut Out Guide
- Includes all Installation Hardware and Accessories
- Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
- TMS69: 6x9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter
- Designed for use with existing 2014+ Rockford Fosgate Stage kits
- Factory Harley-Davidson® Boom!™ Box 4.3, 6.5GT, and GTS must be flashed to use this kit
- Sandwich Clamping Gasket Design for Environmental Seal
- Designed for use with 2014+ Factory Harley-Davidson® Hardshell Bags
- Leave 2" minimum clearance under speaker magnet when packing bags
- Ultra‐High Temperature Glass Reinforced Polymer Frame
- Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
- CEA-2031 (speakers)
More info
Manufacturer details
Retrofit kit allows addition of rear speakers on your existing factory bag lids and plug directly into a Rockford Fosgate front audio kit that utilizes the Power T400X4ad, TM400X4ad, or M5-800X4 4-channel amplifiers. Eliminates need to paint and color match. See Specifications tab for compatible motorcycles. You will need to flash your factory radio to use this kit. Ready to flash? Here's a list of dealers that can flash your radio. Not designed for factory amplifiers. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
TMS69BL14 & TMS69BL9813 Installation
Additional details
If you need more than just two speakers and want to really feel your music while riding then check out our add-on bag lid audio solution. Centered around our TMS69 6x9" speaker this kit is designed to work with your existing factory bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier. Not designed for factory amplifiers.
Harley-Davidson®, Road Glide, and Street Glide® are registered trademarks of Harley-Davidson Motor Company
Technologies
CEA-2031 (speakers)
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has
Patent: D881,076
Saddlebag Speaker Grille | 1998-2023
Element Ready™ | Motorcycle
Rockford Fosgate’s motorcycle products are fully tested against UV radiation degradation as well as tested to IPX
Specs
Specifications
4
| Included In The Box | (2) TMS69 Speakers (2) Speaker Grilles (2) 6"x9" Basket Protectors (2) Mounting Rings (2) Cutting Templates (1) Main Harness (2) Saddlebag Harnesses Plastic Wire Tie Wraps Plastic Cable Tie Mounts (8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L (12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L |
| Mounting Hardware | Yes |
| Grille/Trim Ring Included | Yes |
| Shipping Weight | 8.65 Lbs. (3.92 Kg) |
What's in the box
| Qty | Part number | Item details |
|---|---|---|
| 2 | — | TMS69 Speakers |
| 2 | — | Speaker Grilles |
| 2 | — | 6"x9" Basket Protectors |
| 2 | — | Mounting Rings |
| 2 | — | Cutting Templates |
| 1 | — | Main Harness |
| 2 | — | Saddlebag Harnesses Plastic Wire Tie Wraps Plastic Cable Tie Mounts |
| 8 | — | 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L |
| 12 | — | 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Compatibility
YESModel IS compatible |
NOModel NOT compatible |
NOT AVAILABLEModel not produced this year |
|---|
YESH-D® ABS Saddlebags3 |
COMPATIBLEH-D® Stretched Saddlebags3 |
NOH-D® Skyline Saddlebags |
NOFiberglass Saddlebags3 |
NOH-D® Power Lock2 |
|---|
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Road Glide® Limited | FLTRK | — | — | — | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ |
| Road Glide® Ultra | FLTRU | — | — | ✅ | ✅ | ✅ | ✅ | — | — | — | — | — |
| Electra Glide® Ultra Classic® | FLHTCU | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | — | — | — | — | — |
| Electra Glide® Ultra Classic® Twin-Cooled | FLHTCU | ✅ | ✅ | ✅ | — | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® Low | FLHTCUL | — | ✅ | ✅ | — | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® Low Twin-Cooled | FLHTCUL | — | ✅ | ✅ | — | — | — | — | — | — | — | — |
| Ultra Limited | FLHTK | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Ultra Limited 115th Anniversary | FLHTKANV | — | — | — | — | ✅ | — | — | — | — | — | — |
| Ultra Limited 120th Anniversary | FLHTKANV | — | — | — | — | — | — | — | — | — | ✅ | — |
| Ultra Limited Low | FLHTKL | — | ✅ | ✅ | ✅ | ✅ | ✅ | — | — | — | — | — |
| Ultra Limited Shrine Edition | FLHTK | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | — |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electra Glide® Revival | FLH | — | — | — | — | — | — | — | ✅ | — | ✅ | — |
| Electra Glide® Standard NR | FLHT | — | — | — | — | — | X | X | X | X | — | — |
| Road Glide® | FLTRX | — | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | XSKYRF2 |
| Road Glide® ST | FLTRXST | — | — | — | — | — | — | — | — | ✅ | ✅ | — |
| Road Glide® Special | FLTRXS | — | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | — |
| Road Glide® Special 120th Anniversary | FLTRXSANV | — | — | — | — | — | — | — | — | — | ✅ | — |
| Street Glide® | FLHX | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | XSKYRF2 |
| Street Glide® ST | FLHXST | — | — | — | — | — | — | — | — | ✅ | ✅ | — |
| Street Glide® 115th Anniversary | FLHXANV | — | — | — | — | ✅ | — | — | — | — | — | — |
| Street Glide® Special | FLHXS | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | — |
| Street Glide® Special 115th Anniversary | FLHXSANV | — | — | — | — | ✅ | — | — | — | — | — | — |
| Street Glide® Special 120th Anniversary | FLHXSANV | — | — | — | — | — | — | — | — | — | ✅ | — |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CVO Road King® | FLHRSE | ✅ | — | — | — | — | — | — | — | — | — | — |
| CVO Softail Deluxe | FLSTNSE | X | X | — | — | — | — | — | — | — | — | — |
| Electra Glide Highway King | FLHFB | — | — | — | — | — | — | — | — | — | ✅ | — |
| Road King® | FLHR | — | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | — | — |
| Road King® Classic | FLHRC | X | X | X | X | X | X | — | — | — | — | — |
| Road King® Special | FLHRXS | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CVO Ultra Limited | FLHTKSE | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | — | — | — |
| CVO Limited 115th Anniversary | FLHTKSEANV | — | — | — | — | ✅ | — | — | — | — | — | — |
| CVO Road Glide® | FLTRXSE | — | — | — | — | X | X | X | XRF2 | XRF2 | XSKYRF2 | XSKYRF2 |
| CVO Road Glide® ST | FLTRSXTSE | — | — | — | — | — | — | — | — | — | — | XSKYRF2 |
| CVO Road Glide® Limited | FLTRKSE | — | — | — | — | — | — | — | — | XRF1 | — | — |
| CVO Road Glide® Limited 120th Anniversary | FLTRKSEANV | — | — | — | — | — | — | — | — | — | XRF1 | — |
| CVO Road Glide® Ultra | FLTRUSE | — | ✅ | ✅ | — | — | — | — | — | — | — | — |
| CVO Street Glide® | FLHXSE | — | X | X | X | X | X | X | XRF2 | XRF2 | XSKYRF2 | XSKYRF2 |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Freewheeler®NR | FLRT | — | X | X | X | X | X | X | X | X | X | X |
| Road Glide 3 | FLTRT | — | — | — | — | — | — | — | — | — | X | X |
| Tri Glide® Ultra Classic® | FLHTCUTG | X | X | X | X | X | X | X | X | X | X | X |
| Tri Glide® Ultra 115th Anniversary | FLHTCUTGANV | — | — | — | — | X | — | — | — | — | — | — |
| Tri Glide® Ultra 120th Anniversary | FLHTCUTGANV | — | — | — | — | — | — | — | — | — | X | — |
| CVO Tri Glide® | FLHTCUTGSE | — | — | — | — | — | — | X | X | XRF1 | — | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
1
Factory Radio from Harley-Davidson® must be flashed.
Read advisory for more information.
2
H-D® Power Lock for touring luggage not compatible with 6x9" bag-lid kit.
3
Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits.
Fiberglass saddlebags and bag-lids not compatible.
4
Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5
Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR
No Radio equipped from factory.
RF1
RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKYRF1
Skyline RF Stage I: Not upgradable. Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and fairing amplifier.
SKYRF2
Skyline RF Stage II: Not upgradable. Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and fairing amplifier.
— Boom!™ is a Trademark of Harley-Davidson USA, Inc.
— Harley-Davidson®, H-D®, Road King®, Road Glide®, Street Glide®, Ultra Classic®, Tri Glide®, Freewheeler®, and Tour-Pak® are Registered Trademark of Harley-Davidson USA, Inc.
— SiriusXM® is a Registered Trademark of Sirius XM Radio Inc.
Similar products
Compare nearby options
Rockford Fosgate•Power
TMS69BL9813 Saddlebag Audio Kit for 1998-2013 Harley-Davidson® Models
4.520 reviews
$1039.99CAD
$1289.99
In stock
Rockford Fosgate
HD24BL69 6x9" Aftermarket Saddlebag Cut-In Speaker Kit for 2024+ Harley-Davidson
$1199.99CAD
$1419.99
In stock
Cerwin Vega

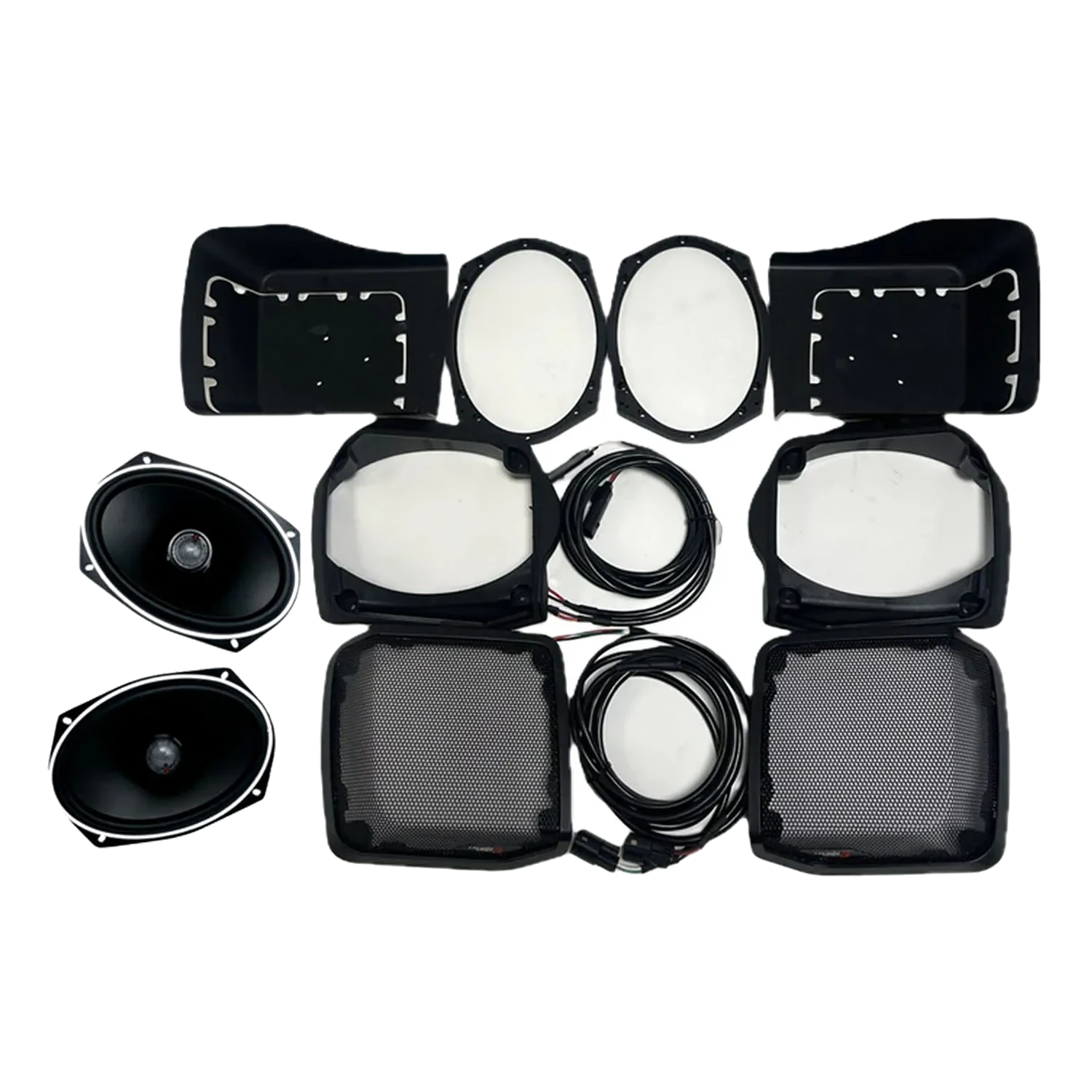

RPMST692CX2LK13 1998-2013 Harley Davidson® Cut-in Lid Kit with ST692CX2 - (2Ω)
$1084.99CAD
Backorder
Cerwin Vega

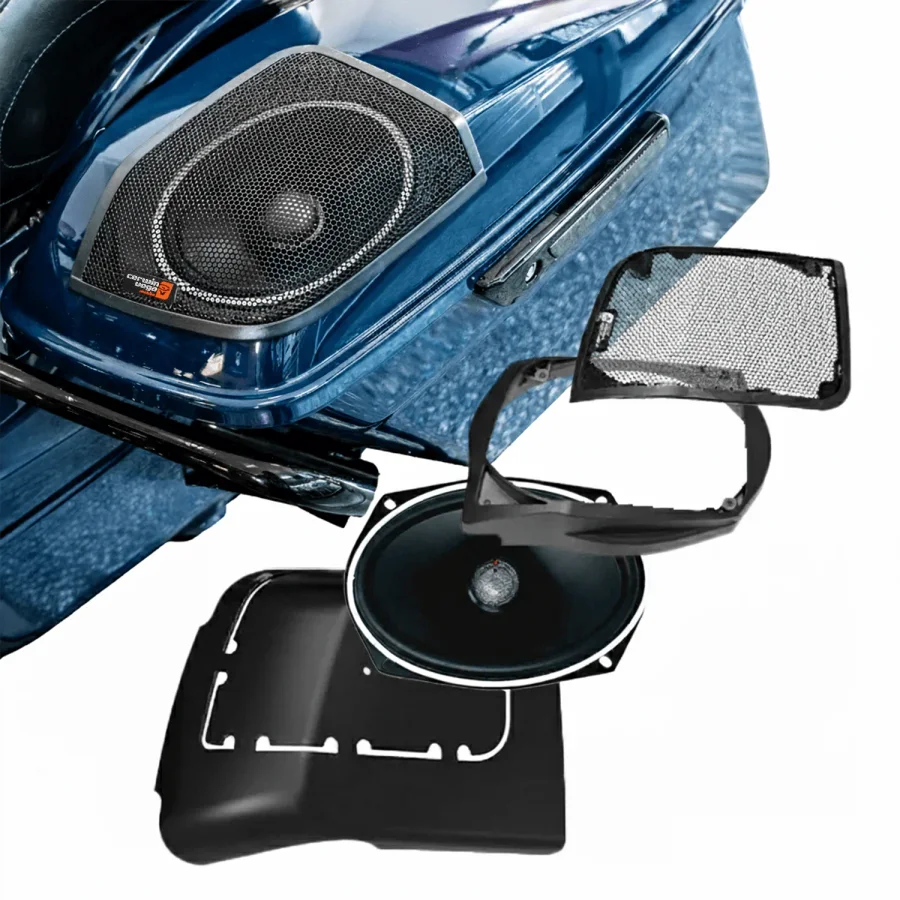

RPMST694LK 2014-2023 Harley Davidson® Cut In Lid Kit with ST69CX (4Ω)
$1084.99CAD
Backorder
Cerwin Vega
RPMST692LK 2014-2023 Harley Davidson® Cut In Lid Kit with ST692CX2 (2Ω)
$1084.99CAD
Backorder
Cerwin Vega

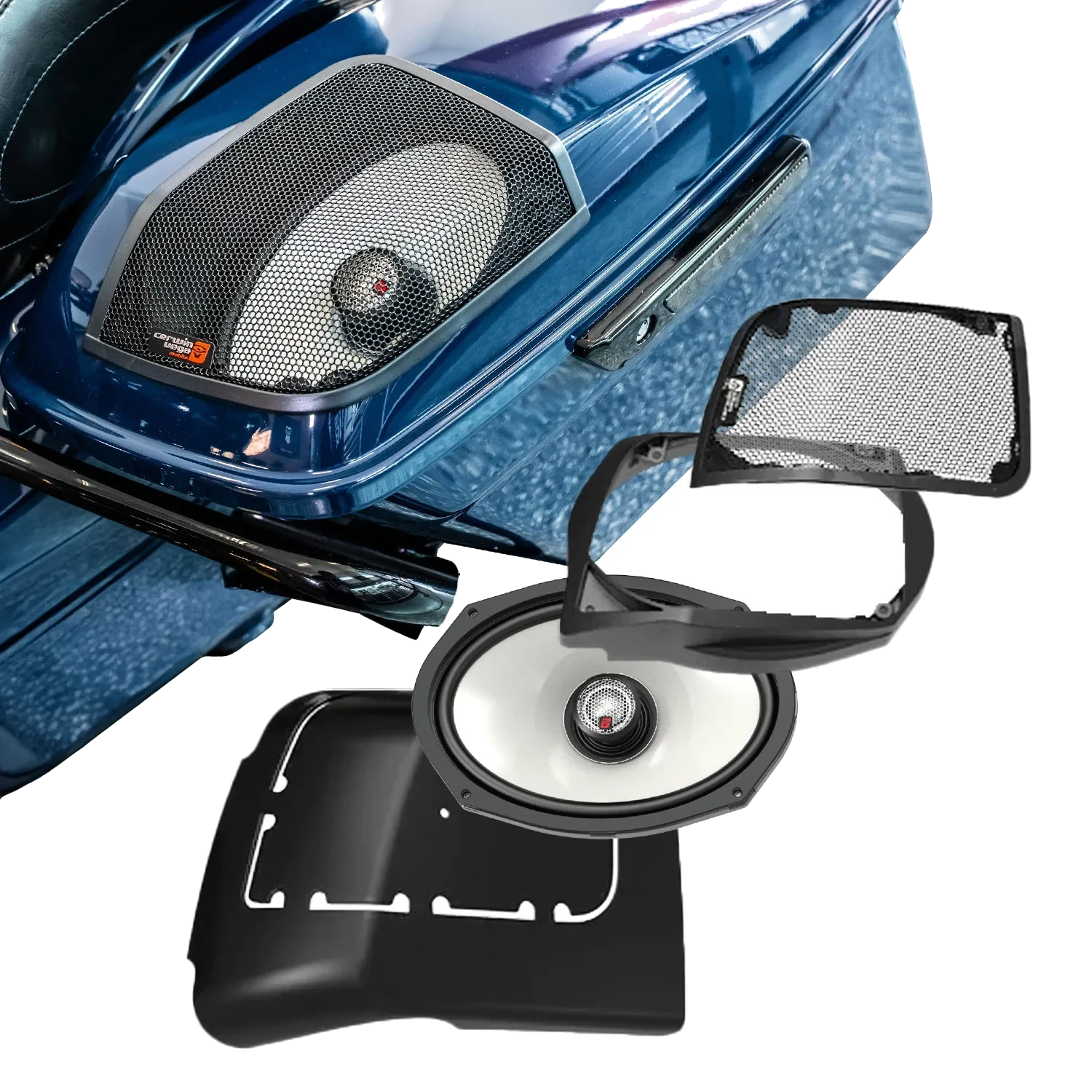

RPMSM694LK 2014-2023 Harley Davidson® Cut In Lid Kit with SM69F4 (4Ω)
$993.99CAD
In stock
Cerwin Vega

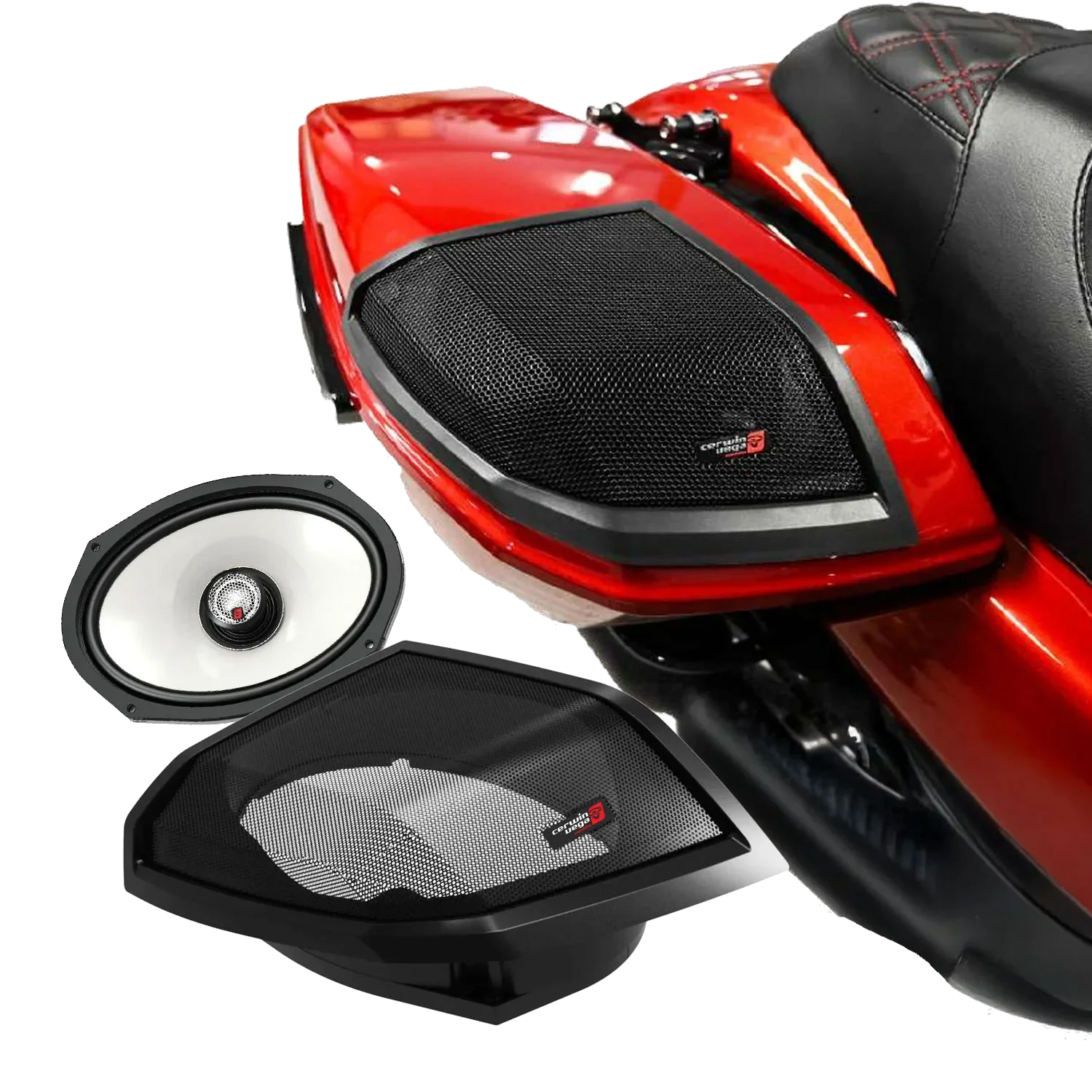

RPMSM694LK24 2024+ Harley Davidson® Cut-In Lid Kit with SM69F4 (4Ω) Speakers
$993.99CAD
In stock
Cerwin Vega

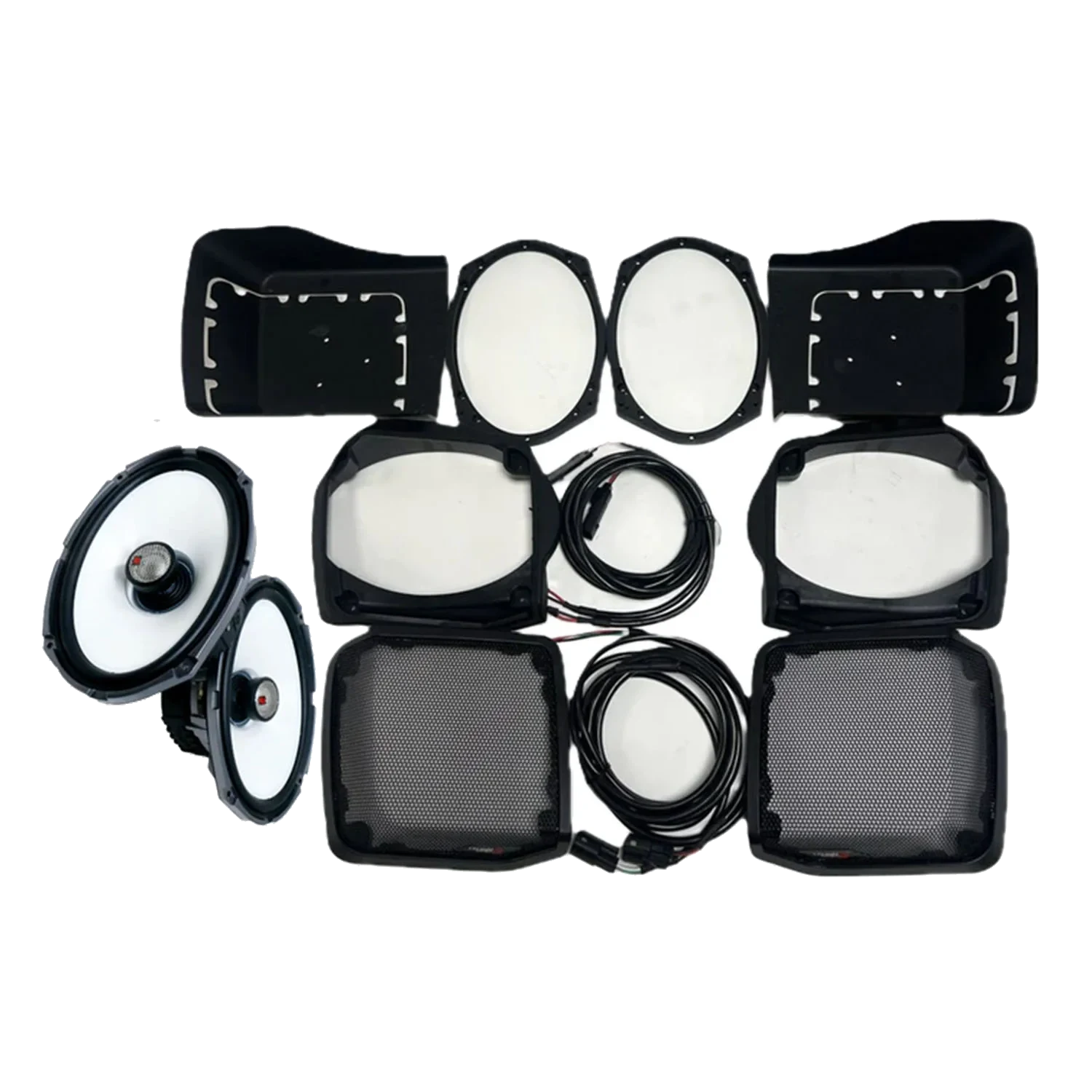

RPMSM694LK13 1998-2013 Harley Davidson® Cut-in Lid Kit with SM69F4 (4Ω)
