Audison

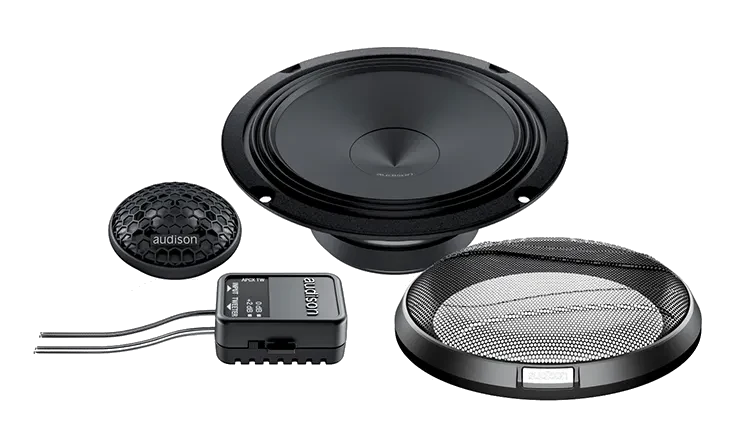

APK165APK165 Crossover
AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
Highlights
- AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- AP 1 tweeter with an acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10kHz – 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with fast-on connectors that conform to OEM integration. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 100 W
- Frequency Response
- 60 ÷ 20k
- Voice Coil Diameter
- 32 mm (1.26 in)
- Magnet Size
- 85 x 40 x 15
- Crossover Level Adjustment
- +2; 0
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 100 W
Highlights
Overview- AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- AP 1 tweeter with an acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10kHz – 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
Overview
- AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- AP 1 tweeter with an acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10kHz – 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with fast-on connectors that conform to OEM integration. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
- AP 6.5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low-frequency control.
- AP 6.5 woofer with a water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- AP 6.5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
- AP 6.5 woofer with TPU (thermoplastic polyurethane) edge, featuring the unique “triple wave” profile for maximum linearity of excursion.
- AP 6.5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- AP 6.5 woofer with a high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
- The two-way system features an AP 1 tweeter and AP 6.5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, and 0dB for an A-pillar installation without additional grilles between the tweeter and the listener. To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.
Highlights
Key features
- AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- AP 1 tweeter with an acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10kHz – 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with fast-on connectors that conform to OEM integration. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
- AP 6.5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low-frequency control.
- AP 6.5 woofer with a water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- AP 6.5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
- AP 6.5 woofer with TPU (thermoplastic polyurethane) edge, featuring the unique “triple wave” profile for maximum linearity of excursion.
- AP 6.5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- AP 6.5 woofer with a high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
Specs
Technical Specs LF
8
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 300 W |
| Power Handling - Continuous | 100 W |
| Frequency Response | 60 ÷ 20k |
| Voice Coil Diameter | 32 mm (1.26 in) |
| Magnet Size | 85 x 40 x 15 |
| Crossover Level Adjustment | +2; 0 |
Technical Specs HF
2
| Tweeter Size | 26 mm (1 in) |
| Voice Coil Diameter | 20 mm (1.26 in) |
Electric-acoustic Specs LF
11
| Re | 3.1 Ohm |
| Fs | 80 Hz |
| Mms | 12 g |
| Cms | 0.31 |
| BL | 4.7 |
| Qms | 4.7 |
| Qts | 0.7 |
| Vas | 7.6 l |
| Le | 0.23 mH |
| Spl | 93.5 dB |
| Xmax | 2.5 mm (0.1 in) |
Kit Tech Data
2
| Crossover Hi-Pass | HP @ 3,5 kHz - 6 dB Oct |
| Cone Diameter | 129 mm |
General
2
| Weight Woofer | 0.78 kg |
| Weight Tweeter | 0.04 kg |
