Audison

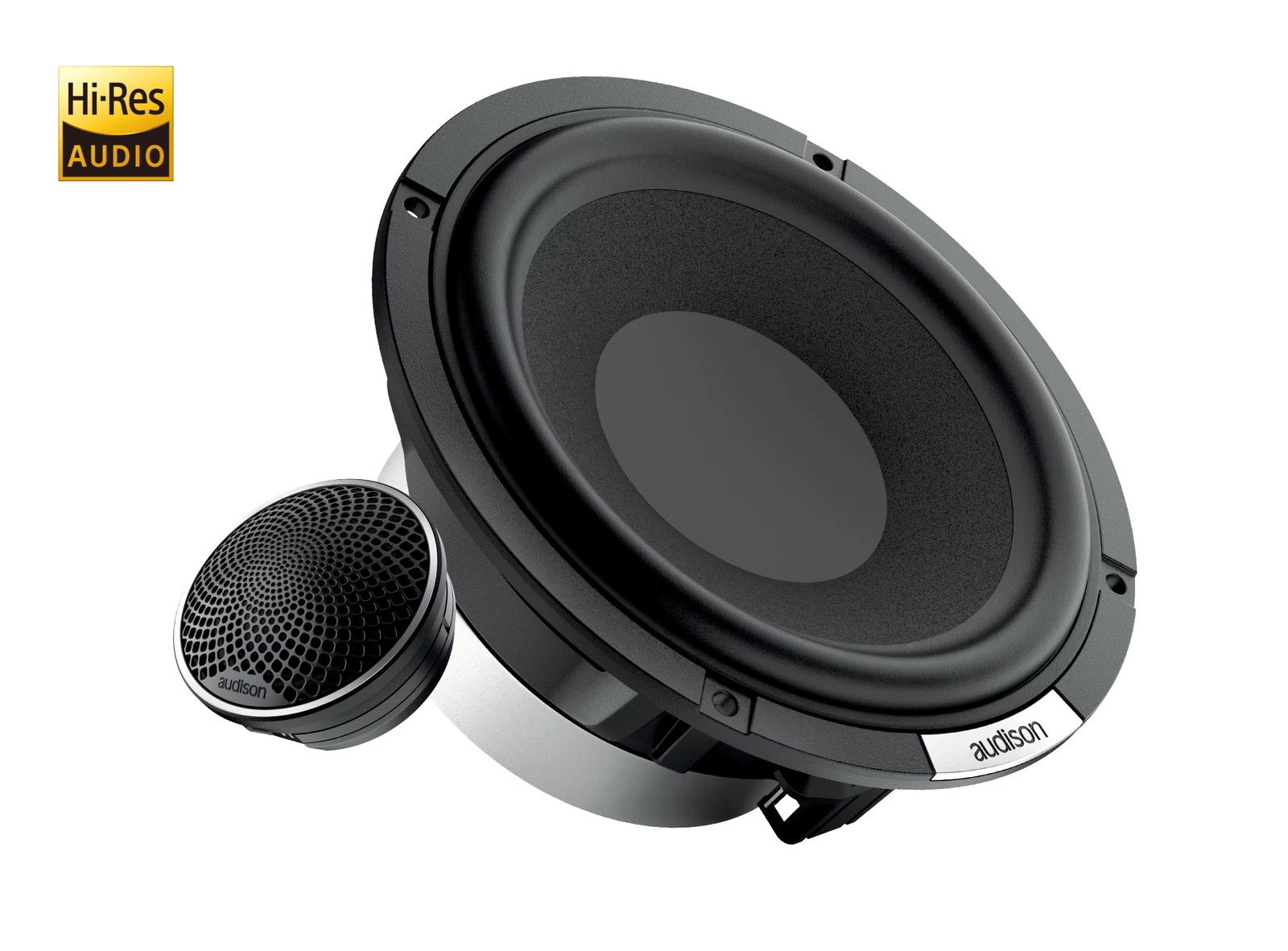

AVK6APIIAVK6APII Accessory

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.

Highlights

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.

Key specs

Woofer Size: 165 mm (6.5 in)
Impedance: 4 Ohm
Power Handling - Peak: 300 W
Power Handling - Continuous: 150 W
Frequency Response: 45 - 7500 Hz
Voice Coil Diameter: 40 mm (1.57 in)
Magnet Material: HIGH DENSITY FLUX FERRITE
Magnet Size: 100 X 45 X 18

Key specs

Woofer Size: 165 mm (6.5 in)
Impedance: 4 Ohm
Power Handling - Peak: 300 W
Power Handling - Continuous: 150 W

Highlights

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.

Overview

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.
OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, no additional adapters needed.
AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration.
FEM-Optimized Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.
Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
eID Technology: Provides traceability from production to owner, guaranteeing authenticity and product security.
(40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
FEM-optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.
Die-cast aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two adhesive Audison logo badges, which are provided, allowing for personalized placement to enhance branding and aesthetics.
Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.

Highlights

Key features

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.
OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, no additional adapters needed.
AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration.
FEM-Optimized Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.
Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
eID Technology: Provides traceability from production to owner, guaranteeing authenticity and product security.
(40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.

Specs

Technical Specs LF

Woofer Size	165 mm (6.5 in)
Impedance	4 Ohm
Power Handling - Peak	300 W
Power Handling - Continuous	150 W
Frequency Response	45 - 7500 Hz
Voice Coil Diameter	40 mm (1.57 in)
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet Size	100 X 45 X 18
Cone Material	PRESSED PAPER CONE

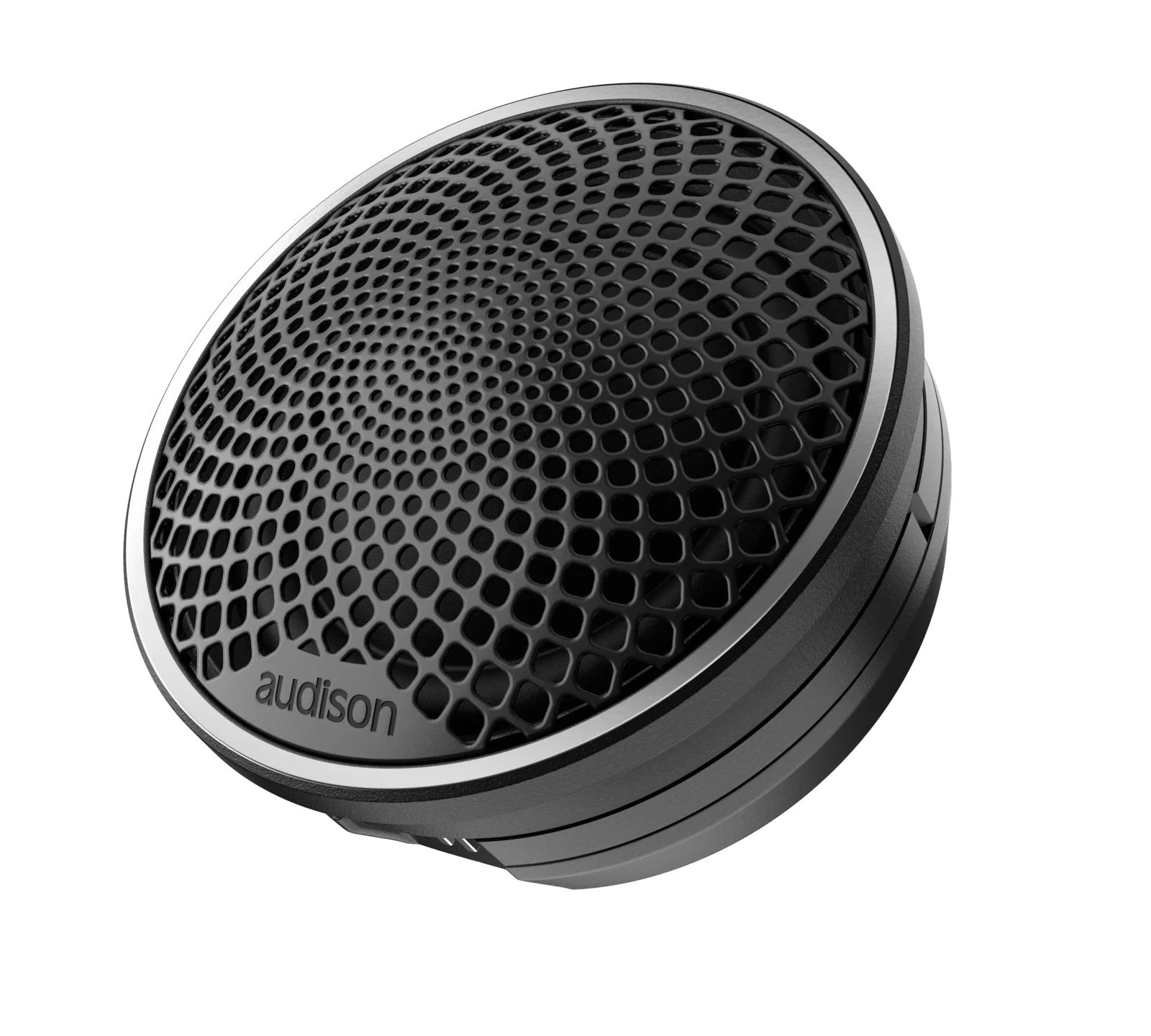

Technical Specs HF

Tweeter Size	28 mm (1.1 in)
Frequency Response	1000 - 40000 Hz
Power Handling - Peak	180 W
Voice Coil Diameter	28 mm (1.57 in)
Dome Material	TETOLON FIBRE

Electric-acoustic Specs LF

Re	2.9 Ohm
Fs	66 Hz
Mms	15.3 g
Cms	0.28
BL	5.5
Qms	9
Qes	0,61
Qts	0.57
Vas	9.09 l
Le	0.3 mH
Spl	91 dB
Xmax	4.95 mm (0.19 in)

Kit Tech Data

Cone Diameter

128.3 mm

General

Weight Woofer	1.6 kg
Weight Tweeter	0.1 kg
Weight Crossover	0.1 kg

Dimensions

Dimension A	165 mm (6.5 in)
Dimension A1	48 mm
Dimension B	140.8 mm (5.54 in)
Dimension C	74.2 mm (2.92 in)
Dimension D	69.8 mm (2.75 in)
Dimension B1	44.9 mm
Dimension C1	26.7 mm
Dimension D1	16.5 mm

Frequency Response

Tweeter

Woofer
