Audison

AVK6SIIAVK6SII Accessory

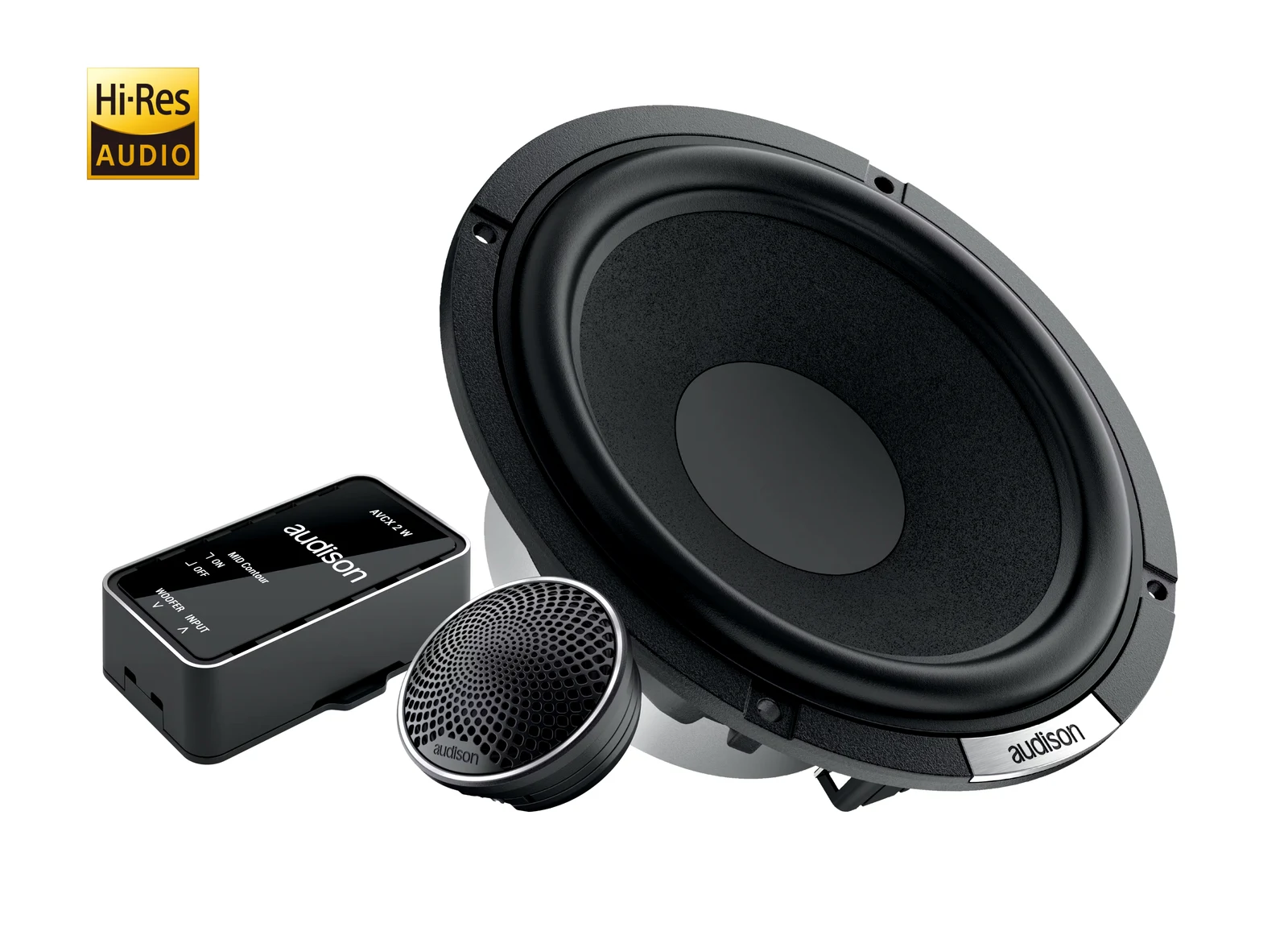

Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.

Highlights

Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.
Tetolon soft dome: Optimized through precise material characterization, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.
Powerful neodymium magnet: Designed to provide superior dynamic response and minimal distortion across the frequency spectrum, improving sound clarity and precision.

Key specs

Woofer Size: 165 mm (6.5 in)
Impedance: 4 Ohm
Power Handling - Peak: 250 W
Power Handling - Continuous: 125 W
Frequency Response: 50 - 5500 Hz
Voice Coil Diameter: 36 mm (1.42 in)
Magnet Material: HIGH DENSITY FLUX FERRITE
Magnet Size: 92 x 42 x 15 mm

Key specs

Woofer Size: 165 mm (6.5 in)
Impedance: 4 Ohm
Power Handling - Peak: 250 W
Power Handling - Continuous: 125 W

Highlights

Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.
Tetolon soft dome: Optimized through precise material characterization, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.

Overview

Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.
Tetolon soft dome: Optimized through precise material characterization, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.
Powerful neodymium magnet: Designed to provide superior dynamic response and minimal distortion across the frequency spectrum, improving sound clarity and precision.
Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.

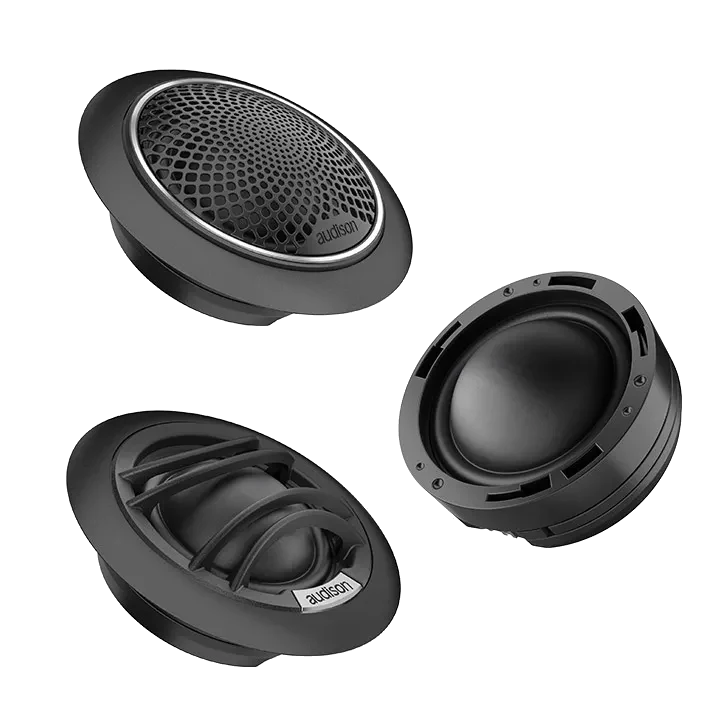

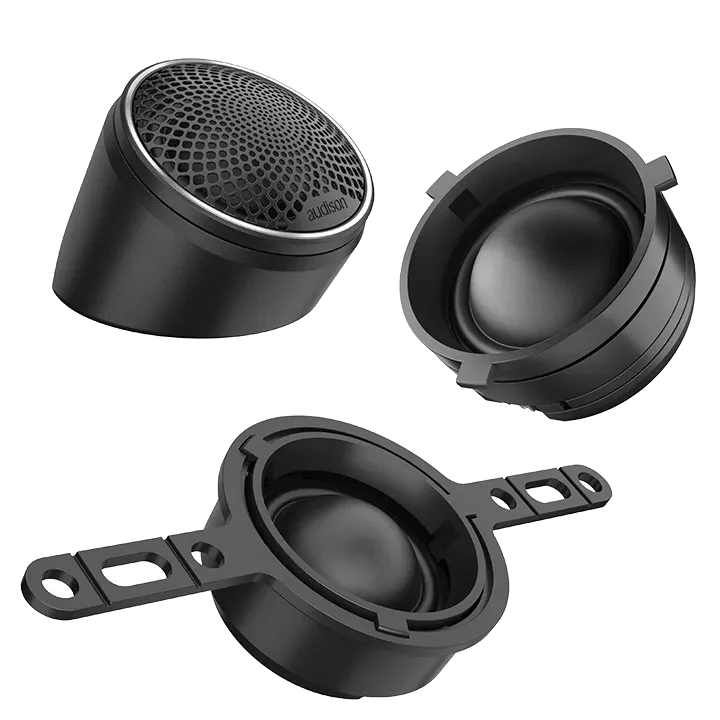

AIF (Any Install Faceplate) Technology: Designed to ensure total installation flexibility and significantly reduce installation time, offering two faceplates and three mounting accessories for any configuration.
FEM-optimized faceplates (Finite Element Method): Improve sound dispersion for a balanced and immersive listening experience from any angle.

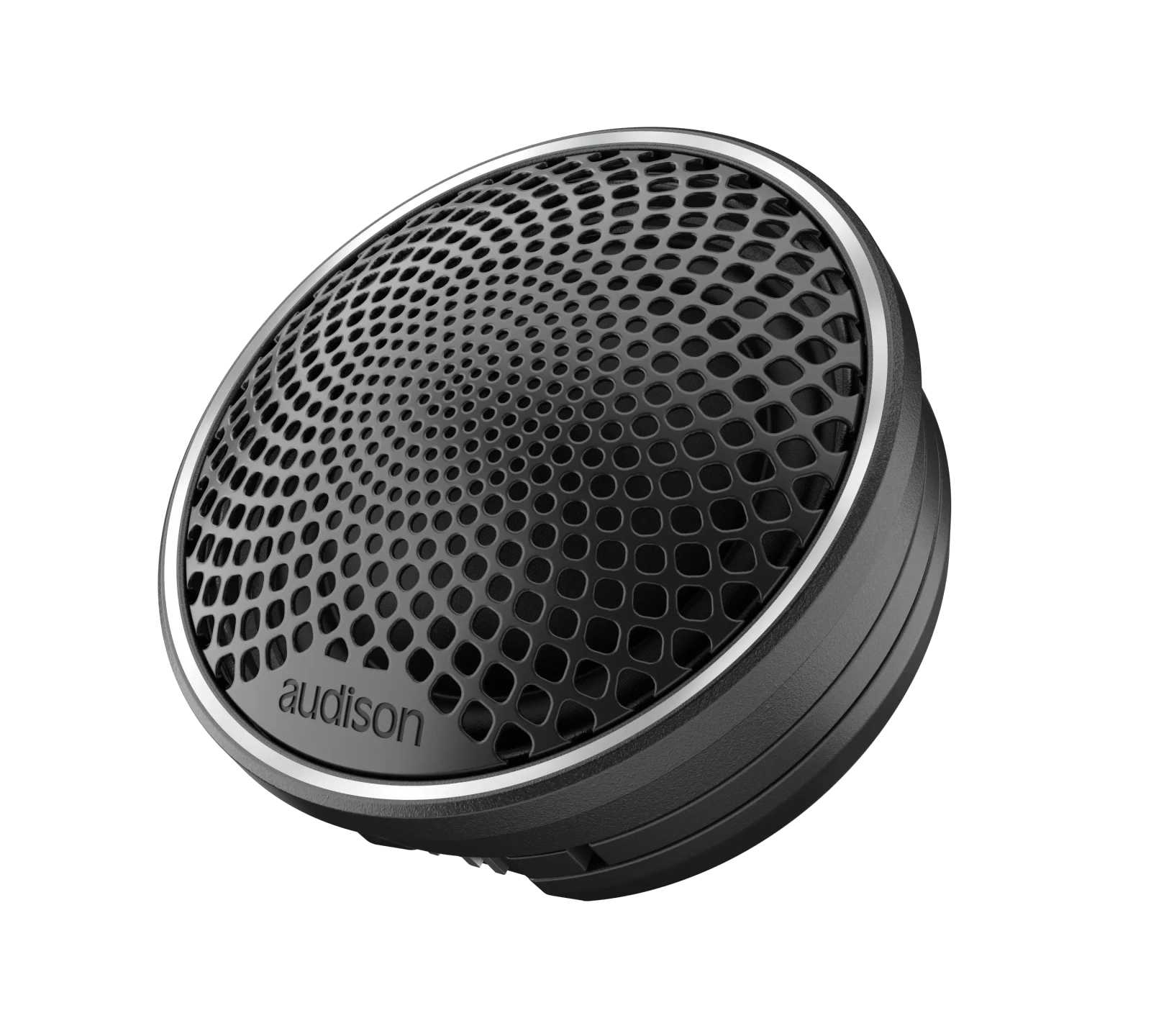

Mesh and spoke grilles: Both grilles are included to ensure perfect integration within the vehicle cabin, combining aesthetics and performance.
eID technology: Provides tweeter traceability from production to the owner, guaranteeing authenticity and product security.
1.4” (36 mm) CCAW (Copper Clad Aluminum Wire) voice coil: Maximizes excursion capability and heat dissipation, allowing the driver to reach 125 W RMS power, delivering powerful bass free from dynamic compression, even at high listening volumes.
Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in in the motor.
Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
FEM-optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.

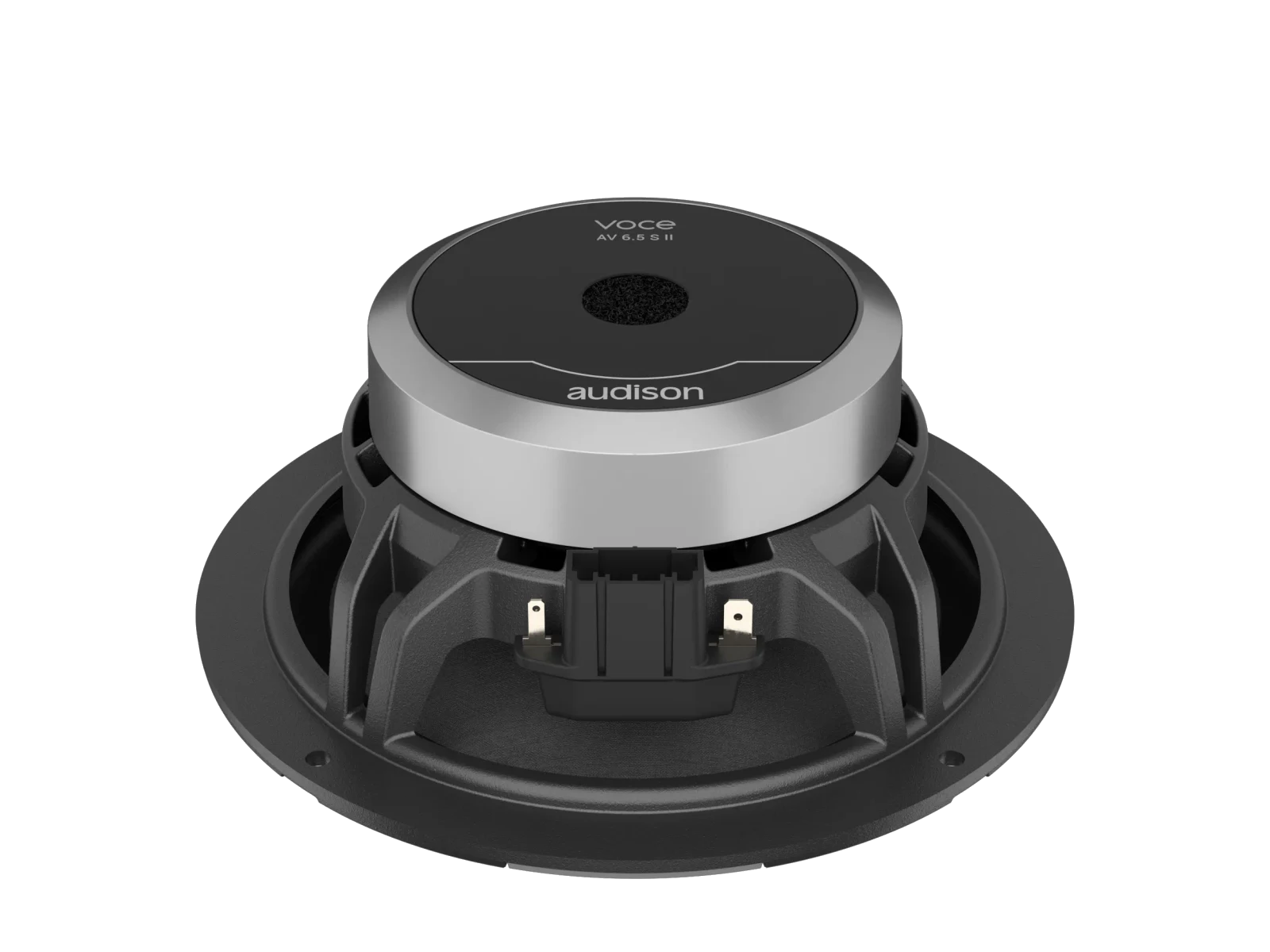

Die-Cast Aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

Highlights

Key features

Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.
Tetolon soft dome: Optimized through precise material characterization, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.
Powerful neodymium magnet: Designed to provide superior dynamic response and minimal distortion across the frequency spectrum, improving sound clarity and precision.
Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
AIF (Any Install Faceplate) Technology: Designed to ensure total installation flexibility and significantly reduce installation time, offering two faceplates and three mounting accessories for any configuration.
FEM-optimized faceplates (Finite Element Method): Improve sound dispersion for a balanced and immersive listening experience from any angle.
Mesh and spoke grilles: Both grilles are included to ensure perfect integration within the vehicle cabin, combining aesthetics and performance.
eID technology: Provides tweeter traceability from production to the owner, guaranteeing authenticity and product security.
1.4” (36 mm) CCAW (Copper Clad Aluminum Wire) voice coil: Maximizes excursion capability and heat dissipation, allowing the driver to reach 125 W RMS power, delivering powerful bass free from dynamic compression, even at high listening volumes.
Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in in the motor.
Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.

Specs

Technical Specs LF

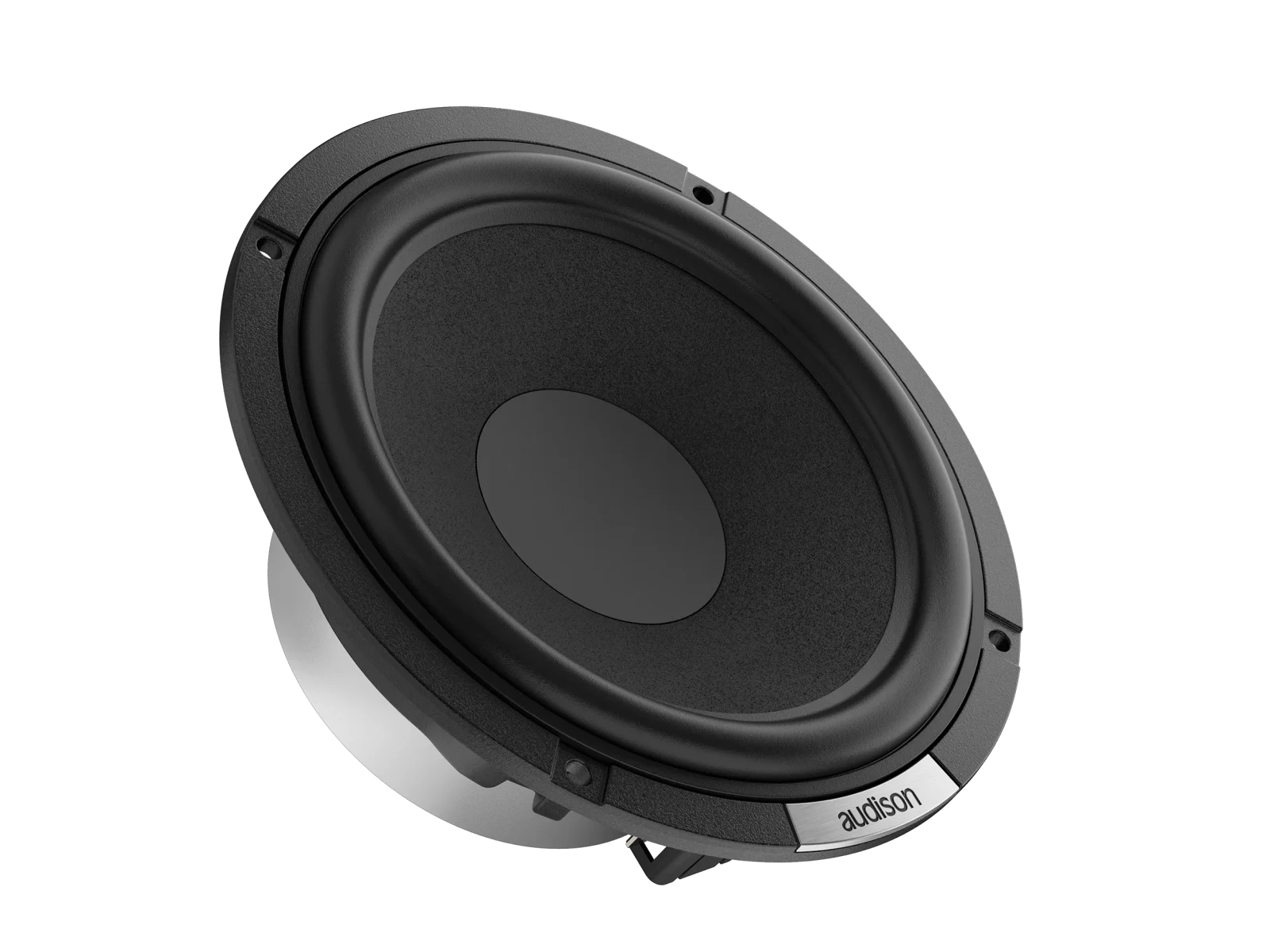

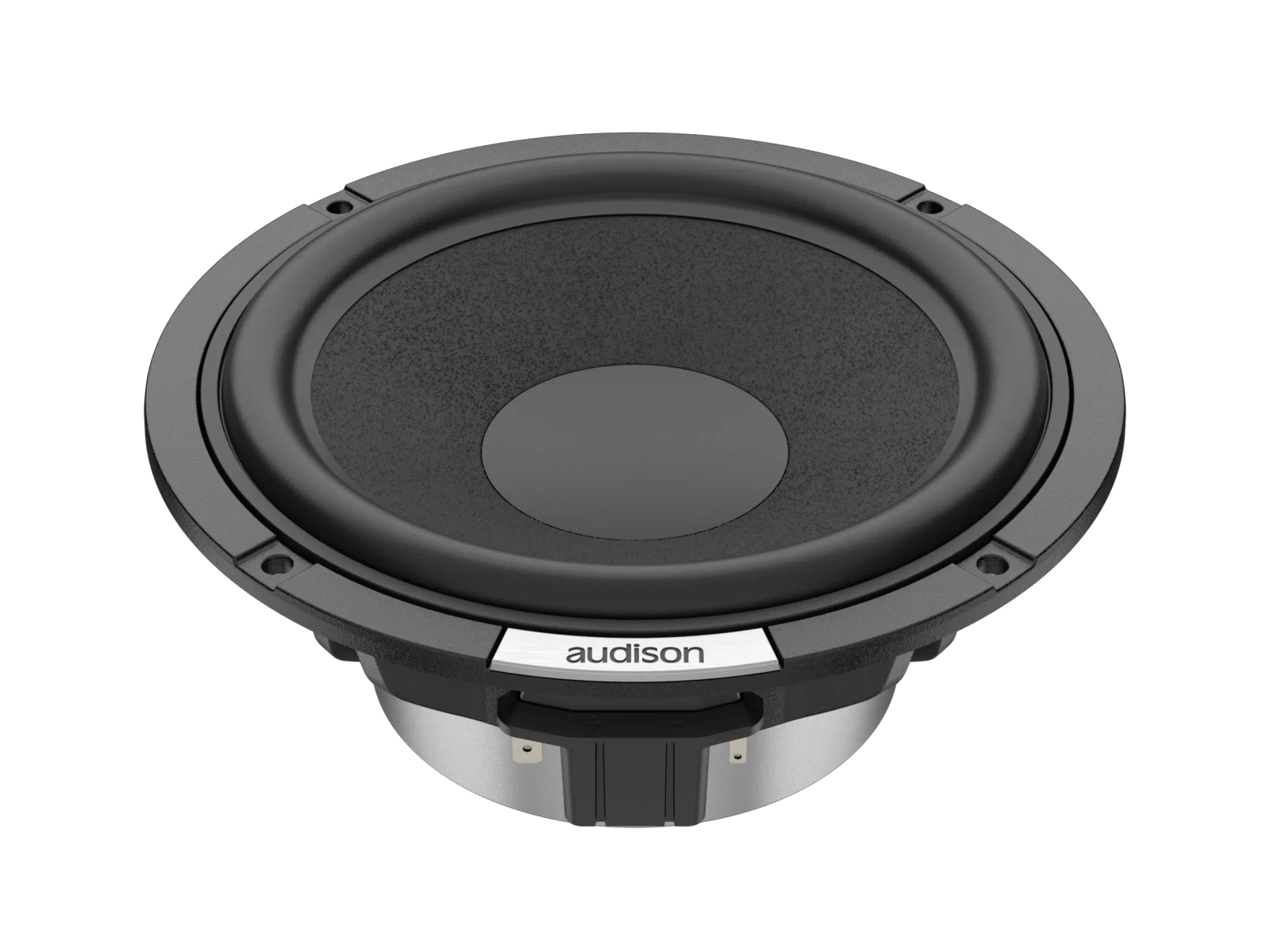

Woofer Size	165 mm (6.5 in)
Impedance	4 Ohm
Power Handling - Peak	250 W
Power Handling - Continuous	125 W
Frequency Response	50 - 5500 Hz
Voice Coil Diameter	36 mm (1.42 in)
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet Size	92 x 42 x 15 mm
Cone Material	PRESSED PAPER CONE
Crossover Type	Two Way Separate case for Woofer (AVCX 2 W - Full/6dB Oct.) & Tweeter (AVCX 2 T - 12dB/Oct.)

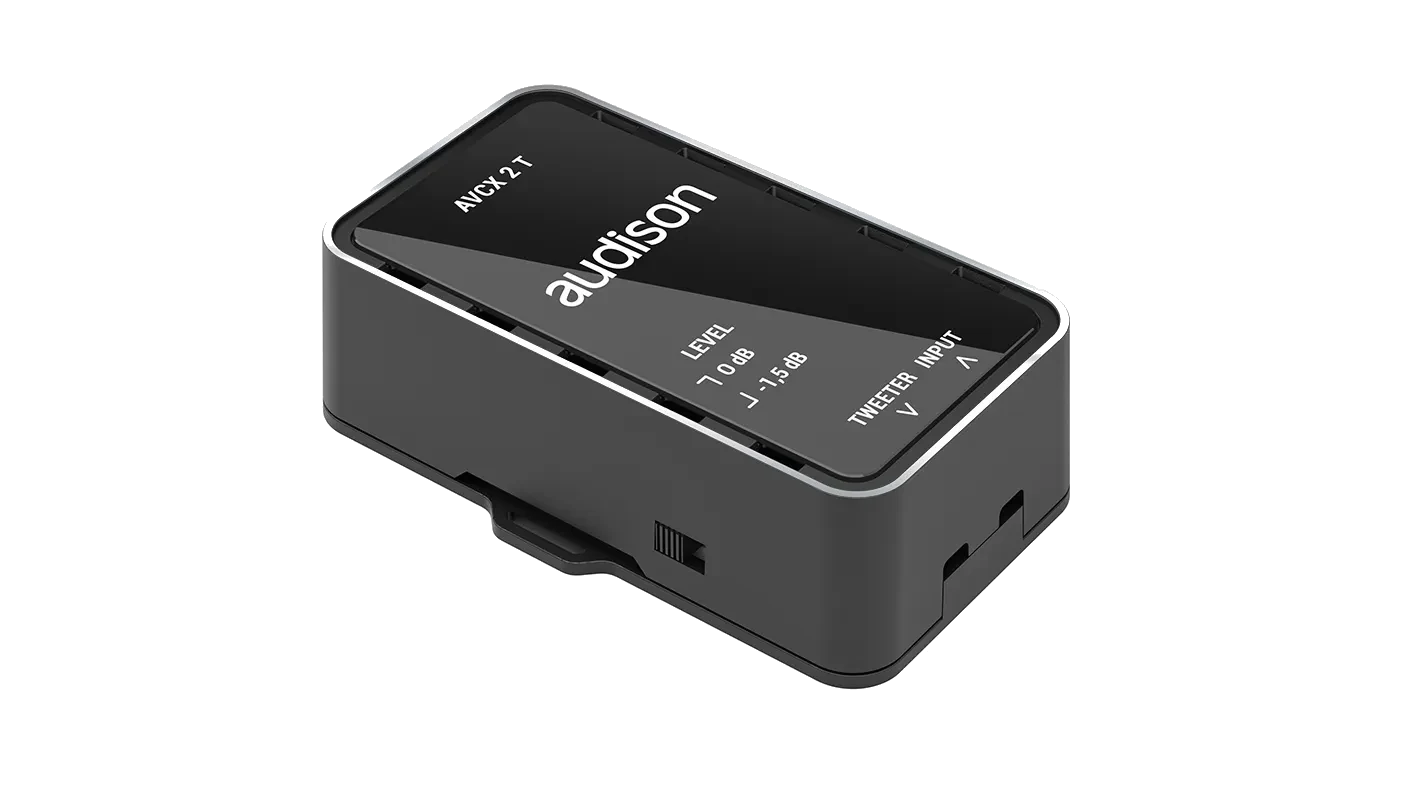

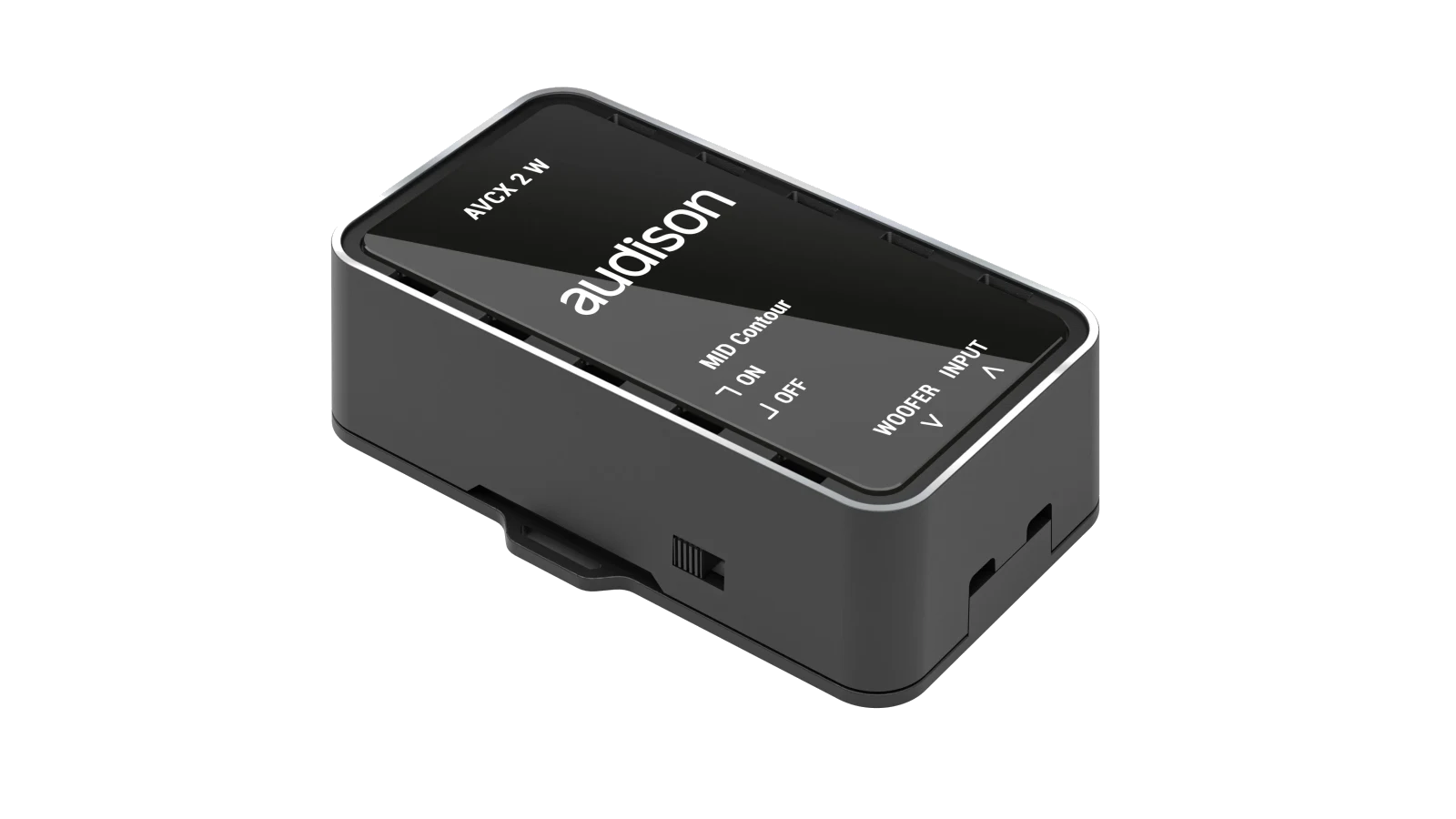

Crossover Level Adjustment	AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off

Technical Specs HF

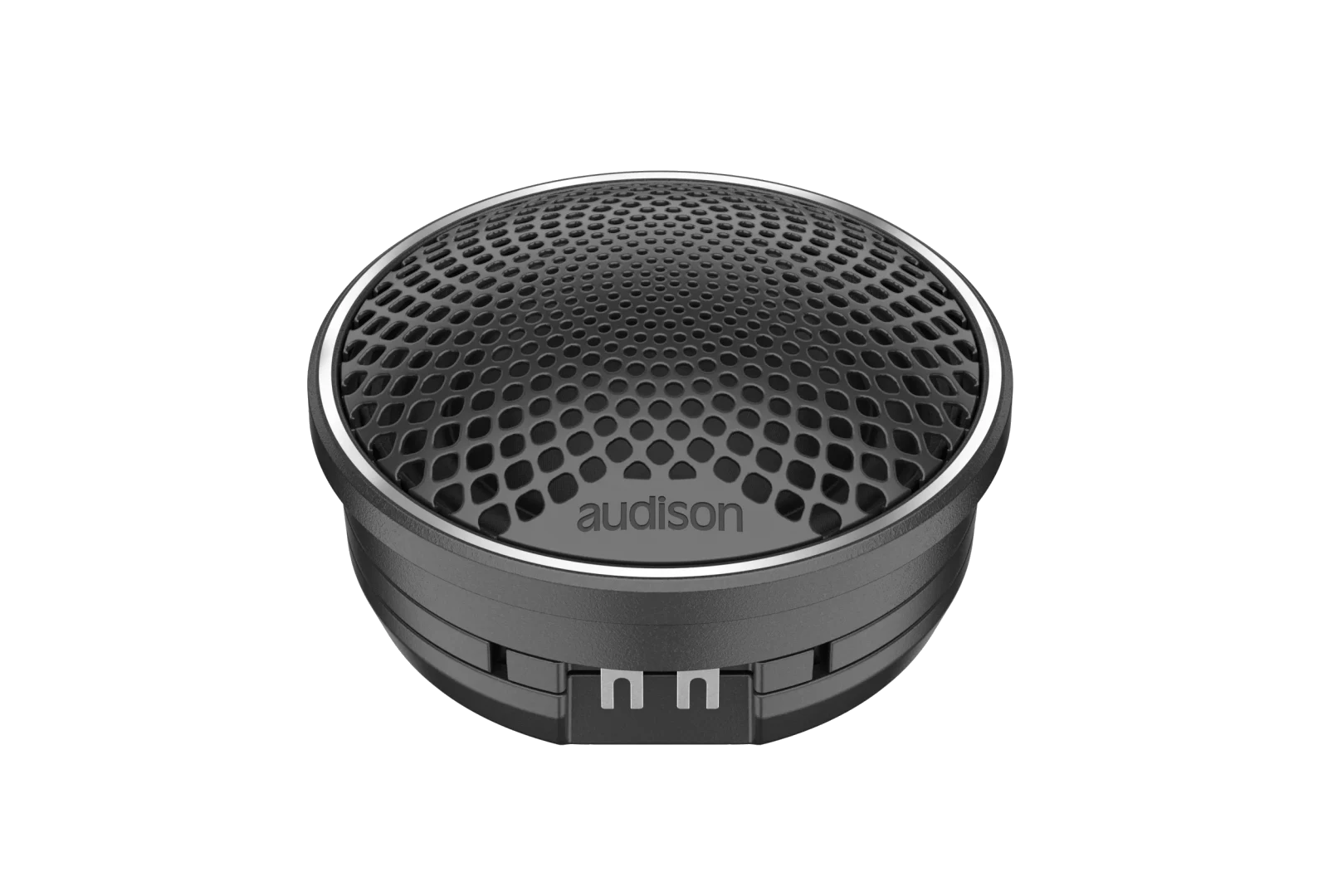

Tweeter Size	25.4 mm (1 in)
Frequency Response	1200 - 40000 Hz
Power Handling - Peak	150 W
Voice Coil Diameter	25 mm (1.42 in)
Dome Material	TETOLON FIBRE

Electric-acoustic Specs LF

Re	2.9 Ohm
Fs	67 Hz
Mms	13.2 g
Cms	0.43
BL	4.9
Qms	6.76
Qes	0.67
Qts	0.61
Vas	10.28 l
Le	0.3 mH
Spl	91 dB
Xmax	4.2 mm (0.17 in)

Kit Tech Data

Crossover Low-Pass	AVCX 2 W: Woofer, Full/6dB Oct.
Crossover Hi-Pass	AVCX 2 T: Tweeter, 12dB/Oct.
Crossover Cut Off	3.5 kHz (Mid-Contour Off)
Cone Diameter	128.35 mm

General

Weight Woofer	1.3 kg
Weight Tweeter	0.14 kg
Weight Crossover	0.1 kg

Dimensions

Dimension A	165 mm (6.5 in)
Dimension B	140.8 mm (5.54 in)
Dimension C	65.6 mm (2.58 in)
Dimension D	61 mm (2.4 in)

Frequency Response

Tweeter

Woofer
