Audison

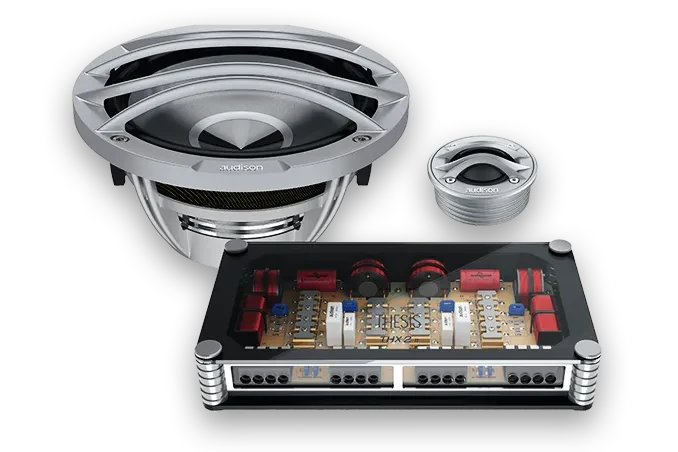

TH K2 II P COROTH K2 II P CORO Accessory
34 mm CCAW single layer voice coil combining lightweight, stability at lower frequencies, and total absence of musical transients compression. Extremely powerful custom N38 “H-grade” Neodymium magnet providing 1.
Highlights
- 34 mm CCAW single layer voice coil combining lightweight, stability at lower frequencies, and total absence of musical transients compression.
- Extremely powerful custom N38 “H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
- The exclusive air-loading system results in a resonance frequency below 800 Hz, for filter set-up, starting as low as 1.5 kHz – 12dB/Oct.
- 38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning, and Finite Element Analysis methods for a smooth and extended response.
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 150 W
- Frequency Response
- 40 Hz ÷ 26 kHz
- Voice Coil Diameter
- 50 mm (1.97 in)
- Cone Material
- TPX®
- Crossover Level Adjustment
- 4/-2/0/+1,5 dB
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 150 W
Highlights
Overview- 34 mm CCAW single layer voice coil combining lightweight, stability at lower frequencies, and total absence of musical transients compression.
- Extremely powerful custom N38 “H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
- The exclusive air-loading system results in a resonance frequency below 800 Hz, for filter set-up, starting as low as 1.5 kHz – 12dB/Oct.
Overview
- 34 mm CCAW single layer voice coil combining lightweight, stability at lower frequencies, and total absence of musical transients compression.
- Extremely powerful custom N38 “H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
- The exclusive air-loading system results in a resonance frequency below 800 Hz, for filter set-up, starting as low as 1.5 kHz – 12dB/Oct.
- 38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning, and Finite Element Analysis methods for a smooth and extended response.
- Frequency response up to 26 kHz optimized for off-axis installation.
- TH 1.5 II Violino Tuning System features two types of electro-acoustic load: bottom case or bottom disk according to targets of highest performance as well as the flexibility of in-car integration.
- Full solid metal construction structure with each part exclusively designed and produced for the Audison TH 1.5 II.
- FEM (Finite Element Method) optimized faceplate and front spokes for an improved dispersion pattern.
- 50 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
- Low inductance of the mobile voice coil to optimize the emission in the medium-high band (2-3 kHz).
- N48 “H-grade” neodymium magnet with superb thermal stability to guarantee an optimal dynamic reserve in every situation.
- Magnetic group geometry was designed using finite element simulation software to maximize efficiency by concentrating the magnetic field in the gap.
- The membrane is made of TPX®, a transparent material that reduces the frequency response irregularities in the mid-high band, leaving the speaker interior in full view.
- Membrane geometry was designed using simulation software, to obtain a smooth emission over all the listening angles.
- The basket is made of a single piece of die-cast aluminum featuring four pairs of spokes to optimize heat transfer, nullify turbulent airflows and ensure maximum structural rigidity.
- Hi-excursion suspension and spider, optimized with simulations of the loudspeaker multi-physical behavior.
- Construction without compromise with the use of high-quality resistors, capacitors, and inductors.
- Use of compensation networks for both woofer and tweeter, which optimize the load seen by the amplifier.
Highlights
Key features
- 34 mm CCAW single layer voice coil combining lightweight, stability at lower frequencies, and total absence of musical transients compression.
- Extremely powerful custom N38 “H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
- The exclusive air-loading system results in a resonance frequency below 800 Hz, for filter set-up, starting as low as 1.5 kHz – 12dB/Oct.
- 38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning, and Finite Element Analysis methods for a smooth and extended response.
- Frequency response up to 26 kHz optimized for off-axis installation.
- TH 1.5 II Violino Tuning System features two types of electro-acoustic load: bottom case or bottom disk according to targets of highest performance as well as the flexibility of in-car integration.
- Full solid metal construction structure with each part exclusively designed and produced for the Audison TH 1.5 II.
- FEM (Finite Element Method) optimized faceplate and front spokes for an improved dispersion pattern.
- 50 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
- Low inductance of the mobile voice coil to optimize the emission in the medium-high band (2-3 kHz).
- N48 “H-grade” neodymium magnet with superb thermal stability to guarantee an optimal dynamic reserve in every situation.
- Magnetic group geometry was designed using finite element simulation software to maximize efficiency by concentrating the magnetic field in the gap.
Specs
Technical Specs LF
8
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 300 W |
| Power Handling - Continuous | 150 W |
| Frequency Response | 40 Hz ÷ 26 kHz |
| Voice Coil Diameter | 50 mm (1.97 in) |
| Cone Material | TPX® |
| Crossover Level Adjustment | 4/-2/0/+1,5 dB |
Technical Specs HF
3
| Tweeter Size | 38 mm (1.5 in) |
| Voice Coil Diameter | 34 mm (1.97 in) |
| Dome Material | NATURAL_SILK |
Electric-acoustic Specs LF
12
| Re | 3.8 Ohm |
| Fs | 55 Hz |
| Mms | 24.2 g |
| Cms | 0.35 |
| BL | 8.2 |
| Qms | 5.3 |
| Qes | 0.83 |
| Qts | 0.43 |
| Vas | 8.6 l |
| Le | 0.43 mH |
| Spl | 87 dB |
| Xmax | 5.4 mm (0.21 in) |
Kit Tech Data
3
| Crossover Low-Pass | Lo-pass 1,35kHz @ 6 dB/Oct. |
| Crossover Hi-Pass | Hi-pass 2.8 kHz @ 12 dB/Oct. Q=2.06 |
| Cone Diameter | 130 mm |
General
2
| Weight Woofer | 1.25 kg |
| Weight Tweeter | 0.355 kg |
