Audison

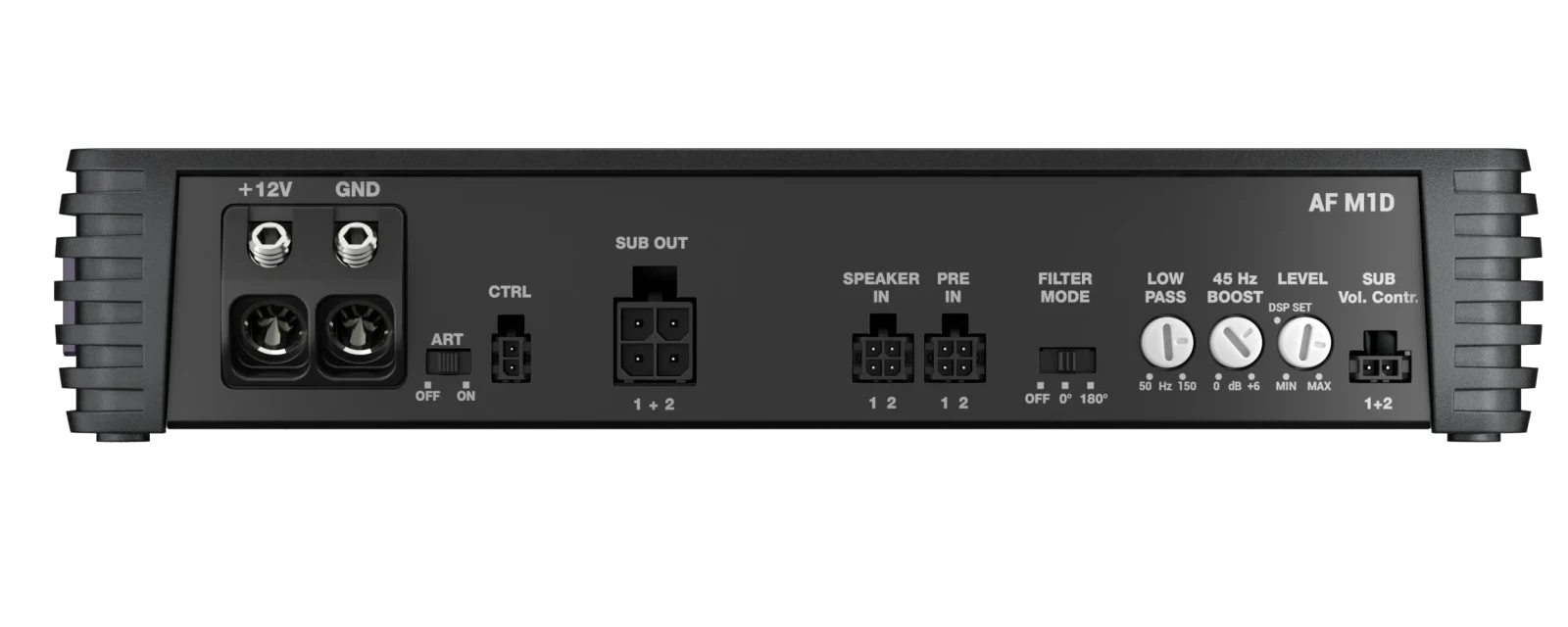

AF M1DAF M1D Amplifier
Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology Unbeatable power/volume ratio up to 0.
Highlights
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz
Key specs
Full specs- Channels
- 1
- Class
- D-Class
- Hi Level Input
- Yes
- Low Level Input
- Yes
- Digital Input
- No
- Power supply voltage / fuse
- 11 ÷ 15 VDC
- Operating power supply voltage
- 6.5 ÷ 17.5 VDC
- Idling current
- 1.2 A
Key specs
Full specs- Channels
- 1
- Class
- D-Class
- Hi Level Input
- Yes
- Low Level Input
- Yes
Highlights
Overview- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz
Overview
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz
- AF D companion amplifiers are designed to add powerful amplifier channels to AF bit amplifiers. A plug-and-play Input harness is included to make the connection to AF bit amplifiers straightforward. AF D amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! AF M1D is the only one in the AF D family that can be used also in standalone mode, thanks to a set of manual controls: – adjustable (and defeatable) low-pass 4th-order crossover filter – 0-180° polarity/phase switch – 45 Hz Bass Boost adjustment Combine these functions with the ART DC turn-on from high-level Inputs, the USS speaker-input loading, and the optional VCR-S2 level knob, and this amp can be used to add subwoofers even in systems which lack an Audison AF bit amplifier! *Output Continuous Power (RMS) @14.4 VDC, 1% THD, All channels driven.
Highlights
Key features
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz
Specs
Amplifier Tech Data
13
| Channels | 1 |
| Class | D-Class |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Power supply voltage / fuse | 11 ÷ 15 VDC |
| Operating power supply voltage | 6.5 ÷ 17.5 VDC |
| Idling current | 1.2 A |
| Idling current when off | 0.006 mA |
| Consumption @ 14.4 VDC, 1Ω, Max Musical Power | 65 A |
| Remote OUT | 6.5 ÷15 VDC (150 mA) |
| Remote IN | 4 ÷15 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 1.5 VDC |
Amplifier Stage
10
| Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power | 0.03% |
| Bandwidth A | (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz |
| S/N ratio A | (A weighted @ 1 V): 105 dBA |
| Damping factor A | (100 Hz, 4Ω, 2 VRMS): 125 |
| Input sensitivity Pre-In | 0.6 ÷ 6 VRMS |
| Input sensitivity Speaker-In | 2.2 ÷ 22 VRMS |
| Total Power RMS | 1000 W |
| Minimum load impedance | 1 Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | 1Ch @ 4Ω: 600 W 1Ch @ 2Ω: 1000 W 1Ch @ 1Ω: 1200 W |
| Adjustable Crossover | Yes |
CEA Specifications
2
| Output power @ 4Ω, 1% THD+N, 14.4 V | 600 W |
| SN ratio (ref. 1W output) | 81 dBA |
Inputs
5
| Input Type | Pre-In / Speaker-In |
| Filter Pass A | Full / Low-Pass 50 ÷ 150 Hz @ 24 dB/Oct. |
| Inputs/Outputs Phase | (0 ÷ 180 ) deg |
| Inputs/Outputs Bass Boost | 45Hz (adjustable) - (0 ÷ 6) dB |
| Remote Sub Volume | ±12 dB |
Other
1
| Weight | 1.95 kg |
Dimensions
3
| Dimension A | 240 mm |
| Dimension B | 47 mm |
| Dimension C | 156 mm |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Downloads
Similar products
Compare nearby options
Rockford Fosgate•Power

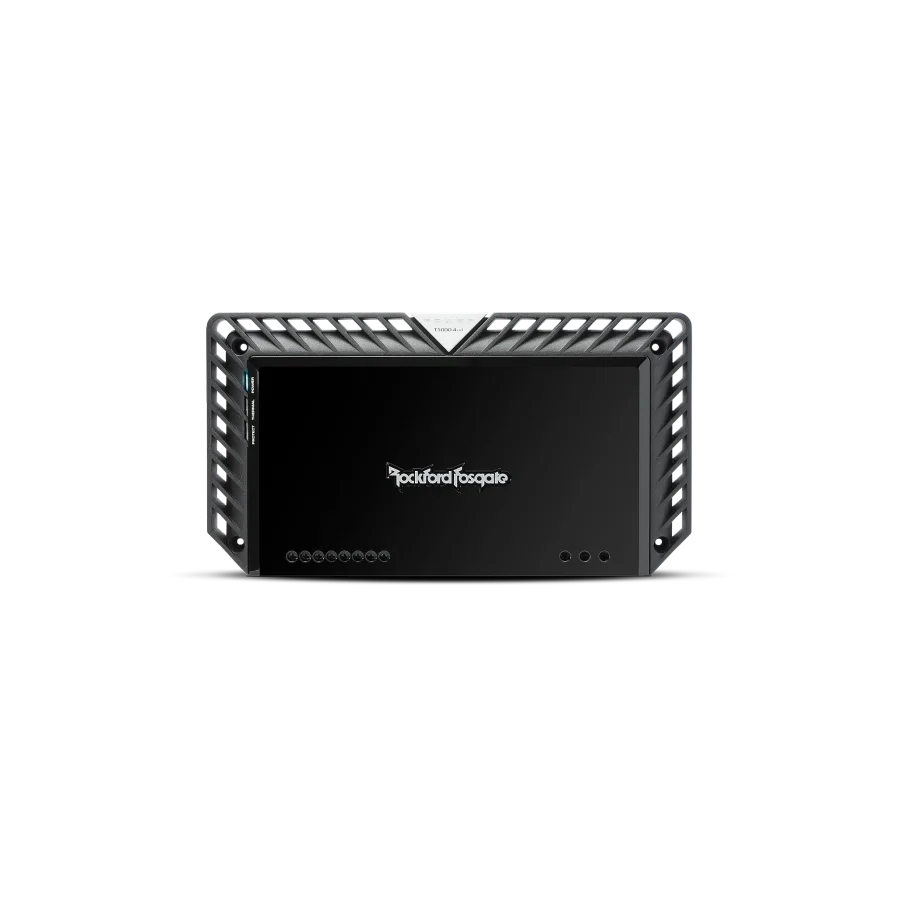

T1000-4ad Power 1,000 Watt Class-ad Full-Range 4-Channel Amplifier
4.99 reviews
$1619.99CAD
$1919.99
In stock
Rockford Fosgate•Power
T1000X5ad Power 1,000 Watt Class-ad 5-Channel Amplifier
4.330 reviews
$1369.99CAD
$1609.99
In stock
Rockford Fosgate•Power

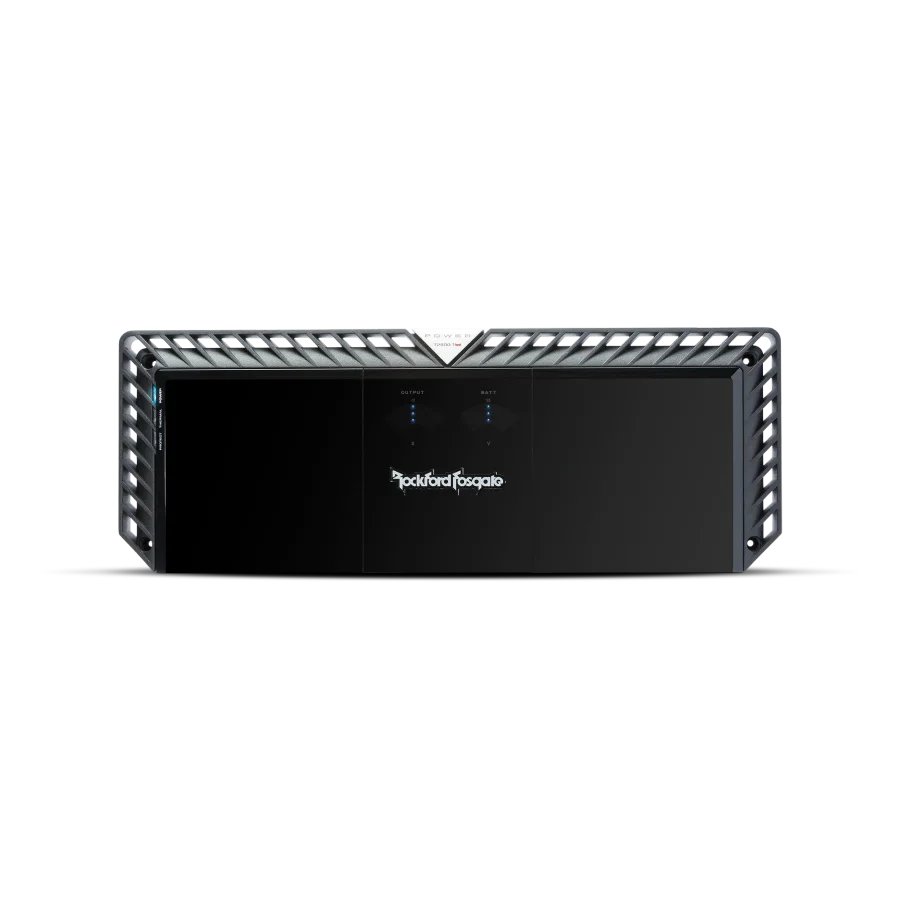

T2500-1bdCP Power 2500 Watt Class-bd Constant Power Amplifier
4.820 reviews
$2109.99CAD
$2489.99
In stock
Rockford Fosgate•Power
T1500-1bdCP Power 1,500 Watt Class-bd Constant Power Amplifier
4.861 reviews
$1179.99CAD
$1399.99
In stock
Rockford Fosgate•Punch
P1000X5 Punch 1,000 Watt Class-bd 5-Channel Amplifier
4.856 reviews
$1029.99CAD
$1209.99
In stock
Rockford Fosgate•Power
T1000-1bdCP Power 1,000 Watt Class-bd Constant Power Amplifier
5.044 reviews
$1019.99CAD
$1199.99
In stock
Rockford Fosgate•Power
T600-4 Power 600 Watt 4-Channel Amplifier
4.527 reviews
$1019.99CAD
$1199.99
In stock
Rockford Fosgate•Power

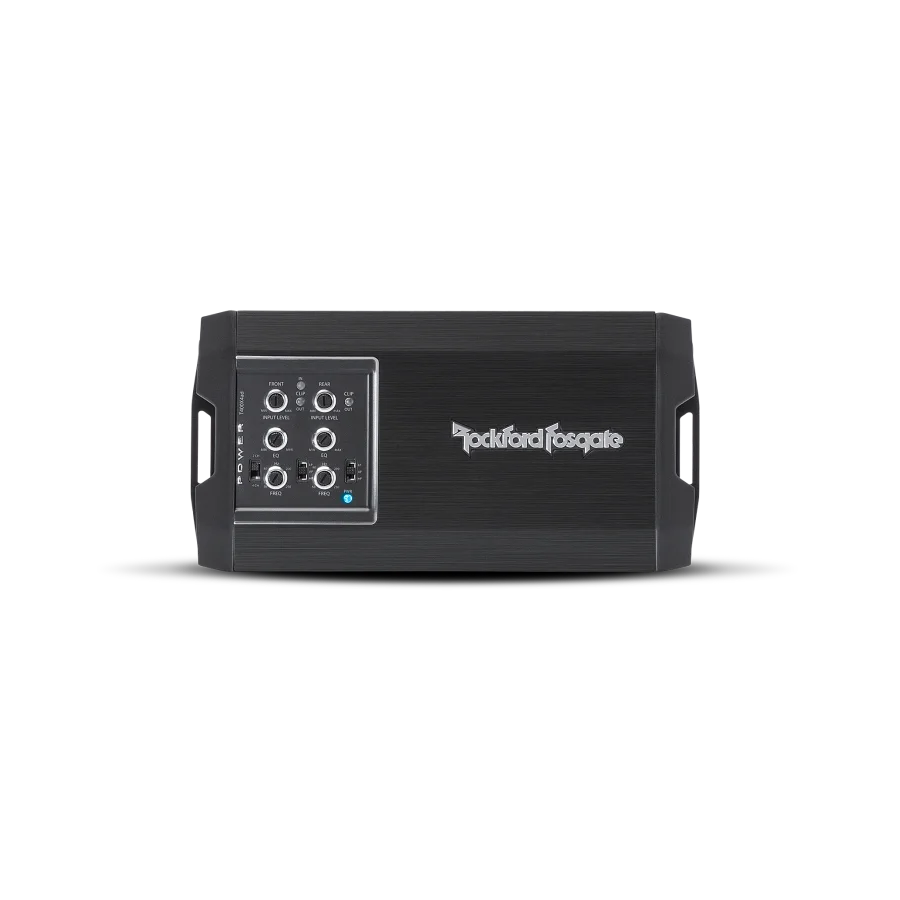

T400X4ad Power 400 Watt Class-ad 4-Channel Amplifier
