Audison

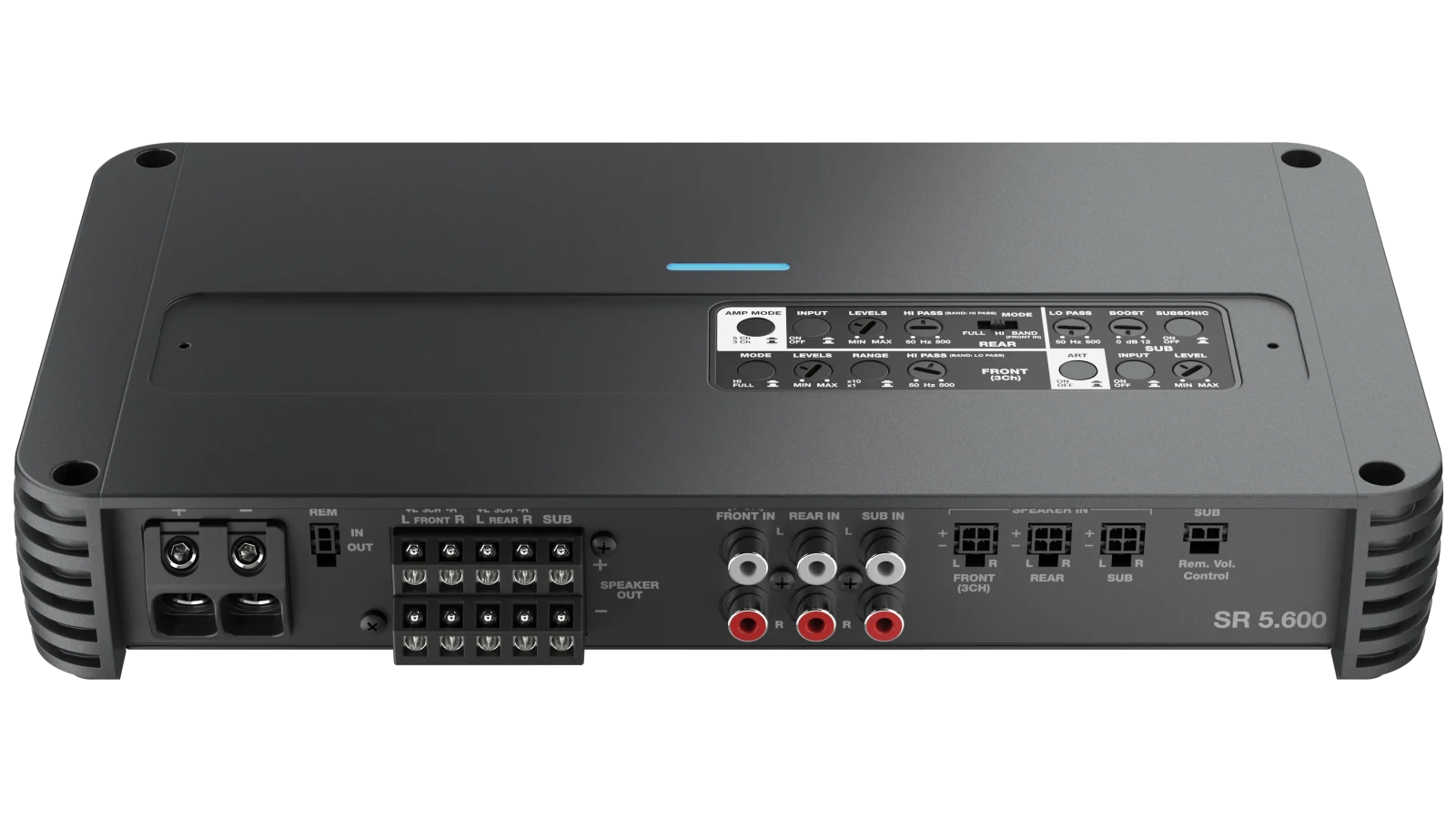

SR5.600V2SR5.600V2 5-Channel Amplifier
Elegant and functional design with rounded corners to minimize space, facilitating installation. Built-in USS (Universal Speakers Simulator). Full built-in crossover section.
Highlights
- Elegant and functional design with rounded corners to minimize space, facilitating installation.
- Built-in USS (Universal Speakers Simulator).
- Full built-in crossover section.
- Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
Key specs
Full specs- Channels
- 5
- Class
- D-Class
- Hi Level Input
- Yes
- Low Level Input
- Yes
- Digital Input
- No
- Power supply voltage / fuse
- 11 ÷ 15 VDC
- Operating power supply voltage
- 6.5 ÷17 VDC / 2 x 25A
- Idling current
- 2.2 A
Key specs
Full specs- Channels
- 5
- Class
- D-Class
- Hi Level Input
- Yes
- Low Level Input
- Yes
Highlights
Overview- Elegant and functional design with rounded corners to minimize space, facilitating installation.
- Built-in USS (Universal Speakers Simulator).
- Full built-in crossover section.
Overview
- Elegant and functional design with rounded corners to minimize space, facilitating installation.
- Built-in USS (Universal Speakers Simulator).
- Full built-in crossover section.
- Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
- Balanced high-level inputs for connecting to the OEM head unit speaker output
- Low-level RCA for after-market speakers.
- ART (Automatic Remote On/Off) function.
- Remote IN / OUT socket to allow control of multiple amplifiers.
- PRE-OUT allows for system expansion.
- Audison SR 5.600 series 5-channel amplifier with crossover and great power packed into ultra-compact dimensions ( 75 W x 4 + 330 W x 1 4Ω) SR line, perfected by taking full advantage of the latest amplification devices. After numerous listening tests with professionals and enthusiasts, the Audison research and development team decided to adopt a new class D technology called ADT (Audison D-Class Technology) for this line of amplifiers, which has made it possible to considerably reduce their size, totally preserving the audio performance that characterises every Audison design. As far as the electronic design is concerned, every aesthetic and functional detail of the Audison SR 5.600 has been taken care of, resulting in a compact amplifier made of extruded aluminium with rounded corners, which facilitates the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, there is no need for internal cooling fans, which often cause noise and dust accumulation. In keeping with tradition, the SR amplifiers confirm their vocation for versatility by including on all models a complete filter section, suitable for any kind of audio system configuration. The controls, protected by a satin-finished aluminium panel, are located on the top panel of the amplifier, so that they can be easily reached from above, even after the product has been installed. When the system includes an Audison bit processor, the filter section can be totally excluded. Optional remote control VCR-S1 offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference. Audison USS Thanks to the integration of Audison USS (Universal Speakers Simulator) technology in the high level inputs, the SR amplifiers can also be conveniently connected to OEM sources equipped with the ‘speaker load detection’ function, which monitors the presence of a low impedance load enabling the audio outputs. Audison SR 5.600 allows multiple connectivity All models have balanced high-level inputs for connecting to the OEM headunit speaker output and a low-level RCA for after-market speakers. When using the high-level input, the ART (Automatic Remote On/Off) function can be enabled to control the amplifiers’ power-up with the headunit’s power button. In addition, there is a remote IN / OUT socket to allow control of multiple amplifiers in cascade that turn on when needed. Through the PRE-OUT signal using the Speaker-IN socket it is possible to interface the amplifier with OEM sources that only have amplified outputs, allowing for system expansion.
Highlights
Key features
- Elegant and functional design with rounded corners to minimize space, facilitating installation.
- Built-in USS (Universal Speakers Simulator).
- Full built-in crossover section.
- Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
- Balanced high-level inputs for connecting to the OEM head unit speaker output
- Low-level RCA for after-market speakers.
- ART (Automatic Remote On/Off) function.
- Remote IN / OUT socket to allow control of multiple amplifiers.
- PRE-OUT allows for system expansion.
Specs
Amplifier Tech Data
13
| Channels | 5 |
| Class | D-Class |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Power supply voltage / fuse | 11 ÷ 15 VDC |
| Operating power supply voltage | 6.5 ÷17 VDC / 2 x 25A |
| Idling current | 2.2 A |
| Idling current when off | 0.04 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 44 A |
| Remote OUT | 6.5 ÷ 15 VDC (150 mA) |
| Remote IN | 6.5 ÷ 15 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 1.5 ÷ 7 VDC |
Amplifier Stage
10
| Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power | 0.02 % |
| Bandwidth A | 10 Hz ÷ 35 kHz; 10Hz ÷ 500Hz |
| S/N ratio A | 105 dBA |
| Damping factor A | 100 |
| Input sensitivity Pre-In | 0.2 ÷ 5 VRMS |
| Input sensitivity Speaker-In | 0.8 ÷ 20 VRMS |
| Total Power RMS | 1010 W |
| Minimum load impedance | 5Ch: 2Ω 3Ch: 4Ω + 4Ω + 2Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | 5Ch 75 W x 4 + 330 W x 1 (4Ω) 5Ch 115 W x 4 + 550 W x 1 (2Ω) 3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω) 3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω) |
| Adjustable Crossover | Yes |
CEA Specifications
2
| Output power @ 4Ω, 1% THD+N, 14.4 V | Output power @ 4Ω, 1% THD+N, 14.4 V: 75 W x 4 Ch + 300 W x 1 Ch |
| SN ratio (ref. 1W output) | SN ratio (ref. 1W output): 75 W: 84 dBA – 300 W: 75 dBA |
Inputs
11
| Input Type | Pre-In / Speaker-In |
| Filters Outputs | - |
| Filter Pass A | Front Ch Filters: Full - Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct. (x1) - Hi-pass: 50 ÷ 5k Hz @ 12 dB/Oct. (x10) |
| Filter Pass B | Rear Ch Filters: Full Hi-pass: 50 ÷ 5k Hz @ 12 dB/Oct |
| Filter Pass C | Rear Ch Filters: Full Band-pass: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct. |
| Channel Mono | Rear Ch Filters: Full 50 ÷ 5 kHz (Lo) @ 12 dB/Oct. |
| Inputs/Outputs Sub CH | Lo-pass: 50 ÷ 500 Hz @ 24 dB/Oct |
| Inputs/Outputs Phase | - |
| Inputs/Outputs Bass Boost | (0 ÷12) dB |
| Inputs/Outputs Subsonic | 25 Hz @ 24 dB/Oct |
| Remote Sub Volume | (-20 ÷ 6) dB |
Other
1
| Weight | 2.42 kg |
Dimensions
5
| Dimension A | 294 mm |
| Dimension B | 264 mm |
| Dimension C | 155 mm |
| Dimension D | 135 mm |
| Dimension E | 47.5 mm |
