Boss Elite
BE1200.4DFull-Range Class D Amplifier
The Boss Elite BE1200.4D is organized here as a Full-Range Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include 4/3/2 Channel, Full-Range, Class D, 2Ω Stereo Stable.
Highlights
- 4/3/2 Channel
- Full-Range, Class D
- 2Ω Stereo Stable
- PWM MOSFET Power Supply
Key specs
Full specs- Amp Topology
- Full Range, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 1200 Watts
- Peak Power @ 2 Ω
- 300 Watts
- Peak Power @ 4 Ω
- 150 Watts
- Bridged Power @ 4 Ω
- 600 Watts
- RMS Power @ 2 Ω
- 225 Watts
- RMS Power @ 4 Ω
- 113 Watts
Key specs
Full specs- Amp Topology
- Full Range, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 1200 Watts
- Peak Power @ 2 Ω
- 300 Watts
Highlights
Overview- 4/3/2 Channel
- Full-Range, Class D
- 2Ω Stereo Stable
Overview
The Boss Elite BE1200.4D is organized here as a Full-Range Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include 4/3/2 Channel, Full-Range, Class D, 2Ω Stereo Stable.
Best for
- Amplifiers - 4ch
- car audio power upgrades
- Car audio upgrades
- Powering multi-speaker car audio systems
Key points
- 4/3/2 Channel
- Full-Range, Class D
- 2Ω Stereo Stable
- PWM MOSFET Power Supply
- RCA & Speaker Level Inputs
- HP & LP Filters
Fit and use
Check the listed dimensions, connection options, and power ratings against the vehicle and system plan before ordering. The specification table keeps the source measurements and electrical details available for comparison.
What to know
This content is normalized from Boss Elite product data and Automob category/inventory data. Use the specs and manuals on the page for final confirmation before installation.
Highlights
Key features
- 4/3/2 Channel
- Full-Range, Class D
- 2Ω Stereo Stable
- PWM MOSFET Power Supply
- RCA & Speaker Level Inputs
- HP & LP Filters
More info
- 4/3/2 Channel
- Full-Range, Class D
- 2Ω Stereo Stable
- PWM MOSFET Power Supply
- RCA & Speaker Level Inputs
- HP & LP Filters
- Bass Boost (CH3/4)
- Input Sensitivity
- High-Input Turn on
- 4CH/2CH Input Mode
- Thermal, Short and Overload Protection Circuits
Specs
General Specs
2
| Amp Topology | Full Range, Class D |
| Power Supply Type | MOSFET Power Supply Watts |
Performance Specs
11
| Total Power Output | 1200 Watts |
| Peak Power @ 2 Ω | 300 Watts |
| Peak Power @ 4 Ω | 150 Watts |
| Bridged Power @ 4 Ω | 600 Watts |
| RMS Power @ 2 Ω | 225 Watts |
| RMS Power @ 4 Ω | 113 Watts |
| Bridged RMS Power @ 4 Ω | 450 Watts |
| Speaker Impedance | 2 to 8 Ω |
| T.H.D. (Total Harmonic Distortion) | 0.01 % |
| Channel Separation ≥ | 90 dB |
| Frequency Response | 9 Hz to 50 kHz ±1 dB |

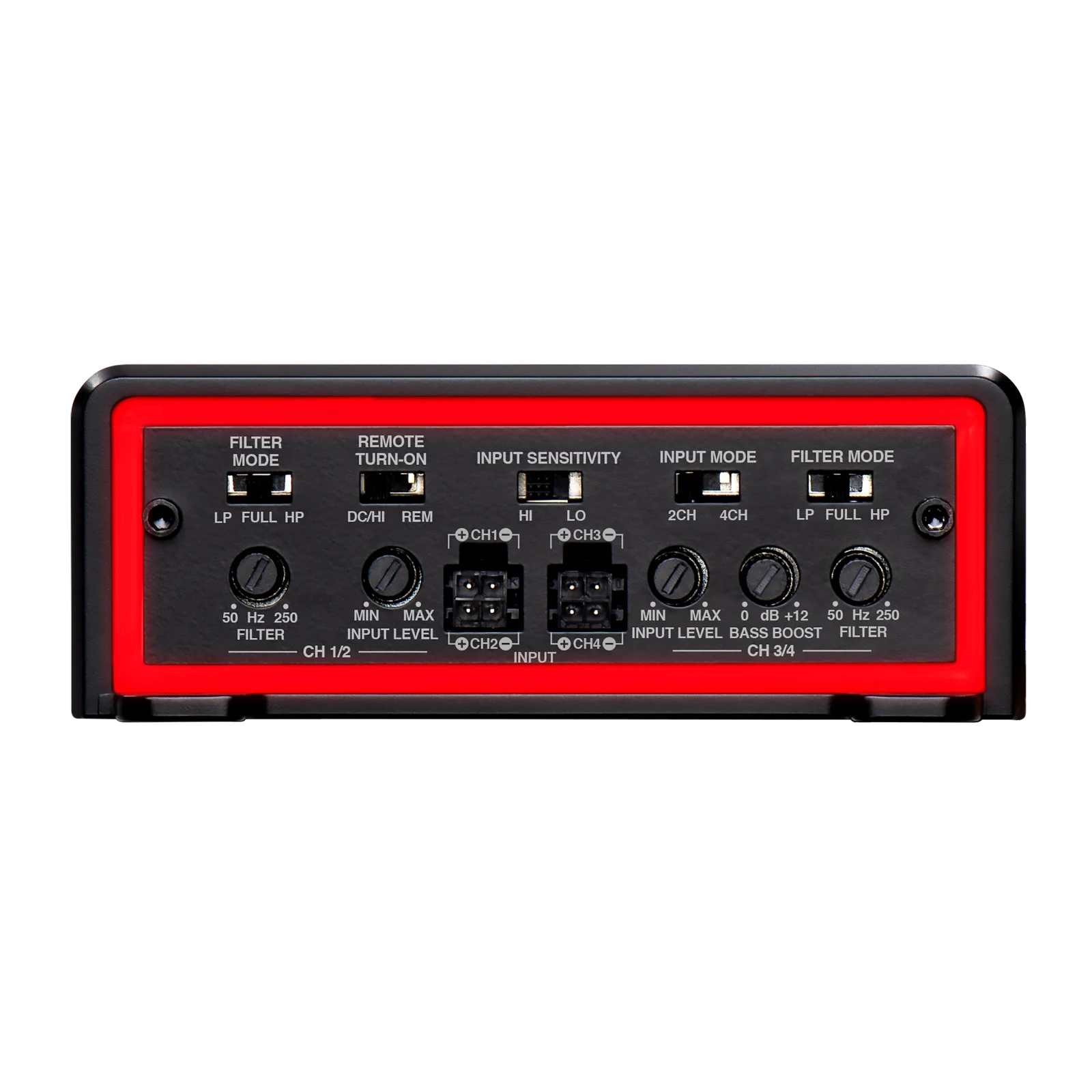

Connections, Controls, and Processing
8
| RCA Inputs | 4 Channel |
| High Level Inputs | YES |
| Low Pass Filter | 50 Hz |
| High-Pass Filter | Variable |
| Bass Boost | Variable |
| Subwoofer Level Control | YES |
| Input Sensitivity Switch | YES |
| Thermal/Overload/Short Protection | YES |
Measurement
2
| Length | 9.7 " |
| Width | 4.6 " |
Additional Specs
1
| Qty Comes In Box | 1 |
