Boss Elite
BE600.1DMonoblock Class D Amplifier
The Boss Elite BE600.1D is organized here as a Monoblock Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front.
Highlights
- Full Range Mono Class D Amplifier
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Low Pass Filter 50Hz-250Hz
Key specs
Full specs- Amp Topology
- Monoblock, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 2000 Watts
- Peak Power @ 1 Ω
- 2000 Watts
- Peak Power @ 2 Ω
- 1000 Watts
- Peak Power @ 4 Ω
- 500 Watts
- RMS Power @ 1 Ω
- 1500 Watts
- RMS Power @ 2 Ω
- 750 Watts
Key specs
Full specs- Amp Topology
- Monoblock, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 2000 Watts
- Peak Power @ 1 Ω
- 2000 Watts
Highlights
Overview- Full Range Mono Class D Amplifier
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
Overview
The Boss Elite BE600.1D is organized here as a Monoblock Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include Full Range Mono Class D Amplifier, PWM MOSFET Power Supply, Thermal, Short and Overload Protection Circuits.
Best for
- Amplifiers - Mono
- car audio power upgrades
- Car audio upgrades
- Powering multi-speaker car audio systems
Key points
- Full Range Mono Class D Amplifier
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Low Pass Filter 50Hz-250Hz
- Infrasonic Filter 15Hz-40Hz
- Bass Boost 0dB- +12dB
Fit and use
Check the listed dimensions, connection options, and power ratings against the vehicle and system plan before ordering. The specification table keeps the source measurements and electrical details available for comparison.
What to know
This content is normalized from Boss Elite product data and Automob category/inventory data. Use the specs and manuals on the page for final confirmation before installation.
Highlights
Key features
- Full Range Mono Class D Amplifier
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Low Pass Filter 50Hz-250Hz
- Infrasonic Filter 15Hz-40Hz
- Bass Boost 0dB- +12dB
More info
- Full Range Mono Class D Amplifier
- PWM MOSFET Power Supply
- Thermal, Short and Overload Protection Circuits
- Low Pass Filter 50Hz-250Hz
- Infrasonic Filter 15Hz-40Hz
- Bass Boost 0dB- +12dB
- Remote Subwoofer Level Control
- RCA or Speaker Level Inputs
- Low Level Input Voltage 400mV-4V
- High Level Input Voltage 4V-40V
- 200W RMS x 1CH @ 4 Ω
- 350W RMS x 1CH @ 2 Ω
- 600W RMS x 1CH @ 1 Ω
Specs
General Specs
2
| Amp Topology | Monoblock, Class D |
| Power Supply Type | MOSFET Power Supply Watts |
Performance Specs
10
| Total Power Output | 2000 Watts |
| Peak Power @ 1 Ω | 2000 Watts |
| Peak Power @ 2 Ω | 1000 Watts |
| Peak Power @ 4 Ω | 500 Watts |
| RMS Power @ 1 Ω | 1500 Watts |
| RMS Power @ 2 Ω | 750 Watts |
| RMS Power @ 4 Ω | 375 Watts |
| Speaker Impedance | 1 to 8 Ω |
| T.H.D. (Total Harmonic Distortion) | 0.01 % |
| Frequency Response | 9 Hz to 50 kHz ±1 dB |

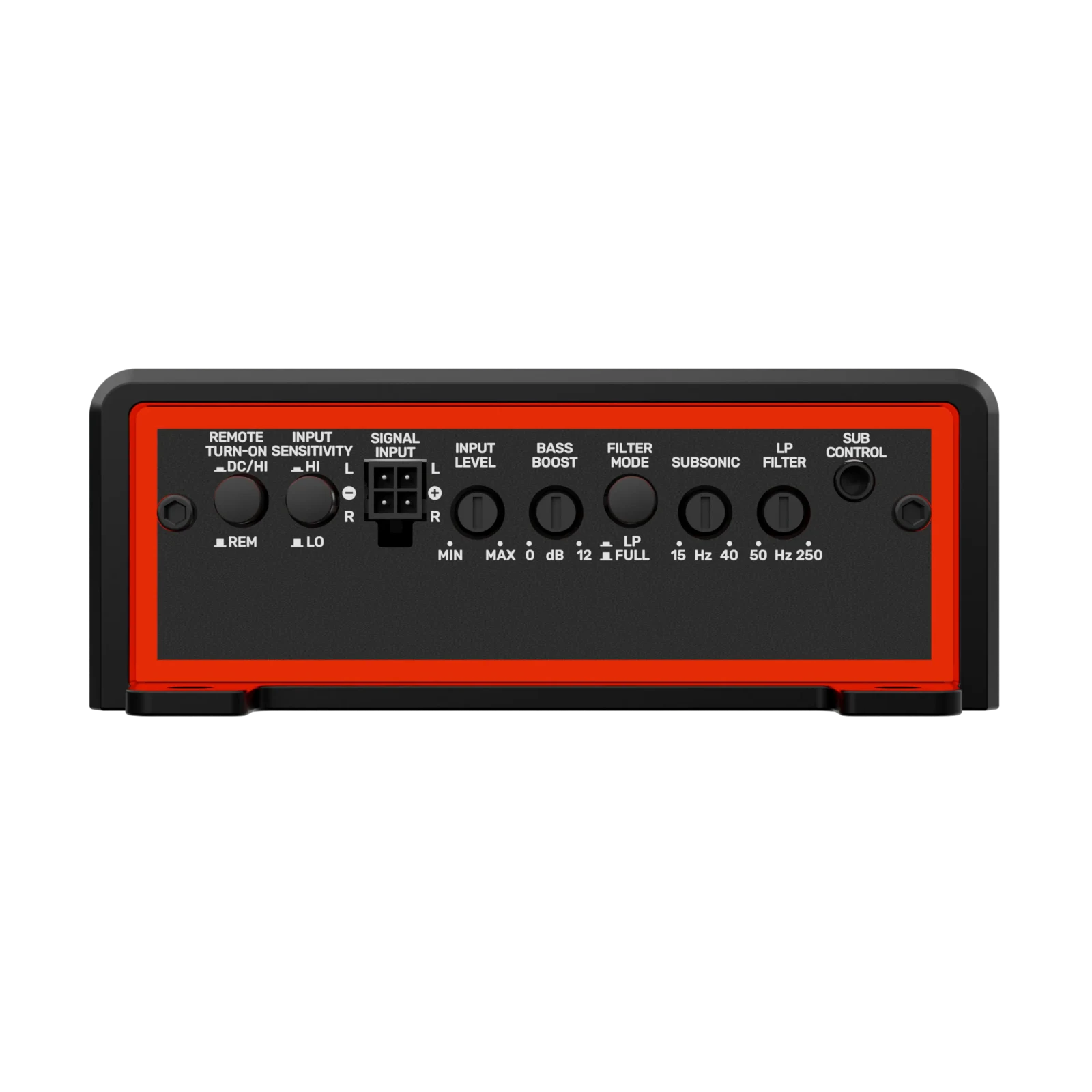

Connections, Controls, and Processing
9
| RCA Inputs | 2 Channel |
| High Level Inputs | YES |
| Low Pass Filter | 50 Hz |
| High-Pass Filter | Fixed |
| Subsonic Filter | 15 Hz |
| Bass Boost | Variable |
| Subwoofer Level Control | YES |
| Input Sensitivity Switch | YES |
| Thermal/Overload/Short Protection | YES |
Measurement
2
| Length | 4.57 " |
| Width | 8.98 " |
Additional Specs
2
| Unit Weight lbs | 2.82 |
| Qty Comes In Box | 1 |
