Hertz

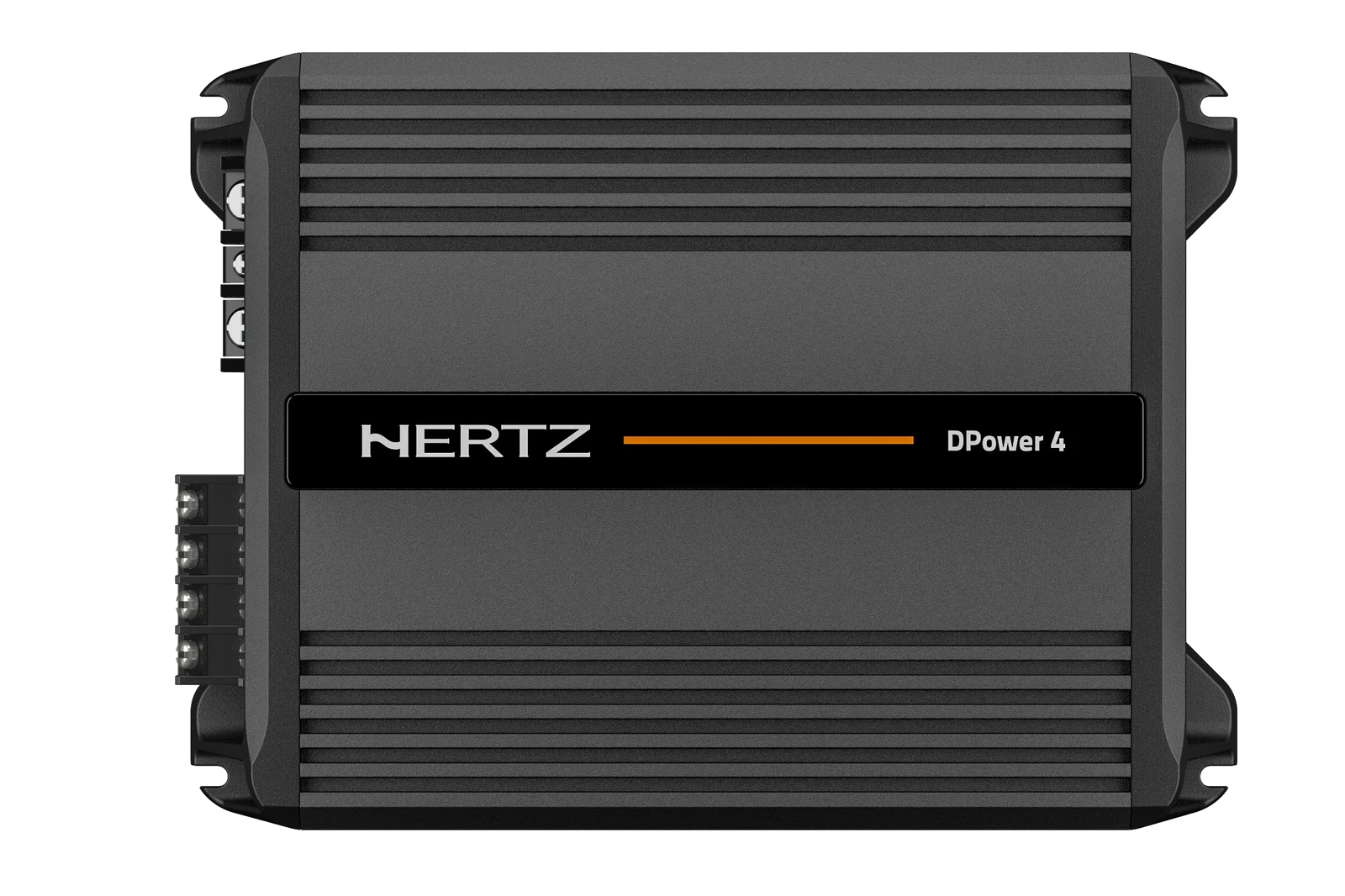

Hertz DPOWER 4Excellent For OEM Systems Upgrade
Excellent for OEM systems upgrade , the Hertz DPower4 four channels car audio amplifiers is ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area.
Highlights
- ULTRA-COMPACT
- HIGH POWER/SIZE RATIO
- VERSATILE X-OVER
- SPEAKER & RCA INPUTS
Key specs
Full specs- Channels
- 4 - 3 - 2
- Power supply voltage / fuse:
- 11 ÷ 15 VDC / 1 x 20 A
- Idling current (power ON/OFF)
- 1 A / 0.04 mA
- Consumption @ 2Ω, 14.4 VDC (Max Musical Power):
- 16 A
- Remote In:
- 4 ÷ 15 VDC - 1 mA
- ART™:
- Automatic Remote Turn-On/Off
- Distortion - THD (100 Hz @ 4Ω):
- 0.2 %
- Bandwidth:
- 10 ÷ 30k Hz
Key specs
Full specs- Channels
- 4 - 3 - 2
- Power supply voltage / fuse:
- 11 ÷ 15 VDC / 1 x 20 A
- Idling current (power ON/OFF)
- 1 A / 0.04 mA
- Consumption @ 2Ω, 14.4 VDC (Max Musical Power):
- 16 A
Highlights
Overview- ULTRA-COMPACT
- HIGH POWER/SIZE RATIO
- VERSATILE X-OVER
Overview
Excellent for OEM systems upgrade, the Hertz DPower4 four channels car audio amplifiers is ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area. The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The versatile crossover filter of the DPower 4 enables the user to create a front-rear or front + subwoofer system by connecting two channels in bridge mode.
The double SPEAKER & RCA INPUTS allows the DPower4 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems the DPower4 is equipped with a smart automated turn on and off circuit according to the factory radio.
The double SPEAKER & RCA INPUTS allows the DPower4 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems the DPower4 is equipped with a smart automated turn on and off circuit according to the factory radio.
Highlights
Key features
- ULTRA-COMPACT
- HIGH POWER/SIZE RATIO
- VERSATILE X-OVER
- SPEAKER & RCA INPUTS
- ART AUTO TURN-ON/OFF
Technologies
ULTRA-COMPACT
Excellent for OEM systems upgrade, the DPower amplifiers are ultra-compact to ensure effortless installations in
HIGH POWER/SIZE RATIO
The efficient D class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement
VERSATILE X-OVER
DPower1 bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch.
SPEAKER & RCA INPUTS
The double SPEAKER & RCA INPUTS allows the DPower amplifiers to connect to any type of source, be it OEM or
ART AUTO TURN-ON/OFF
For an excellent integration with OEM systems the DPower amplifiers are equipped with a smart automated turn on
Specs
General Specs
16
| Channels | 4 - 3 - 2 |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 1 x 20 A |
| Idling current (power ON/OFF) | 1 A / 0.04 mA |
| Consumption @ 2Ω, 14.4 VDC (Max Musical Power): | 16 A |
| Remote In: | 4 ÷ 15 VDC - 1 mA |
| ART™: | Automatic Remote Turn-On/Off |
| Distortion - THD (100 Hz @ 4Ω): | 0.2 % |
| Bandwidth: | 10 ÷ 30k Hz |
| S/N Ratio (A weighted @ 1 V) | 95 dB |
| Damping factor (100 Hz @ 4Ω) | 60 |
| Pre-In sensitivity: | LO: 0.2 ÷ 5 V HI: 0.8 ÷ 20 V |
| @ 4 Ch: | 2Ω |
| @ 2 Ch: | 4Ω |
| Max size (mm/inches): | 222,2 x 142 x 50,5 / 8.75 x 5.59 x 1.99 |
| Weight (kg/lb): | 1,58 / 3.48 |
| Adjustable Crossovers | yes |
Output Power
3
| 4 Ch 3 Ch 2 Ch 4 Ch 3 Ch | 50 W x 4 (4Ω) 50 W x 2 + 130 x 1 (4Ω) 130 W x 2 (4Ω) 65 W x 4 (2Ω) 65 W x 2 + 130 x 1 (2Ω) |
| 4 Ch 3 Ch 2 Ch 4 Ch 3 Ch | 60 W x 4 (4Ω) 60 W x 2 + 150 x 1 (4Ω) 150 W x 2 (4Ω) 75 W x 4 (2Ω) 75 W x 2 + 150 x 1 (2Ω) |
| Total Power | 300 W |
INPUTS / FILTERS
7
| Inputs: | PRE IN / SPEAKER IN |
| INPUT MODE : | 2Ch / 4Ch |
| FRONT Ch. Filters FULL: | Yes |
| Hi-Pass: | 40 ÷ 220 Hz @ 12 dB/Oct. |
| REAR Ch. Filters FULL: | Yes |
| Hi-Pass: | 40 ÷ 220 Hz @ 12 dB/Oct. |
| Lo-Pass: | 40 ÷ 220 Hz @ 12 dB/Oct. |
Physical Specs
6
| mm | in |
| A | 222,2 | 8.75 |
| B | 210,50 | 8.29 |
| C | 160 | 6.3 |
| D | 142 | 5.59 |
| E | 50,50 | 1.99 |
