Audison

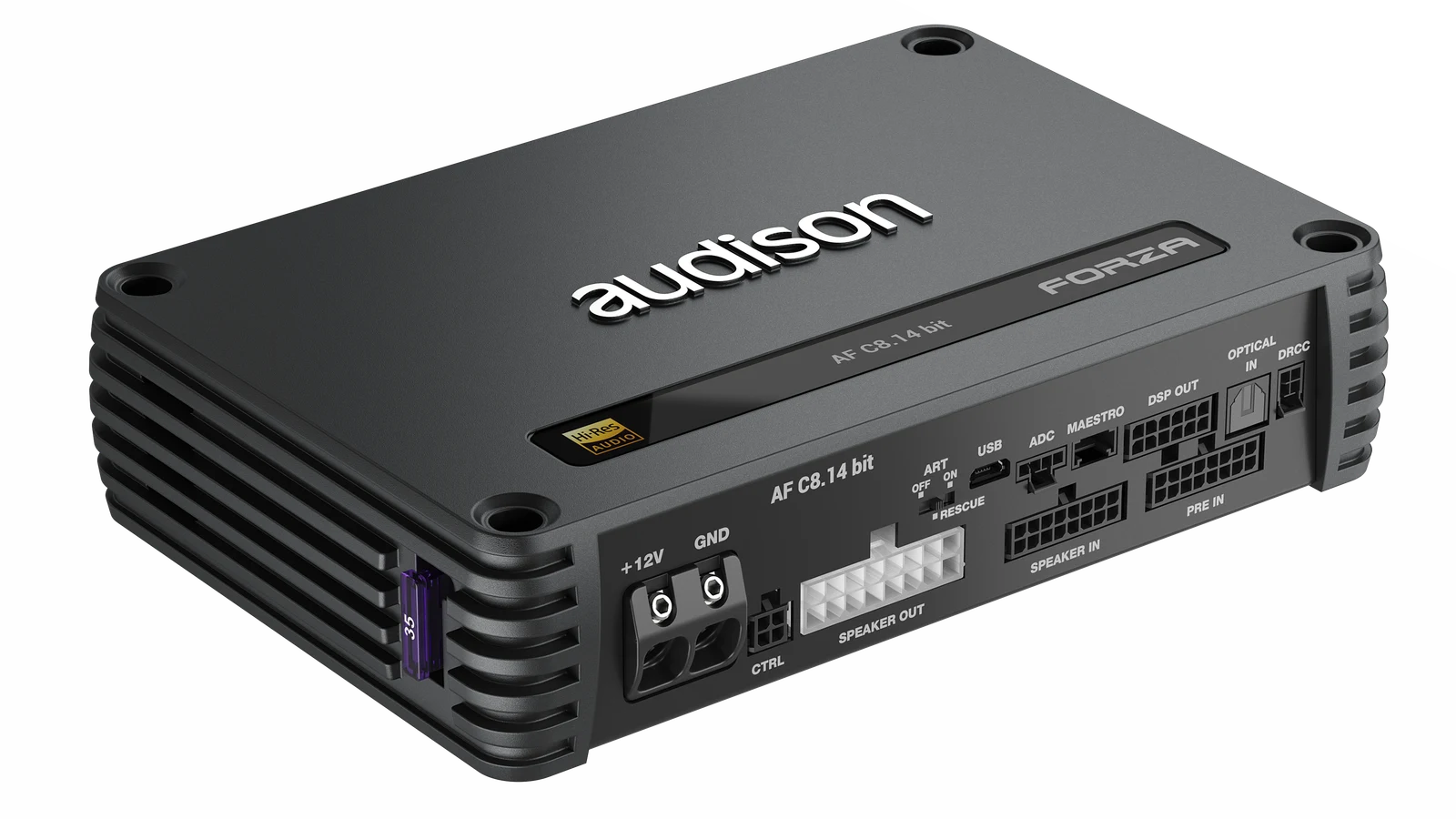

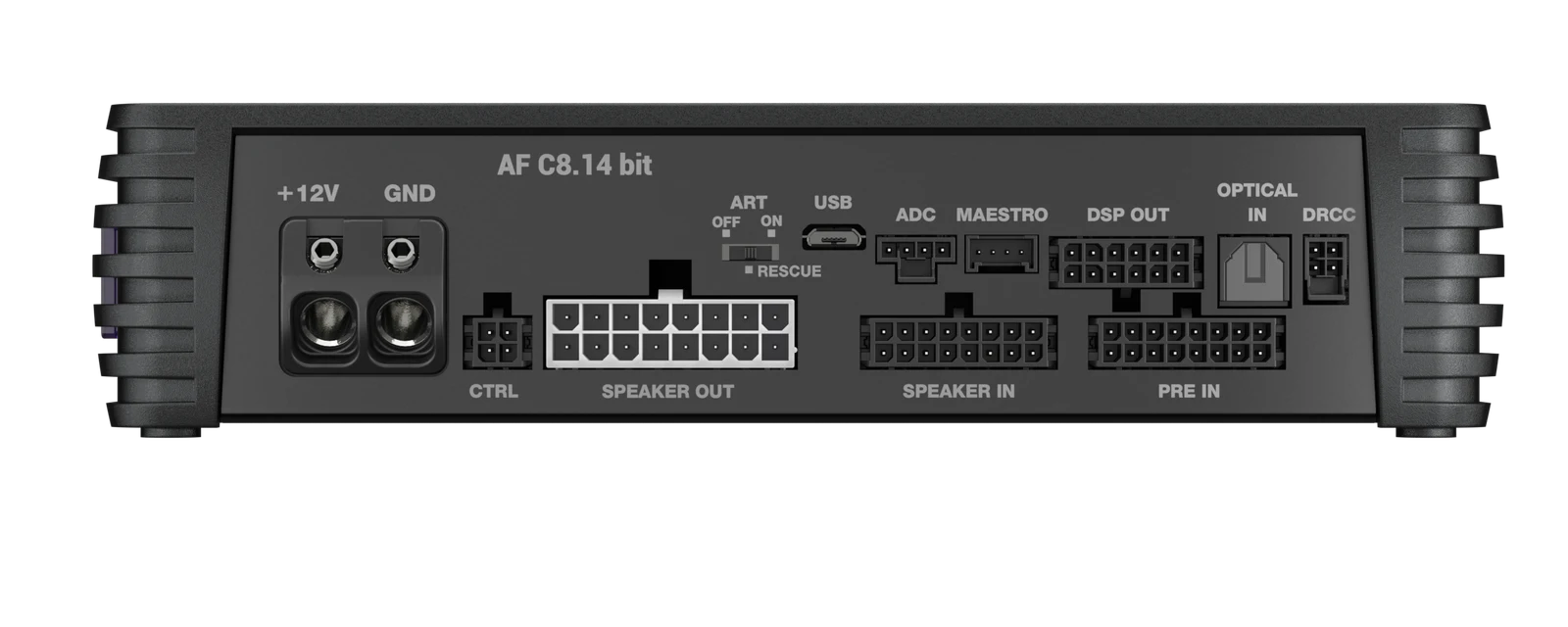

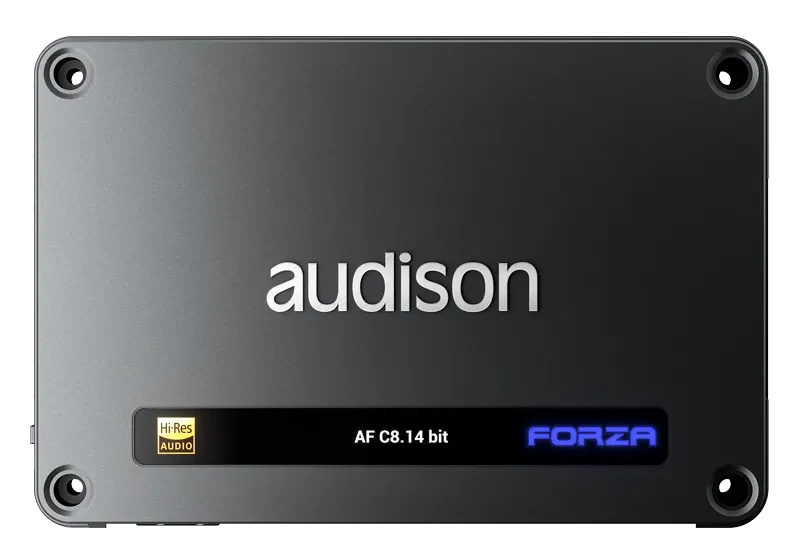

AF C8.14 BITAF C8.14 BIT Digital Signal Processor
Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology Unbeatable power/volume ratio up to 0.
Highlights
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
Key specs
Full specs- Channels
- 8
- Class
- D-Class
- Power supply voltage / fuse
- 11 ÷ 15 VDC / 1 x 35A
- Idling current
- 1.3 A
- Standby Current Draw
- 1 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power
- 34 A
- Remote IN
- 4 ÷15 VDC (1 mA)
- Remote OUT
- 6.5 ÷15 VDC (150 mA)
Key specs
Full specs- Channels
- 8
- Class
- D-Class
- Power supply voltage / fuse
- 11 ÷ 15 VDC / 1 x 35A
- Idling current
- 1.3 A
Highlights
Overview- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
Overview
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
- Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
- 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
- Extension card slot (additional 4 analog or 1 digital inputs)
- Electrical signal analysis for each input channel ensures proper integration and correction
- Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
- Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard
- AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON ’s Absolute Volume function guarantees maximum bit depth, even with wireless connections! *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Highlights
Key features
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
- Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
- 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
- Extension card slot (additional 4 analog or 1 digital inputs)
- Electrical signal analysis for each input channel ensures proper integration and correction
- Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
- Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard
Specs
Amplifier Tech Data
10
| Channels | 8 |
| Class | D-Class |
| Power supply voltage / fuse | 11 ÷ 15 VDC / 1 x 35A |
| Idling current | 1.3 A |
| Standby Current Draw | 1 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 34 A |
| Remote IN | 4 ÷15 VDC (1 mA) |
| Remote OUT | 6.5 ÷15 VDC (150 mA) |
| ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers | 1.5 VDC |
| Efficiency Rated Power | 81% |
Amplifier Stage
9
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | 0.05% |
| Bandwidth @ -1.5 dB | 10 Hz ÷ 42 kHz |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | 85 |
| S/N ratio (A weighted @ 1 V Input) Master Input | 98.5 dBA |
| S/N ratio (A weighted @ 1 V Input) Optical Input | 105 |
| Total Power RMS | 800 W |
| Minimum load impedance | 2Ω |
| Output Continuous Power (RMS) @14.4 VDC, 1% THD | 8 Ch @ 4Ω: 65 W x 8 8 Ch @ 2Ω: 100 W x 8 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4 |
| Adjustable Crossover | Yes |
CEA Specifications
2
| Output power @ 4Ω, 1% THD+N, 14.4 V | 55 W x 8 |
| SN ratio (ref. 1W output) | 80 dB |
Inputs / Outputs
7
| Pre-In Inputs | 0.6 ÷ 6 VRMS (15 kΩ Imp.) |
| Digital Input | Yes |
| Pre Outputs | 6 |
| Hi Level Inputs | 8 |
| Low Level Inputs | 8 |
| Speaker-In Inputs | 2.2 ÷ 22 VRMS (5 Ω Imp.) |
| Digital IN | 1 x Optical S/PDIF; Max 192kHz/24bit + 1 x Optical/Coaxial S/PDIF; Max 96kHz/24 bit with optional F2O card |
Digital Signal Processor
10
| Audio DSP Converter | Analog Devices ADAU1467 automotive qualified audio processor processing @ 96 kHz. Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance. |
| Filter type | Full / High-Pass / Low-Pass / Band-Pass |
| Filter mode and slope | Linkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct. |
| Crossover frequency | 20 Hz ÷ 20 kHz |
| Phase control | 0° / 180°, All-Pass filters |
| Analog Input Equalizer (20 ÷ 20k Hz) | 12 Biquad + Delay |
| Output Equalizer | Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz |
| Time Alignment Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inches |
| Time Alignment Delay | 0 ÷ 15 ms |
| Input Output Real Time Audio Monitor | RTA |
Control Connections
4
| DRC Port | Input for DRC AC remote control (Optional) |
| ADC Port | Manage other Audison devices that support this standard |
| 1 Wire | Customizable functions (+ 12 V activated) |
| 2 Wire | Customizable functions (+ 12 V activated) |
General Requirements
4
| PC connections | Micro USB 1.1 / 2.0 / 3.0 Compatible |
| Software/PC requirements | Windows 10, Windows 11 |
| Video Resolution with screen resize | (min. res. 1024 x 768) |
| Ambient operating temperature range | 0 °C to 55 °C (32 °F to 131 °F) |
Dimensions
3
| Dimension A | 200 mm |
| Dimension B | 134 mm |
| Dimension C | 47 mm |
