Audison

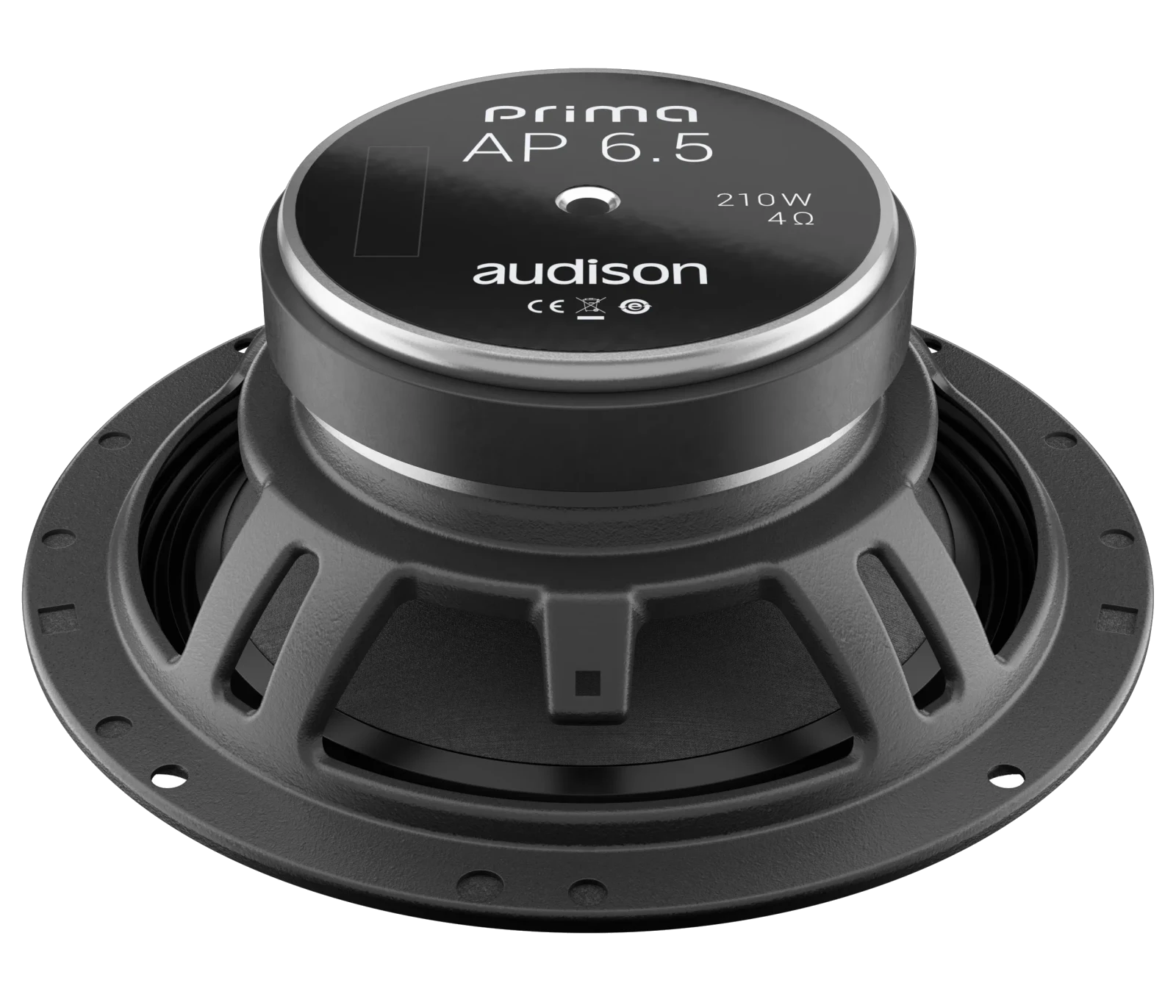

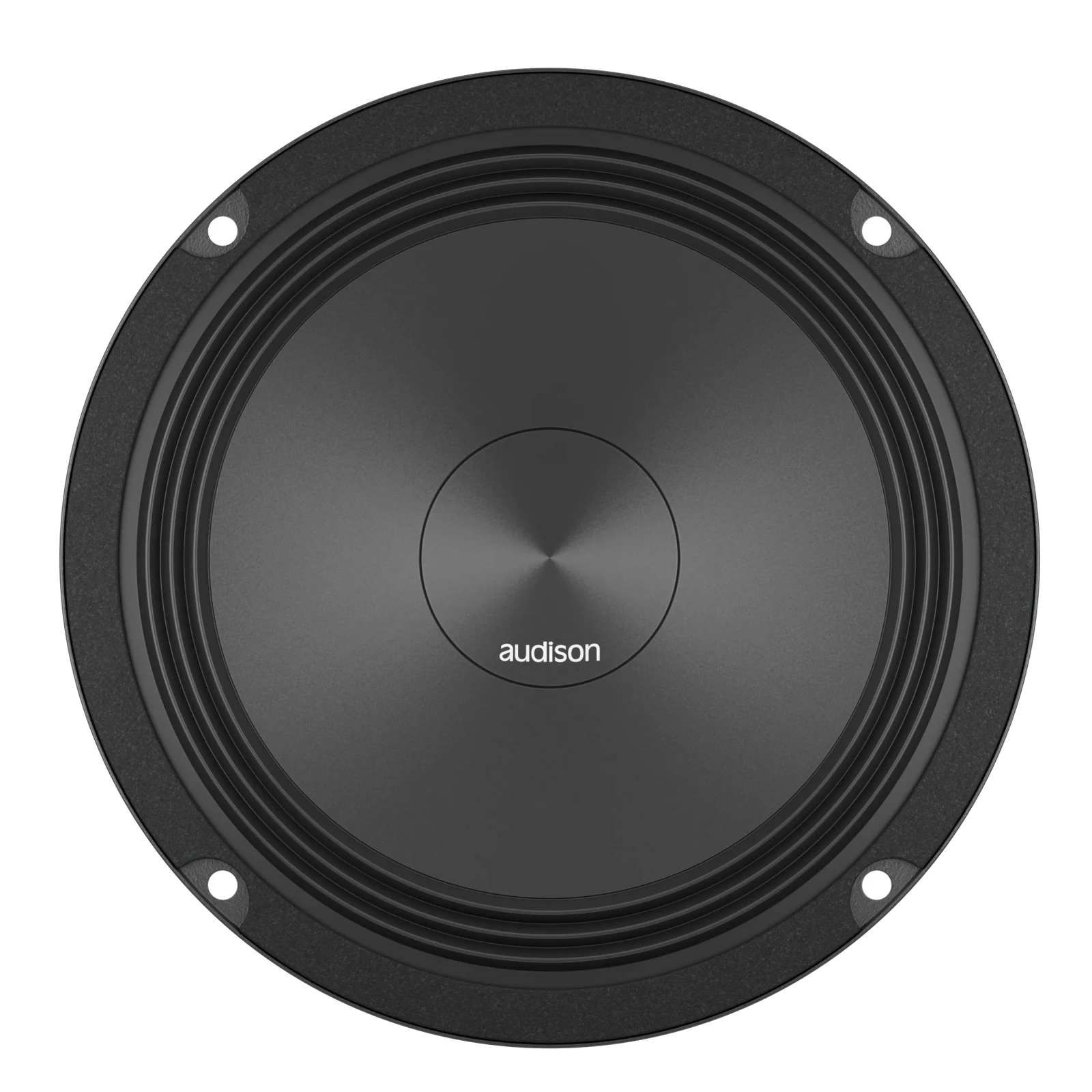

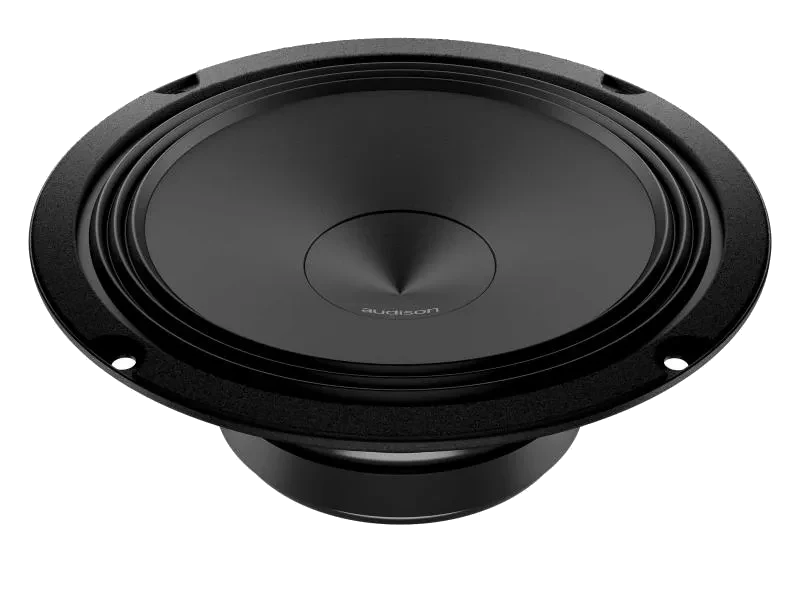

AP6.5AP6.5 165 mm Woofers
32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control. Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
Highlights
- 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements. TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 210 W
- Power Handling - Continuous
- 70 W
- Sensitivity
- 93.5 dB
- Frequency Response
- 60 ÷ 5k Hz
- Voice Coil Ø
- 32 mm
- Magnet size D x d x h
- 85 x 40 x 15 mm (3.35 x 1.57 x 0.59 in)
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 210 W
- Power Handling - Continuous
- 70 W
Highlights
Overview- 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
Overview
- 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements. TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

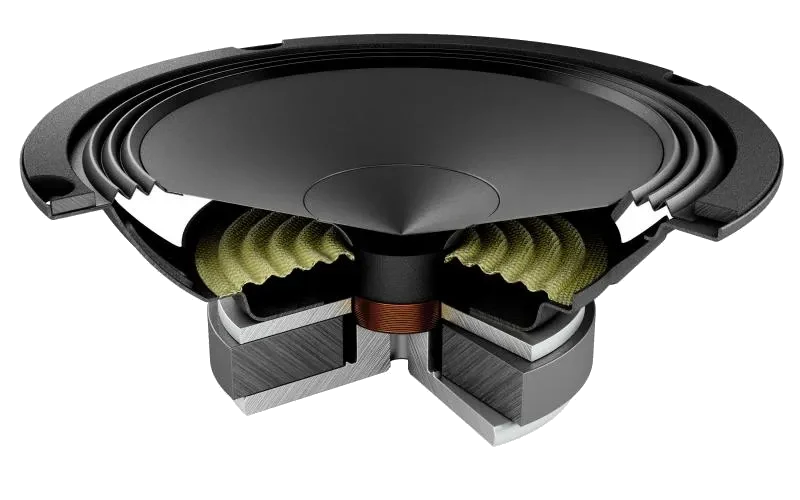

- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor is affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
- The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
- AP 6.5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofer don’t employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R & amp;D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.
Highlights
Key features
- 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements. TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor is affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
- The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
Specs
Technical Specs
9
| Nominal diameter | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 210 W |
| Power Handling - Continuous | 70 W |
| Sensitivity | 93.5 dB |
| Frequency Response | 60 ÷ 5k Hz |
| Voice Coil Ø | 32 mm |
| Magnet size D x d x h | 85 x 40 x 15 mm (3.35 x 1.57 x 0.59 in) |
| Xmax | 2.5 mm (0.1 in) |
Electric-acoustic Specs
10
| Re | 3.1 Ohm |
| Fs | 80 Hz |
| Le | 0.23 mH |
| Vas | 7.6 l (0.268 ft) |
| Mms | 12 g (0.423 oz) |
| Cms | 0.31 mm/N |
| BL | 4.7 T•m |
| Qts | 0.7 |
| Qes | 0,8 |
| Qms | 4.7 |
General
1
| Weight | 0.78 kg |
Dimensions
4
| Dimension A | 165 mm (6.5 in) |
| Dimension B | 141 mm (5.55 in) |
| Dimension C | 60 mm (2.36 in) |
| Dimension D | 56 mm (2.2 in) |
