1 / 5
Audison

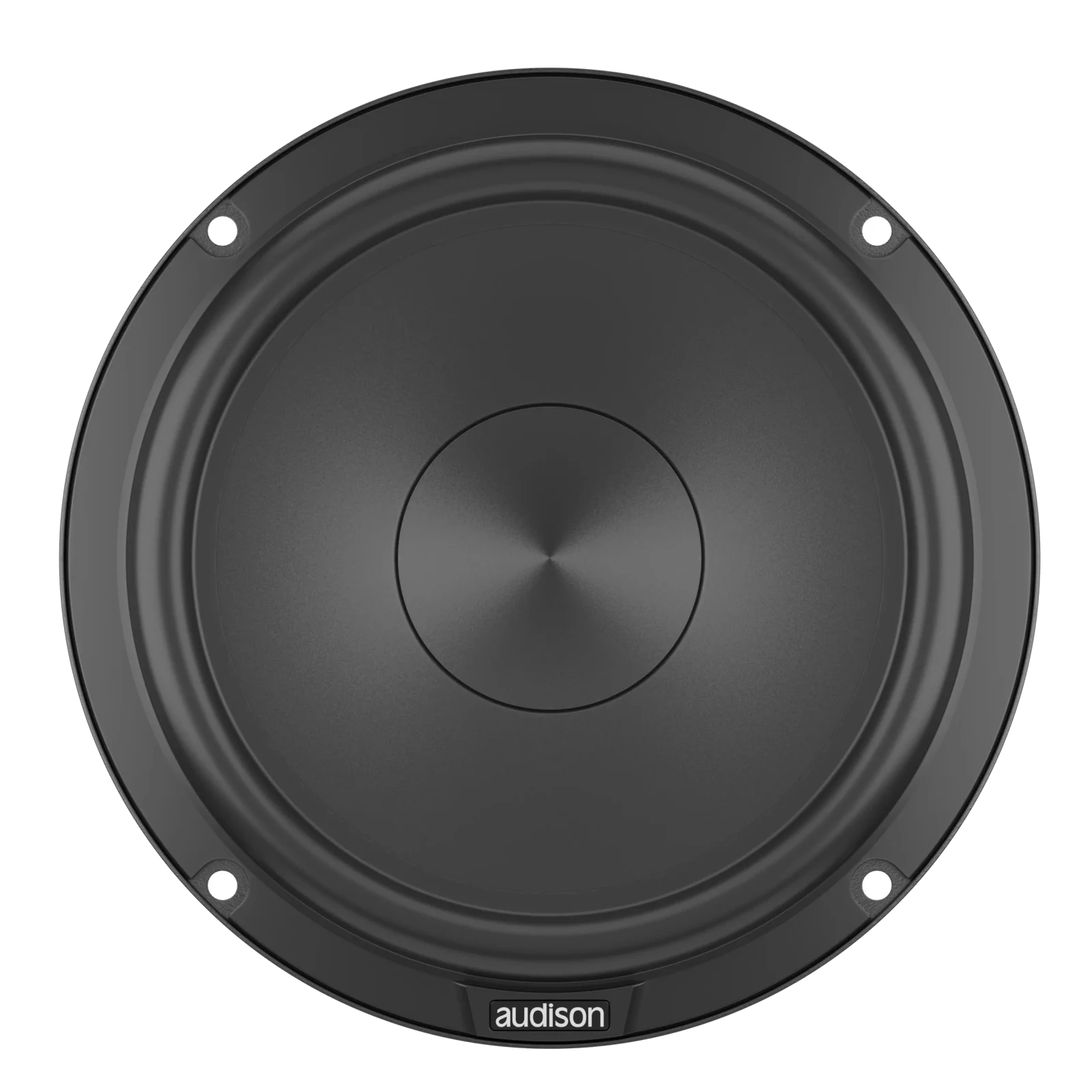

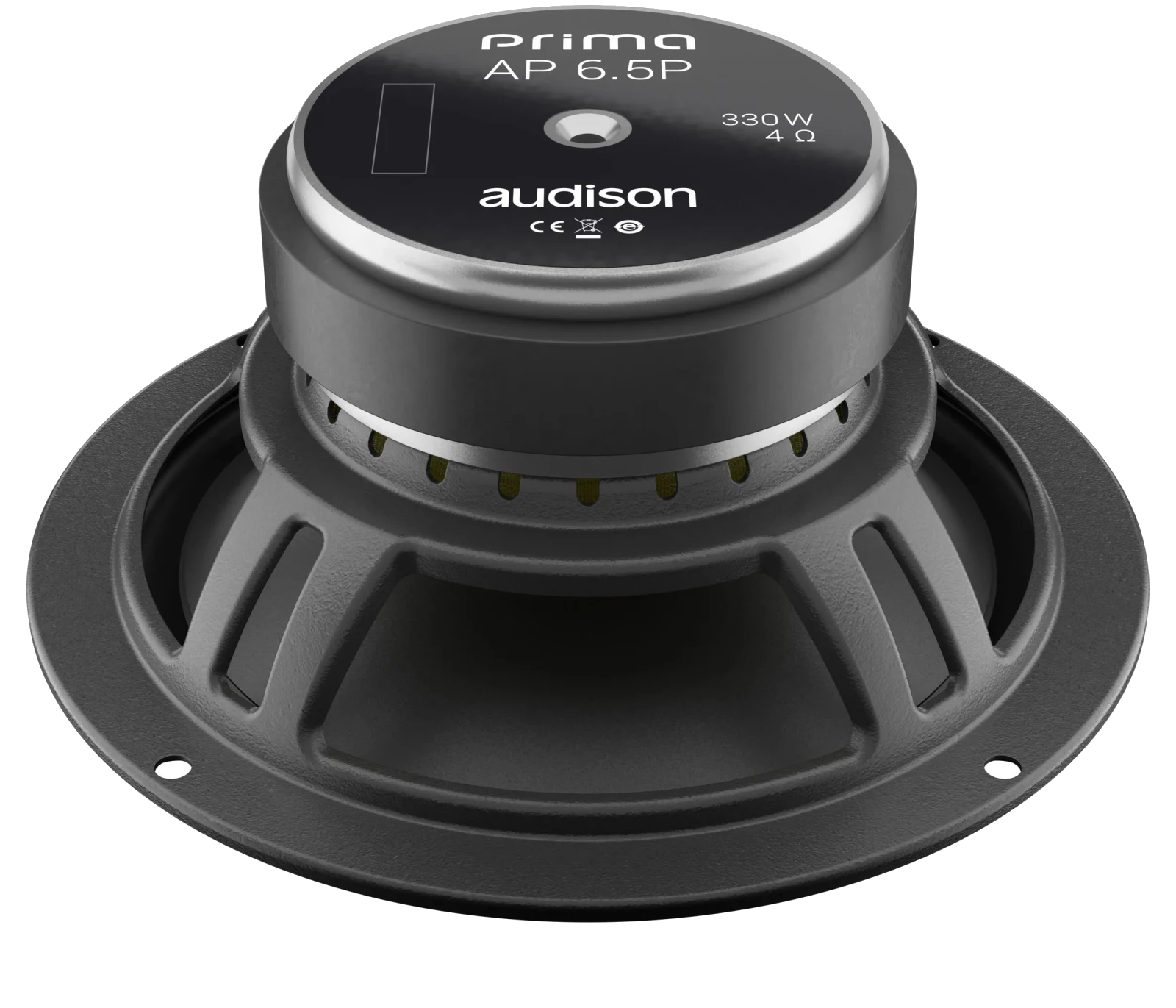

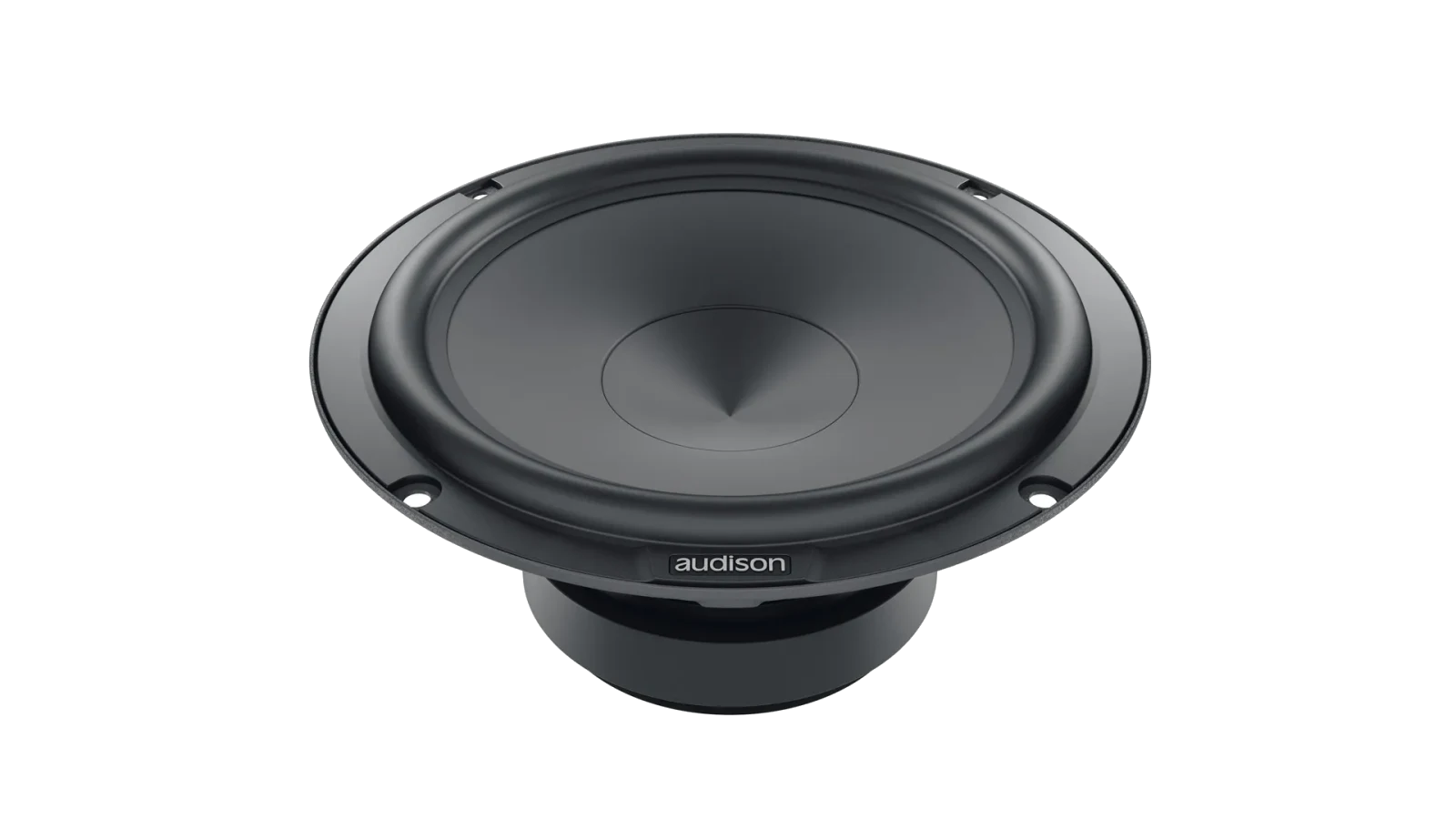

AP6.5PAP6.5P 165 mm Woofers
Increased excursion of the mobile group for a superior dynamic response Optimized electro-acoustic parameters to maximize performance for OEM placements Magnetic group sized for perfect control even at maximum cone excursion CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14...
Highlights
- Increased excursion of the mobile group for a superior dynamic response
- Optimized electro-acoustic parameters to maximize performance for OEM placements
- Magnetic group sized for perfect control even at maximum cone excursion
- CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 330 W
- Power Handling - Continuous
- 110 W
- Sensitivity
- 92.5 dB
- Frequency Response
- 50 - 5k Hz
- Voice Coil Ø
- 32 mm
- Magnet size D x d x h
- 100 x 40 x 18 mm (3.94 x 1.57 x 0.71 in)
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 330 W
- Power Handling - Continuous
- 110 W
Highlights
Overview- Increased excursion of the mobile group for a superior dynamic response
- Optimized electro-acoustic parameters to maximize performance for OEM placements
- Magnetic group sized for perfect control even at maximum cone excursion
Overview
- Increased excursion of the mobile group for a superior dynamic response
- Optimized electro-acoustic parameters to maximize performance for OEM placements
- Magnetic group sized for perfect control even at maximum cone excursion
- CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power
- Compact size basket for easy OEM installations

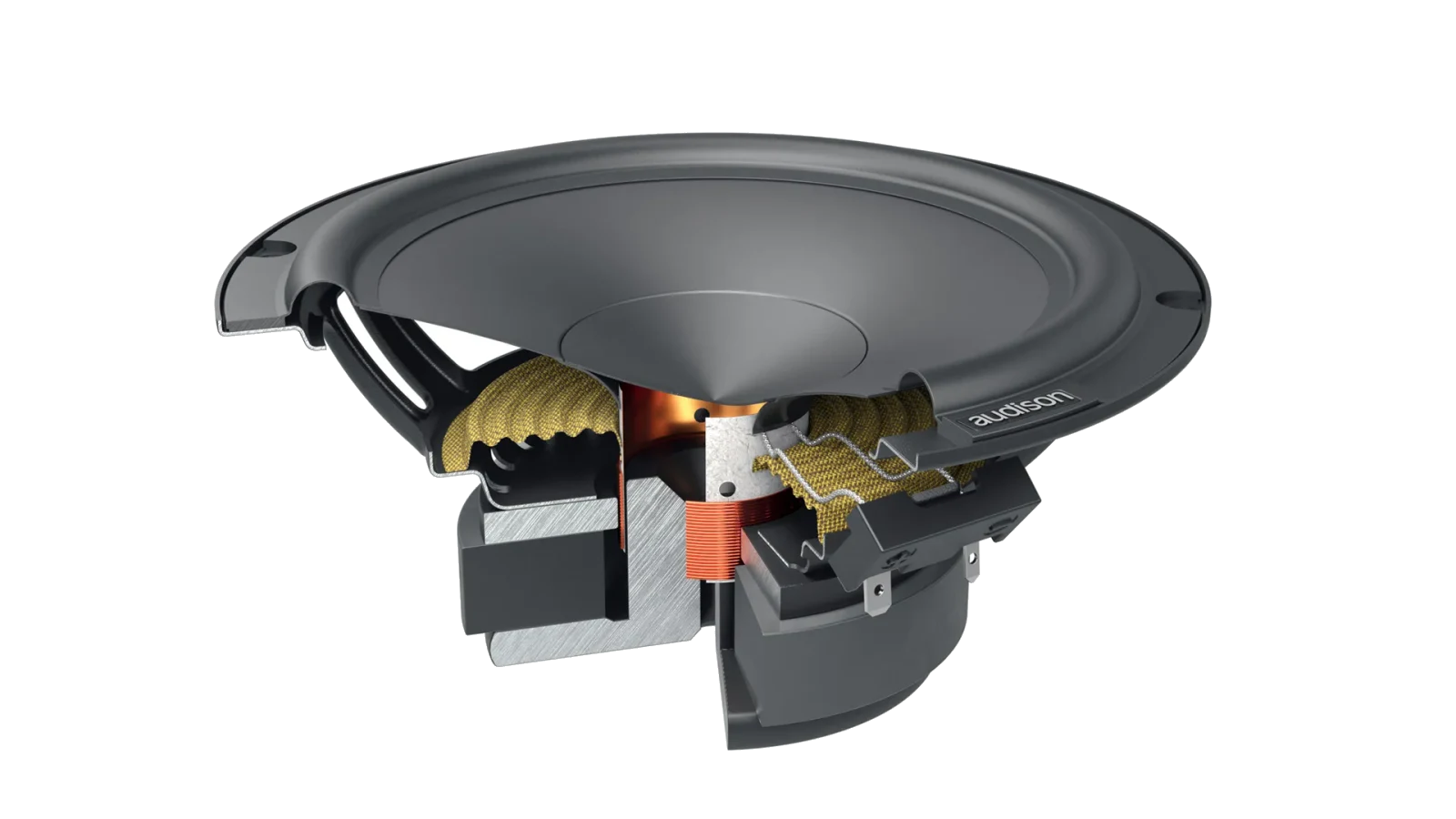

- AP 6.5P woofer component has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency featuring a very wide excursion to cope with the most important dynamic peaks without any compression. Its impressive magnetic assembly provides the energy needed for perfect control even during limit excursions. The CCAW (Copper Clad Aluminium Wire) voice coil (32 x 14 mm, 1.25 x 0.55 in) optimally manages the greater applied power. The basket was completely redesigned with the aid of simulations to lower the resistance of air flows, while maintaining compact sizes to facilitate the installation.
Highlights
Key features
- Increased excursion of the mobile group for a superior dynamic response
- Optimized electro-acoustic parameters to maximize performance for OEM placements
- Magnetic group sized for perfect control even at maximum cone excursion
- CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power
- Compact size basket for easy OEM installations
Specs
Technical Specs
11
| Nominal diameter | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 330 W |
| Power Handling - Continuous | 110 W |
| Sensitivity | 92.5 dB |
| Frequency Response | 50 - 5k Hz |
| Voice Coil Ø | 32 mm |
| Magnet size D x d x h | 100 x 40 x 18 mm (3.94 x 1.57 x 0.71 in) |
| Voice Coil Material | CCAW |
| Cone Material | WATER-REPELLENT TREATED PAPER CONE |
| Xmax | 5.6 mm (0.22 in) |
Electric-acoustic Specs
10
| Re | 3.1 Ohm |
| Fs | 60 Hz |
| Le | 0.29 mH |
| Vas | 11.4 l (0.403 ft) |
| Mms | 14.6 g (0.515 oz) |
| Cms | 0.47 mm/N |
| BL | 5.35 T•m |
| Qts | 0.55 |
| Qes | 0,6 |
| Qms | 7.6 |
General
1
| Weight | 1.45 kg |
Dimensions
4
| Dimension A | 165 mm (6.5 in) |
| Dimension B | 141 mm (5.55 in) |
| Dimension C | 75 mm (2.95 in) |
| Dimension D | 66.5 mm (2.62 in) |
