Audison

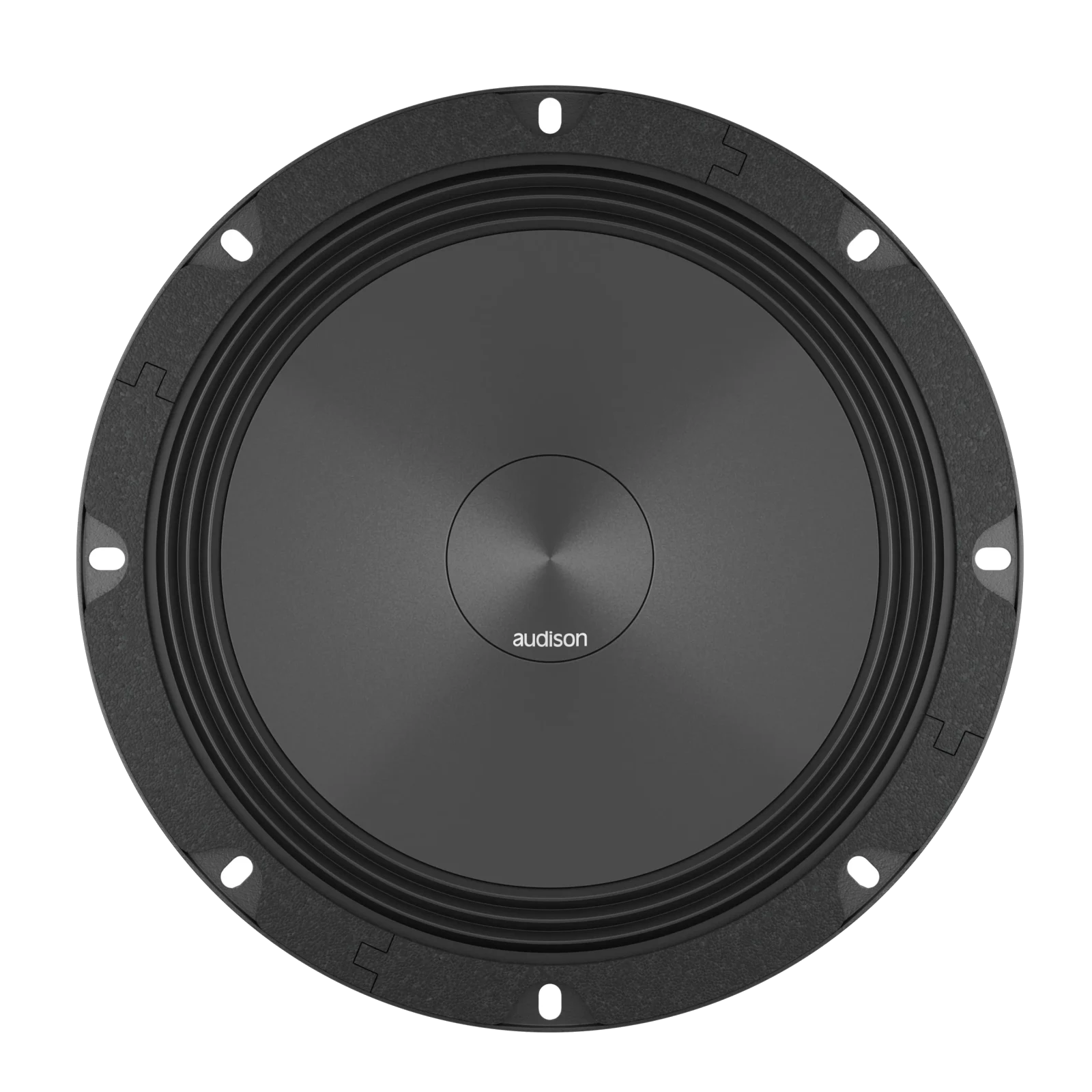

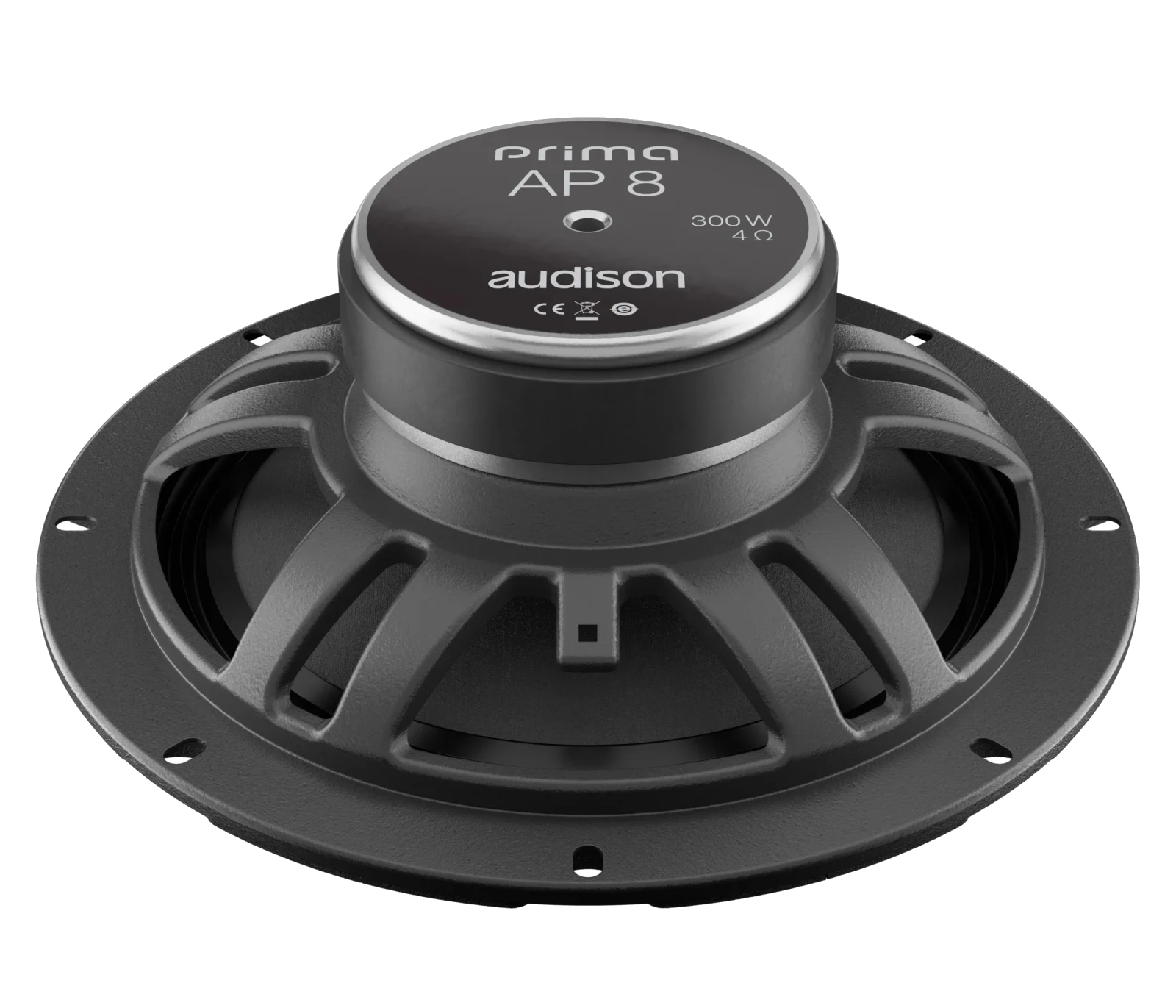

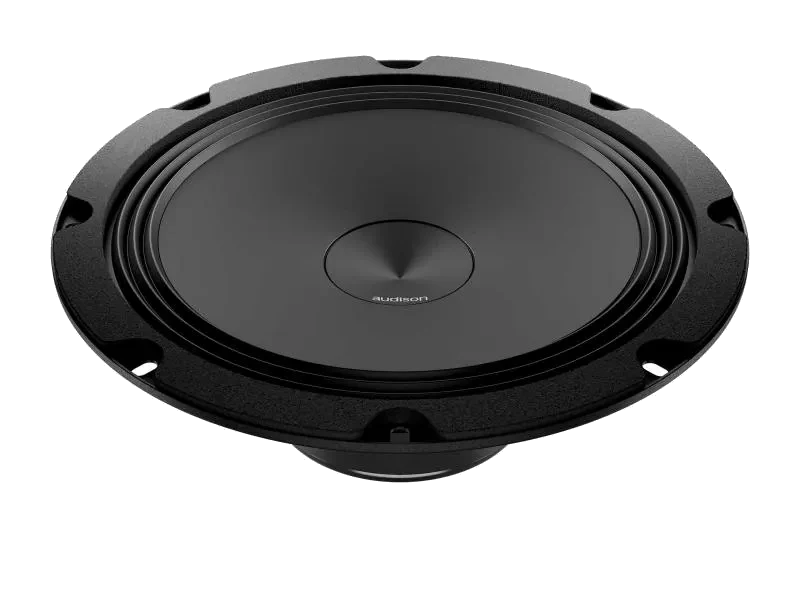

AP8AP8 200 mm Subwoofer
Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
Highlights
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- No passive crossover required to maximize efficiency: dome profile optimized with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Key specs
Full specs- Nominal diameter
- 200 mm (8 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 100 W
- Sensitivity
- 93.5 dB
- Frequency Response
- 35 ÷ 3k Hz
- Voice Coil Ø
- 25 mm
- Magnet Material
- HIGH DENSITY FLUX FERRITE
Key specs
Full specs- Nominal diameter
- 200 mm (8 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 100 W
Highlights
Overview- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- No passive crossover required to maximize efficiency: dome profile optimized with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements.
Overview
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- No passive crossover required to maximize efficiency: dome profile optimized with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.

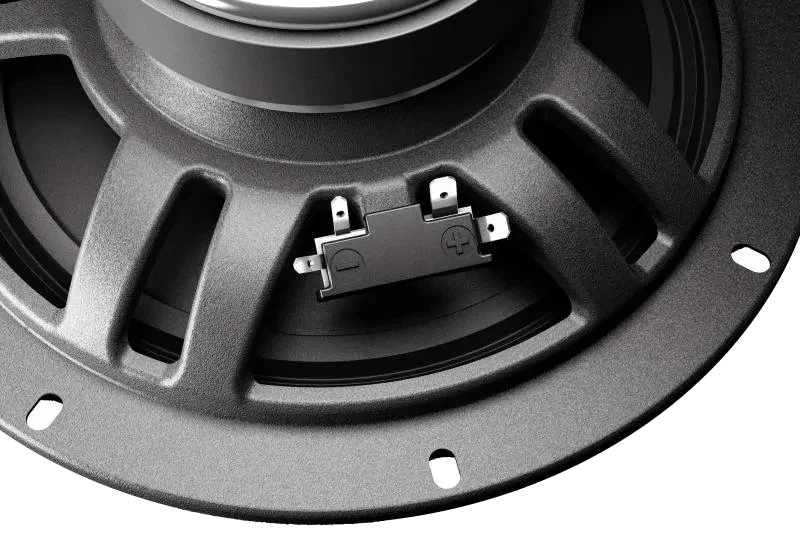

- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite. *Grille included
- For the vehicles equipped with an 8 inch woofer as standard OEM component, the Audison Technical Department developed the AP 8 which, also thanks to the wide emission surface, provides higher energy in the low frequency range, ensuring excellent performance when the use of a subwoofer is prohibited due to space limitations.
Highlights
Key features
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- No passive crossover required to maximize efficiency: dome profile optimized with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite. *Grille included
Specs
Technical Specs
10
| Nominal diameter | 200 mm (8 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 300 W |
| Power Handling - Continuous | 100 W |
| Sensitivity | 93.5 dB |
| Frequency Response | 35 ÷ 3k Hz |
| Voice Coil Ø | 25 mm |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 90 x 40 x 17 mm |
| Xmax | 3.3 mm (0.13 in) |
Electric-acoustic Specs
10
| Re | 3.1 Ohm |
| Fs | 60 Hz |
| Le | 0.3 mH |
| Vas | 20 l (0.706 ft) |
| Mms | 19 g (0.67 oz) |
| Cms | 0.35 mm/N |
| BL | 5.4 T•m |
| Qts | 0.7 |
| Qes | 0,8 |
| Qms | 5 |
General
1
| Weight | 1.2 kg |
Dimensions
4
| Dimension A | 209 mm (8.23 in) |
| Dimension B | 174 mm (6.85 in) |
| Dimension C | 70 mm (2.76 in) |
| Dimension D | 66 mm (2.6 in) |
