Audison

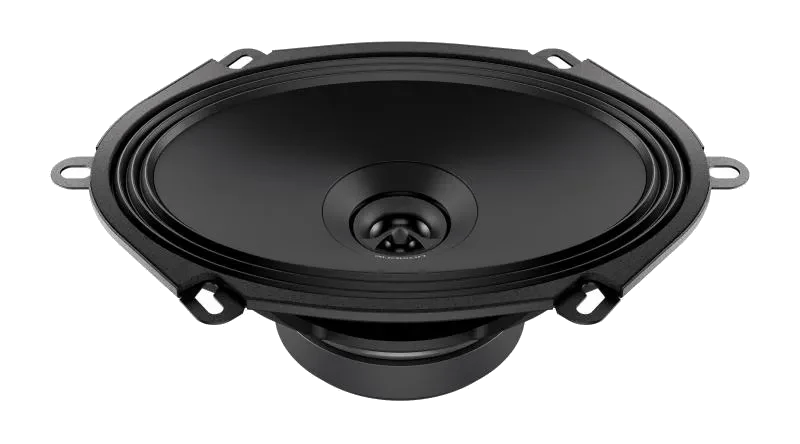

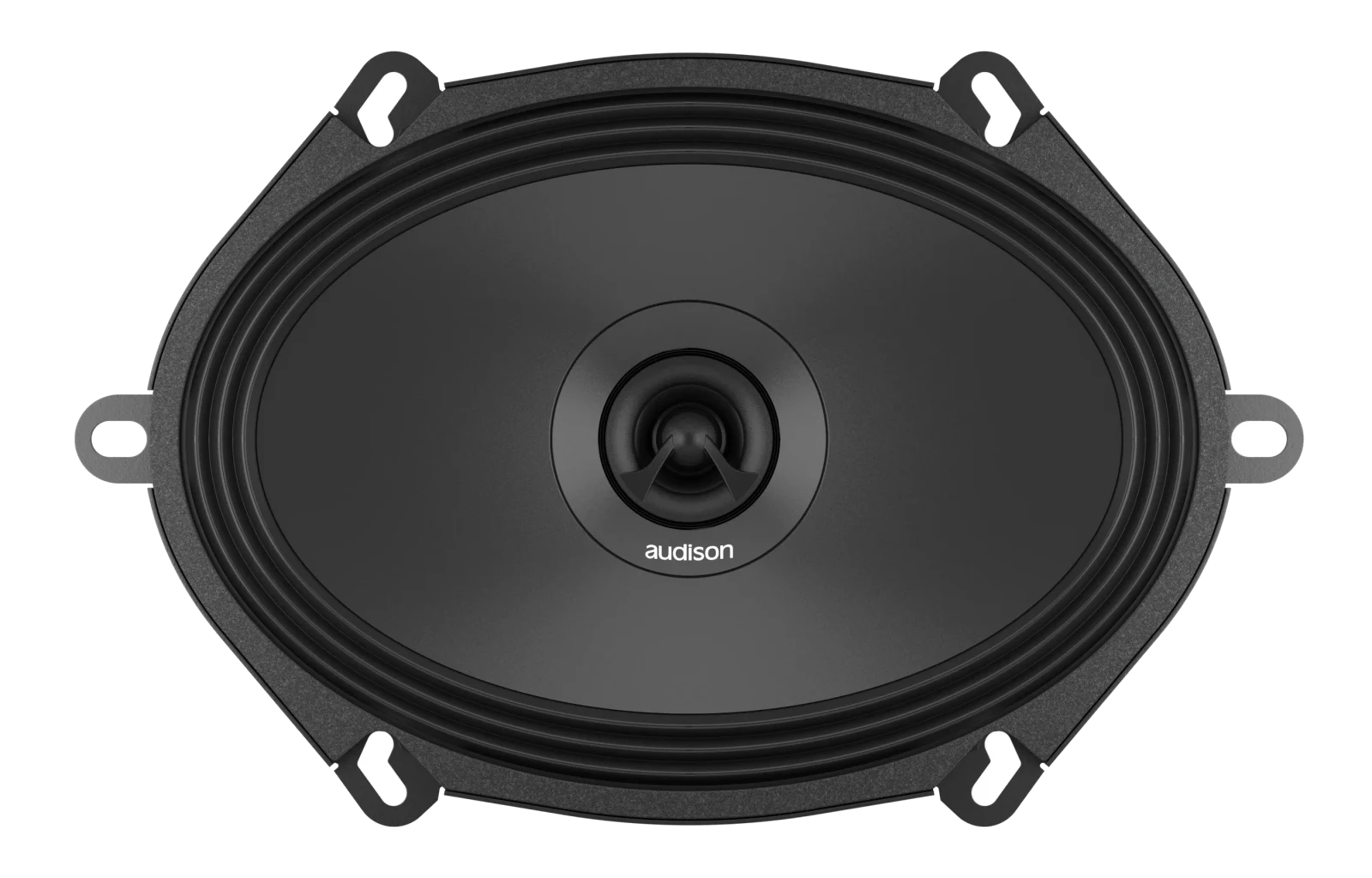

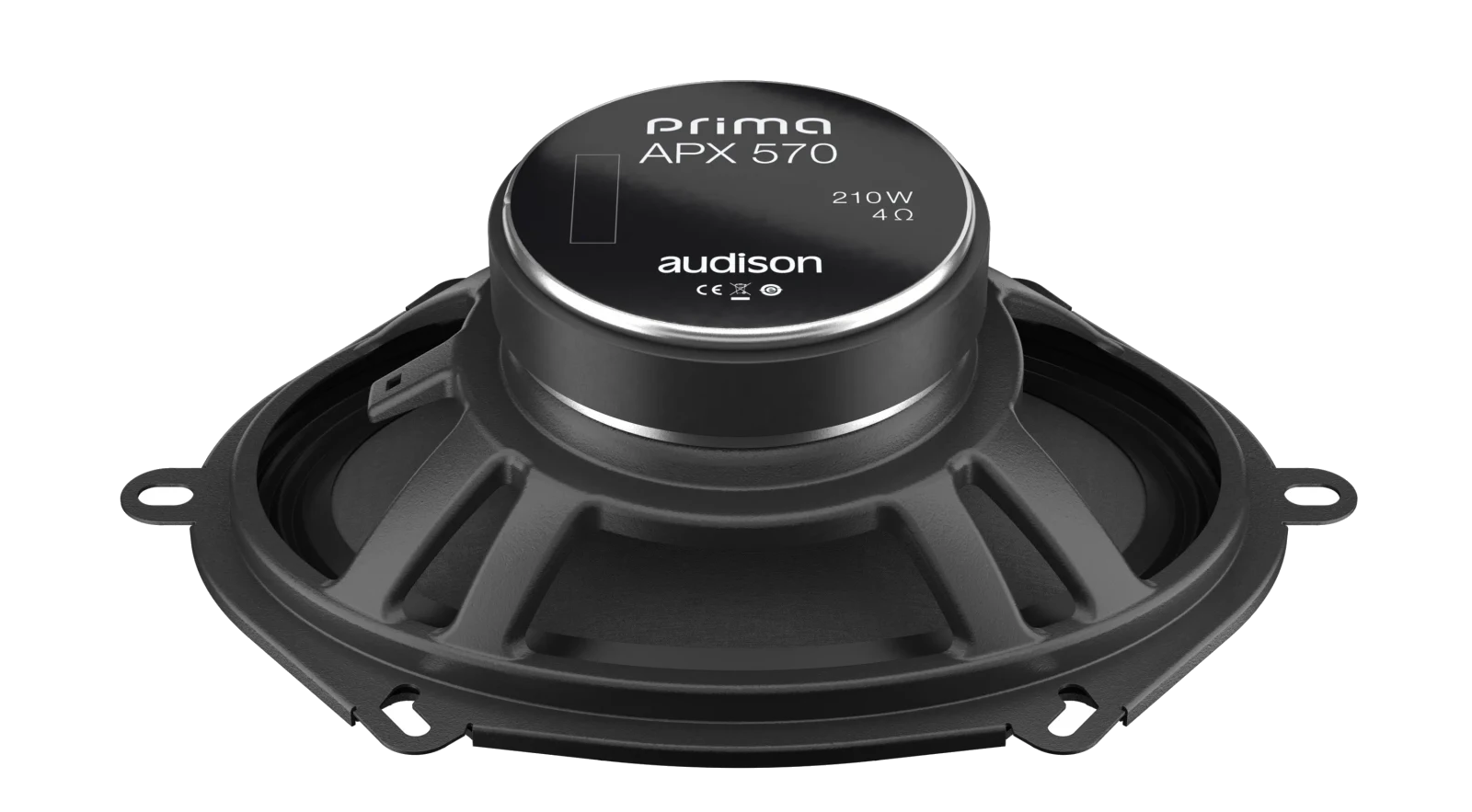

APX570APX570 Coaxial Speakers
Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
Highlights
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
Key specs
Full specs- Woofer Size
- 570 mm
- Impedance
- 4 Ohm
- Power Handling - Peak
- 210 W
- Power Handling - Continuous
- 70 W
- Elliptical Size
- 5 x 7
- Sensitivity
- 93 dB
- Frequency Response
- 60 ÷ 23k
- Voice Coil Diameter
- 32 mm (0.59 in)
Key specs
Full specs- Woofer Size
- 570 mm
- Impedance
- 4 Ohm
- Power Handling - Peak
- 210 W
- Power Handling - Continuous
- 70 W
Highlights
Overview- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
Overview
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
- APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter. The 5×7″ cones surround features an exclusive shallow Triple Wave profile, for maximum excursion linearity.
Highlights
Key features
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
Specs
Technical Specs LF
10
| Woofer Size | 570 mm |
| Impedance | 4 Ohm |
| Power Handling - Peak | 210 W |
| Power Handling - Continuous | 70 W |
| Elliptical Size | 5 x 7 |
| Sensitivity | 93 dB |
| Frequency Response | 60 ÷ 23k |
| Voice Coil Diameter | 32 mm (0.59 in) |
| Magnet Size | 85 x 40 x 15 |
| Xmax | 2 mm (0.08 in) |
Technical Specs HF
2
| Tweeter Size | 24 mm (0.94 in) |
| Voice Coil Diameter | 15 mm (0.59 in) |
Electric-acoustic Specs
10
| Re | 3.1 Ohm |
| Fs | 70 Hz |
| Mms | 12 g (0.42 oz) |
| Cms | 0.4 |
| Bl | 4.2 |
| Qms | 8.4 |
| Qes | 0,9 |
| Qts | 0.8 |
| Vas | 12.5 l (0.44 ft) |
| LE | 0.12 mH |
General
5
| Weight | 0.885 kg |
| Elliptical B1 | 182 mm |
| Elliptical B2 | 126 mm |
| Elliptical Dimension A1 | 221 mm |
| Elliptical Dimension A2 | 140 mm |
Dimensions
6
| Dimension A1 | 221 mm |
| Dimension A2 | 140 mm |
| Dimension C | 67 mm (2.64 in) |
| Dimension D | 63 mm (2.48 in) |
| Dimension B1 | 182 mm |
| Dimension B2 | 126 mm |
