Audison

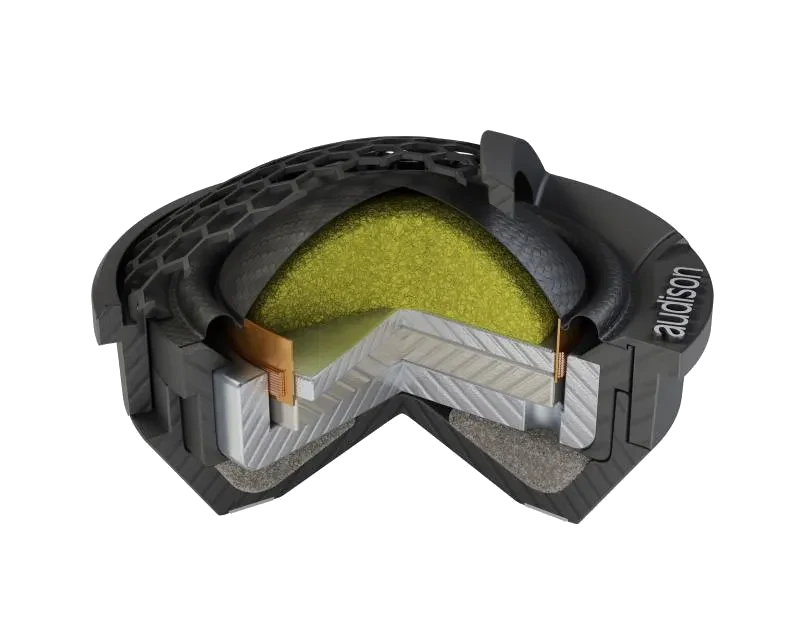

AV1.1AV1.1 28 mm Tweeters
Tetolon dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
Highlights
- Tetolon dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
- CCAW (Copper Clad Aluminium Wire) voice coil wound on double layer, extremely lightweight and compact, resulting in a very high efficiency and a crisp, dynamic sound.
- The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends the frequency response to lower limits and reduces harmonic distortion.
- High flux density Neodymium magnet, for very high efficiency and detailed sound.
Key specs
Full specs- Nominal diameter
- 28 mm (1.1 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 180 W
- Sensitivity
- 92 dB
- Frequency Response
- 1.2k ÷ 22k Hz
- Voice Coil Ø
- 28 mm (1.1 in)
- Magnet Material
- NEODYMIUM
- Magnet size D x d x h
- 28 x 3 mm
Key specs
Full specs- Nominal diameter
- 28 mm (1.1 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 180 W
- Sensitivity
- 92 dB
Highlights
Overview- Tetolon dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
- CCAW (Copper Clad Aluminium Wire) voice coil wound on double layer, extremely lightweight and compact, resulting in a very high efficiency and a crisp, dynamic sound.
- The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends the frequency response to lower limits and reduces harmonic distortion.
Overview
- Tetolon dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
- CCAW (Copper Clad Aluminium Wire) voice coil wound on double layer, extremely lightweight and compact, resulting in a very high efficiency and a crisp, dynamic sound.
- The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends the frequency response to lower limits and reduces harmonic distortion.
- High flux density Neodymium magnet, for very high efficiency and detailed sound.
- The AV 1.1 tweeter features a very light Tetolon membrane, CCAW voice coil wound on double layer and high density Neodymium magnet.The advanced design and engineering dedicated to the rear damping chamber with annular geometry and the magnet area, along with the attention for the selection of the materials, resulted in a frequency response on the lower limits, a reduced harmonic distortion, along with a live, natural, rich in detail sound.
Highlights
Key features
- Tetolon dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
- CCAW (Copper Clad Aluminium Wire) voice coil wound on double layer, extremely lightweight and compact, resulting in a very high efficiency and a crisp, dynamic sound.
- The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends the frequency response to lower limits and reduces harmonic distortion.
- High flux density Neodymium magnet, for very high efficiency and detailed sound.
Specs
Technical Specs
11
| Nominal diameter | 28 mm (1.1 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 180 W |
| Sensitivity | 92 dB |
| Frequency Response | 1.2k ÷ 22k Hz |
| Voice Coil Ø | 28 mm (1.1 in) |
| Magnet Material | NEODYMIUM |
| Magnet size D x d x h | 28 x 3 mm |
| Voice Coil Material | CCAW |
| Dome Material | TELOTON FIBRE |
| Power Handling Crossover | Hi-pass filtered 2.0 kHz @ 12 dB/Oct |
Electric-acoustic Specs
9
| Re | 3.3 Ohm |
| Fs | 1000 Hz |
| Le | 0.3 mH |
| Mms | 0.3 g (0.011 oz) |
| Cms | 0.07 mm/N |
| BL | 2.2 T•m |
| Qts | 1.04 |
| Qes | 1,38 |
| Qms | 4.2 |
General
1
| Weight | 0.07 kg |
Dimensions
4
| Dimension A | 48 mm (1.89 in) |
| Dimension B | 45 mm (1.77 in) |
| Dimension C | 28 mm (1.1 in) |
| Dimension D | 15.2 mm (0.6 in) |
