Audison

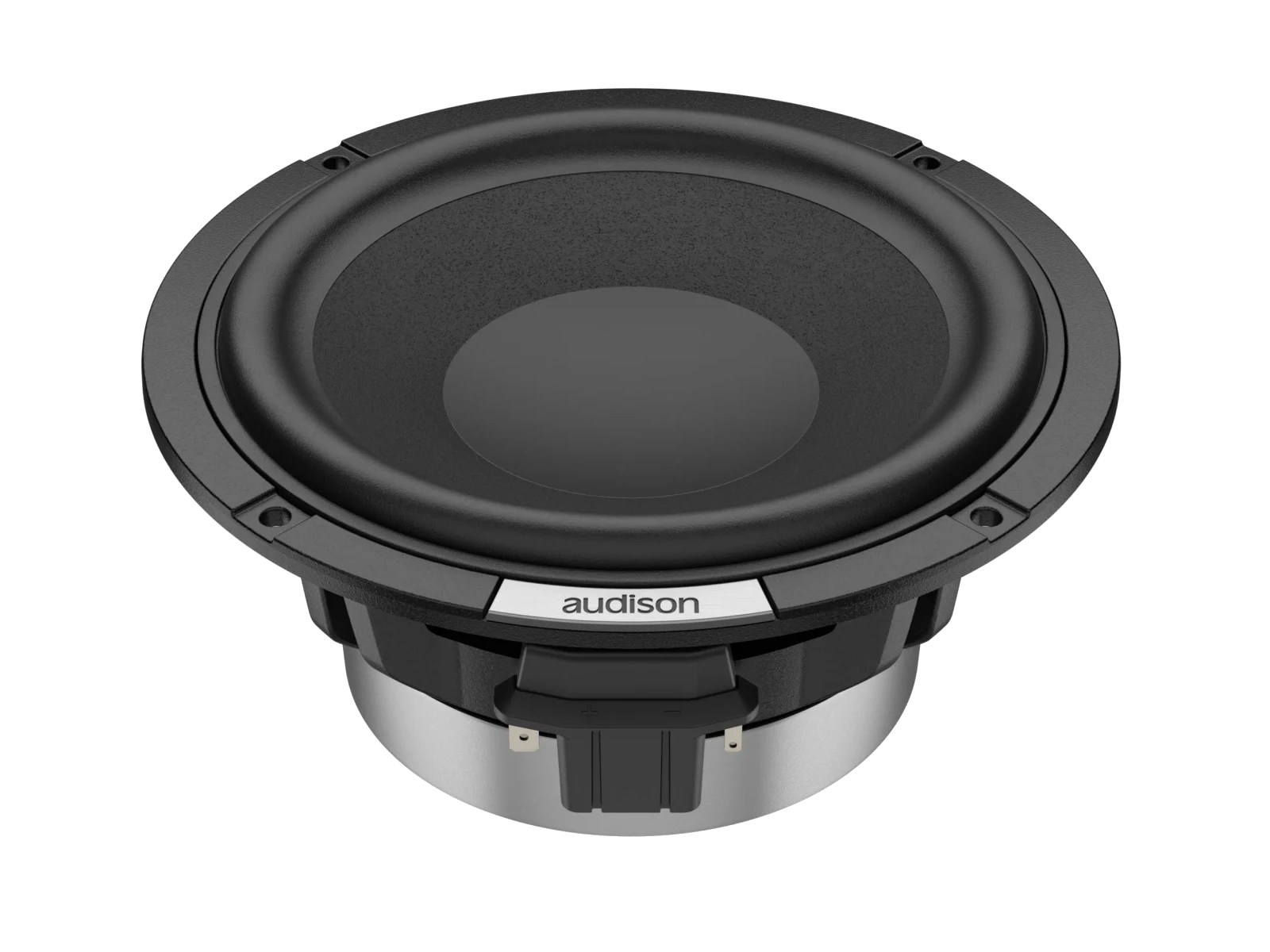

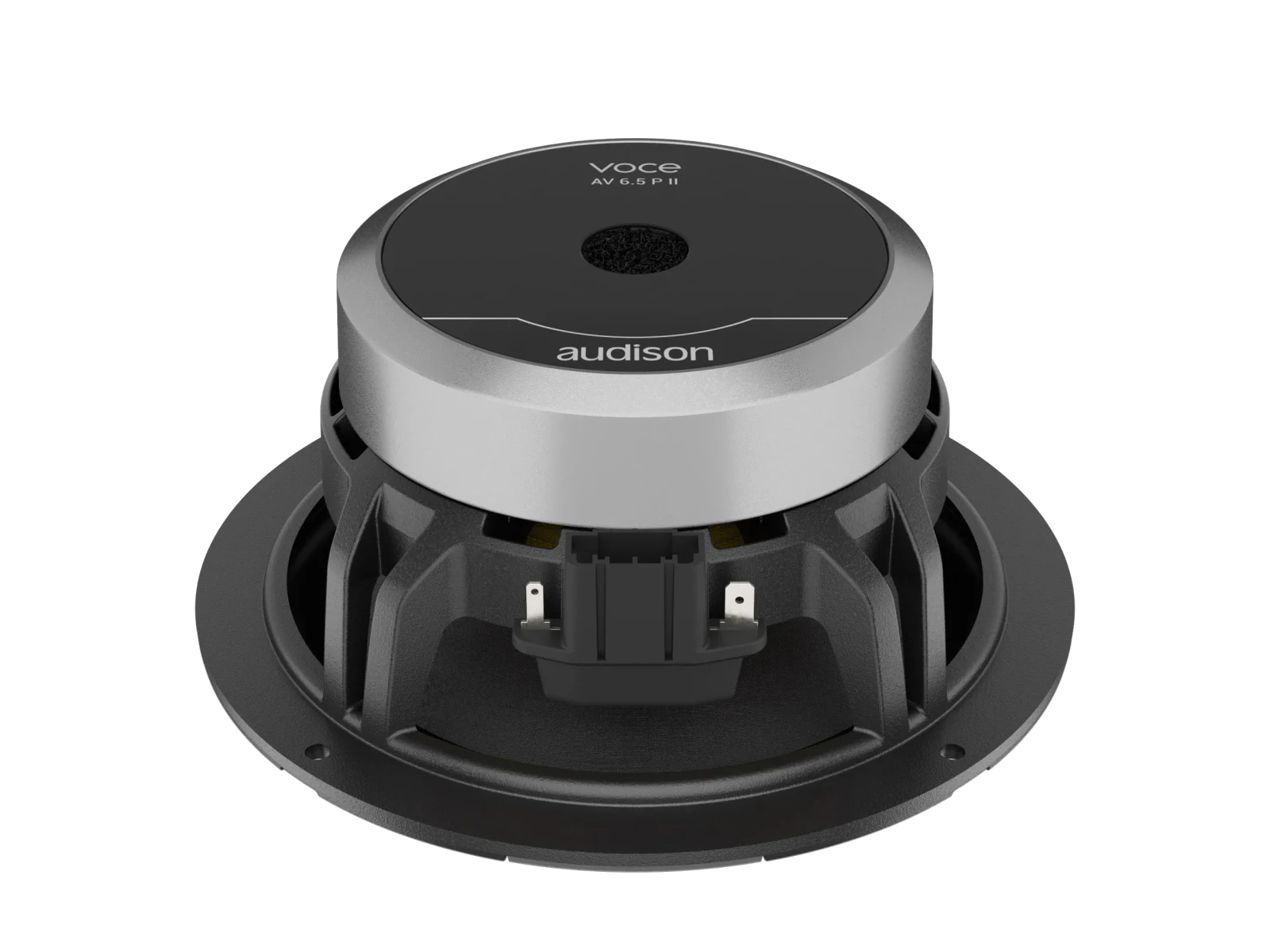

AV6.5IIAV6.5II 165 mm (6.5 in.) Woofers
1.6 in. (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
Highlights
- 1.6 in. (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
- Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
- Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
- FEM optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Minimum Impedance
- 3.1 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 150 W
- Sensitivity
- 91 dB
- Frequency Response
- 45 - 7500 Hz
- Voice Coil Ø
- 40 mm (1.6 in)
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Minimum Impedance
- 3.1 Ohm
- Power Handling - Peak
- 300 W
Highlights
Overview- 1.6 in. (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
- Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
- Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
Overview
- 1.6 in. (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
- Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
- Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
- FEM optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.

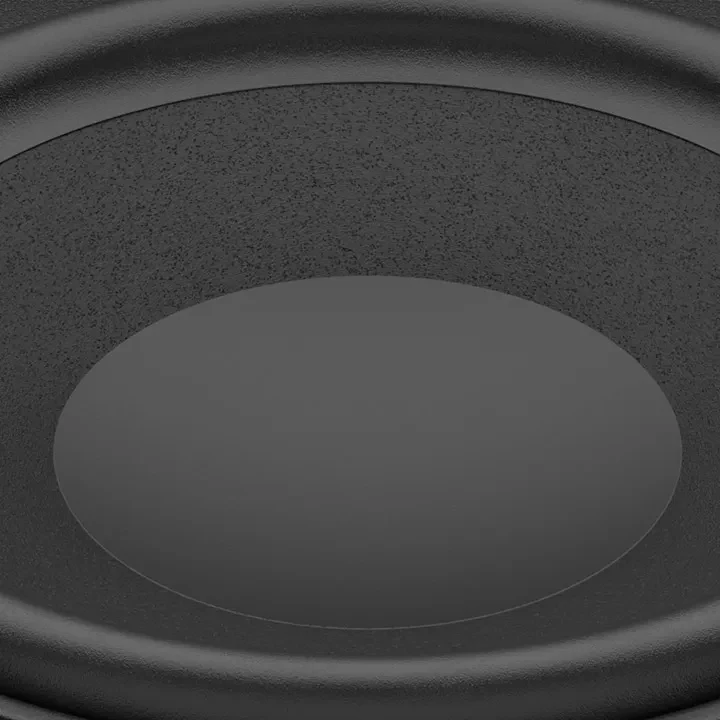

- Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for a wide frequency response and clean reproduction, even in midrange frequencies.

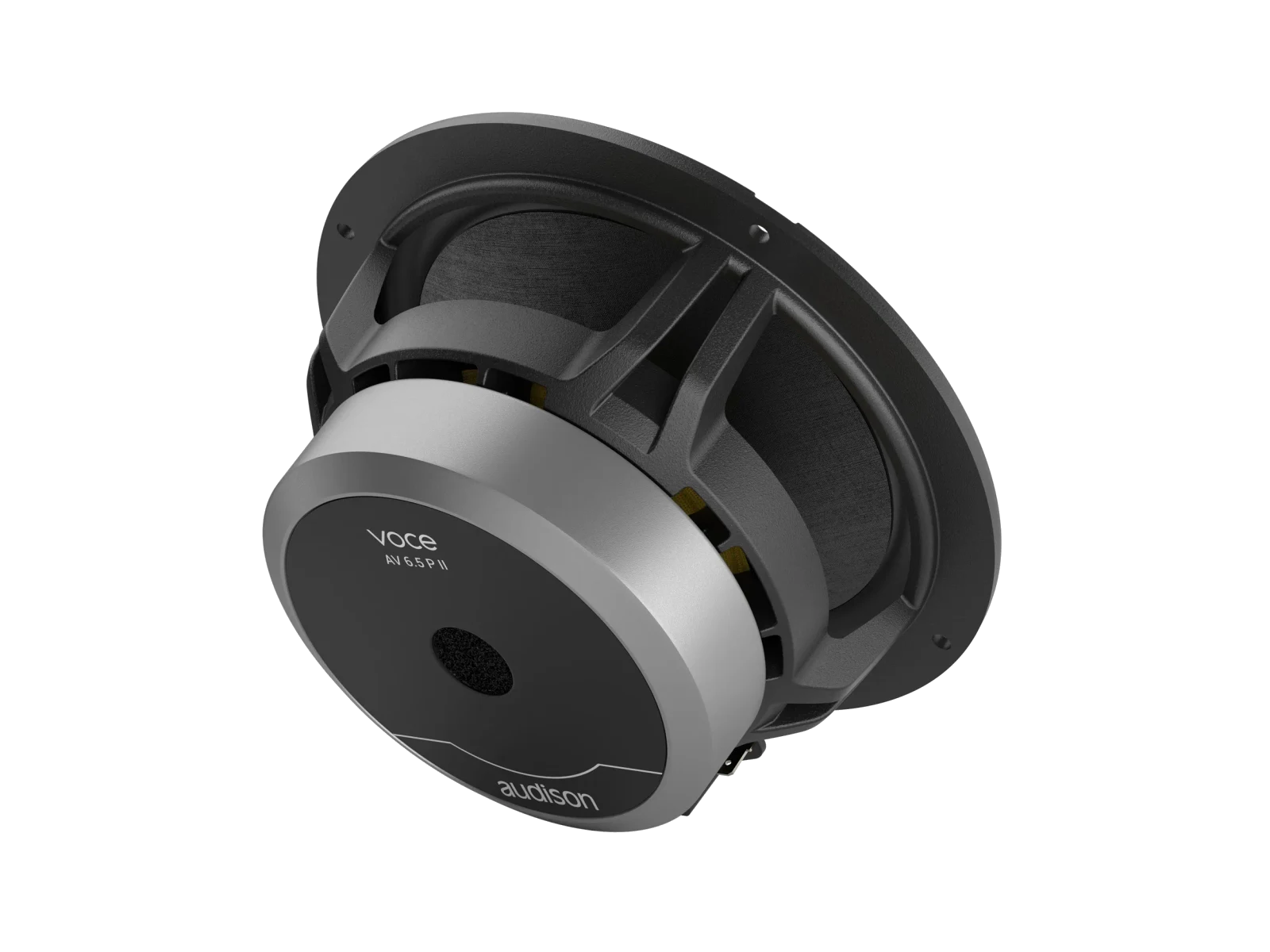

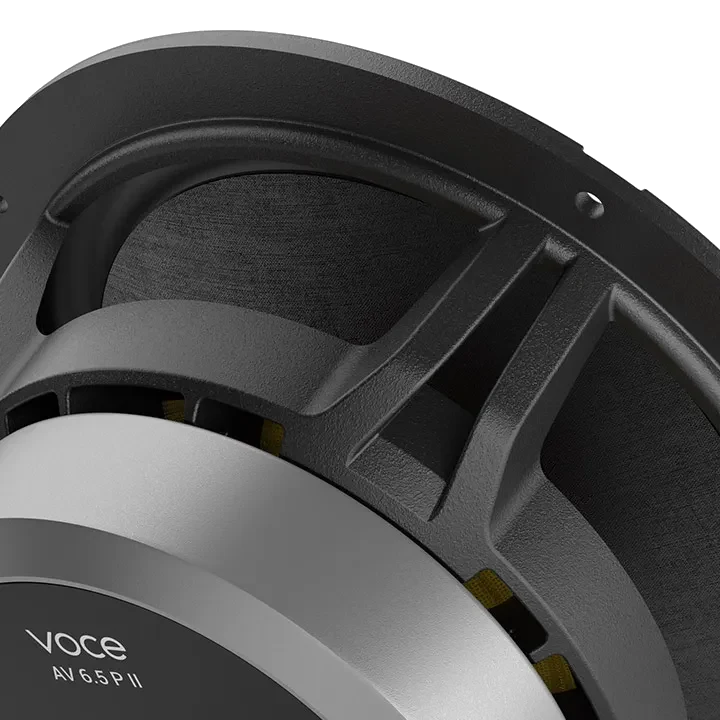

- Die-Cast Aluminum Basket with magnet cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance over time, even during prolonged use.
- High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.

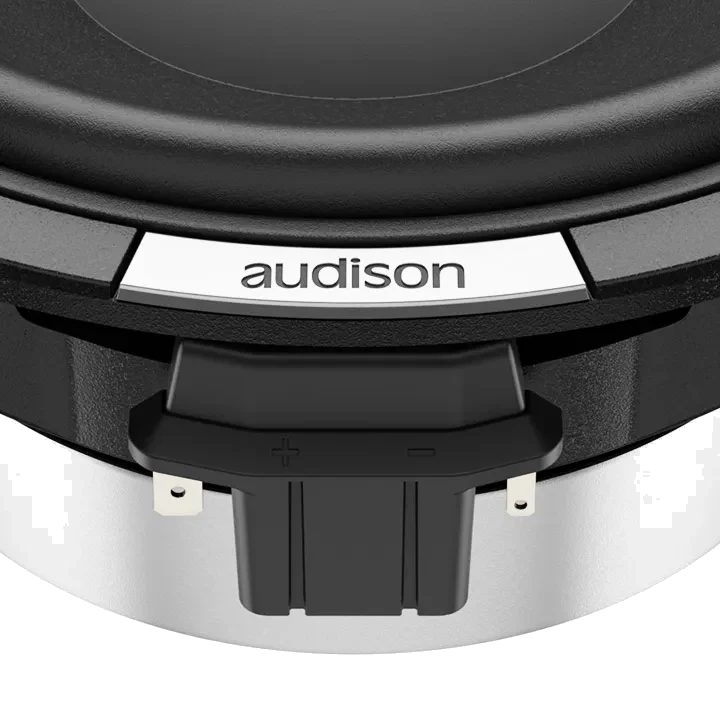

- Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logo badges, allowing for personalized placement to enhance branding and aesthetics.

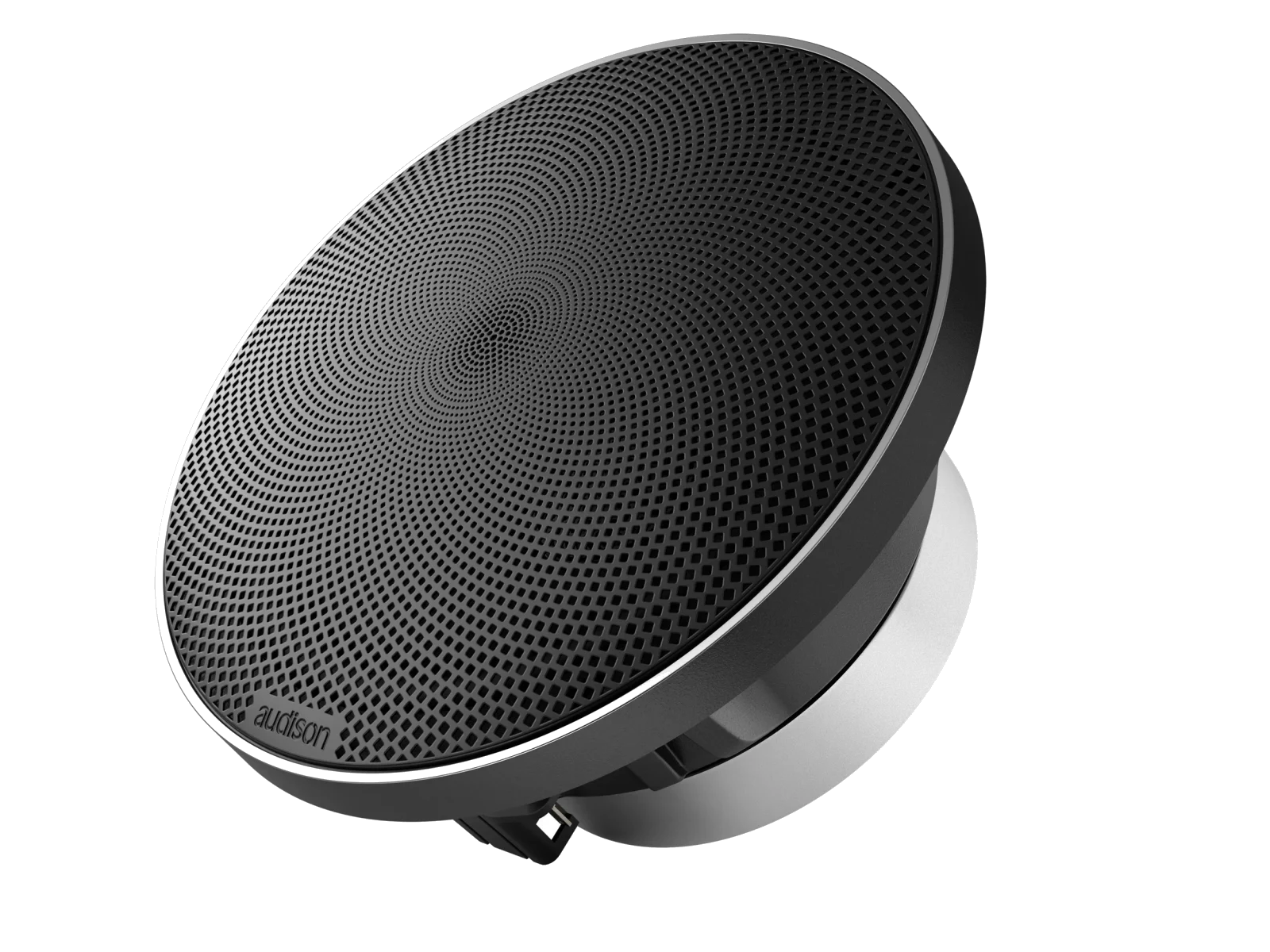

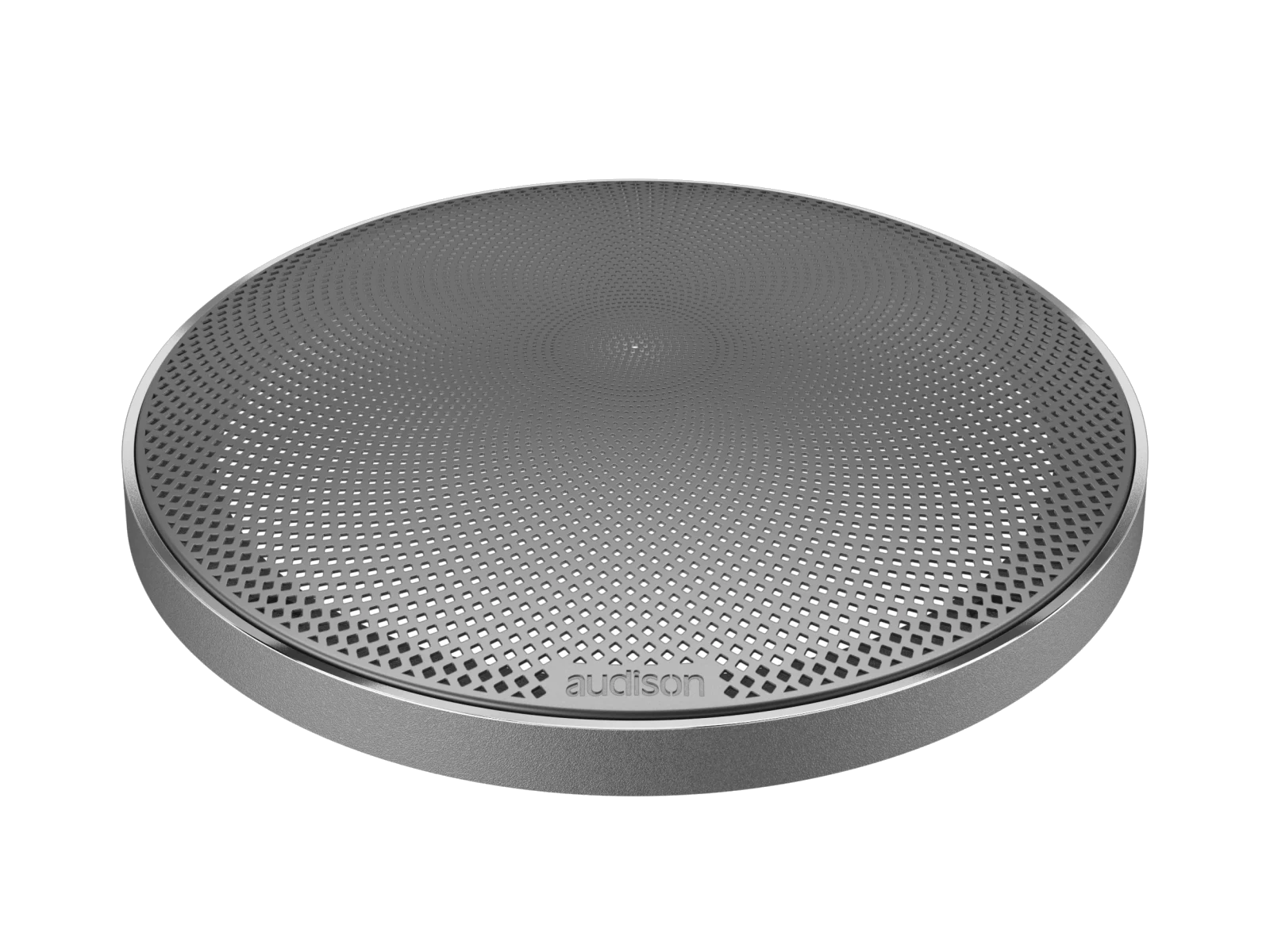

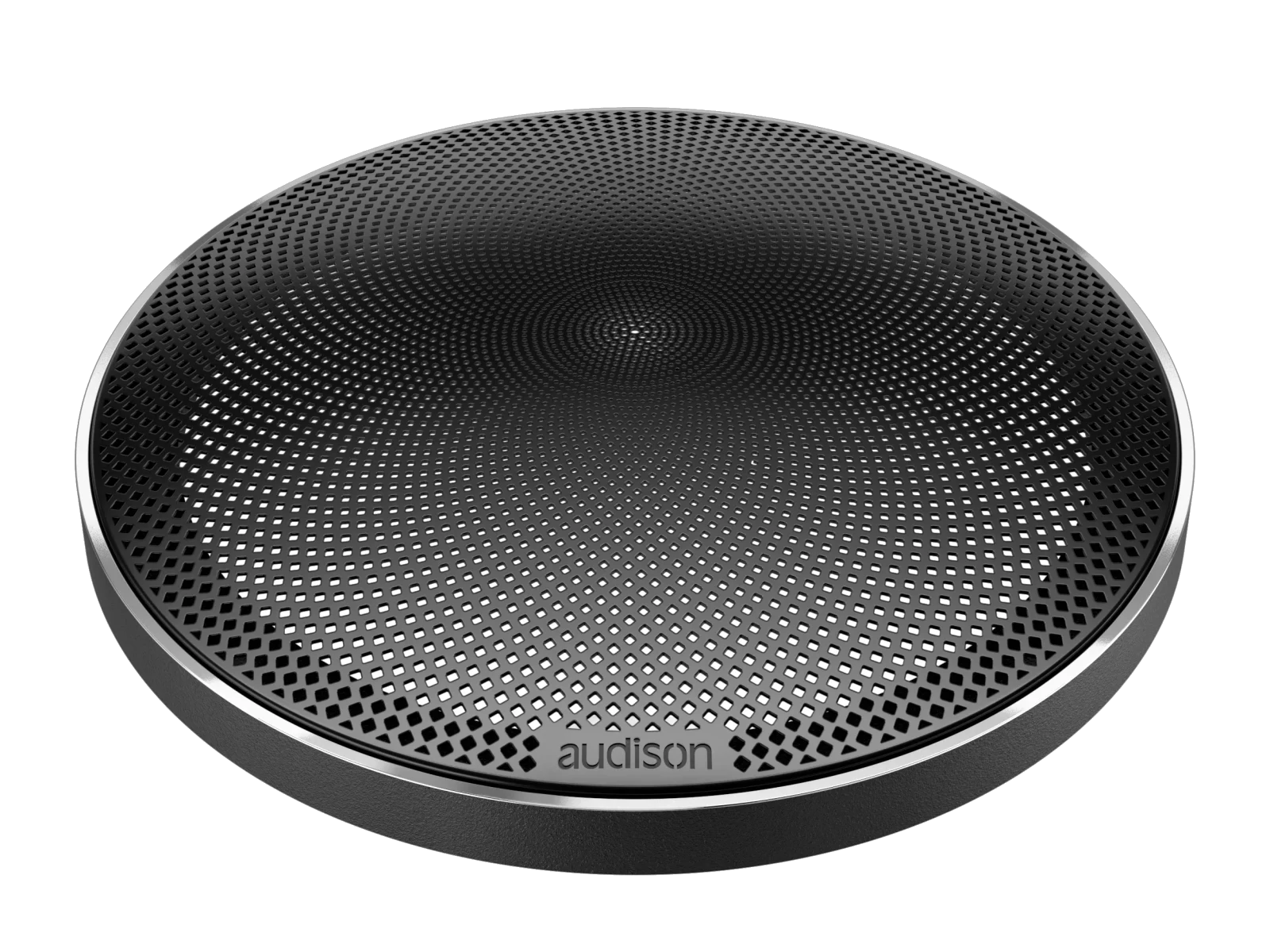

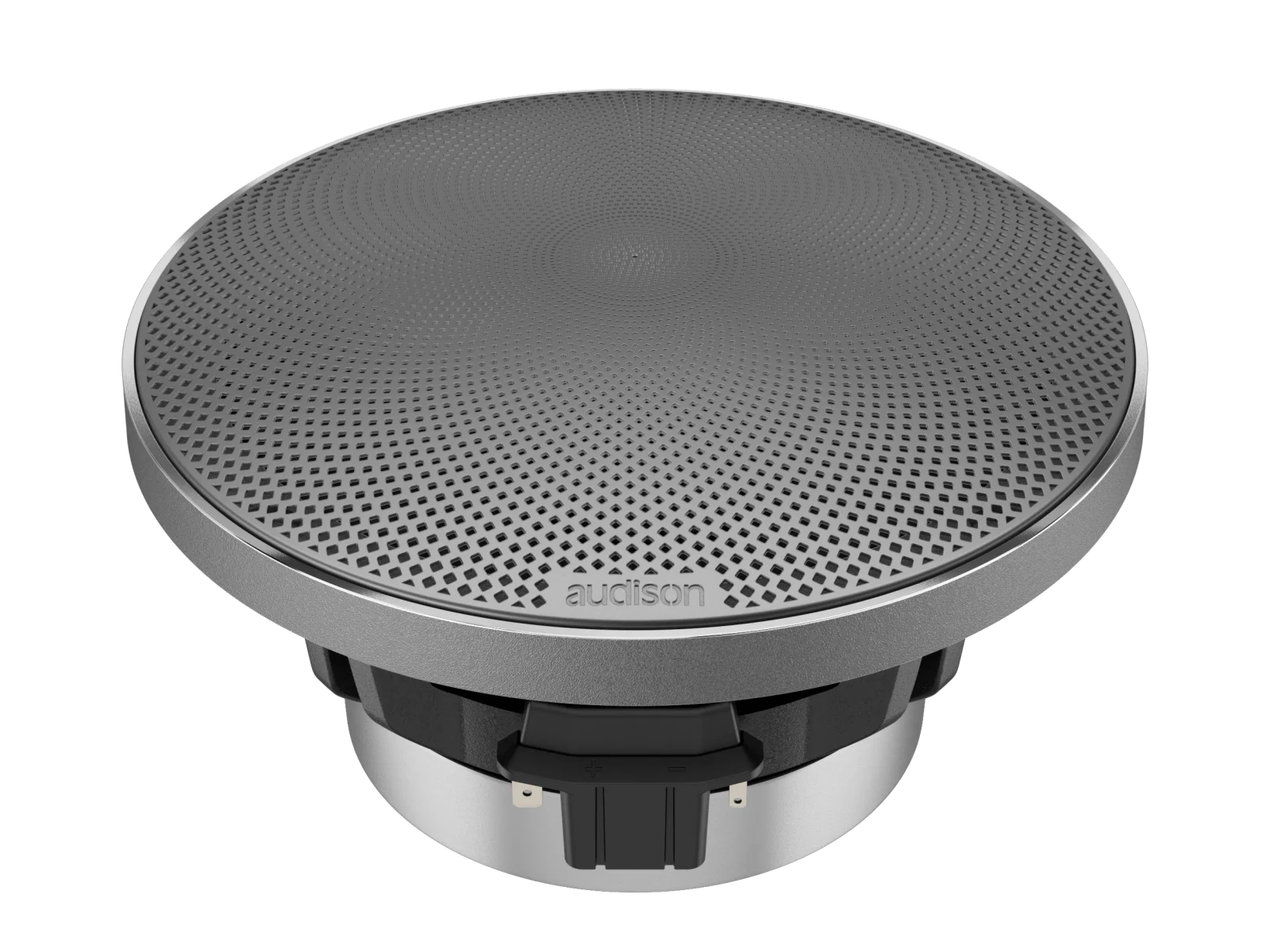

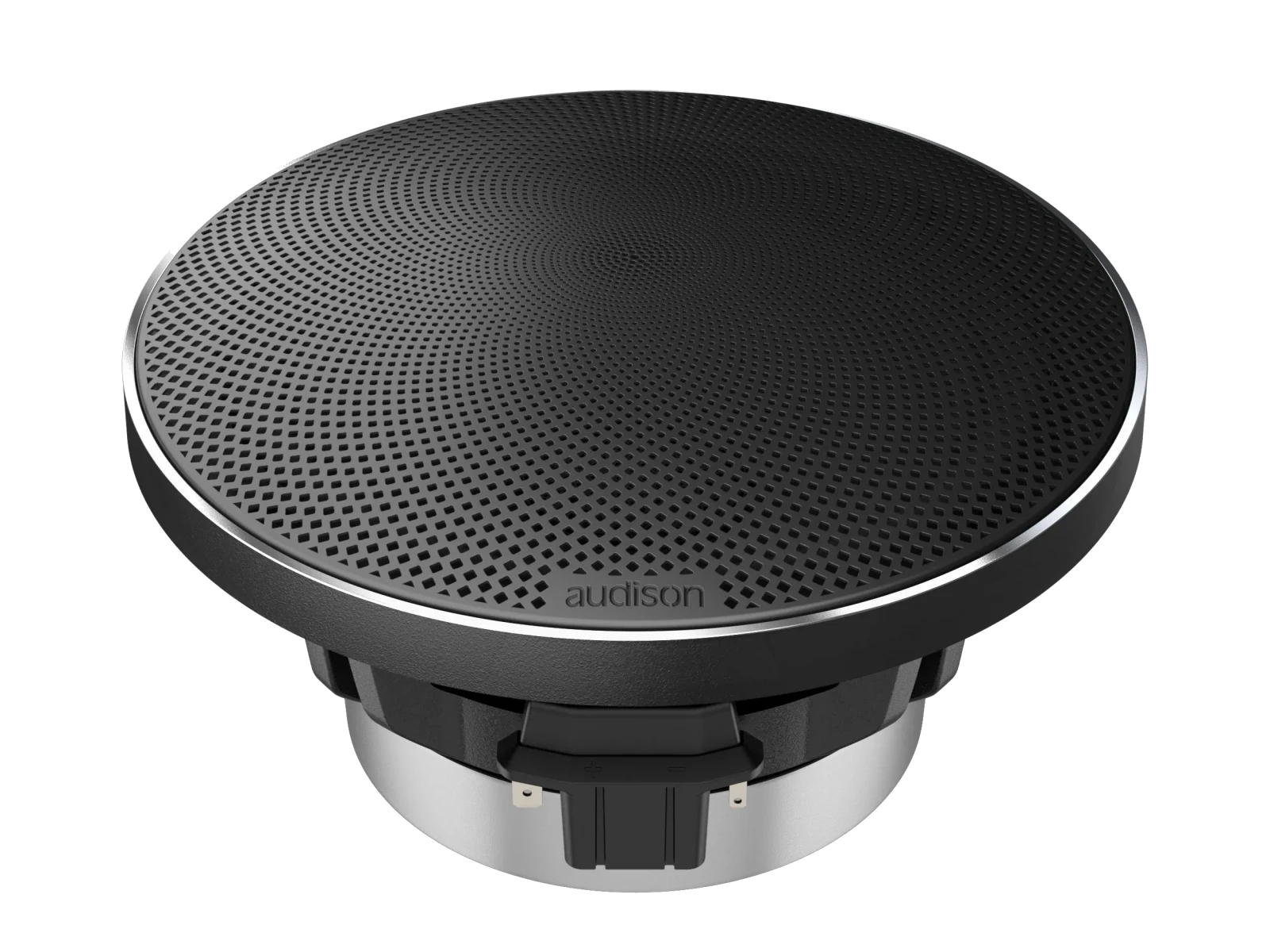

- Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
- eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

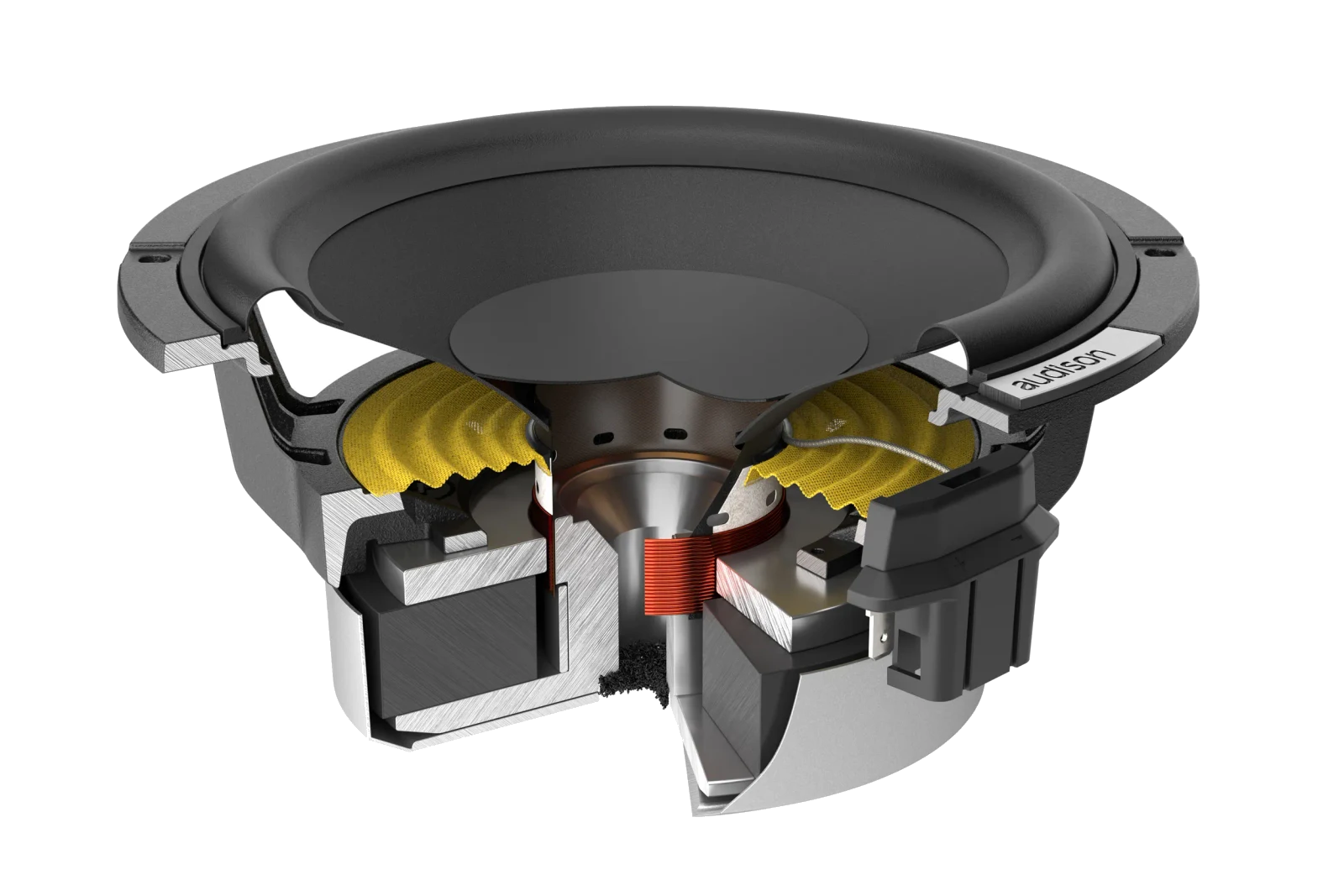

- The Audison VOCE II AV 6.5 P II woofer is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality. The woofer’s OEM-style connector, compatible with FASTON terminals and designed for seamless integration, features a unique T-shaped pole piece with an aluminum ring to minimize distortion and enhance frequency response.
Highlights
Key features
- 1.6 in. (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
- Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
- Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
- FEM optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
- Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for a wide frequency response and clean reproduction, even in midrange frequencies.
- Die-Cast Aluminum Basket with magnet cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance over time, even during prolonged use.
- High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
- Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logo badges, allowing for personalized placement to enhance branding and aesthetics.
- Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
- eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.
Specs
Technical Specs
19
| Nominal diameter | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Minimum Impedance | 3.1 Ohm |
| Power Handling - Peak | 300 W |
| Power Handling - Continuous | 150 W |
| Sensitivity | 91 dB |
| Frequency Response | 45 - 7500 Hz |
| Voice Coil Ø | 40 mm (1.6 in) |
| Chassis Material | ALUMINIUM |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 100 x 45 x 18 (3.9 x 1.8 x 0.7) mm |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | SEMI-PRESSED PAPER |
| Surround Material | RUBBER |
| Xmax | 4.95 mm (0.19 in) |
| Xmech | 7.5 mm (0.3 in) |
| Voice Coil Winding Height | 13 mm (0.51 in) |
| Gap Height | 6 mm (0.24 in) |
Electric-acoustic Specs
11
| D | 128.3 cm² (19.887 in²) |
| Re | 2.9 Ohm |
| Fs | 66 Hz |
| Le | 0.3 mH |
| Vas | 9.09 l (0.321 ft) |
| Mms | 15.3 g (0.54 oz) |
| Cms | 0.38 mm/N |
| BL | 5.5 T•m |
| Qts | 0.57 |
| Qes | 0.61 |
| Qms | 9.06 |
General
1
| Weight | 1.6 kg |
Dimensions
6
| Dimension A | 165 mm (6.5 in) |
| Dimension B | 140.8 mm (5.54 in) |
| Dimension C | 74.2 mm (2.92 in) |
| Dimension D | 69.8 mm (2.75 in) |
| Centre to centre distance | 155 mm |
| Hole diameter | 4.5 mm |
