P3V2-65Punch P3 6.5” 3-Way Component System
Variants
The Punch P3 6.5" is a true 3-way component car speaker system from Rockford Fosgate. It uses three independent drivers to reproduce lows, mids and highs with clarity, and is built with durable materials and fitment features intended for modern vehicles.
Highlights
- 3-way component system with discrete woofer, midrange, and tweeter
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
- P3V2-25 Punch P3 2.5” 3-Way Component Midrange
- Co-molded surround and cone body chemically bonded for high durability
Key specs
Full specs- Speaker Type
- Component System
- Piezo Size (Nominal Diameter)
- —
- Tweeter Size (Nominal Diameter)
- 3/4" (19mm)
- Midrange Size (Nominal Diameter)
- 2.5"
- Woofer Size (Nominal Diameter)
- 6.5"
- Nominal Impedance (Ohms)
- 4Ω
- Frequency Response (Hz)
- 49Hz - 25kHz
- Voice Coil Diameter (in/mm)
- 1.25" (32.5 mm)
Key specs
Full specs- Speaker Type
- Component System
- Piezo Size (Nominal Diameter)
- —
- Tweeter Size (Nominal Diameter)
- 3/4" (19mm)
- Midrange Size (Nominal Diameter)
- 2.5"
Highlights
Overview- 3-way component system with discrete woofer, midrange, and tweeter
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
- P3V2-25 Punch P3 2.5” 3-Way Component Midrange
Overview
The Punch P3 6.5" is a true 3-way component car speaker system from Rockford Fosgate. It uses three independent drivers to reproduce lows, mids and highs with clarity, and is built with durable materials and fitment features intended for modern vehicles.
Best for
- Drivers who want detailed, high-fidelity sound across the frequency range
- Upgrading factory component systems where separate tweeters and midranges are used
- Owners seeking speakers engineered for easier integration into common factory mounting locations
Key points
- True 3-way component system: separate tweeter, midrange and woofer drivers
- Three independent drivers for clearer frequency separation and detail
- Auto Fit Architecture with redesigned frame, removable motor cover and factory-location mounting flanges
- Multi-Configuration Crossover Chassis (M.C.3) for flexible crossover placement
- Durable materials and construction (UV inhibitor materials, vibration resistant)
- Includes manufacturer-listed technologies such as CTA-2031, Klippel verification, COMSOL Multiphysics®, F.L.W.R., and VAST 2.0™
Fit and use
Designed as a component system for vehicles that use separate tweeters, midranges and woofers. The speakers incorporate Auto Fit Architecture elements (re-designed frame, removable motor cover, mounting holes and factory-location mounting flanges) to simplify alignment in many factory locations. The product listing notes OEM adaptors and installation hardware are included. No installation instructions or vehicle-spe…
What to know
These are component speakers, so they require proper crossover integration and appropriate mounting for each driver. The kit description lists tweeters, midranges, woofers, crossovers and OEM adaptors as included. The design emphasizes durability (UV-inhibitor materials and vibration resistance) and has manufacturer v…
Highlights
Key features
- 3-way component system with discrete woofer, midrange, and tweeter
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
- P3V2-25 Punch P3 2.5” 3-Way Component Midrange
- Co-molded surround and cone body chemically bonded for high durability
- Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
- 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
- Flush-mount threaded tweeter cup fits 3/8" thick panels using 1.5" hole-saw cutout
- Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)
- 15% glass-fiber reinforced PA66 injected molded composite basket
- Updated mounting flanges for direct fitment in new vehicles
- Fatigue and tear resistant linear Nomex® spider
- Co-molded basket terminals for secure connectivity
Technologies
CTA-2031
Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards. This means your speaker has
Klippel Verified
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
COMSOL Multiphysics®
COMSOL software analyzes complex physical phenomena (Multiphysics®) that uses FEM (Finite Element Method) to
Auto Fit Architecture
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter
F.L.W.R.
Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for
VAST 2.0™
The Vertical Attach Surround Technique delivers a 25% increase in cone area, resulting in maximum output and
Edge Driven Tweeter
The inverted dome tweeter incorporates an edge-driven voice coil, engineered for high-performance audio systems.
Showing the main technologies for this product.
Specs
Specifications
24
| Speaker Type | Component System |
| Piezo Size (Nominal Diameter) | — |
| Tweeter Size (Nominal Diameter) | 3/4" (19mm) |
| Midrange Size (Nominal Diameter) | 2.5" |
| Woofer Size (Nominal Diameter) | 6.5" |
| Nominal Impedance (Ohms) | 4Ω |
| Frequency Response (Hz) | 49Hz - 25kHz |
| Voice Coil Diameter (in/mm) | 1.25" (32.5 mm) |
| Crossover | TWEETER: • HP 9kHz @ 12dB/octave (external) • Attenuation: 0dB or -3dB (external) MIDRANGE: • BP 600Hz - 6kHz @ 6dB/octave (external) MIDRANGE BASS BLOCKER: • — WOOFER: • LP 1.2kHz @ 6dB/octave (external) |
| Sensitivity (dB @ 1W/1M) | 87 dB |
| Sensitivity (2.83V/1M) | 90 dB |
| Fs (Hz) | 65 Hz |
| Power Handling (Watts RMS) | 75 Watts RMS 150 Watts RMS |
| Midrange Rear-Loading Depth (Twist-Lock Adaptor) | 1.47" (37.3 mm) |
| Midrange Front-Loading Depth (Twist-Lock Adaptor) | 1.60" (40.6 mm) |
| Woofer Cutout Diameter | 5.42" (137.6 mm) |
| Woofer Mounting Depth (With Motor Cover) | 2.5" (63.5 mm) |
| Woofer Mounting Depth (No Motor Cover) | 2.26" (57.3 mm) |
| Woofer Front Side Clearance | 0.43" (11 mm) |
| Removable Motor Cover | Yes |
| Grille/Trim Ring Included | No |
| Included in the Box | (2) 3/4” 4Ω Tweeter (2) 2.5” 4Ω Speakers (2) 6.5” 4Ω Speakers (2) Twist-Lock Adaptors (1) 2.5” Speaker Cutout Template (1) 6.5” Speaker Cutout Template (2) Flush-Mount Tweeter Cups (2) Surface-Mounting Tweeter Cups (1) Tweeter Removal Tool (2) Passive Crossovers (Tweeter) (2) Passive Crossovers (Midrange) (2) Passive Crossovers (Woofer) (10) 18” Crossover Wiring Extensions (12) Self-Tapping Phillips #4x16mm (Tweeter) (4) Self-Tapping Phillips #8x20mm (Crossover) (8) Self-Tapping Phillips #8x32mm (Speaker) (4) Self-Tapping Phillips #8x32mm (Speaker) (6) Zip Ties 4.8 mm x 350 mm (4) 18 AWG Red/Black Speaker Wire, 205 mm (6) 18 AWG (–) Female Crimp Spade Conn. (.187”) (6) 18 AWG (+) Female Crimp Spade Conn. (.250”) (12) 18 AWG Crimp Butt Conn. |
| Mounting Hardware | Yes |
| Shipping Weight | 9 Lbs. (4.08 Kg.) |
What's in the box
| Qty | Part number | Item details |
|---|---|---|
| 2 | — | 3/4” 4Ω Tweeter |
| 2 | — | 2.5” 4Ω Speakers |
| 2 | — | 6.5” 4Ω Speakers |
| 2 | — | Twist-Lock Adaptors |
| 1 | — | 2.5” Speaker Cutout Template |
| 1 | — | 6.5” Speaker Cutout Template |
| 2 | — | Flush-Mount Tweeter Cups |
| 2 | — | Surface-Mounting Tweeter Cups |
| 1 | — | Tweeter Removal Tool |
| 2 | — | Passive Crossovers (Tweeter) |
| 2 | — | Passive Crossovers (Midrange) |
| 2 | — | Passive Crossovers (Woofer) |
| 10 | — | 18” Crossover Wiring Extensions |
| 12 | — | Self-Tapping Phillips #4x16mm (Tweeter) |
| 4 | — | Self-Tapping Phillips #8x20mm (Crossover) |
| 8 | — | Self-Tapping Phillips #8x32mm (Speaker) |
| 4 | — | Self-Tapping Phillips #8x32mm (Speaker) |
| 6 | — | Zip Ties 4.8 mm x 350 mm |
| 4 | — | 18 AWG Red/Black Speaker Wire, 205 mm |
| 6 | — | 18 AWG (–) Female Crimp Spade Conn. (.187”) |
| 6 | — | 18 AWG (+) Female Crimp Spade Conn. (.250”) |
| 12 | — | 18 AWG Crimp Butt Conn. |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Accessories
Rockford Fosgate•Punch

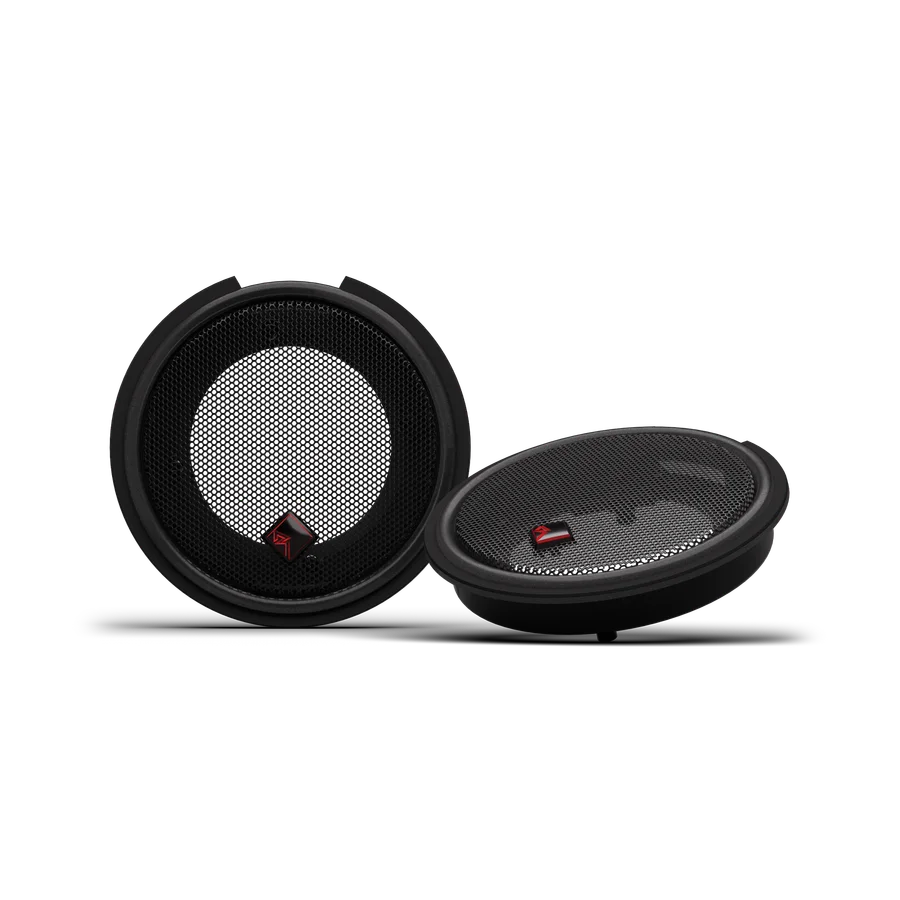

GF-25 2.5” Flush Mount Grilles
$0.00CAD
Backorder
Rockford Fosgate•Punch
GF-65 6.5” Flush Mount Grilles
$0.00CAD
Backorder
Rockford Fosgate•Punch

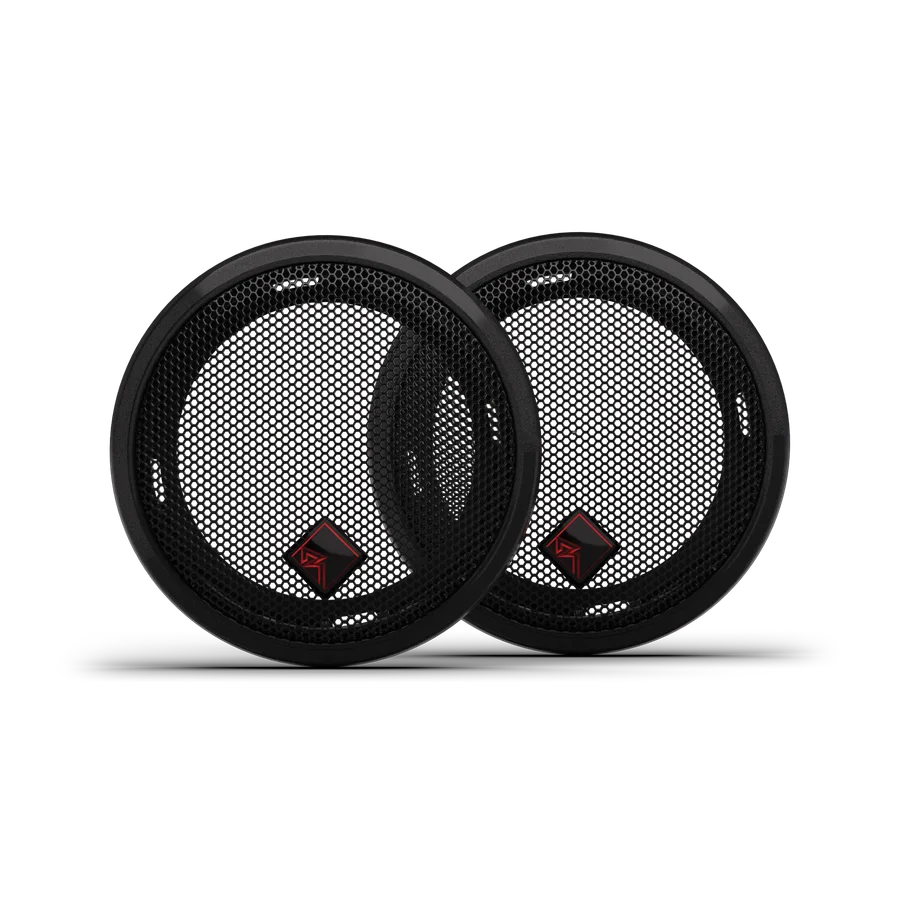

GS-25 2.5” Surface Mount Grilles
