P3V2-69C3Punch P3 6"x9” 3-Way Coax/Component System
Variants
Rockford Fosgate Punch P3 6"x9" 3-way coax/component system combines a true three-driver design with vehicle-ready engineering to deliver detailed highs, strong midrange and accurate lows in a premium OEM-replacement package.
Highlights
- 3-way configuration with component woofer and coaxial midrange/tweeter
- Updated mounting flanges for direct fitment in new vehicles
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
- P1V2-3 Punch P1 3.5” 3-Way Coaxial Speaker
Key specs
Full specs- Speaker Type
- Component System
- Piezo Size (Nominal Diameter)
- —
- Tweeter Size (Nominal Diameter)
- 3/4" (19mm)
- Midrange Size (Nominal Diameter)
- 3.5"
- Woofer Size (Nominal Diameter)
- 6"x9"
- Nominal Impedance (Ohms)
- 4Ω
- Frequency Response (Hz)
- 49Hz - 25kHz
- Voice Coil Diameter (in/mm)
- 1.25" (32.5 mm)
Key specs
Full specs- Speaker Type
- Component System
- Piezo Size (Nominal Diameter)
- —
- Tweeter Size (Nominal Diameter)
- 3/4" (19mm)
- Midrange Size (Nominal Diameter)
- 3.5"
Highlights
Overview- 3-way configuration with component woofer and coaxial midrange/tweeter
- Updated mounting flanges for direct fitment in new vehicles
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
Overview
Rockford Fosgate Punch P3 6"x9" 3-way coax/component system combines a true three-driver design with vehicle-ready engineering to deliver detailed highs, strong midrange and accurate lows in a premium OEM-replacement package.
Best for
- Drivers wanting a high-fidelity OEM-style replacement
- Owners upgrading factory 6x9 speakers for clearer mids and improved highs
- Installations needing a flexible 3-way solution that integrates with modern vehicle mounting locations
Key points
- True 3-way speaker design with three independent drivers for precise frequency reproduction
- Auto Fit Architecture — redesigned frame, removable motor cover, mounting holes and factory-location flanges for easier integration
- Multi-Configuration Crossover Chassis (M.C.3) provides installation flexibility by breaking down into separate units
- Durable materials and precision-tuned tweeter configurations for consistent output
- Includes technologies such as CTA-2031, Klippel Verified, UV inhibitor materials, vibration resistance, COMSOL Multiphysics®, F.L.W.R., and VAST 2.0™
Fit and use
Engineered to fit common factory mounting locations: the redesigned frame, removable motor cover, mounting holes and factory-location flanges help simplify integration without extensive modification. The crossover chassis can be configured or separated to suit different installation layouts.
What to know
This is a 3-way component/coaxial system designed for vehicles that use separate tweeters, midrange and woofers. Kit details provided in the source include: (2) 3.5" 4Ω coaxial speakers; (2) 6"x9" 4Ω woofers; (2) bass blockers; (2) crossovers (2x WFR); (2) OEM adaptors; installation hardware. Specific vehicle fitment,…
Highlights
Key features
- 3-way configuration with component woofer and coaxial midrange/tweeter
- Updated mounting flanges for direct fitment in new vehicles
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
- P1V2-3 Punch P1 3.5” 3-Way Coaxial Speaker
- Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
- 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
- Co-molded surround and cone body chemically bonded for high durability
- Ultra-flexible braded tinsel leads securely stitched to spider
- Fatigue and tear resistant linear Nomex® spider
- 15% glass-fiber reinforced PA66 injected molded composite basket
- Vented Kapton® voice coil former for excellent heat dissipation
- Overhung voice coil ensures consistent magnetic flux for less speaker distortion
Technologies
CTA-2031
Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards. This means your speaker has
Klippel Verified
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
COMSOL Multiphysics®
COMSOL software analyzes complex physical phenomena (Multiphysics®) that uses FEM (Finite Element Method) to
Auto Fit Architecture
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter
F.L.W.R.
Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for
VAST 2.0™
The Vertical Attach Surround Technique delivers a 25% increase in cone area, resulting in maximum output and
Edge Driven Tweeter
The inverted dome tweeter incorporates an edge-driven voice coil, engineered for high-performance audio systems.
Showing the main technologies for this product.
Specs
Specifications
24
| Speaker Type | Component System |
| Piezo Size (Nominal Diameter) | — |
| Tweeter Size (Nominal Diameter) | 3/4" (19mm) |
| Midrange Size (Nominal Diameter) | 3.5" |
| Woofer Size (Nominal Diameter) | 6"x9" |
| Nominal Impedance (Ohms) | 4Ω |
| Frequency Response (Hz) | 49Hz - 25kHz |
| Voice Coil Diameter (in/mm) | 1.25" (32.5 mm) |
| Crossover | TWEETER: • HP 9kHz @ 6dB/octave (internal) MIDRANGE BASS BLOCKER: • HP 1,200Hz @ 6 dB/Octave (33µF) WOOFER: • LP 1.2kHz @ 6dB/octave (external) |
| Sensitivity (dB @ 1W/1M) | 89 dB |
| Sensitivity (2.83V/1M) | 92 dB |
| Fs (Hz) | 65 Hz |
| Power Handling (Watts RMS) | 75 Watts RMS 150 Watts Peak |
| Rear-Loading Depth (Twist-Lock Adaptor) | 1.48" (37.7 mm) |
| Front-Loading Depth (Twist-Lock Adaptor) | 1.70" (43.3 mm) |
| Woofer Cutout Diameter | 8.41" x 5.71" (213.5 mm x 145 mm) |
| Woofer Mounting Depth (With Motor Cover) | 3.13" (79.4 mm) |
| Woofer Mounting Depth (No Motor Cover) | 2.76" (70 mm) |
| Woofer Front Side Clearance | 0.42" (10.6 mm) |
| Removable Motor Cover | Yes |
| Grille/Trim Ring Included | No |
| Included in the Box | (2) 6”x9” 4Ω Speakers (2) 3.5” 4Ω Coaxial Speakers (1) 3.5” Speaker Cutout Template (1) 6x9” Speaker Cutout Template (2) 3.5” 2-Tab Twist-Lock Adaptors (2) 3.5” 3-Tab Twist-Lock Adaptors (2) 3.5” 2-Tab Wide Twist-Lock Adaptors (2) 3.5” 3-Tab Wide Twist-Lock Adaptors (2) 33µF Non-Polarized Cap (Bass-Blockers) (2) Passive Crossover Network (Woofer) (4) Self-Tapping Phillips #4x16mm (Tweeter) (4) 18” Crossover Wiring Extensions (14) Self-Tapping Phillips #8x32mm (Speaker) (2) Zip Ties 4.8 mm x 350 mm (4) 18 AWG Red/Black Speaker Wire, 205 mm (3) 18 AWG (–) Female Crimp Spade Conn. (.187”) (3) 18 AWG (+) Female Crimp Spade Conn. (.250”) (10) 18 AWG Crimp Butt Conn. |
| Mounting Hardware | Yes |
| Shipping Weight | 11 Lbs. (4.99 Kg.) |
What's in the box
| Qty | Part number | Item details |
|---|---|---|
| 2 | — | 6”x9” 4Ω Speakers |
| 2 | — | 3.5” 4Ω Coaxial Speakers |
| 1 | — | 3.5” Speaker Cutout Template |
| 1 | — | 6x9” Speaker Cutout Template |
| 2 | — | 3.5” 2-Tab Twist-Lock Adaptors |
| 2 | — | 3.5” 3-Tab Twist-Lock Adaptors |
| 2 | — | 3.5” 2-Tab Wide Twist-Lock Adaptors |
| 2 | — | 3.5” 3-Tab Wide Twist-Lock Adaptors |
| 2 | — | 33µF Non-Polarized Cap (Bass-Blockers) |
| 2 | — | Passive Crossover Network (Woofer) |
| 4 | — | Self-Tapping Phillips #4x16mm (Tweeter) |
| 4 | — | 18” Crossover Wiring Extensions |
| 14 | — | Self-Tapping Phillips #8x32mm (Speaker) |
| 2 | — | Zip Ties 4.8 mm x 350 mm |
| 4 | — | 18 AWG Red/Black Speaker Wire, 205 mm |
| 3 | — | 18 AWG (–) Female Crimp Spade Conn. (.187”) |
| 3 | — | 18 AWG (+) Female Crimp Spade Conn. (.250”) |
| 10 | — | 18 AWG Crimp Butt Conn. |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Accessories
Rockford Fosgate•Punch

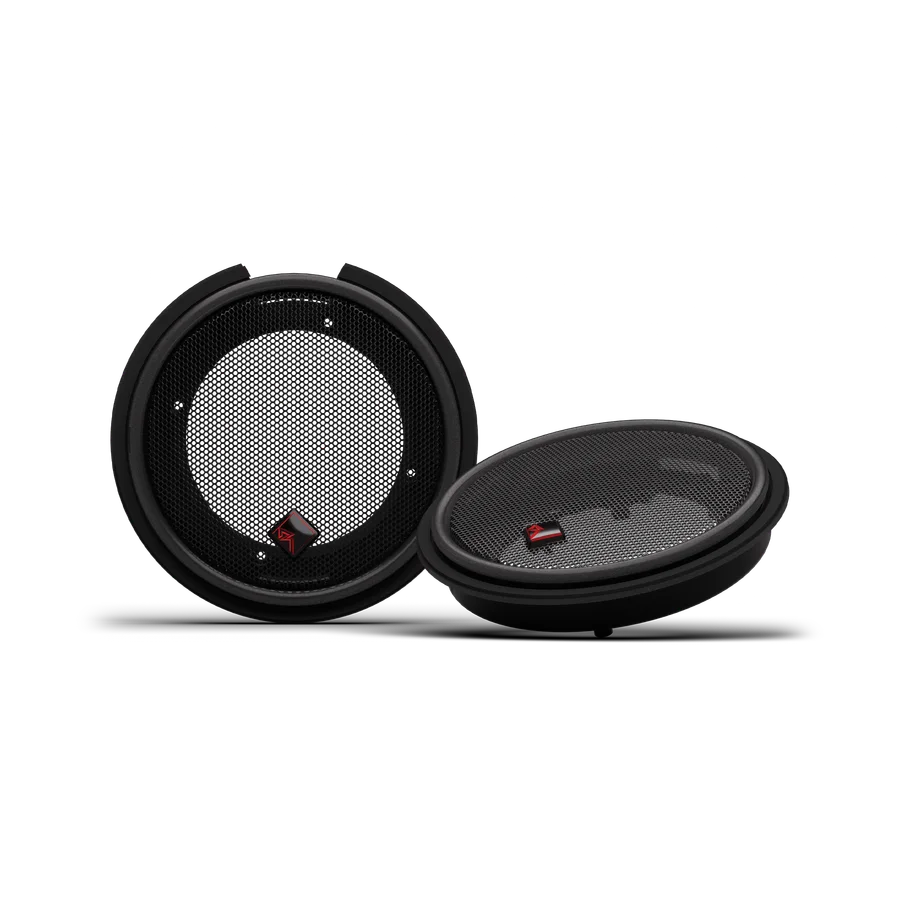

GF-35 3.5” Flush Mount Grilles
$0.00CAD
Backorder
Rockford Fosgate•Punch

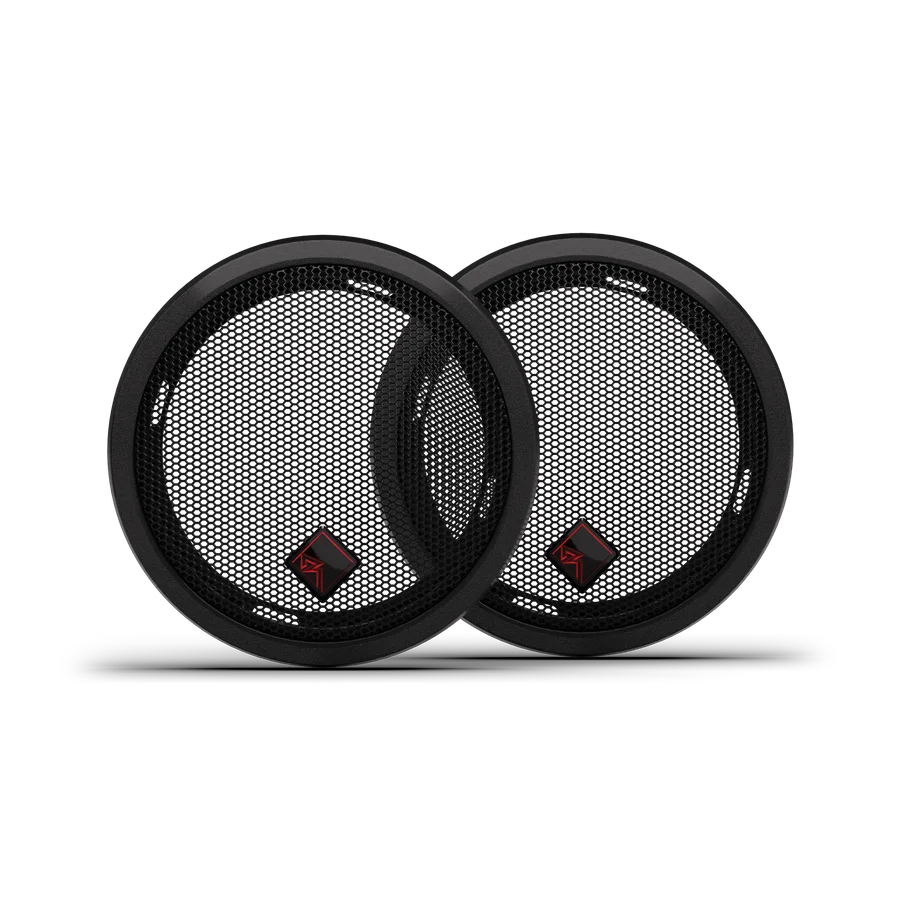

GS-35 3.5” Surface Mount Grilles
