Audison

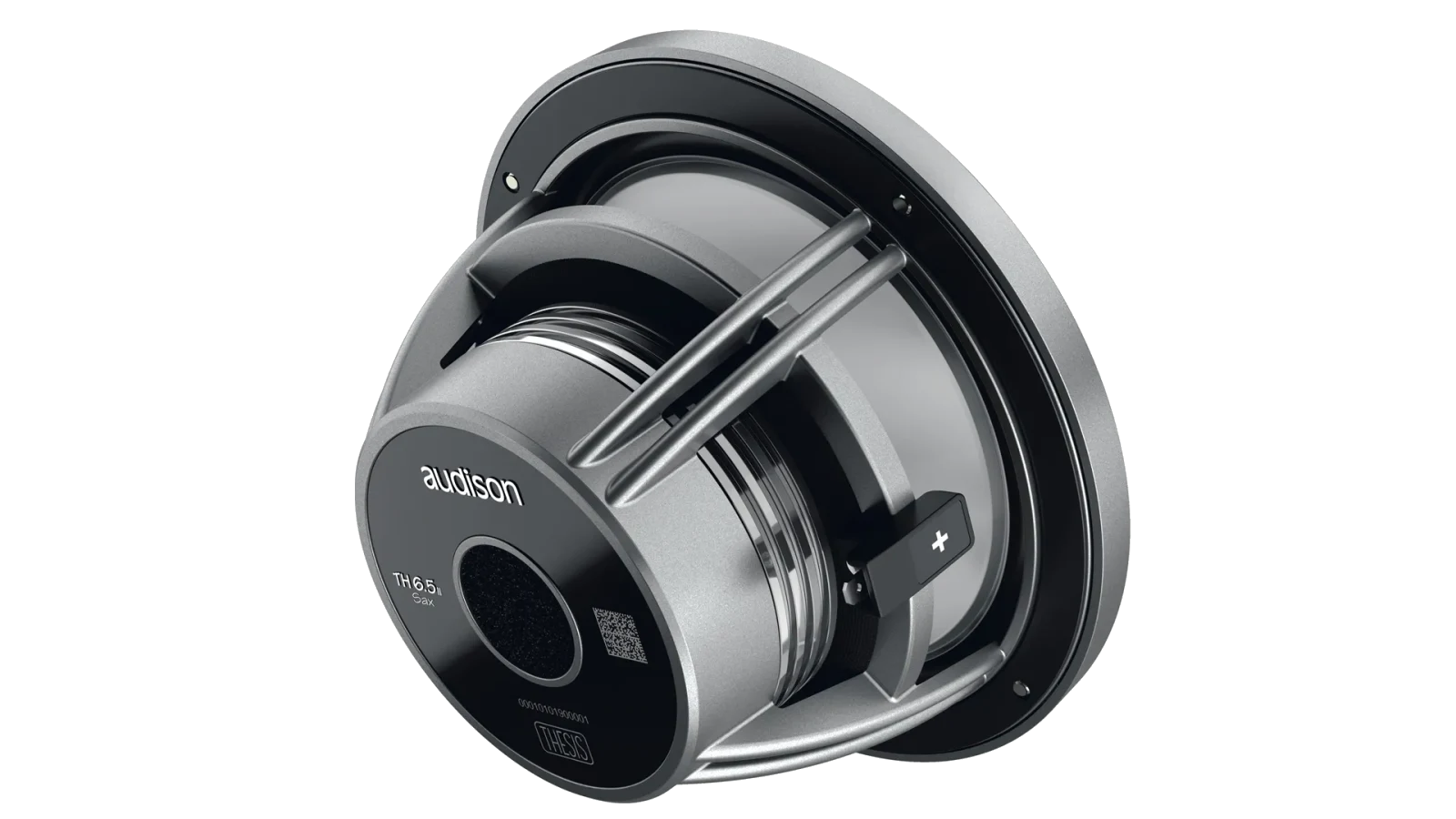

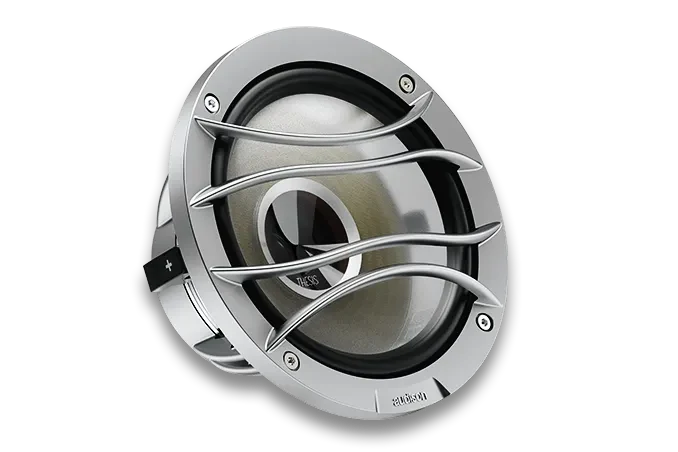

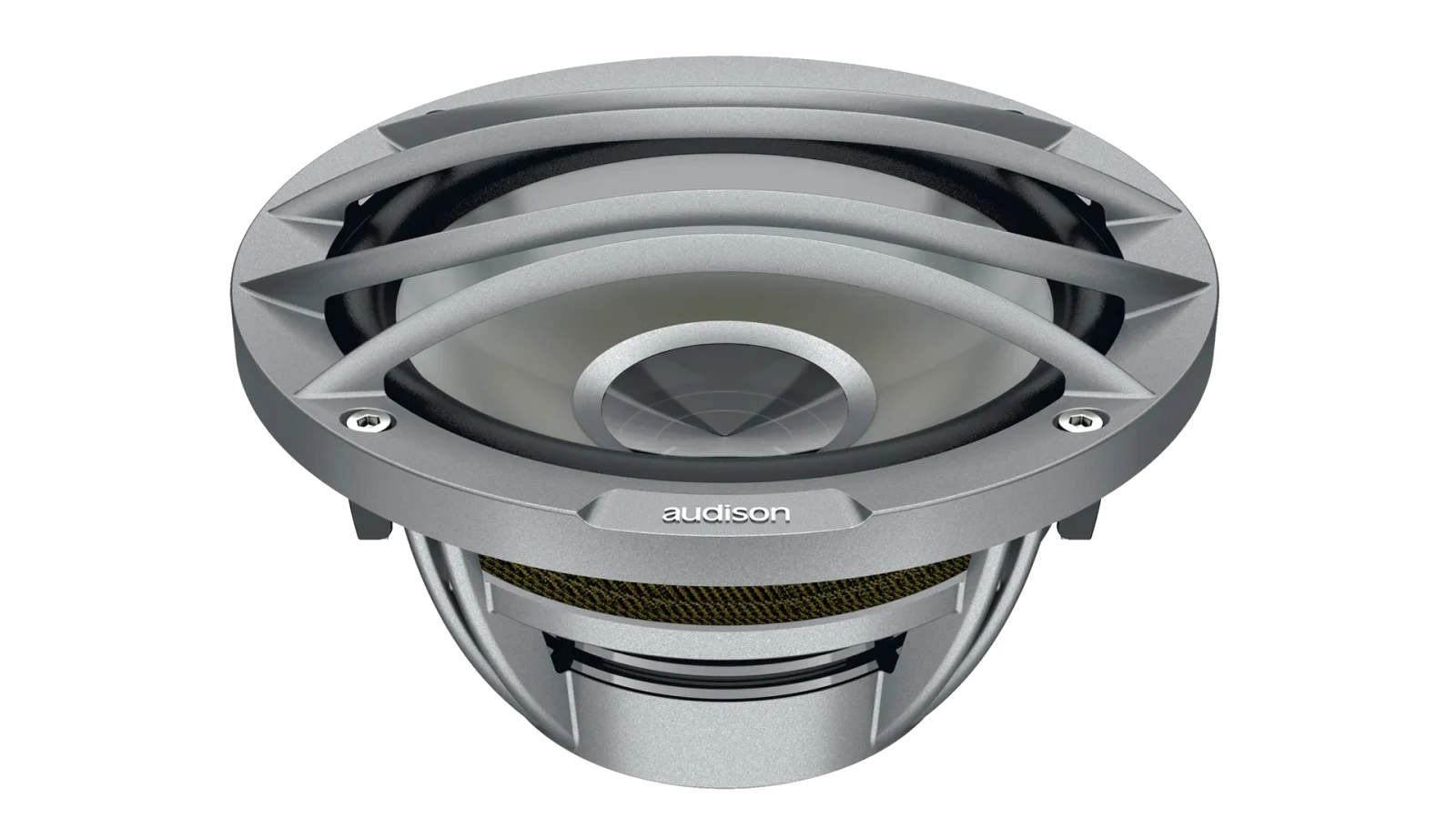

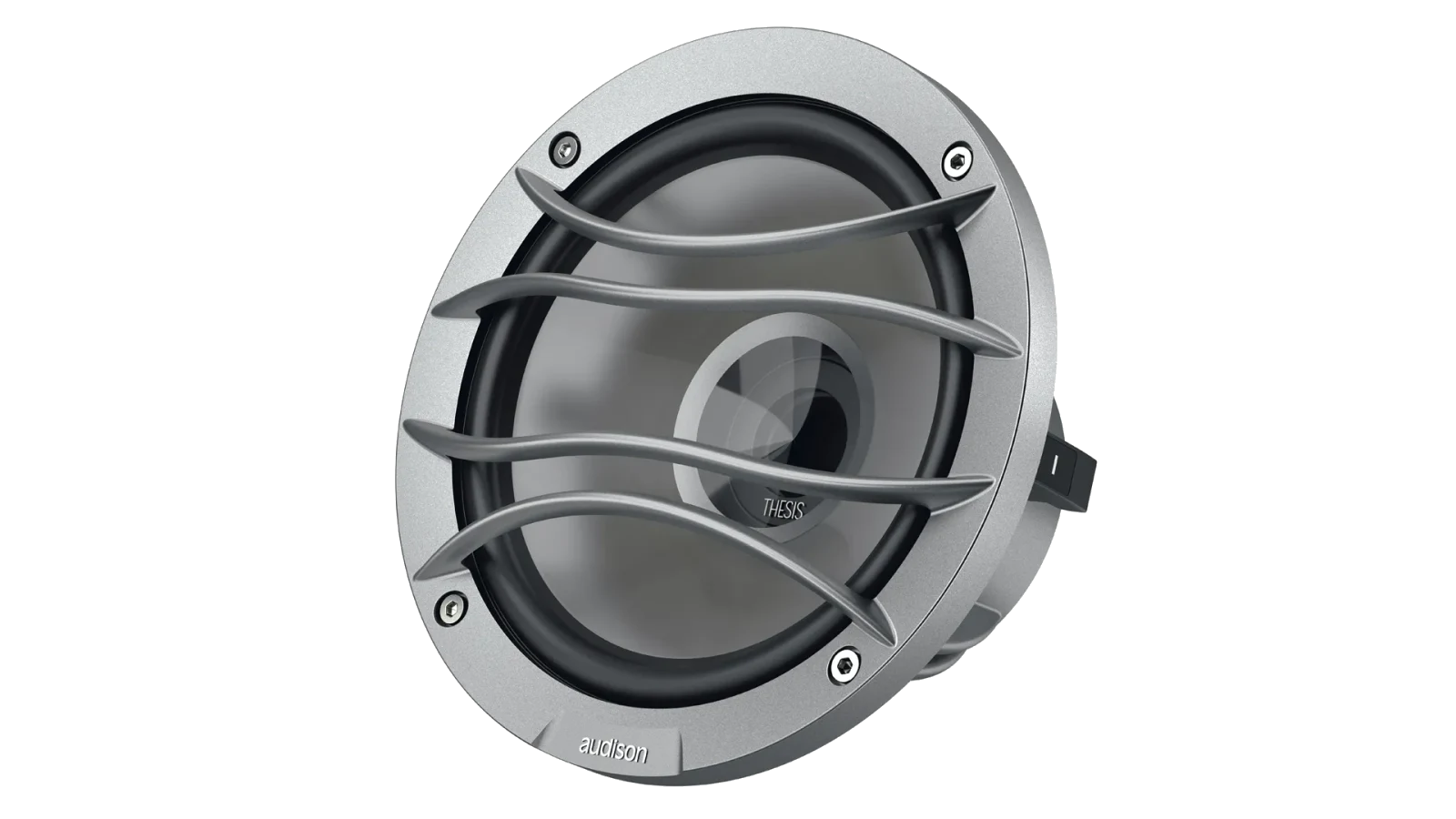

TH6.5IITH6.5II 165 mm Woofers
50 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation. Low inductance of the mobile voice coil to optimize the emission in medium-high band (2-3 kHz).
Highlights
- 50 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
- Low inductance of the mobile voice coil to optimize the emission in medium-high band (2-3 kHz).
- N48 “H-gradeneodymium magnet with superb thermal stability to guarantee an optimal dynamic reserve in every situation.

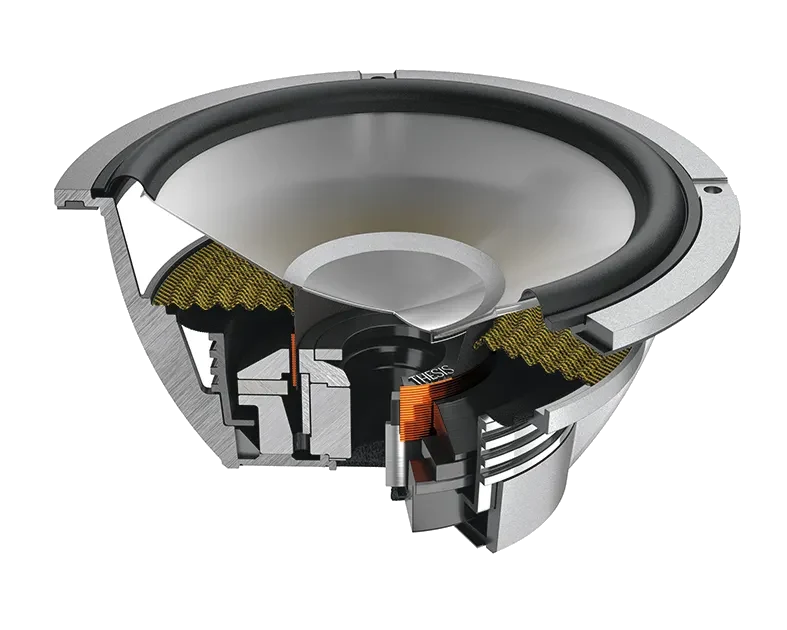

- Magnetic group geometry designed using finite element simulation software to maximize efficiency by concentrating the magnetic field in the gap.
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 150 W
- Sensitivity
- 87 dB
- Frequency Response
- 40 ÷ 4500 Hz
- Voice Coil Ø
- 50 mm
- Magnet Material
- NEODYMIUM
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 300 W
- Power Handling - Continuous
- 150 W
Highlights
Overview- 50 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
- Low inductance of the mobile voice coil to optimize the emission in medium-high band (2-3 kHz).
- N48 “H-gradeneodymium magnet with superb thermal stability to guarantee an optimal dynamic reserve in every situation.
Overview
- 50 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
- Low inductance of the mobile voice coil to optimize the emission in medium-high band (2-3 kHz).
- N48 “H-gradeneodymium magnet with superb thermal stability to guarantee an optimal dynamic reserve in every situation.
- Magnetic group geometry designed using finite element simulation software to maximize efficiency by concentrating the magnetic field in the gap.
- Membrane made of TPX®, a transparent material that reduces the frequency response irregularities in the mid-high band, leaving the speaker interior in full view.
- Membrane geometry designed using simulation software, to obtain a smooth emission over all the listening angles.
- Basket made of a single piece of die-cast aluminium featuring four pairs of spokes to optimize heat transfer, nullify turbulent airflows and ensure maximum structural rigidity.
- Hi-excursion suspension and spider, optimized with simulations of the loudspeaker multi-physical behavior.
- eID technology providing TH 6.5 II traceability starting from the manufacturing stage up to the owner.
- Audison Thesis TH 6.5 II SAX is a masterpiece of acoustic engineering, designed to ensure extraordinary precision and transparency in sound reproduction. With a diameter of 165 mm, this midrange woofer has been developed to exceed the limits imposed by traditional designs, pushing sound performance to the highest levels without compromise. The heart of the TH 6.5 II SAX is the powerful H-grade neodymium magnet, which generates an extremely stable magnetic field and outstanding energy efficiency, essential for achieving exceptional sound dynamics. The design of the magnetic circuit, optimized through advanced simulation software, focuses the magnetic field to maximize transducer efficiency, offering a fast and accurate response even in delicate mid-range frequencies. Particular attention has been given to the suspension system, a critical element for controlling cone movement. The spider, made of a mix of highly elastic fibers, allows for a linear and distortion-free excursion even under intense use. Similarly, the natural rubber surround is optimized to enable wide cone excursions without mechanically compressing the sound, preserving fidelity to the original source. The 50 mm mobile coil, wound with flat wire in CCAR (Copper Clad Aluminum Ribbon), not only maximizes the force factor but also provides excellent heat dissipation, preventing overheating and ensuring stable performance over time. This technical detail contributes to the total absence of thermal compression, a crucial aspect for maintaining consistent audio quality, even during prolonged listening sessions. The aluminum alloy basket, designed to eliminate unwanted vibrations, further enhances sound clarity. Its structure, with a system of four pairs of spokes, not only offers great structural rigidity but also minimizes air resistance, avoiding aerodynamic compression phenomena that could affect midrange frequencies. In summary, the Audison Thesis TH 6.5 II SAX is much more than just a speaker: it is a concentrate of technological innovation and refined design, created to offer an unparalleled sound experience. Every component has been carefully studied to minimize any form of distortion and compression, ensuring a pure, detailed, and incredibly faithful sound reproduction.
Highlights
Key features
- 50 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
- Low inductance of the mobile voice coil to optimize the emission in medium-high band (2-3 kHz).
- N48 “H-gradeneodymium magnet with superb thermal stability to guarantee an optimal dynamic reserve in every situation.
- Magnetic group geometry designed using finite element simulation software to maximize efficiency by concentrating the magnetic field in the gap.
- Membrane made of TPX®, a transparent material that reduces the frequency response irregularities in the mid-high band, leaving the speaker interior in full view.
- Membrane geometry designed using simulation software, to obtain a smooth emission over all the listening angles.
- Basket made of a single piece of die-cast aluminium featuring four pairs of spokes to optimize heat transfer, nullify turbulent airflows and ensure maximum structural rigidity.
- Hi-excursion suspension and spider, optimized with simulations of the loudspeaker multi-physical behavior.
- eID technology providing TH 6.5 II traceability starting from the manufacturing stage up to the owner.
Specs
Technical Specs
12
| Nominal diameter | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 300 W |
| Power Handling - Continuous | 150 W |
| Sensitivity | 87 dB |
| Frequency Response | 40 ÷ 4500 Hz |
| Voice Coil Ø | 50 mm |
| Magnet Material | NEODYMIUM |
| Magnet size D x d x h | 80 x 54 x 4,5 mm |
| Voice Coil Material | CCAP - COPPER CLAD ALLUMINIUM RIBBON |
| Cone Material | TPX® |
| Xmax | 5.4 mm (0.21 in) |
Electric-acoustic Specs
10
| Re | 3.8 Ohm |
| Fs | 55 Hz |
| Le | 0.43 mH |
| Vas | 8.6 l (0.304 ft) |
| Mms | 24.2 g (0.854 oz) |
| Cms | 0.35 mm/N |
| BL | 8.2 T•m |
| Qts | 0.43 |
| Qes | 0,47 |
| Qms | 5.3 |
General
1
| Weight | 1.25 kg |
Dimensions
6
| Dimension A | 165 mm (6.5 in) |
| Dimension B | 143 mm (5.63 in) |
| Dimension C | 84 mm (3.31 in) |
| Dimension D | 74.5 mm (2.93 in) |
| Dimension E | 170.5 mm |
| Dimension F | 30 |
