Hertz

Mille#MLK 1650.3 LEGEND

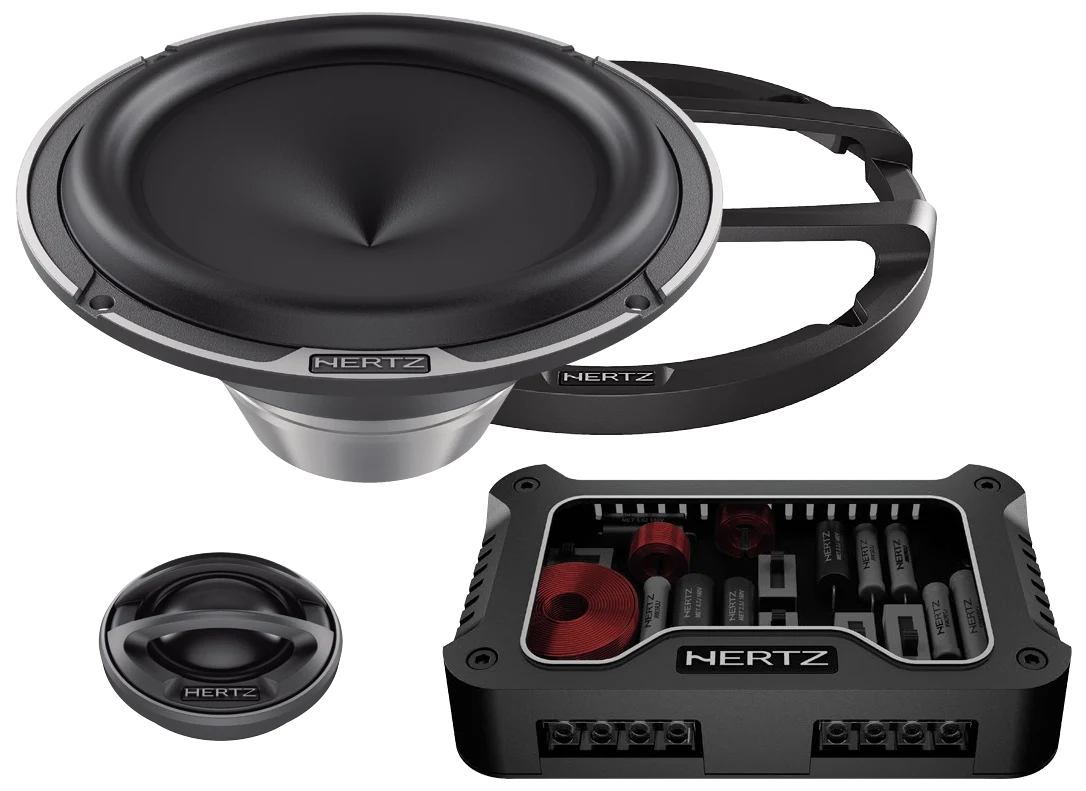

Hertz Mille MLK 1650.3 LEGENDCar Audio Speakers System

5.02 reviewsSee all reviews

The Hertz MLK 1650.3 Legend car audio speakers system is a two way kit dedicated to purists , aiming at achieving maximum timbre consistency combined with very high dynamics and extremely extended frequency response. Through a solidly built switch, the MLCX 2 TW.

Buyer confidence

88%

Key specs

Full specs
Component
System
Size mm (in.)
165 (6.5)
Power Handling - Continuous W
150
Power Handling - Peak W
300
Impedance Ohm
4
Tweeter diaphragm mm (in.)
35 (1.38)
Woofer Voice Coil Ø mm (in.)
36 (1.4)
Tweeter Voice Coil Ø mm (in.)
28 (1.1)

Key specs

Full specs
Component
System
Size mm (in.)
165 (6.5)
Power Handling - Continuous W
150
Power Handling - Peak W
300
Overview
The Hertz MLK 1650.3 Legend car audio speakers system is a two way kit dedicated to purists , aiming at achieving maximum timbre consistency combined with very high dynamics and extremely extended frequency response.

Through a solidly built switch, the MLCX 2 TW.3 crossover provides the ability to realize a bi-amplified system, that is, to connect two amplifiers, or anyway two separate channels, to the crossover, so making it possible to drive woofer and tweeter separately. The significant power increase with this configuration highlights all the features of the MLK 1650.3 Legend system, with all the advantages coming from the multi-amplification.

Besides, thanks to the Mid-Contour and Hi-Countor controls, dedicated to the management of woofer cut-off frequency and tweeter cut-off frequency respectively, the cross-point can be varied. Through each of these two “Countor” controls, featuring a two-position selector, the system frequency response can be fine-tuned, adjusting it according to the different acoustics of the cars and the different speaker placements and, most of all, the listener can achieve thieir favourite sound.
Specs

Technical Specs

15
ComponentSystem
Size mm (in.)165 (6.5)
Power Handling - Continuous W150
Power Handling - Peak W300
Impedance Ohm4
Tweeter diaphragm mm (in.)35 (1.38)
Woofer Voice Coil Ø mm (in.)36 (1.4)
Tweeter Voice Coil Ø mm (in.)28 (1.1)
Sensitivity dB SPL92
Frequency Response Hz40 ÷ 25k
Crossover Cut off2.5 kHz (Mid/Hi-Cont. = ON) 3.5 kHz (Mid/Hi-Cont. = OFF)
Crossover Type2 Way Passive Crossover
Weight of one component - Woofer1.29 (2.84)
Weight of one component - Tweeter kg (lb)0,1 (0.22)
Weight of one component - Crossover kg (lb)0,57 (1.26)

Electro-acoustic Specs

12
D mm132
Re Ohm3,3
Fs Hz65
Le mH0,24
Vas I8,3
Mms g17,5
Cms mm/N0,3
BL T*m7
Qts0,47
Qes0,52
Qms5,3
Spl dB93
