New SV 200 NEO features compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units.
Buyer confidence
88%Highlights
- Compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units
- Cones waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time
- Motor units treated with cataphoresis and insulated lead-wires to avoid oxidation
- Terminals and mounting holes compatible for installation on Harley-Davidson motorbikes
Key specs
Full specs- Component
- SPL Midrange
- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 200
- Power Handling - Peak W
- 500
- Impedance Ohm
- 4
- Voice Coil Ø
- 38,6 (1.5)
- Frequency Response Hz
- 100 ÷ 8k
- Magnet size D x d x h mm (in.)
- 80 x 50 x 6 (3.15 x 1.97 x 0.24)
Key specs
Full specs- Component
- SPL Midrange
- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 200
- Power Handling - Peak W
- 500
Highlights
Overview- Compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units
- Cones waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time
- Motor units treated with cataphoresis and insulated lead-wires to avoid oxidation
Overview

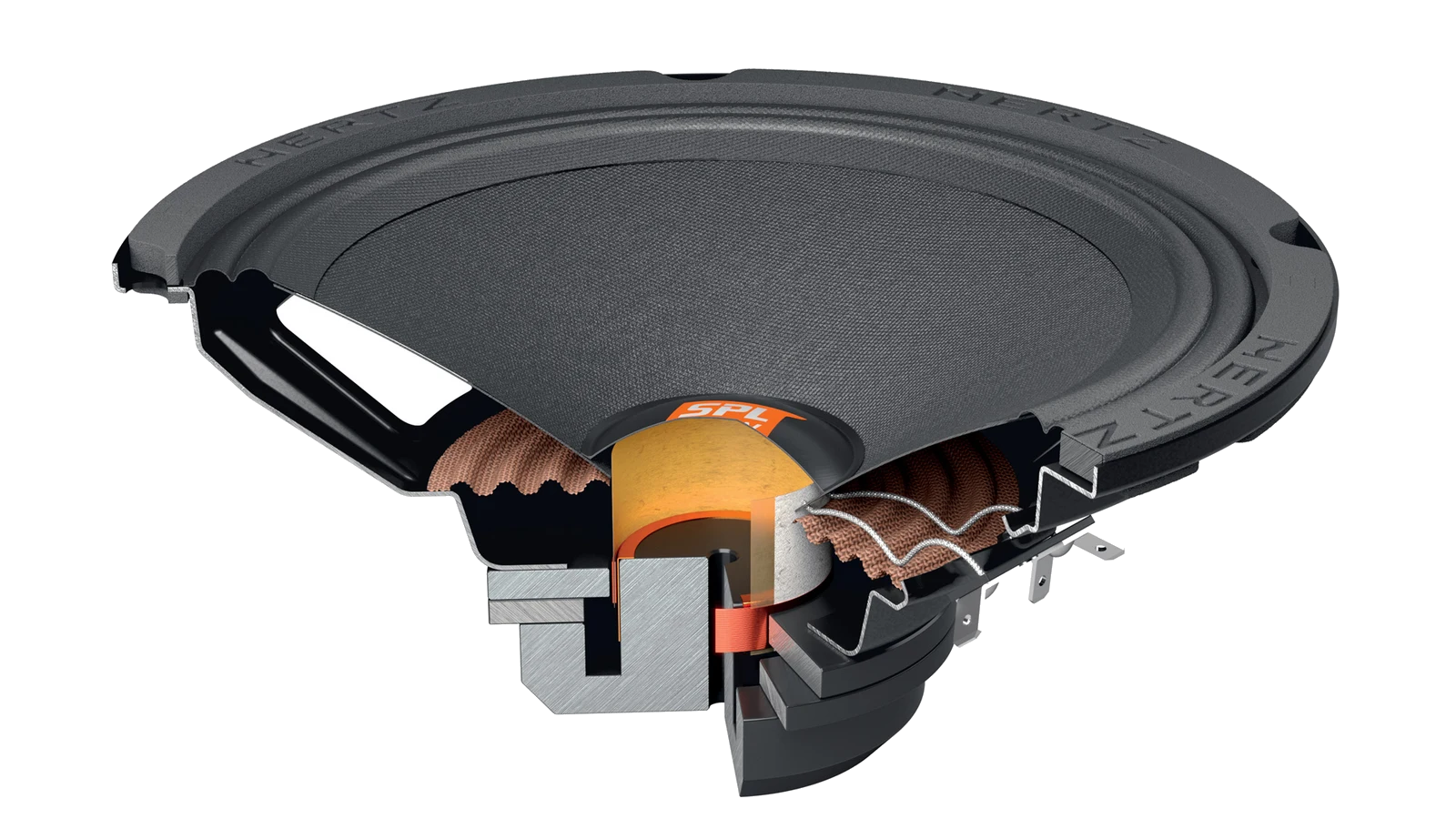

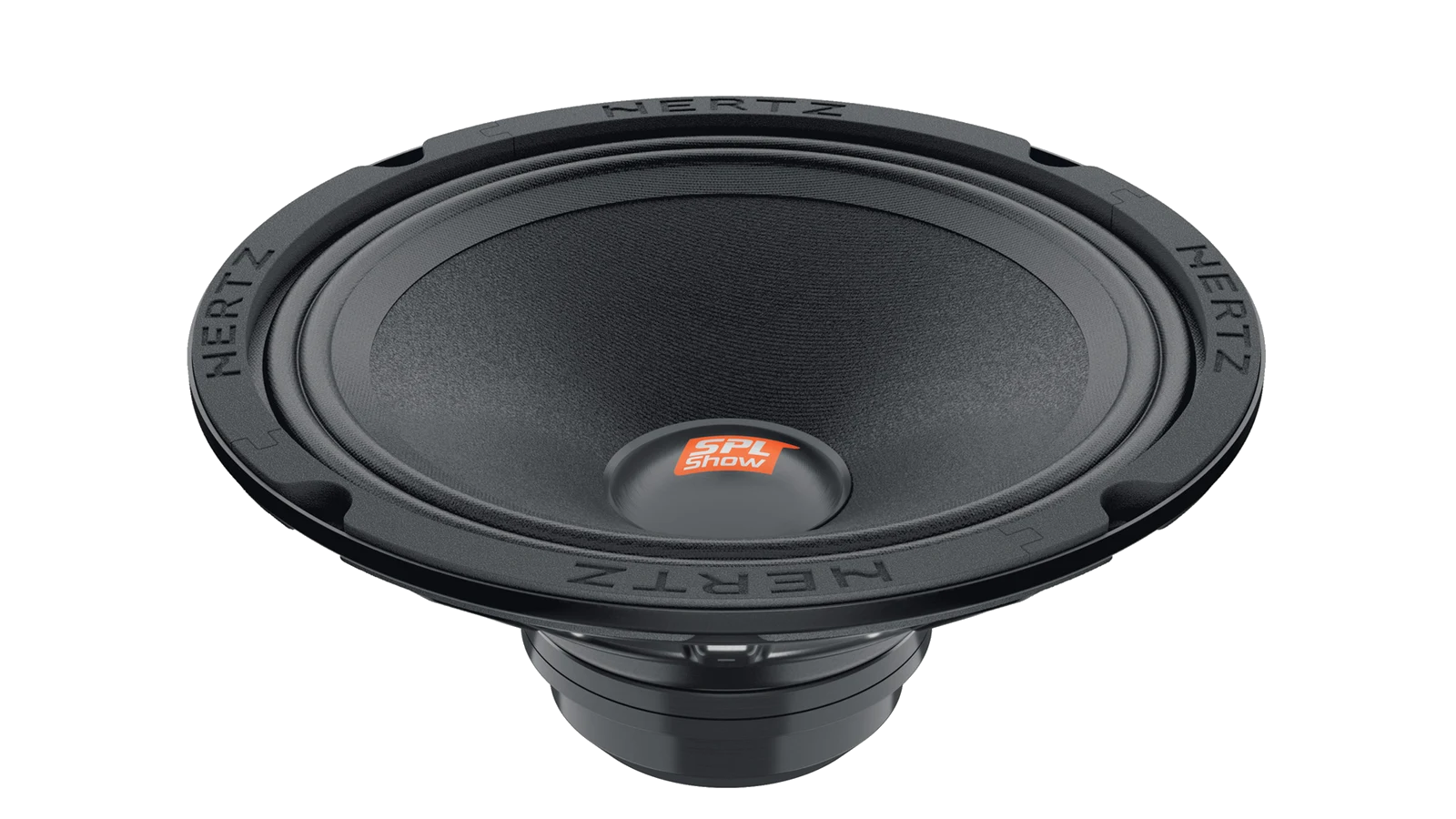

New SV 200 NEO features compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units. To allow a safe outdoor use without discoloration over time, cones has waterproofing and anti-UV treatment and motor units is painted with cataphoresis with insulated lead-wires to avoid oxidation. The terminals and mounting holes are compatible for installation on Harley-Davidson motorbikes!
Highlights
Key features
- Compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units
- Cones waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time
- Motor units treated with cataphoresis and insulated lead-wires to avoid oxidation
- Terminals and mounting holes compatible for installation on Harley-Davidson motorbikes
- NATURE PROOF
Technologies
NATURE PROOF
Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an
Specs
Technical Specs
11
| Component | SPL Midrange |
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 200 |
| Power Handling - Peak W | 500 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 38,6 (1.5) |
| Frequency Response Hz | 100 ÷ 8k |
| Magnet size D x d x h mm (in.) | 80 x 50 x 6 (3.15 x 1.97 x 0.24) |
| Weight of one speaker kg (lb.) | 1,2 (2.65) |
| Magnet | Neodymium |
| Cone | Water repellent pressed paper |
Electro-acoustic Specs
12
| D mm | 168 |
| Re Ohm | 3,2 |
| Fs Hz | 103 |
| Le mH | 0,06 |
| Vas I | 8,1 |
| Mms g | 19,9 |
| Cms mm/N | 0,12 |
| BL T*m | 8,8 |
| Qts | 0,52 |
| Qes | 0,55 |
| Qms | 7,4 |
| Spl dB | 100 |
Physical Specs
4
| A | 208 mm | 8.19 in. |
| B | 182,7 mm | 7.19 in. |
| C | 96,2 mm | 3.79 in. |
| D | 83,8 mm | 3.3 in. |
Frequency response
Visual spec reference.
