Audison

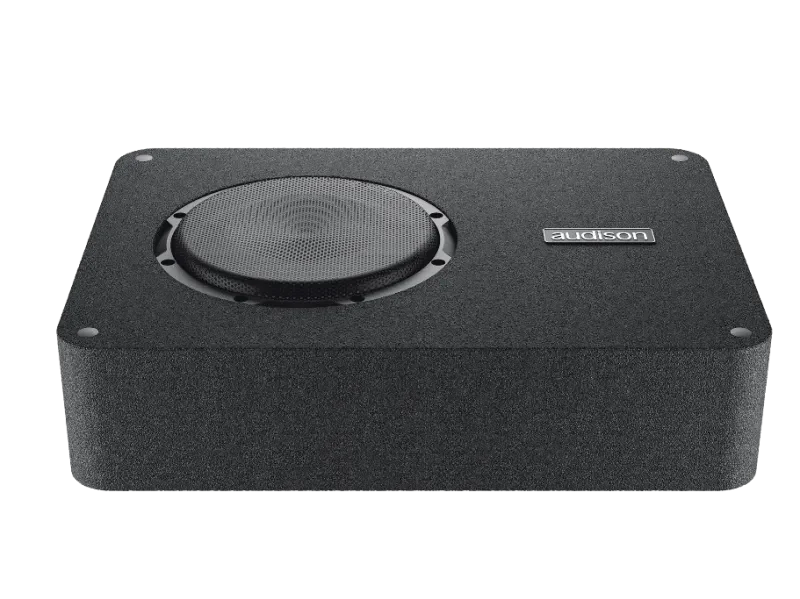

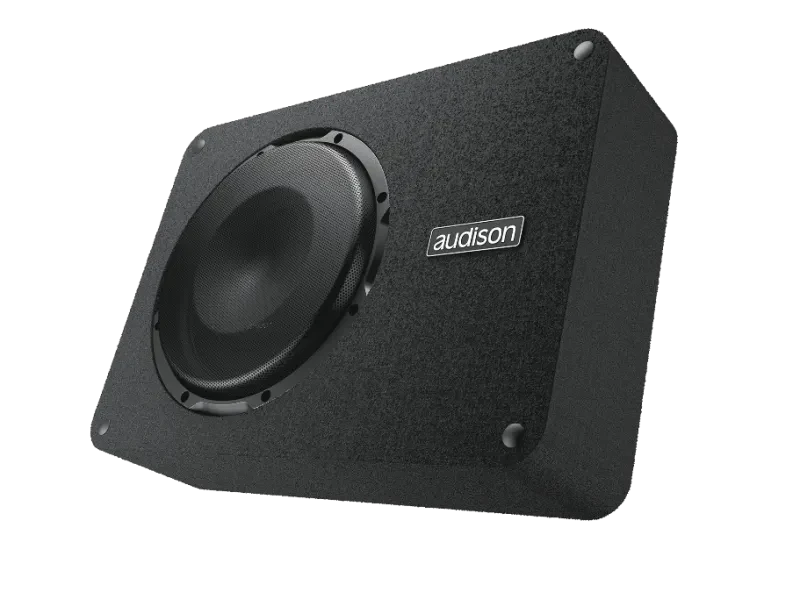

APBX8RAPBX8R 200 mm Subwoofer
Ultra-low profile (5.16 in. / 131 mm) box with slot-ported design perfectly tuned to fully exploit the APS 8 R driver.
Highlights
- Ultra-low profile (5.16 in. / 131 mm) box with slot-ported design perfectly tuned to fully exploit the APS 8 R driver.
- 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
- Levelling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
- SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
Key specs
Full specs- Nominal diameter
- 200 mm
- Impedance
- 4 Ohm
- Power Handling - Peak
- 500 W
- Power Handling - Continuous
- 250 W
- Magnet Material
- HIGH DENSITY FLUX FERRITE
- Cone Material
- COTTON-FIBRE PRESSES PAPER CONE
- Dimension A
- 470 mm
- Dimension B
- 334 mm
Key specs
Full specs- Nominal diameter
- 200 mm
- Impedance
- 4 Ohm
- Power Handling - Peak
- 500 W
- Power Handling - Continuous
- 250 W
Highlights
Overview- Ultra-low profile (5.16 in. / 131 mm) box with slot-ported design perfectly tuned to fully exploit the APS 8 R driver.
- 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
- Levelling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
Overview
- Ultra-low profile (5.16 in. / 131 mm) box with slot-ported design perfectly tuned to fully exploit the APS 8 R driver.
- 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
- Levelling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
- SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
- Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (9 mm, one-way).
- Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
- Water-repellent pressed paper 8 in. cone, featuring a profile developed with FEM and optimized with the Klippel Scan Vibrometer.
- Specifically developed to be combined with AF bit and AF D amplifiers
- Sturdy metal grid included for a total protection of the subwoofer driver.

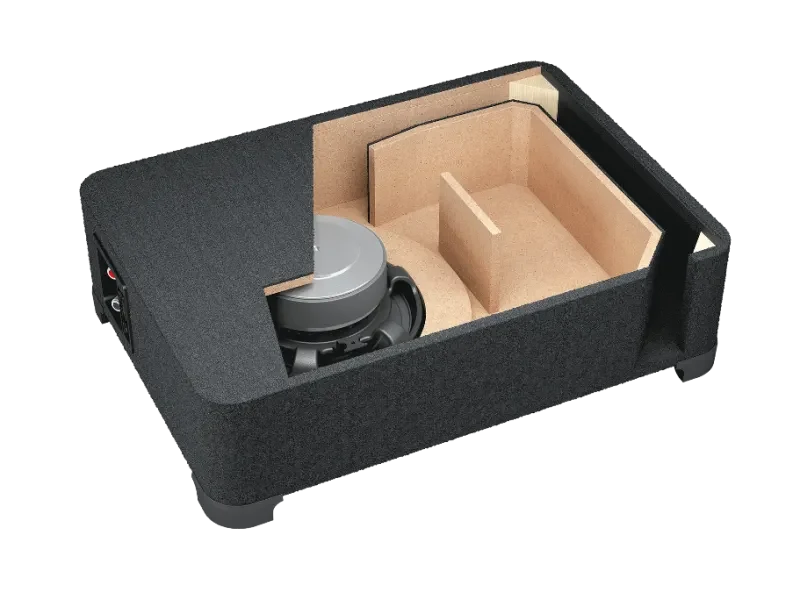

- The APBX 8 R loaded enclosure was developed with reflex loading, with tuning designed to concentrate SPL in the lowest frequency range. The aim was to exploit the natural boost in output found in most cars below 60 Hz known as cabin gain. The 8-inch single 4 ohm voice-coil subwoofer has a powerful motor that maximizes efficiency. The low-resonant frequency of the subwoofer, matched to the reflex enclosure keeps excursion low within the entire audio spectrum, allowing also the use with a pair of AF C4.10 bit/AF C4D/AF M4D bridged channels, capable of delivering 260 W rms.
Highlights
Key features
- Ultra-low profile (5.16 in. / 131 mm) box with slot-ported design perfectly tuned to fully exploit the APS 8 R driver.
- 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
- Levelling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
- SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
- Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (9 mm, one-way).
- Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
- Water-repellent pressed paper 8 in. cone, featuring a profile developed with FEM and optimized with the Klippel Scan Vibrometer.
- Specifically developed to be combined with AF bit and AF D amplifiers
- Sturdy metal grid included for a total protection of the subwoofer driver.
Specs
Technical Specs
6
| Nominal diameter | 200 mm |
| Impedance | 4 Ohm |
| Power Handling - Peak | 500 W |
| Power Handling - Continuous | 250 W |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Cone Material | COTTON-FIBRE PRESSES PAPER CONE |
Dimensions
5
| Dimension A | 470 mm |
| Dimension B | 334 mm |
| Dimension C | 109 mm |
| Dimension D | 131 mm |
| Dimension C1 | 131 mm |
