Audison

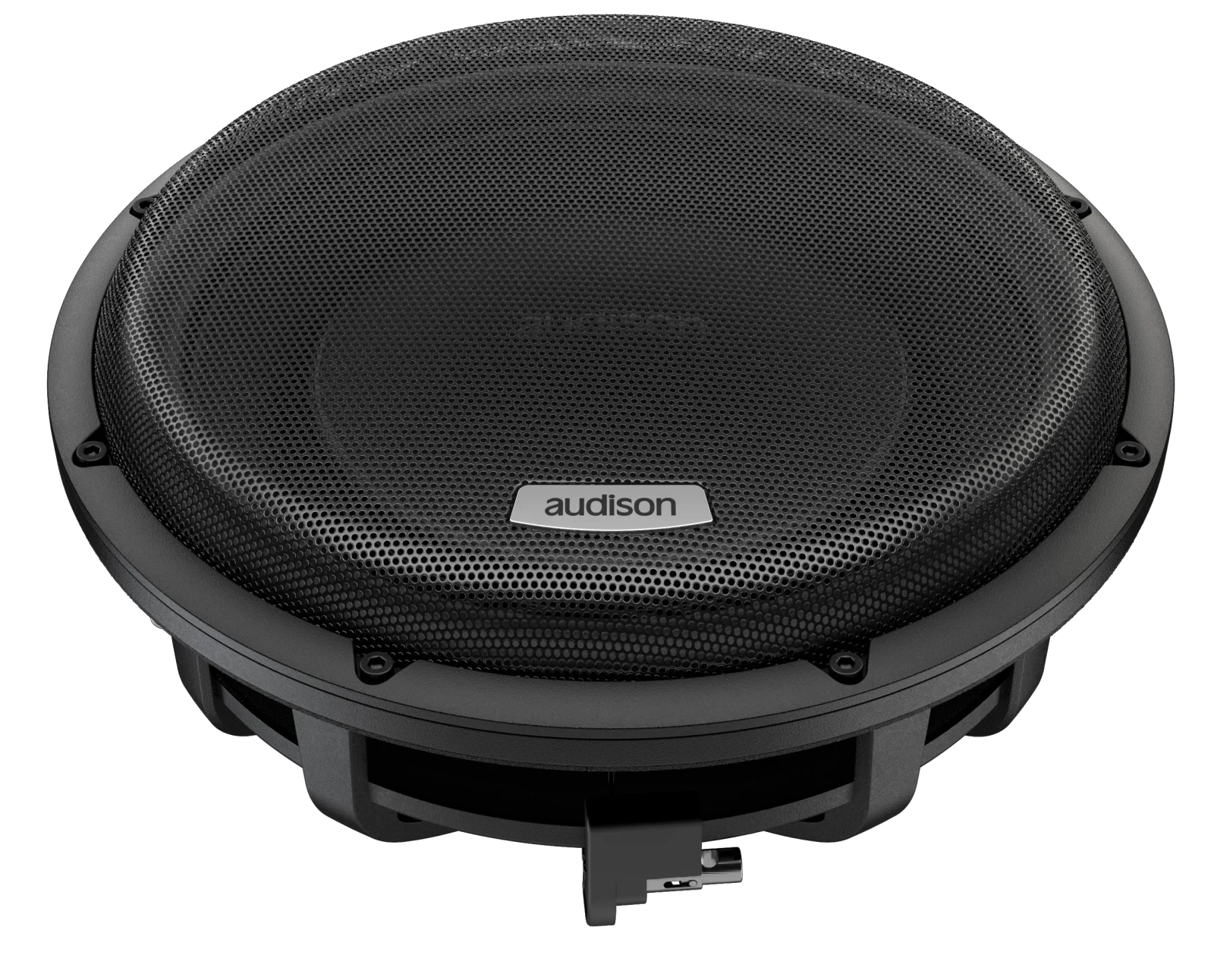

AV12D4IIAV12D4II Speaker Grille
The AV 12 D4 II brings the unmistakable VOCE II sound signature to the deepest frequencies, combining powerful output with absolute control and musicality.
Key specs
Full specs- Nominal diameter
- 300 mm (12 in)
- Impedance
- 4+4 Ohm
- Power Handling - Peak
- 1100 W
- Power Handling - Continuous
- 550 W
- Sensitivity
- 84.5 dB
- Frequency Response
- 25 - 400 Hz
- Voice Coil Ø
- 38.6 mm (1.5 in)
- Chassis Material
- ALUMINIUM
Key specs
Full specs- Nominal diameter
- 300 mm (12 in)
- Impedance
- 4+4 Ohm
- Power Handling - Peak
- 1100 W
- Power Handling - Continuous
- 550 W
Overview

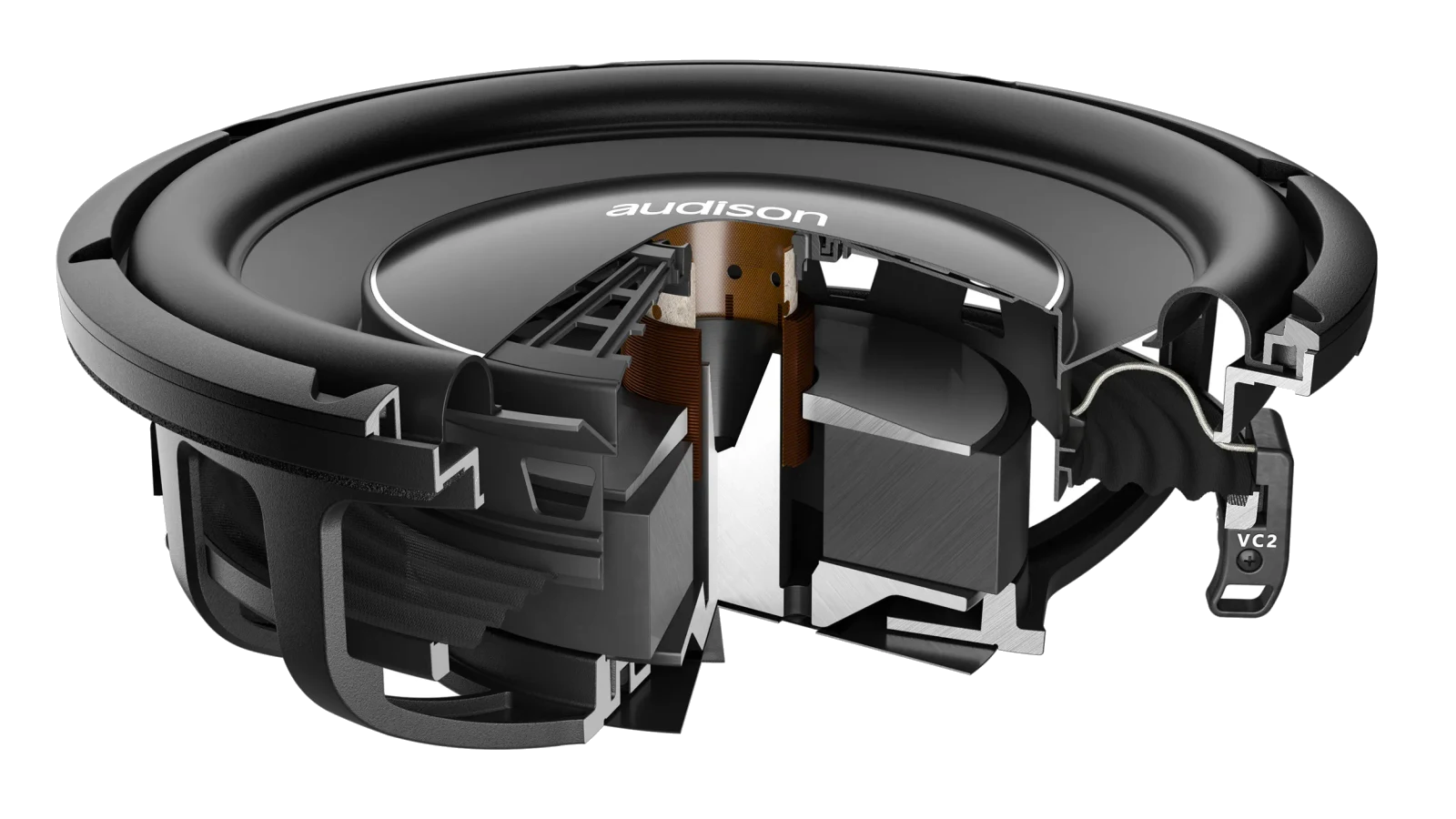

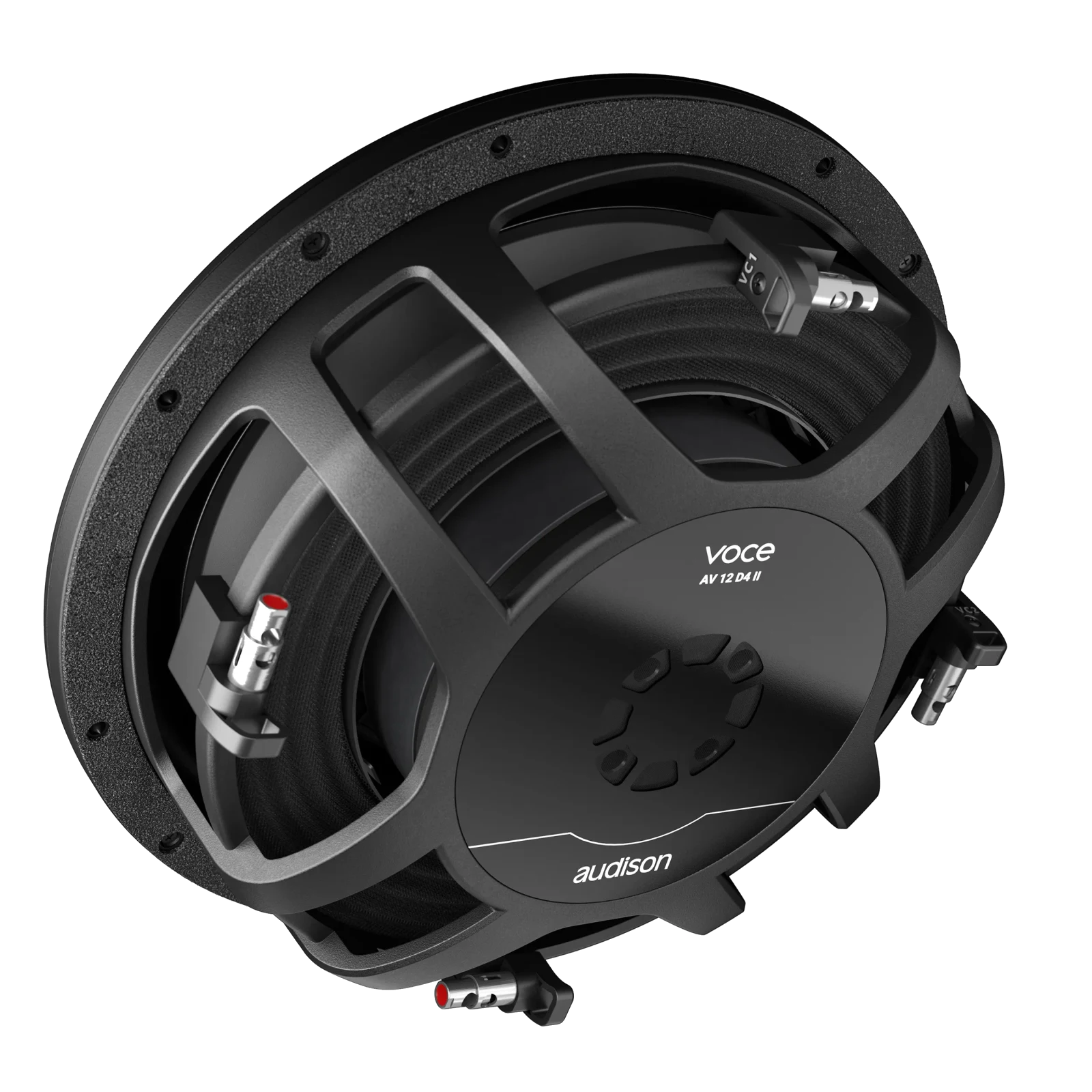

- The AV 12 D4 II brings the unmistakable VOCE II sound signature to the deepest frequencies, combining powerful output with absolute control and musicality. Designed for sealed enclosures, it delivers precise, distortion-free bass in compact spaces—making it an ideal choice for high-performance in-car installations. At its core is a dual 4-ohm voice coil architecture, offering exceptional flexibility in wiring configurations. The 1.5-inch Copper-Clad Aluminum Wire voice coil, coupled with an FEM-optimized magnetic assembly, ensures efficient energy transfer and superior thermal management during extended listening sessions. The subwoofer features an extended-profile dust cap and Radial Reinforcement Framework (R.R.F.) to enhance cone stability and minimize deformation during high excursion. The rugged die-cast aluminum basket integrates smart cable routing hooks, while the spring-loaded terminals allow secure connections with high-current 8 AWG cables. Whether used in a single-sub or multi-driver setup, the AV 12 D4 II guarantees low-end performance that is tight, controlled and deeply engaging—faithful to the Audison philosophy of blending acoustic excellence with refined Italian design.
Specs
Technical Specs
20
| Nominal diameter | 300 mm (12 in) |
| Impedance | 4+4 Ohm |
| Power Handling - Peak | 1100 W |
| Power Handling - Continuous | 550 W |
| Sensitivity | 84.5 dB |
| Frequency Response | 25 - 400 Hz |
| Voice Coil Ø | 38.6 mm (1.5 in) |
| Chassis Material | ALUMINIUM |
| Magnet Material | FERRITE |
| Magnet size D x d x h | 156*60*34 mm (6.14*2.36*1.3 in) |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | POLYPROPYLENE |
| Surround Material | NITRILE RUBBER (NBR) |
| Xmax | 16.8 mm (0.66 in) |
| Xmech | 20 mm (0.79 in) |
| Voice Coil Winding Height | 37 mm (1.46 in) |
| Gap Height | 7 mm (0.28 in) |
| Recommended Enclosure | 21 l (0.742 ft) |
| Recommended Tuning | 45 Hz |
Electric-acoustic Specs
12
| D | 539 cm² (83.545 in²) |
| Re | 1.8 Ohm |
| Fs | 23 Hz |
| Le | 1.8 mH |
| Vas | 63 l (2.225 ft) |
| Mms | 298 g (10.512 oz) |
| Cms | 0.15 mm/N |
| BL | 12.2 T•m |
| Qts | 0.5 |
| Qes | 0.5 |
| Qms | 6.2 |
| Reference Efficiency | 84.5 |
General
1
| Weight | 6.6 kg |
Dimensions
10
| Dimension A | 318.3 mm (12.53 in) |
| Dimension B | 282.9 mm (11.14 in) |
| Dimension C | 102.5 mm (4.04 in) |
| Dimension D | 88 mm (3.46 in) |
| Dimension E | 292.3 mm |
| Dimension F | 11.51 |
| Dimension C1 | 109 mm |
| Dimension C2 | 136.7 mm |
| Centre to centre distance | 302 mm |
| Hole diameter | 5.5 mm |
