Hertz
Hertz Cento CS 200 S4Cento Subwoofer
Hertz CS 200 S4 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R&D team, always at the forefront in the search for innovative solutions, with unfailing effort succeeded in obtaining powerful bass...
Highlights
- Electroacoustic design optimized for enclosures starting from 9,6 liters.
- Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
- Polypropylene cone and dust cap geometry engineered through FEM simulations for low-frequency distortion reduction.
- 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
Key specs
Full specs- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 150
- Power Handling - Peak W
- 300
- Impedance Ohm
- 4
- Voice Coil Type
- single
- No Filter Component
- SUBWOOFER
- Voice Coil Ø
- 35 (1.38)
- Magnet size D x d x h mm (in.)
- 120 x 50 x 28 (4.72 x 1.97 x 1.1)
Key specs
Full specs- Size mm (in.)
- 200 (8)
- Power Handling - Continuous W
- 150
- Power Handling - Peak W
- 300
- Impedance Ohm
- 4
Highlights
Overview- Electroacoustic design optimized for enclosures starting from 9,6 liters.
- Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
- Polypropylene cone and dust cap geometry engineered through FEM simulations for low-frequency distortion reduction.
Overview

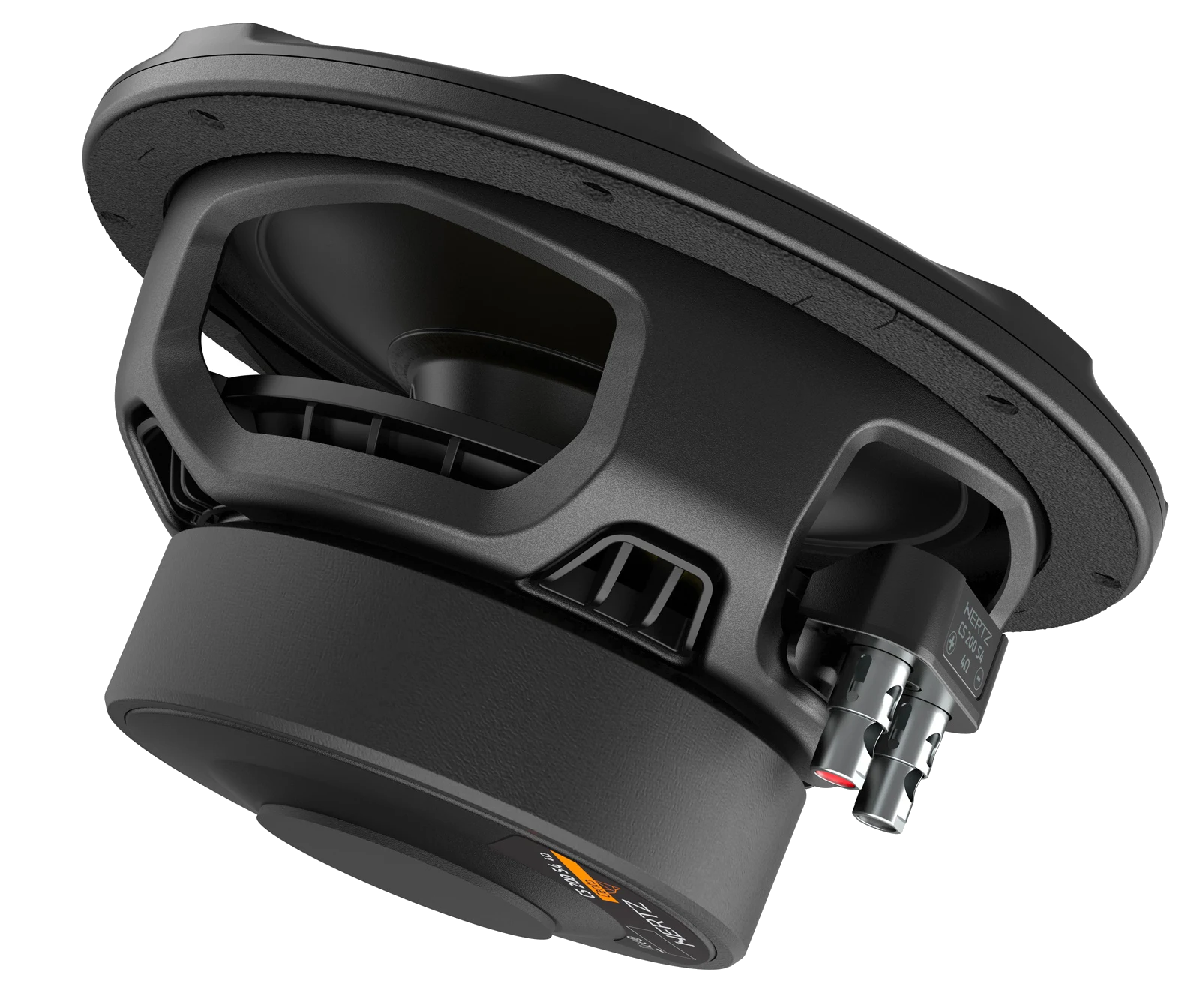

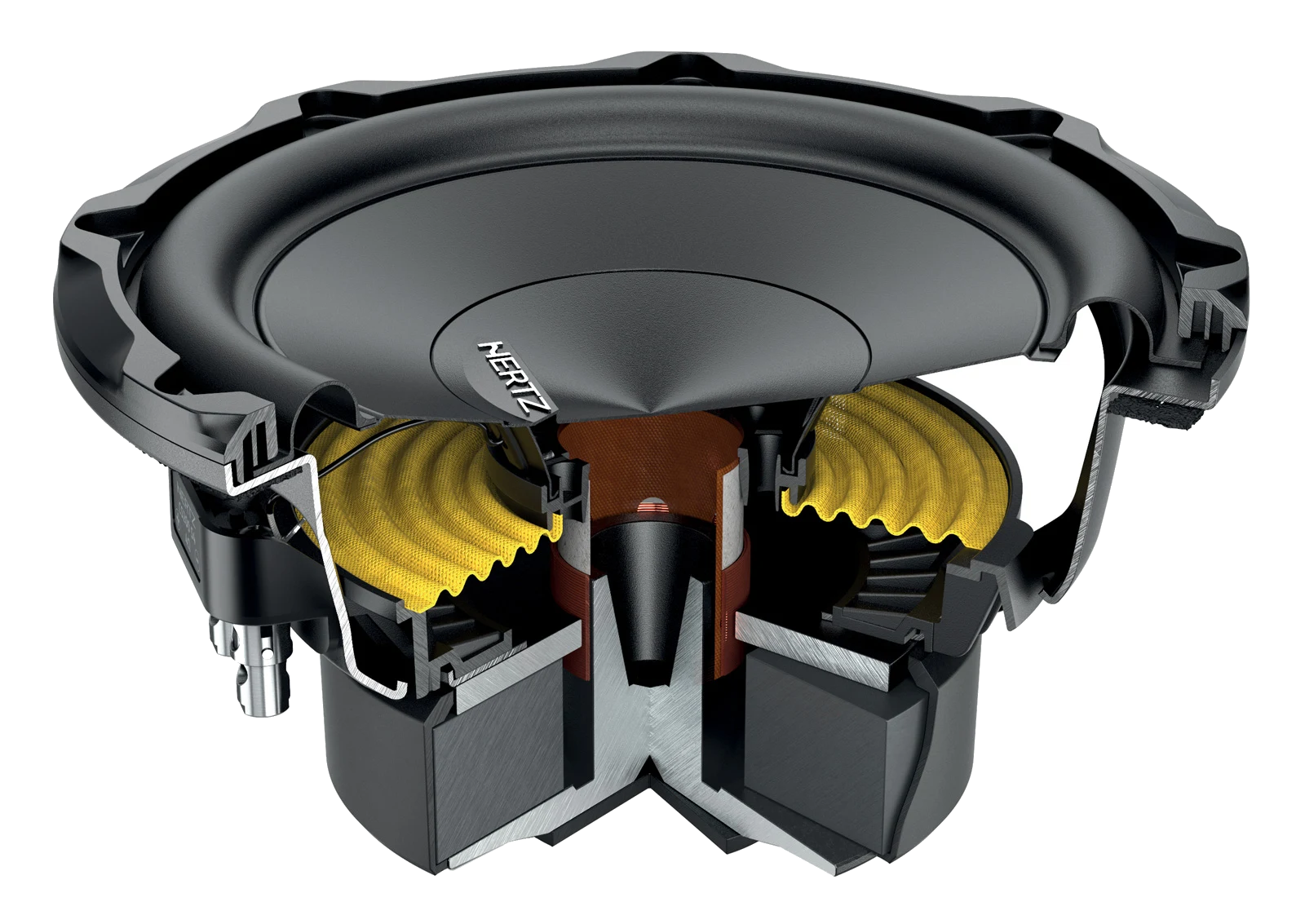

Hertz CS 200 S4 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience! The R&D team, always at the forefront in the search for innovative solutions, with unfailing effort succeeded in obtaining powerful bass frequencies from compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 9,6 l (0.33 CF). The reduced depth, the compact magnetic group, and the lack of rear decompression hole allow the box to be shaped around the subwoofer, obtaining a depth almost the same as the driver itself, for maximum freedom of installation on any type of car. The special cooling system for the six-layer voice coil keeps the operating temperature within the optimal range, even in case of extended listening sessions at high sound pressure. An innovative system of dynamic fluid optimization and turbulence reduction was achieved, thanks to the spider support acting as an air duct towards the venting holes on the basket. This drastically reduces the acoustic distortions generated by air compression at high excursions. The cone geometry, the suspension, and the spider have been optimized using FEM (Finite Element Method) simulations to obtain the best performance configuration, which guarantees control and low distortions even at high mechanical excursions of the mobile group. The terminal block uses solid push connectors that accept cables up to 8 AWG to offer low wiring resistance and maximum ease of connection - even in installations with multiple subwoofers. The subwoofer is also provided with an elegant high-resistance ABS plastic gasket that allows the grille to be fixed to finish the installation. The optional grille in robust black metal mesh offers total protection for the subwoofer, and an appealing look - thanks to the Hertz diamond aluminum logo. With the Cento subwoofers, even the younger enthusiasts will enjoy the exciting reproduction of low frequencies in the car!
Highlights
Key features
- Electroacoustic design optimized for enclosures starting from 9,6 liters.
- Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
- Polypropylene cone and dust cap geometry engineered through FEM simulations for low-frequency distortion reduction.
- 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
- Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
- Ideal for use in custom boxes that can be shaped around the subwoofer thanks to its compact size and lack of a decompression hole.
- Terminal block featuring solid push contacts that accept cables up to 8 AWG to offer low wiring resistance and maximum ease of connection even in installations with multiple subwoofers.

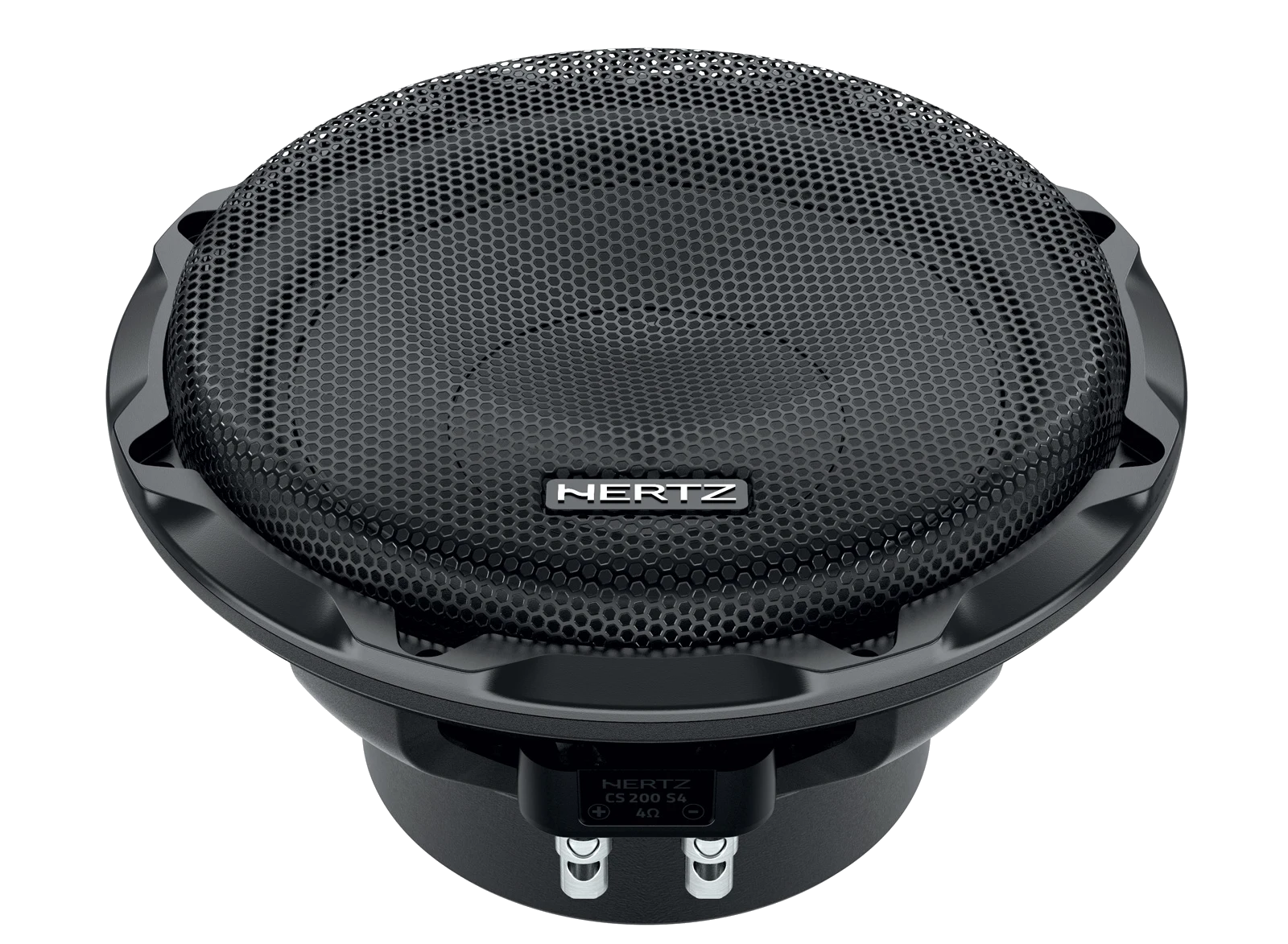

- Rubber protection of the magnetic assembly and high-strength ABS plastic gasket allowing the application of the optional grille for an elegant finish.
Specs
Technical Specs
12
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 150 |
| Power Handling - Peak W | 300 |
| Impedance Ohm | 4 |
| Voice Coil Type | single |
| No Filter Component | SUBWOOFER |
| Voice Coil Ø | 35 (1.38) |
| Magnet size D x d x h mm (in.) | 120 x 50 x 28 (4.72 x 1.97 x 1.1) |
| Weight of one component kg (lb.) | 2,87 (1.30) |
| Magnet | High density flux ferrite |
| Cone | Polyproyilene |
| Xmech mm (in.) | 11,5 (0.45) |
Electro-acoustic Specs
13
| D mm | 172 |
| Xmax mm | 9 |
| Re Ohm | 3,3 |
| Fs Hz | 40 |
| Le mH | 1,7 |
| Vas I | 13,7 |
| Mms g | 76,8 |
| Cms mm/N | 0,21 |
| BL T*m | 10,6 |
| Qts | 0,52 |
| Qes | 0,58 |
| Qms | 5 |
| Spl dB | 84 |
Physical Specs
6
| A | 213 mm | 8.39 in. |
| B | 177 mm | 6.97 in. |
| C | 114 mm | 4.49 in. |
| D | 101 mm | 3.98 in. |
| E | 201 mm | 7.92 in. |
| F | 24 mm | 0.95 in. |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Enclosures / Box Advisor
SEALED BOX
- Vb l(cu.ft.)
- 9,6 (0.34)
- Fb Hz
- 60
- Qtc
- 0,81
- W mm(in.)
- 380 (14.96)
- H mm(in.)
- 260 (10.24)
- D mm(in.)
- 180 (7.09)
- Mounting Hole - M mm (in.)
- 180 (7.09)
- Wood Thickness mm (in.)
- 19 (0.75)
- A mm(in.)
- 380 x 260 (14.96 x 10.24) Qty 2
- B mm(in.)
- 380 x 142 (15.16 x 5.59) Qty 2
- C mm(in.)
- 222 x 142 (8.74 x 5.59) Qty 2
Box Tech Data - Sealed Box
| Box Tech Data - Sealed Box | |
|---|---|
| Vb l(cu.ft.) | 9,6 (0.34) |
| Fb Hz | 60 |
| Qtc | 0,81 |
| W mm(in.) | 380 (14.96) |
| H mm(in.) | 260 (10.24) |
| D mm(in.) | 180 (7.09) |
| Mounting Hole - M mm (in.) | 180 (7.09) |
| Wood Thickness mm (in.) | 19 (0.75) |
Panels Cut List - Sealed Box
| Panels Cut List - Sealed Box | ||
|---|---|---|
| A mm(in.) | 380 x 260 (14.96 x 10.24) | Qty 2 |
| B mm(in.) | 380 x 142 (15.16 x 5.59) | Qty 2 |
| C mm(in.) | 222 x 142 (8.74 x 5.59) | Qty 2 |
REFLEX BOX
- Vb l(cu.ft.)
- 14,5 (0.51)
- Fb Hz
- 40
- Qtc
- -
- W mm(in.)
- 380 (14.96)
- H mm(in.)
- 260 (10.24)
- D mm(in.)
- 250 (9.84)
- Mounting Hole - M mm (in.)
- 180 7.09
- Wood Thickness mm (in.)
- 19 (0.75)
- Dp-Tube inner diameter mm (in.)
- 63 (2.48)
- Lp-Tube lenght mm (in.)
- 235 (9.25)
- Damping Material
- 1 sheet on box rear panel
- A mm(in.)
- 380 x 260 (14.96 x 10.24) Qty 2
Box Tech Data - Reflex Box
| Box Tech Data - Reflex Box | |
|---|---|
| Vb l(cu.ft.) | 14,5 (0.51) |
| Fb Hz | 40 |
| Qtc | - |
| W mm(in.) | 380 (14.96) |
| H mm(in.) | 260 (10.24) |
| D mm(in.) | 250 (9.84) |
| Mounting Hole - M mm (in.) | 180 7.09 |
| Wood Thickness mm (in.) | 19 (0.75) |
| Dp-Tube inner diameter mm (in.) | 63 (2.48) |
| Lp-Tube lenght mm (in.) | 235 (9.25) |
| Damping Material | 1 sheet on box rear panel |
Panels Cut List - Reflex Box
| Panels Cut List - Reflex Box | ||
|---|---|---|
| A mm(in.) | 380 x 260 (14.96 x 10.24) | Qty 2 |
| B mm(in.) | 380 x 212 14.96 x 8.35 | Qty 2 |
| C mm(in.) | 222 x 212 (8.74 x 8.35) | Qty 2 |
