Audison

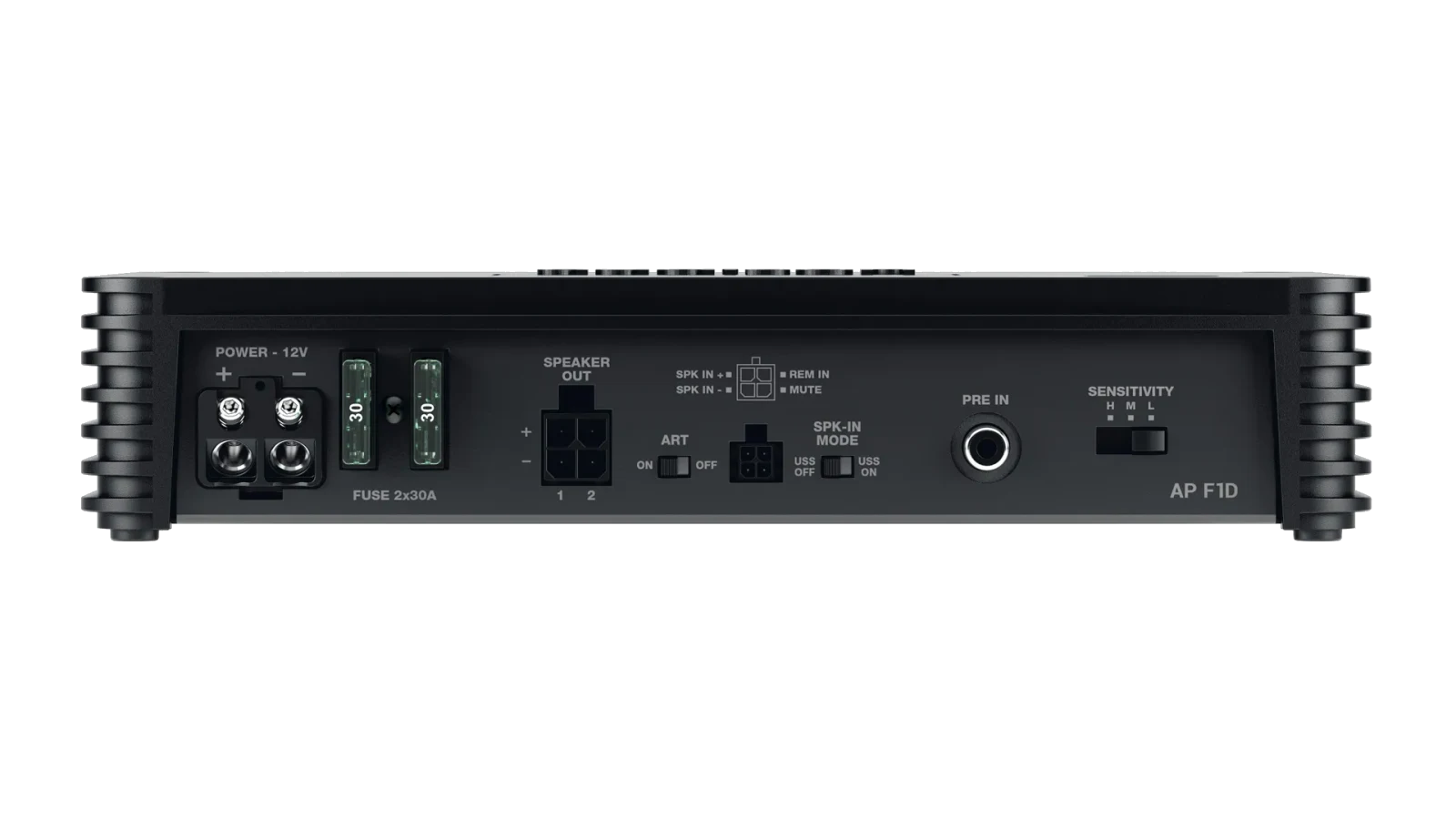

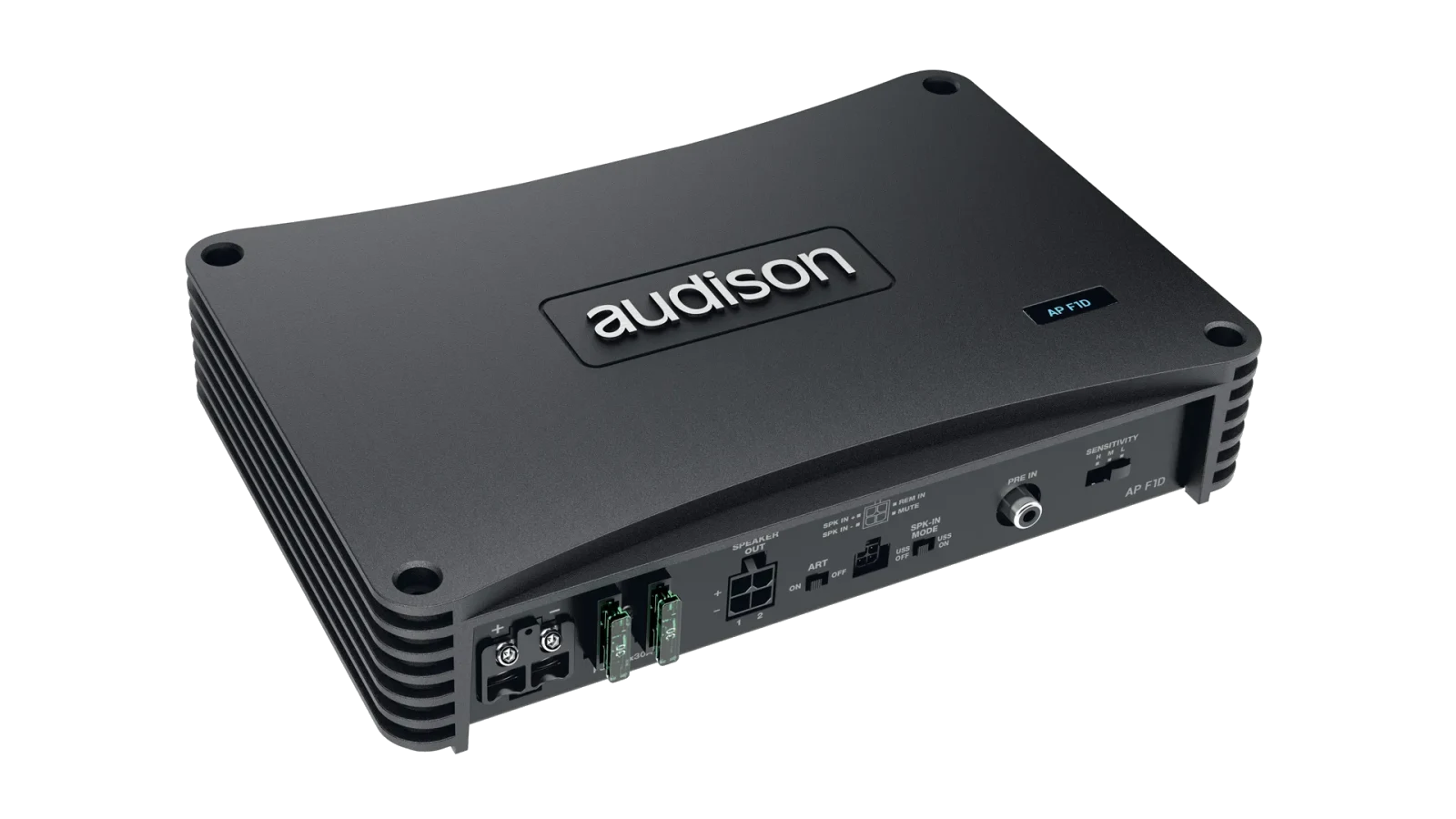

AP F1DAP F1D Amplifier
1 x 1000 W @ 1 ohm stable The ideal extension of the AP F8.9 bit Designed to drive the most demanding subwoofer The Audison AP F1D is a monophonic Class D amplifier designed to drive the most demanding subwoofers, making it the perfect extension to the AP F8.9 bit model.
Highlights
- 1 x 1000 W @ 1 ohm stable
- The ideal extension of the AP F8.9 bit
- Designed to drive the most demanding subwoofer
Key specs
Full specs- Channels
- 1
- Class
- D-Class
- Hi Level Input
- Yes
- Low Level Input
- Yes
- Digital Input
- No
- Power supply voltage / fuse
- 11 ÷ 15 VDC / 2 x 30A
- Operating power supply voltage
- 6.5 ÷ 17 VDC
- Idling current
- 1.3 A
Key specs
Full specs- Channels
- 1
- Class
- D-Class
- Hi Level Input
- Yes
- Low Level Input
- Yes
Highlights
Overview- 1 x 1000 W @ 1 ohm stable
- The ideal extension of the AP F8.9 bit
- Designed to drive the most demanding subwoofer
Overview
- 1 x 1000 W @ 1 ohm stable
- The ideal extension of the AP F8.9 bit
- Designed to drive the most demanding subwoofer
- The Audison AP F1D is a monophonic Class D amplifier designed to drive the most demanding subwoofers, making it the perfect extension to the AP F8.9 bit model. This amplifier stands out for its ability to deliver up to 1000 W at 1 ohm, ensuring stable and powerful performance even with demanding loads. Thanks to its compact size, it is ideal for installations requiring limited space without compromising sound quality. From a technical perspective, the AP F1D offers a range of advanced specifications that make it an essential component for car audio enthusiasts. Its power supply ranges from 11 to 15 VDC, supported by two 30A fuses, while the idle current draw is only 1.3 A. The amplifier features both high and low-level inputs, with adjustable input sensitivity to adapt to various system configurations. The amplifier’s frequency response extends from 10 Hz to 500 Hz, ensuring accurate reproduction of low frequencies. The signal-to-noise ratio is excellent, at 110 dBA, while the damping factor at 100 Hz and 4 ohms is 140, providing precise subwoofer control. Additionally, the AP F1D has a total harmonic distortion (THD) of just 0.1% at 100 Hz and 4 ohms, ensuring clean and distortion-free sound quality. One of the standout features of this model is the USS (Universal Speaker Simulator), which allows Prima amplifiers to work with head units equipped with speaker load detection circuits. This amplifier also includes a selectable ART (Automatic Remote Turn-on/off) system, simplifying automatic on/off functionality based on the audio signal. The AP F1D weighs 1.92 kg and operates effectively in ambient temperatures ranging from 0°C to 55°C, making it versatile for different installation conditions. Despite its power, the amplifier maintains a compact and discreet design, ideal for seamlessly integrating into various types of vehicles without taking up too much space. In summary, the Audison AP F1D is a powerful and compact amplifier, designed to deliver exceptional car audio performance, with a range of advanced technical features that make it the ideal choice for those seeking high-quality sound and efficient installation.
Highlights
Key features
- 1 x 1000 W @ 1 ohm stable
- The ideal extension of the AP F8.9 bit
- Designed to drive the most demanding subwoofer
Specs
Amplifier Tech Data
12
| Channels | 1 |
| Class | D-Class |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Power supply voltage / fuse | 11 ÷ 15 VDC / 2 x 30A |
| Operating power supply voltage | 6.5 ÷ 17 VDC |
| Idling current | 1.3 A |
| Idling current when off | 0.05 mA |
| Consumption @ 14.4 VDC, 1Ω, Max Musical Power | 50 A |
| Remote IN | 6.5 ÷ 15 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 2 ÷ 7 VDC |
Amplifier Stage
10
| Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power | 0.1% |
| Bandwidth A | (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz |
| S/N ratio A | (A weighted @ 1 V): 110 dBA |
| Damping factor A | (100 Hz, 4Ω, 2 VRMS): 140 |
| Input sensitivity Pre-In | Selectable: 0.6 - 2.0 - 6.0 VRMS |
| Input sensitivity Speaker-In | Selectable: 2.0 - 6.5 - 20 VRMS |
| Total Power RMS | 1000 W |
| Minimum load impedance | 1Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | 1Ch @ 4Ω 500 W x 1 1Ch @ 2Ω 800 W x 1 1Ch @ 1Ω 1000 W x 1 |
| Adjustable Crossover | No |
CEA Specifications
2
| Output power @ 4Ω, 1% THD+N, 14.4 V | 500 W |
| SN ratio (ref. 1W output) | 81,5 dB |
Inputs
3
| Input Type | Pre-In Inputs RCA |
| Filters Outputs | Speaker-In Inputs wired |
| Filter Pass A | Mute (Energy Saving control) wired (active to groung) |
Other
2
| Other Fucntions | Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F) |
| Weight | 1.92 kg |
