1 / 4
Audison

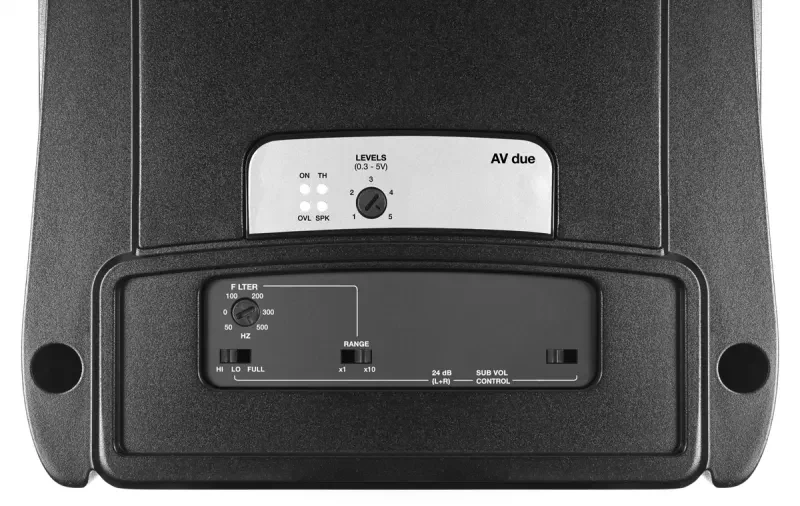

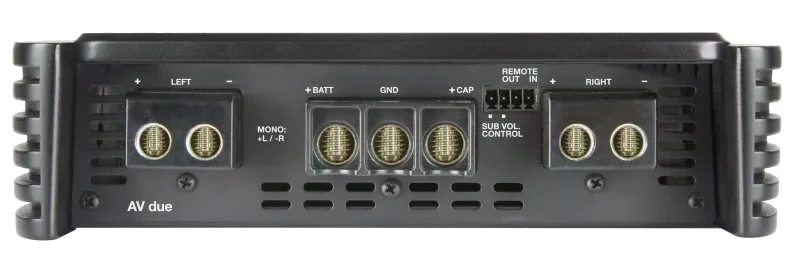

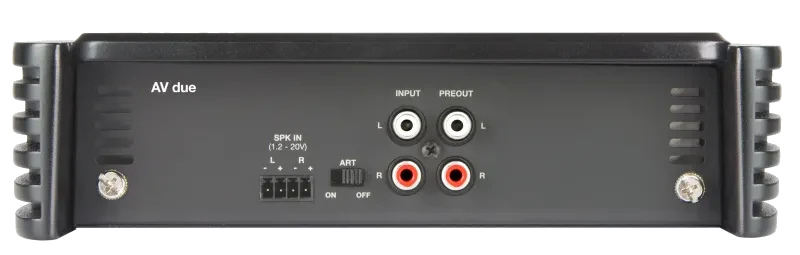

AV DUEAV DUE Amplifier
Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth 2 x 450 W @ 2-ohm audiophile AB Class Built-in 24 dB/oct filters AV due is a powerful stereo amplifier with the power supply section and final stage designed to work also in mono and tri-mode, ensure very high output...
Highlights
- Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth
- 2 x 450 W @ 2-ohm audiophile AB Class
- Built-in 24 dB/oct filters
Key specs
Full specs- Channels
- 2
- Class
- AB-Class
- Hi Level Input
- Yes
- Low Level Input
- Yes
- Digital Input
- Yes
- Power supply voltage / fuse
- 11 ÷ 15 VDC
- Idling current
- 1.7 A
- Idling current when off
- 0.02 mA
Key specs
Full specs- Channels
- 2
- Class
- AB-Class
- Hi Level Input
- Yes
- Low Level Input
- Yes
Highlights
Overview- Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth
- 2 x 450 W @ 2-ohm audiophile AB Class
- Built-in 24 dB/oct filters
Overview
- Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth
- 2 x 450 W @ 2-ohm audiophile AB Class
- Built-in 24 dB/oct filters
- AV due is a powerful stereo amplifier with the power supply section and final stage designed to work also in mono and tri-mode, ensure very high output current, with powers up to 900 W (RMS). AMP (Amplifier Management Processor) constantly checks the operating status system and comm unicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isnâ„¢t available from the source.
Highlights
Key features
- Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth
- 2 x 450 W @ 2-ohm audiophile AB Class
- Built-in 24 dB/oct filters
Specs
Amplifier Tech Data
12
| Channels | 2 |
| Class | AB-Class |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | Yes |
| Power supply voltage / fuse | 11 ÷ 15 VDC |
| Idling current | 1.7 A |
| Idling current when off | 0.02 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 65 A |
| Remote OUT | 12 VDC - 50mA |
| Remote IN | 7 ÷ 15 VDC - 1mA |
| ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | Selectable |
Amplifier Stage
12
| Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power | 0.04 % |
| Bandwidth A | (-3 dB, 2 VRMS, 4 Ω): 4 ÷ 60k Hz |
| S/N ratio A | (A weighted @ 1 V): 100 dBA |
| Damping factor A | (1kHz, 4 Ohms): 120 |
| Input sensitivity Pre-In | 0.3 ÷ 5 V RMS |
| Pre In Impedance | 15k Ω |
| Input sensitivity Speaker-In | 1.4 ÷ 24 V RMS |
| Input impedance Speaker-In | 5k Ω |
| Total Power RMS | 900 W |
| Minimum load impedance | 2Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | • 2 Ch: 260 W x 2 (4Ω) • 2 Ch: 450 W x 2 (2Ω) • 1 Ch: 900 W x 1 (4Ω) |
| Adjustable Crossover | Yes |
CEA Specifications
2
| Output power @ 4Ω, 1% THD+N, 14.4 V | Output power @ 4Ω, 1% THD+N, 14.4 V: 260 W x 2 Ch |
| SN ratio (ref. 1W output) | SN ratio (ref. 1 W output): 80 dBA |
Inputs
5
| Input Type | Pre IN / Speakers IN |
| Filters Outputs | Pre OUT Full Range |
| Filter Pass A | (Full / Hi-Pass / Lo-Pass): 50 ÷ 5k Hz (2 range) @ 12 dB/Oct. |
| Filter Pass B | (Lo-Pass 24 dB mono): 50 ÷ 500 Hz @ 24 dB/Oct. |
| Remote Sub Volume | -50 ÷ 6) dB |
Other
2
| Fuse | 60 A |
| Weight | 7.2 kg |
Dimensions
5
| Dimension A | 470 mm |
| Dimension B | 399 mm |
| Dimension C | 220 mm |
| Dimension D | 198 mm |
| Dimension E | 58 mm |
