Boss Elite

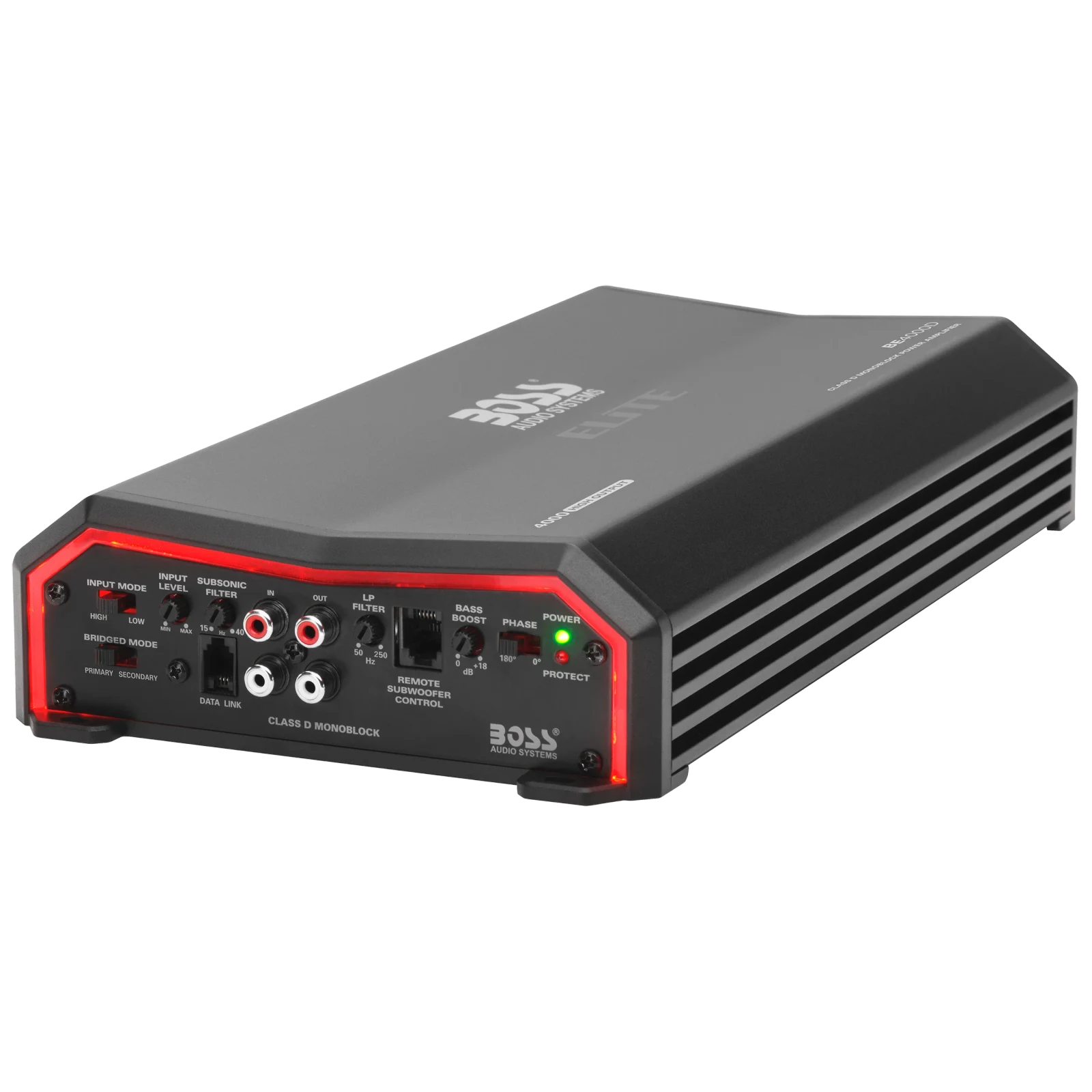

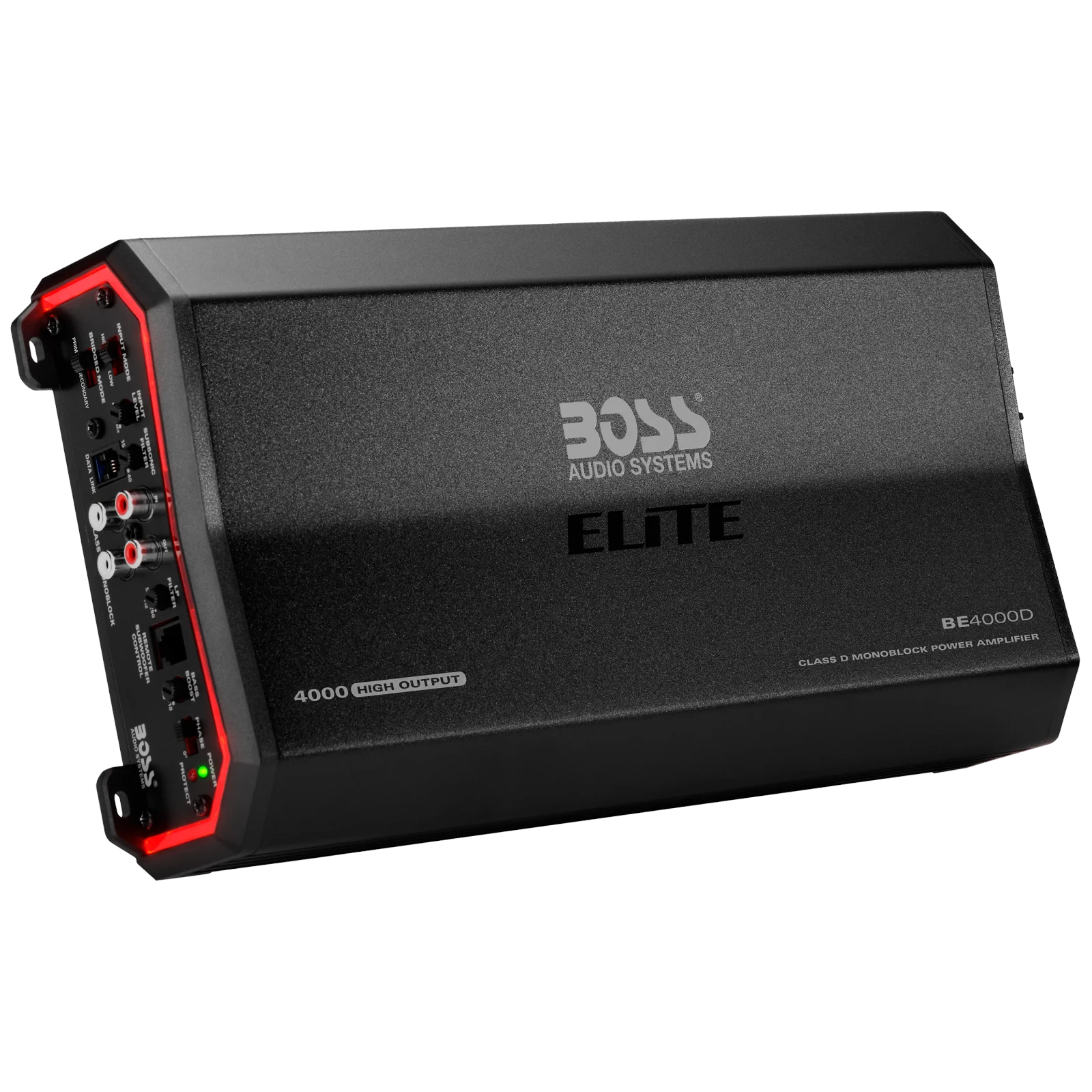

BE4000DMonoblock Class D Amplifier
The Boss Elite BE4000D is organized here as a Monoblock Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include Monoblock, Class D Topology, 1Ω Stable.
Highlights
- Monoblock
- Class D Topology
- 1Ω Stable
- PWM MOSFET Power Supply
Key specs
Full specs- Amp Topology
- Monoblock, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 4000 Watts
- Peak Power @ 1 Ω
- 4000 Watts
- Peak Power @ 2 Ω
- 2000 Watts
- Peak Power @ 4 Ω
- 1000 Watts
- RMS Power @ 1 Ω
- 3000 Watts
- RMS Power @ 2 Ω
- 1500 Watts
Key specs
Full specs- Amp Topology
- Monoblock, Class D
- Power Supply Type
- MOSFET Power Supply Watts
- Total Power Output
- 4000 Watts
- Peak Power @ 1 Ω
- 4000 Watts
Highlights
Overview- Monoblock
- Class D Topology
- 1Ω Stable
Overview
The Boss Elite BE4000D is organized here as a Monoblock Class D Amplifier for car audio power upgrades, with the main product role, controls, and core specs up front. Important details include Monoblock, Class D Topology, 1Ω Stable.
Best for
- Amplifiers - Mono
- car audio power upgrades
- Car audio upgrades
- Powering multi-speaker car audio systems
Key points
- Monoblock
- Class D Topology
- 1Ω Stable
- PWM MOSFET Power Supply
- RCA In/Out
- Low Pass Filter
Fit and use
Check the listed dimensions, connection options, and power ratings against the vehicle and system plan before ordering. The specification table keeps the source measurements and electrical details available for comparison.
What to know
This content is normalized from Boss Elite product data and Automob category/inventory data. Use the specs and manuals on the page for final confirmation before installation.
Highlights
Key features
- Monoblock
- Class D Topology
- 1Ω Stable
- PWM MOSFET Power Supply
- RCA In/Out
- Low Pass Filter
More info
- Monoblock
- Class D Topology
- 1Ω Stable
- PWM MOSFET Power Supply
- RCA In/Out
- Low Pass Filter
- Subsonic Filter
- Bass Boost
- Phase Control
- Remote Subwoofer Control
- Strapping Capable
- LED Illuminated End Panels
- Thermal, Short and Overload Protection Circuits
Specs
General Specs
2
| Amp Topology | Monoblock, Class D |
| Power Supply Type | MOSFET Power Supply Watts |
Performance Specs
11
| Total Power Output | 4000 Watts |
| Peak Power @ 1 Ω | 4000 Watts |
| Peak Power @ 2 Ω | 2000 Watts |
| Peak Power @ 4 Ω | 1000 Watts |
| RMS Power @ 1 Ω | 3000 Watts |
| RMS Power @ 2 Ω | 1500 Watts |
| RMS Power @ 4 Ω | 750 Watts |
| Strapped Power bridged @ 2 Ω | 8000 Watts |
| Speaker Impedance | 1 to 8 Ω |
| T.H.D. (Total Harmonic Distortion) | 0.01 % |
| Frequency Response | 15 Hz to 250 Hz ±1 dB |

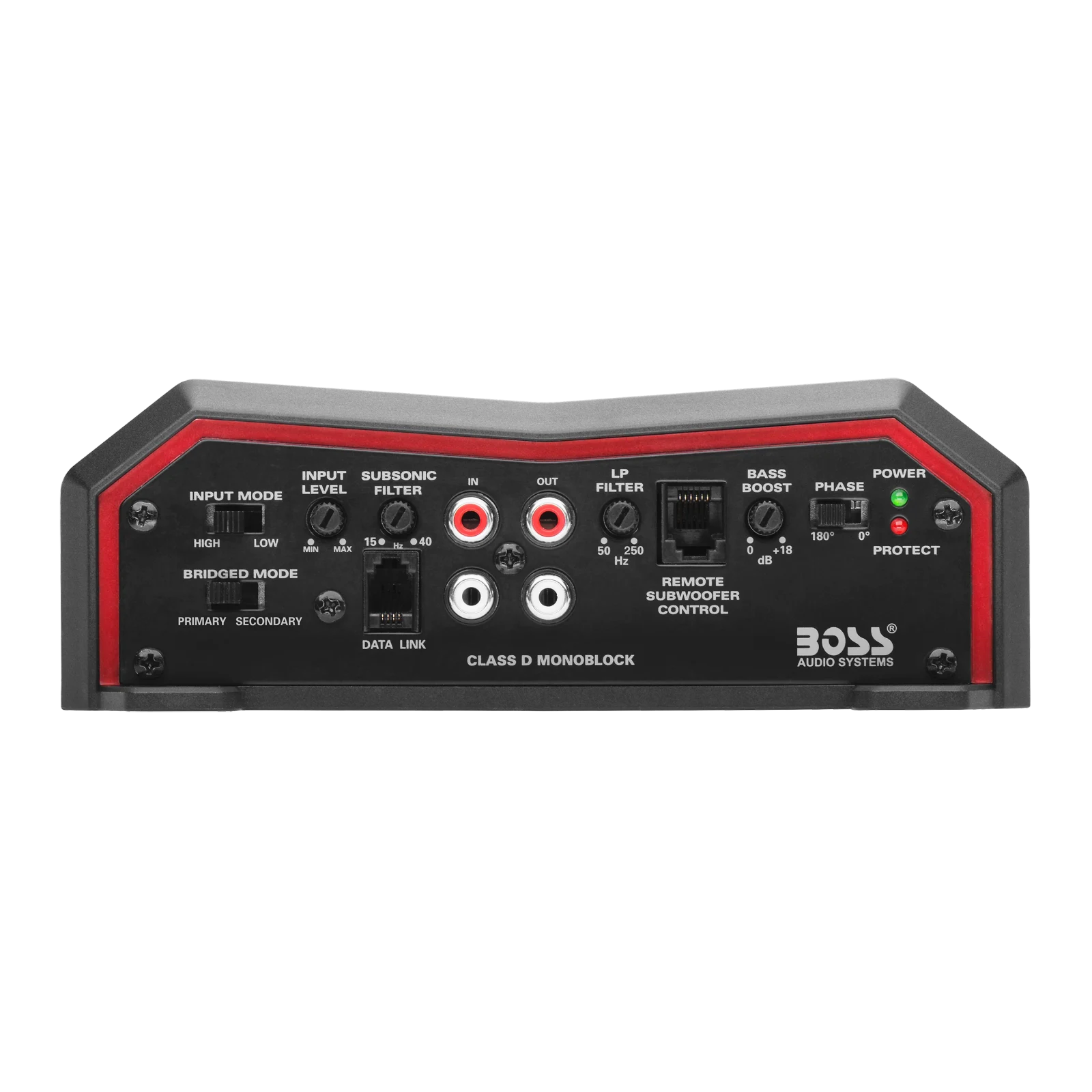

Connections, Controls, and Processing
10
| RCA Inputs | 2 Channel |
| Pre Amp Outputs | 2 Channel |
| Low Pass Filter | 50 Hz |
| Subsonic Filter | 15 Hz |
| Bass Boost | Variable |
| Phase Control | 0 |
| Subwoofer Level Control | YES |
| Input Sensitivity Switch | YES |
| Strappable | YES |
| Thermal/Overload/Short Protection | YES |
Measurement
2
| Length | 13.9 " |
| Width | 7.01 " |
Additional Specs
5
| Subwoofer Phase V S | Switchable |
| Mounting Hole Width | 6.45 |
| Mounting Hole High | 13.8 |
| Mounting Depth | 2.4 |
| Qty Comes In Box | 1 |
