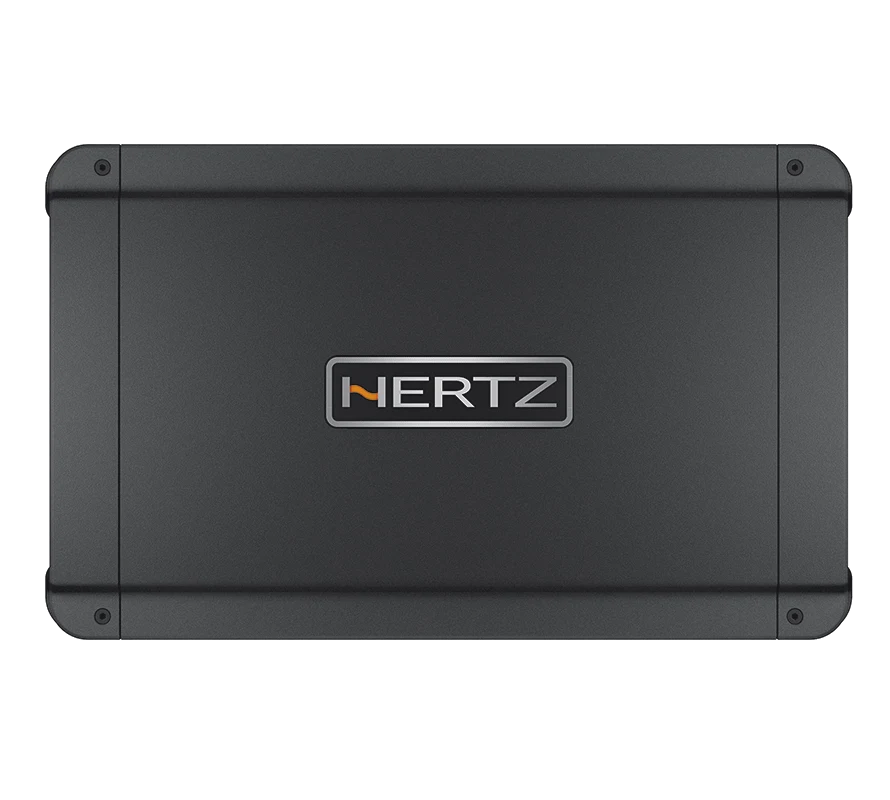

Hertz HCP 4Four Channels Car Audio Amplifier
HCP 4 is a four channels car audio amplifier designed to reproduce any musical genres with four separate channels for multiple configurations. Pre-amplified (Pre-In) inputs and high-level (Speaker-In) inputs allow for connection with any head units.
Highlights
- REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
- COMPLETED FILTER SECTION
- HCP ELECTRONICS
- ART
Key specs
Full specs- Channels
- 4 - 3 - 2
- Power supply voltage / fuse:
- 11 ÷ 15 VDC / 2 x 20 A
- Idling current (power ON/OFF)
- 1 A / 0.04 mA
- Consumption @ 2 Ω, 14.4 VDC (Max Musical Power):
- 21 A
- Remote In:
- 7 ÷ 15 VDC - 1 mA
- ART:
- Automatic Remote Turn-On/Off with Speaker-In
- Distorsion - THD (100 Hz @ 4Ω):
- 0.01 %
- Bandwidth:
- 10 ÷ 45K Hz
Key specs
Full specs- Channels
- 4 - 3 - 2
- Power supply voltage / fuse:
- 11 ÷ 15 VDC / 2 x 20 A
- Idling current (power ON/OFF)
- 1 A / 0.04 mA
- Consumption @ 2 Ω, 14.4 VDC (Max Musical Power):
- 21 A
Highlights
Overview- REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
- COMPLETED FILTER SECTION
- HCP ELECTRONICS
Overview
HCP 4 is a four channels car audio amplifier designed to reproduce any musical genres with four separate channels for multiple configurations. Pre-amplified (Pre-In) inputs and high-level (Speaker-In) inputs allow for connection with any head units. Built to work both in mono, as part of a three-channel system with sub and front, and in stereo for a powerful two-channel system, HCP 4 is a unique model in terms of versatility!
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
Highlights
Key features
- REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
- COMPLETED FILTER SECTION
- HCP ELECTRONICS
- ART
Technologies
REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to
COMPLETED FILTER SECTION
Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass,
HCP ELECTRONICS
Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker
ART
Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates
Specs
General Specs
18
| Channels | 4 - 3 - 2 |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 2 x 20 A |
| Idling current (power ON/OFF) | 1 A / 0.04 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): | 21 A |
| Remote In: | 7 ÷ 15 VDC - 1 mA |
| ART: | Automatic Remote Turn-On/Off with Speaker-In |
| Distorsion - THD (100 Hz @ 4Ω): | 0.01 % |
| Bandwidth: | 10 ÷ 45K Hz |
| S/N Ratio (A weighted @ 1 V) | 103 dB |
| Damping factor (100 Hz @ 4 Ω): | 120 |
| Pre-In sensitivity | 0.2 ÷ 5 VRMS |
| Speaker-In sensitivity: | 0.8 ÷ 20 VRMS |
| @ 4 Ch: | 2 Ω |
| @ 3 Ch: | 2 Ω + 2 Ω + 4 Ω |
| @ 2 Ch: | 4 Ω |
| Max size (mm / in.): | 315 x 190 x 50 / 12.40 x 7.48 x 1.97 |
| Weight (kg / lb.): | 2.62 / 5.77 |
| Adjustable Crossovers | yes |
Output Power
13
| 4 Ch: | 55 W x 4 (4 Ω) |
| 4 Ch: | 85 W x 4 (2 Ω) |
| 3 Ch: | 55 W x 2 (4 Ω) + 170 W x 1 (4 Ω) |
| 3 Ch: | 85 W x 2 (2 Ω) + 170 W x 1 (4 Ω) |
| 2 Ch: | 170 W x 2 (4 Ω) |
| 4 Ch: | 65 W x 4 (4 Ω) |
| 4 Ch: | 95 W x 4 (2 Ω) |
| 3 Ch: | 65 W x 2 (4 Ω) + 190 W x 1 (4 Ω) |
| 3 Ch: | 95 W x 2 (2 Ω) + 190 W x 1 (4 Ω) |
| 2 Ch: | 190 W x 2 (4 Ω) |
| RMS Power (4 Ω, ≤ 1 %THD + N, 14.4 V) | 50 W x 4 Ch |
| S/N Ratio (ref. 1 W output): | 82 dBA |
| Total Power | 760 W |
INPUTS / FILTERS
11
| INPUTS : | PRE IN / SPEAKER IN |
| Pre out FULL range (FRONT): | Yes |
| FRONT Ch. filters FULL | Yes |
| Hi-Pass: | 80 Hz @ 12 dB/Oct. |
| Lo-Pass: | 50 ÷ 500 Hz @ 12 dB/Oct. |
| REAR Ch. filters FULL: | Yes |
| Hi-Pass: | 80 Hz @ 12 dB/Oct. |
| Lo-Pass: | 50 ÷ 500 Hz @ 12 dB/Oct. |
| FRONT Ch. MONO (on/off): | Yes |
| REAR Ch. MONO (on/off): | Yes |
| BOOST 50 Hz (select): | (0 / 6 / 12) dB |
Physical Specs
6
| mm | in |
| A | 315 | 12.40 |
| B | 291 | 11.45 |
| C | 190 | 7.48 |
| D | 166 | 6.53 |
| E | 50 | 1.97 |
