Hertz

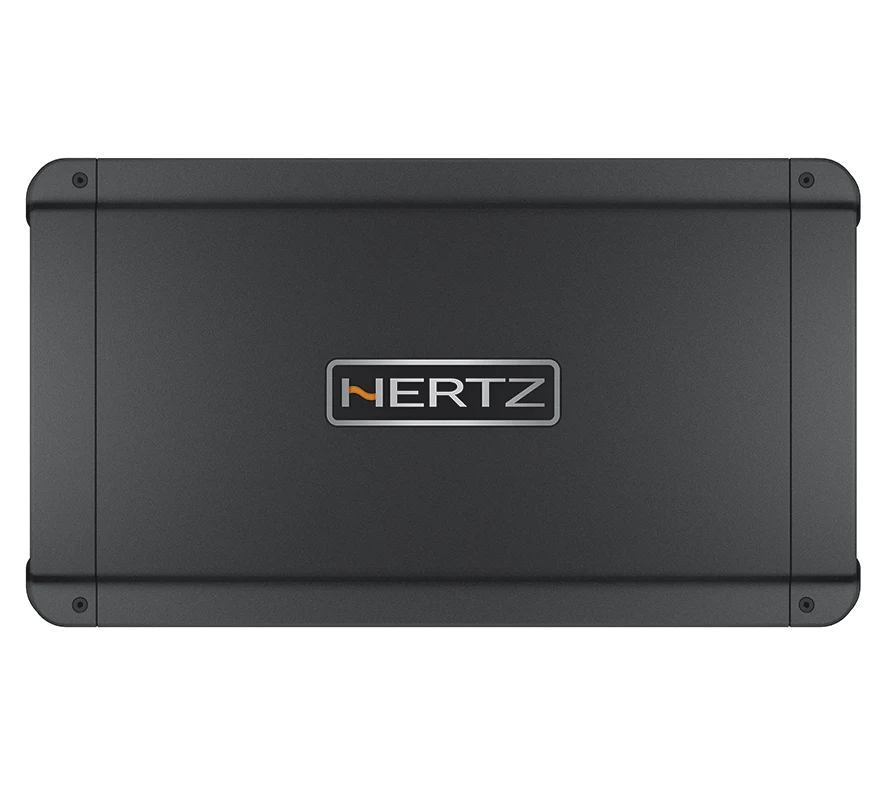

Hertz HCP 5DFront + Rear + Sub Complete Car Audio Amplifier
HCP 5D is a front + rear + sub complete car audio amplifier with five very powerful D class channels. It features a wide range of inputs to obtain the best configuration with every car audio source.
Highlights
- '- REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
- COMPLETED FILTER SECTION
- HCP ELECTRONICS
- ART
Key specs
Full specs- Channels
- 5 - 3
- Power supply voltage / fuse:
- 11 ÷ 15 VDC / 2 x 25 A
- Idling current (power ON/OFF)
- 2 A / 0.04 mA
- Consumption @ 2 Ω, 14.4 VDC (Max Musical Power):
- 30 A
- Remote In:
- 7 ÷ 15 VDC - 1 mA
- ART
- Automatic Remote Turn-On/Off with Speaker-In
- Distorsion - THD (100 Hz @ 4 Ω)
- 0.02 %
- Bandwidth FRONT/REAR:
- 10 ÷ 50k Hz
Key specs
Full specs- Channels
- 5 - 3
- Power supply voltage / fuse:
- 11 ÷ 15 VDC / 2 x 25 A
- Idling current (power ON/OFF)
- 2 A / 0.04 mA
- Consumption @ 2 Ω, 14.4 VDC (Max Musical Power):
- 30 A
Highlights
Overview- '- REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
- COMPLETED FILTER SECTION
- HCP ELECTRONICS
Overview
HCP 5D is a front + rear + sub complete car audio amplifier with five very powerful D class channels. It features a wide range of inputs to obtain the best configuration with every car audio source. HCP 5 D is suitable in a five channels system with subwoofer, in a three channel front + sub system using the front and rear built-in filters that include also a bass boost circuit and a subsonic filter. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.
Highlights
Key features
- '- REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
- COMPLETED FILTER SECTION
- HCP ELECTRONICS
- ART
Technologies
'- REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to
COMPLETED FILTER SECTION
Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass,
HCP ELECTRONICS
Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker
ART
Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates
Specs
General Specs
19
| Channels | 5 - 3 |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 2 x 25 A |
| Idling current (power ON/OFF) | 2 A / 0.04 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): | 30 A |
| Remote In: | 7 ÷ 15 VDC - 1 mA |
| ART | Automatic Remote Turn-On/Off with Speaker-In |
| Distorsion - THD (100 Hz @ 4 Ω) | 0.02 % |
| Bandwidth FRONT/REAR: | 10 ÷ 50k Hz |
| Bandwidth SUB: | 10 ÷ 500 Hz |
| S/N Ratio (A weighted @ 1 V): | 100 dB |
| Damping factor (100 Hz @ 4 Ω) FRONT/REAR: | 100 |
| Damping factor (100 Hz @ 4 Ω) SUB: | 250 |
| Pre-In sensitivity: | 0.2 ÷ 5 VRMS |
| Speaker-In sensitivity: | 0.8 ÷ 20 VRMS |
| @ 5 Ch: | 2 Ω |
| @ 3 Ch: | 4 Ω + 4 Ω + 2 Ω |
| Max size (mm / in.): | 345 x 190 x 50 / 13.58 x 7.48 x 1.97 |
| Weight (kg / lb.): | 2.61 / 5.75 |
| Adjustable Crossovers | yes |
Output Power
11
| 5 Ch: | 55 W x 4 + 160 W x 1 (4 Ω) |
| 5 Ch: | 90 W x 4 + 280 W x 1 (2 Ω) |
| 3 Ch: | 180 W x 2 (4 Ω) + 160 W x 1 (4 Ω) |
| 3 Ch: | 180 W x 2 (4 Ω) + 280 W x 1 (2 Ω) |
| 5 Ch: | 65 W x 4 + 200 W x 1 (4 Ω) |
| 5 Ch: | 105 W x 4 + 330 W x 1 (2 Ω) |
| 3 Ch: | 210 W x 2 (4 Ω) + 200 W x 1 (4 Ω) |
| 3 Ch: | 210 W x 2 (4 Ω) + 330 W x 1 (2 Ω) |
| RMS Power (4 Ω, ≤ 1 % THD + N, 14.4 V): | 50 W x 4 Ch + 150 W + 1 Ch |
| S/N Ratio (ref. 1 W output): | (50 W Ch) 83 dBA (150 W Ch) 85 dBA |
| Total Power | 1500 W |
INPUTS / FILTERS
10
| INPUTS: | PRE IN / SPEAKER IN |
| FRONT Ch. filters FULL: | Yes |
| Hi-Pass: | 50 ÷ 5k Hz @ 12 dB/Oct. |
| REAR Ch. filters FULL: | Yes |
| Hi-Pass: | 50 ÷ 5k Hz @ 12 dB/Oct. |
| Band-Pass: | 50 ÷ 500 Hz (Hi) @ 12 dB/Oct. 50 ÷ 5 kHz (lo) @ 12 dB/Oct. |
| SUB Ch. filter LO-PASS: | 50 ÷ 500 Hz @ 24 dB/Oct. |
| SUBSONIC (on/off): | 25 Hz @ 24 dB/Oct. |
| BOOST 50 Hz (adjust): | (0 ÷12) dB |
| Remote Volume Control: | -50 ÷ 6) dB |
Physical Specs
6
| mm | in |
| A | 345 | 13.58 |
| B | 321 | 12.64 |
| C | 190 | 7.48 |
| D | 166 | 6.53 |
| E | 50 | 1.97 |
