Audison

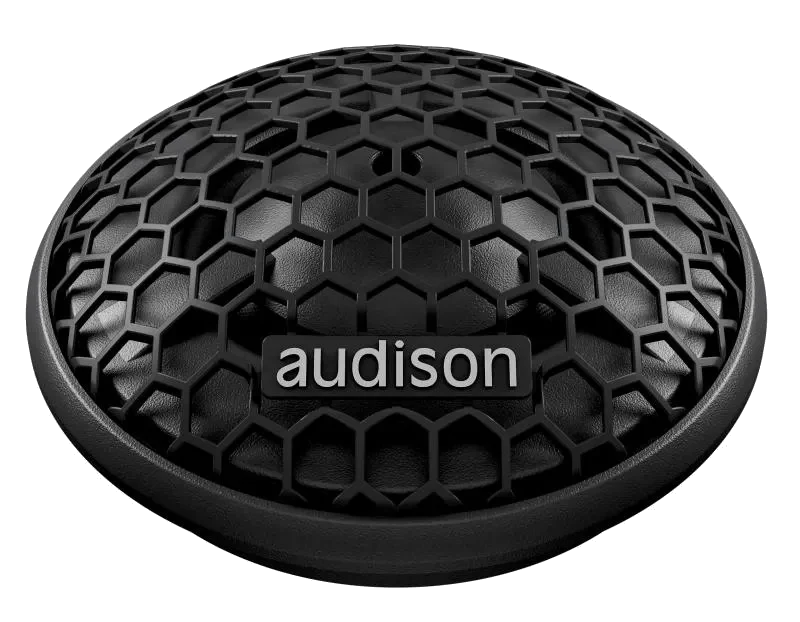

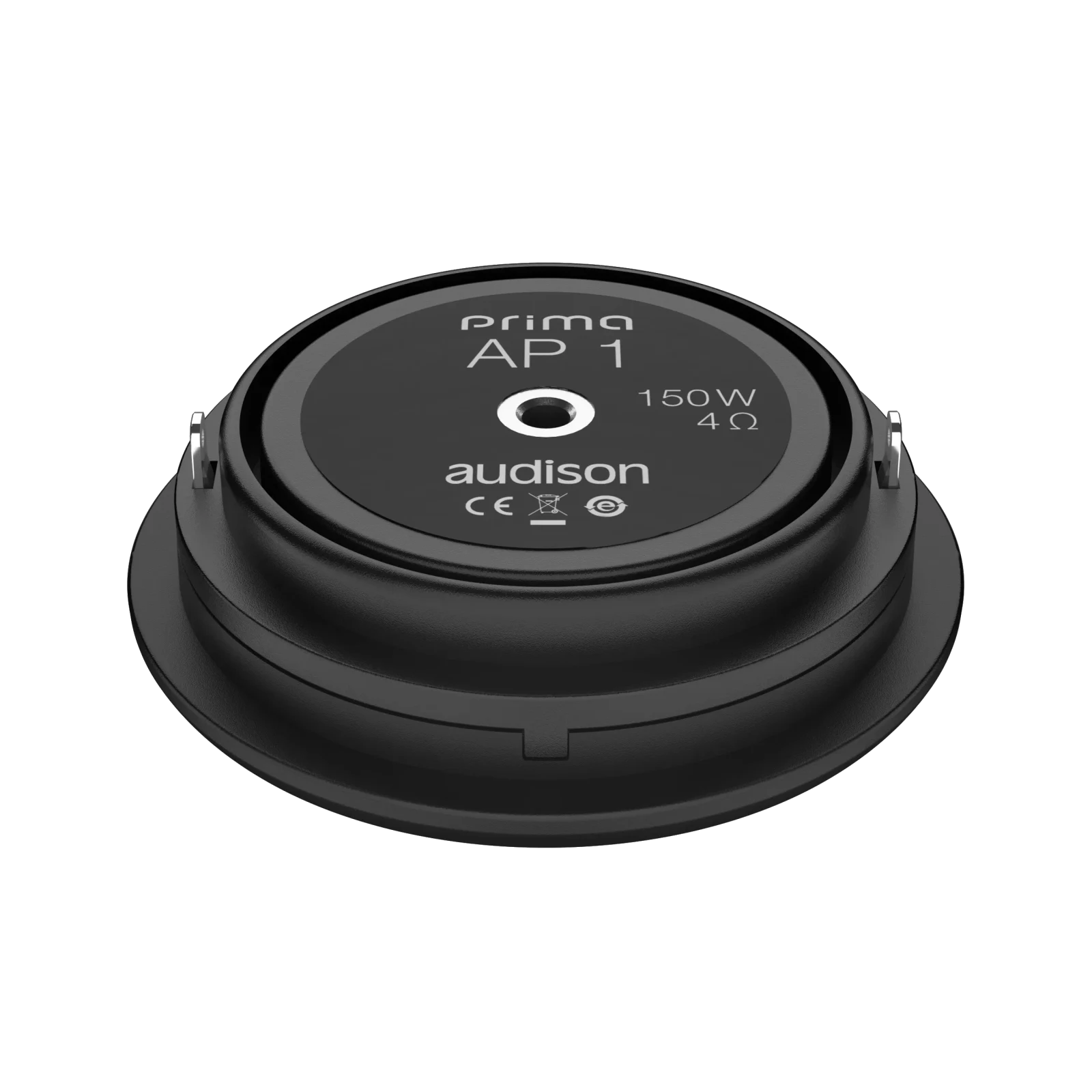

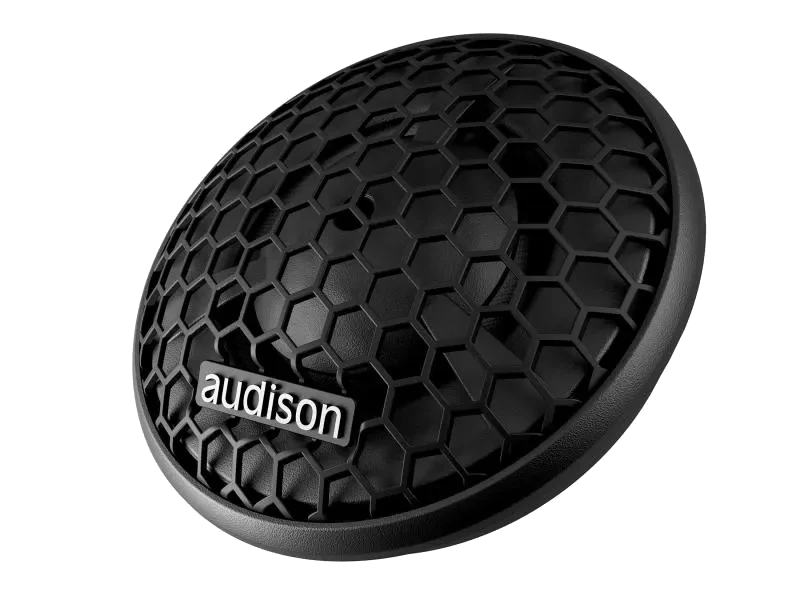

AP1AP1 26 mm Tweeters
26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
Highlights
- 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- Extremely compact dedicated passive crossover APCX TW supplied with the product, optimized for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with “OEM Integration compliant”, fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
Key specs
Full specs- Nominal diameter
- 26 mm (1 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 150 W
- Sensitivity
- 93 dB
- Frequency Response
- 2k ÷ 20k Hz
- Voice Coil Ø
- 20 mm (0.79 in)
- Magnet Material
- NEODYMIUM
- Magnet size D x d x h
- 19 x 3 mm
Key specs
Full specs- Nominal diameter
- 26 mm (1 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 150 W
- Sensitivity
- 93 dB
Highlights
Overview- 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- Extremely compact dedicated passive crossover APCX TW supplied with the product, optimized for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
Overview
- 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- Extremely compact dedicated passive crossover APCX TW supplied with the product, optimized for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with “OEM Integration compliant”, fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
- A wide array of mounting accessories is supplied with the product, for high fitment flexibility in OEM Integration.
- CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound on a Kapton former, for better heat dissipation.
- The Dome profile and motor are optimized with FEM (Finite Element Method) simulation technology.
- Developed with the KLIPPEL suite.

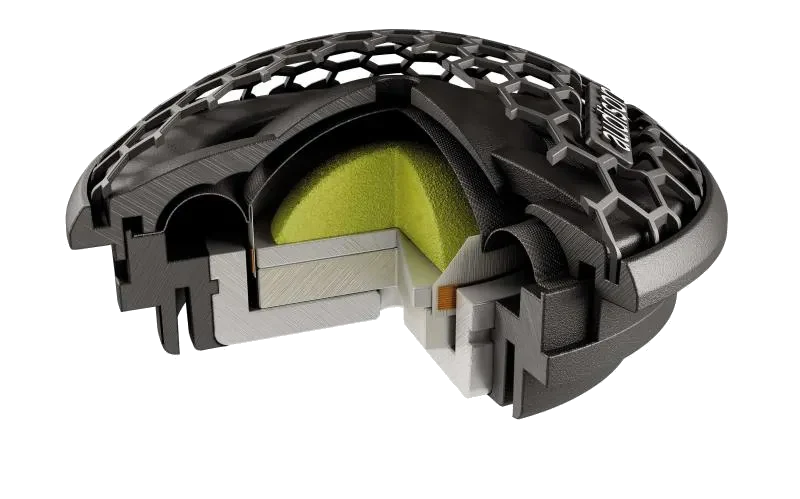

- The AP 1 tweeter features an innovative design. The 26 mm diaphragm, combined with a wide external suspension, actively contributes to the overall emission, providing the ability to increase sound pressure while lowering the resonance frequency, all with extremely low moving mass. The powerful motor is characterized by a large Neodymium magnet.
Highlights
Key features
- 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- Extremely compact dedicated passive crossover APCX TW supplied with the product, optimized for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with “OEM Integration compliant”, fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
- A wide array of mounting accessories is supplied with the product, for high fitment flexibility in OEM Integration.
- CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound on a Kapton former, for better heat dissipation.
- The Dome profile and motor are optimized with FEM (Finite Element Method) simulation technology.
- Developed with the KLIPPEL suite.
Specs
Technical Specs
10
| Nominal diameter | 26 mm (1 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 150 W |
| Sensitivity | 93 dB |
| Frequency Response | 2k ÷ 20k Hz |
| Voice Coil Ø | 20 mm (0.79 in) |
| Magnet Material | NEODYMIUM |
| Magnet size D x d x h | 19 x 3 mm |
| Dome Material | TELOTON FIBRE |
| Power Handling Crossover | Hi-pass filtered @ 3,5 kHz - 12 dB Oct |
Electric-acoustic Specs
9
| Re | 3.5 Ohm |
| Fs | 1500 Hz |
| Le | 0.02 mH |
| Mms | 0.16 g (0.006 oz) |
| Cms | 0.09 mm/N |
| BL | 1.3 T•m |
| Qts | 0.98 |
| Qes | 2,78 |
| Qms | 1.5 |
General
2
| Weight | 0.04 kg |
| Crossover Weight | 0.04 kg |
Dimensions
7
| Dimension A | 44 mm (1.73 in) |
| Dimension B | 38.5 mm (1.52 in) |
| Dimension C | 20 mm (0.79 in) |
| Dimension D | 8.5 mm (0.33 in) |
| Dimension G | 46.5 mm |
| Dimension H | 37.5 mm |
| Dimension I | 20.1 mm |
