Audison

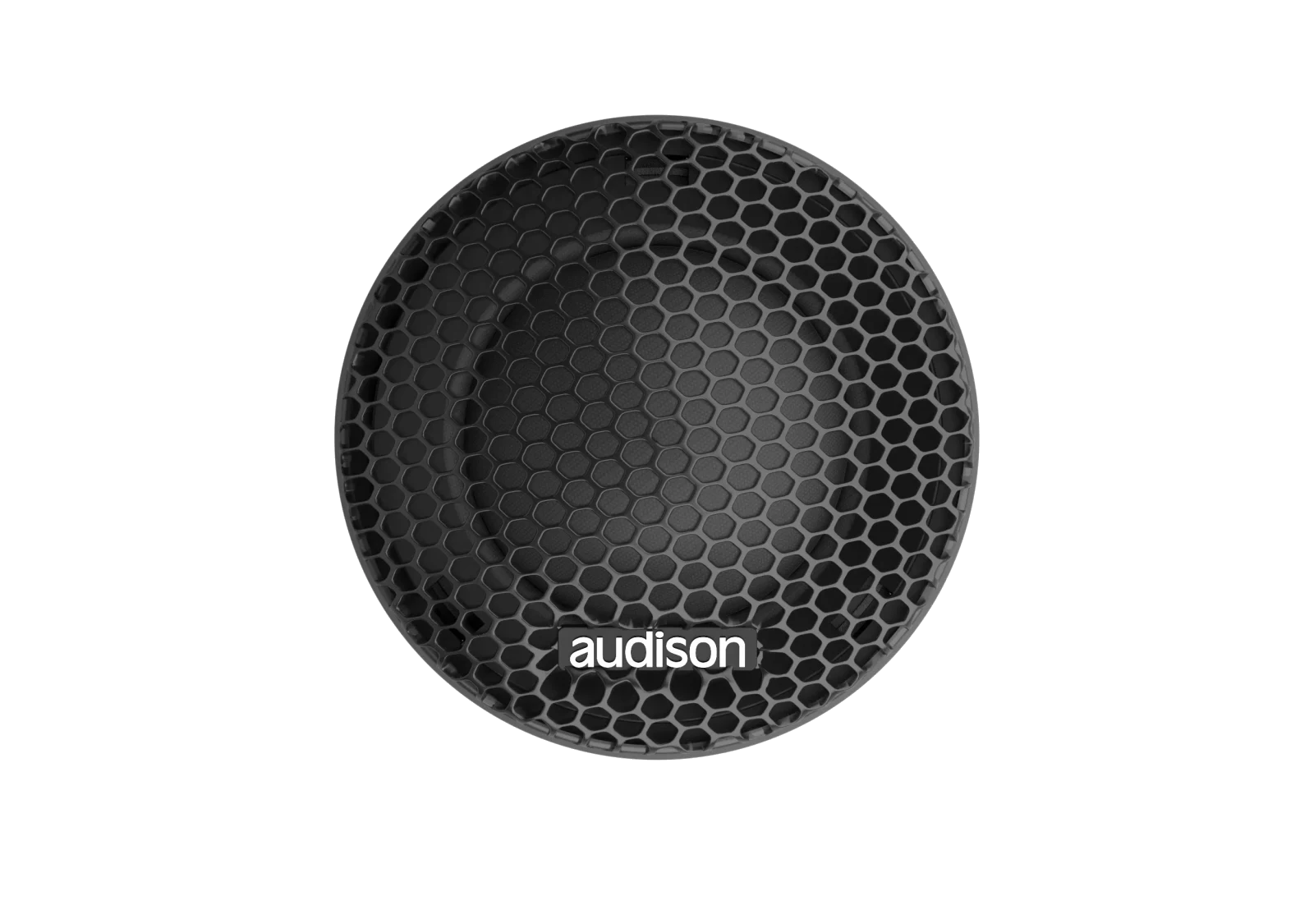

AP1PAP1P 29 mm Tweeters
AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time. Three mounting accessories are supplied to provide a solution for any type of installation.
Highlights
- AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
- Three mounting accessories are supplied to provide a solution for any type of installation.

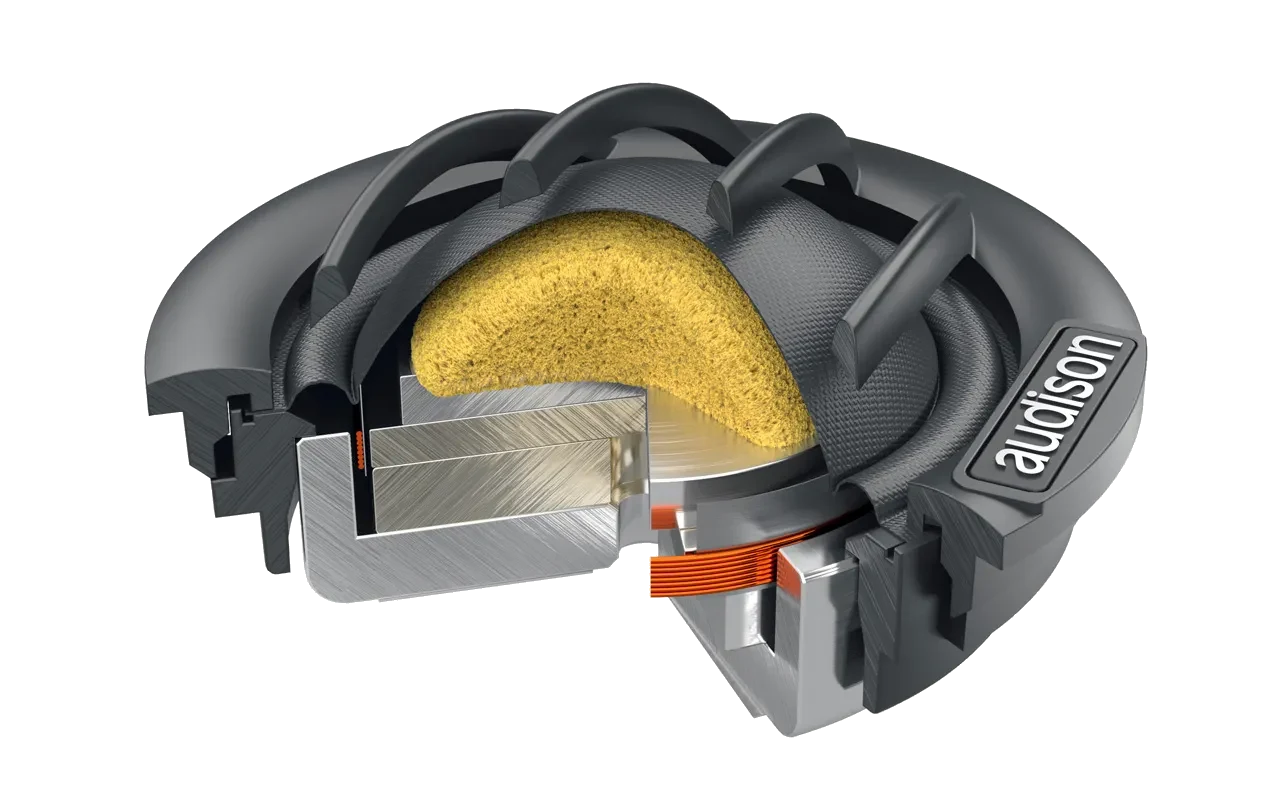

- Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
- 1 in. CCAW voice coil for superior dynamic response.
Key specs
Full specs- Nominal diameter
- 29 mm (1.14 in)
- Impedance
- 8 Ohm
- Power Handling - Peak
- 150 W
- Sensitivity
- 92 dB
- Frequency Response
- 1,2 ÷ 25k Hz
- Voice Coil Ø
- 25 mm (0.98 in)
- Magnet Material
- NEODYMIUM
- Magnet size D x d x h
- 22 x 2,5 (0.87 x 0.1) mm
Key specs
Full specs- Nominal diameter
- 29 mm (1.14 in)
- Impedance
- 8 Ohm
- Power Handling - Peak
- 150 W
- Sensitivity
- 92 dB
Highlights
Overview- AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
- Three mounting accessories are supplied to provide a solution for any type of installation.
- Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
Overview
- AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
- Three mounting accessories are supplied to provide a solution for any type of installation.
- Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
- 1 in. CCAW voice coil for superior dynamic response.
- Dome profile optimized with FEM simulations for a wide off-axis dispersion

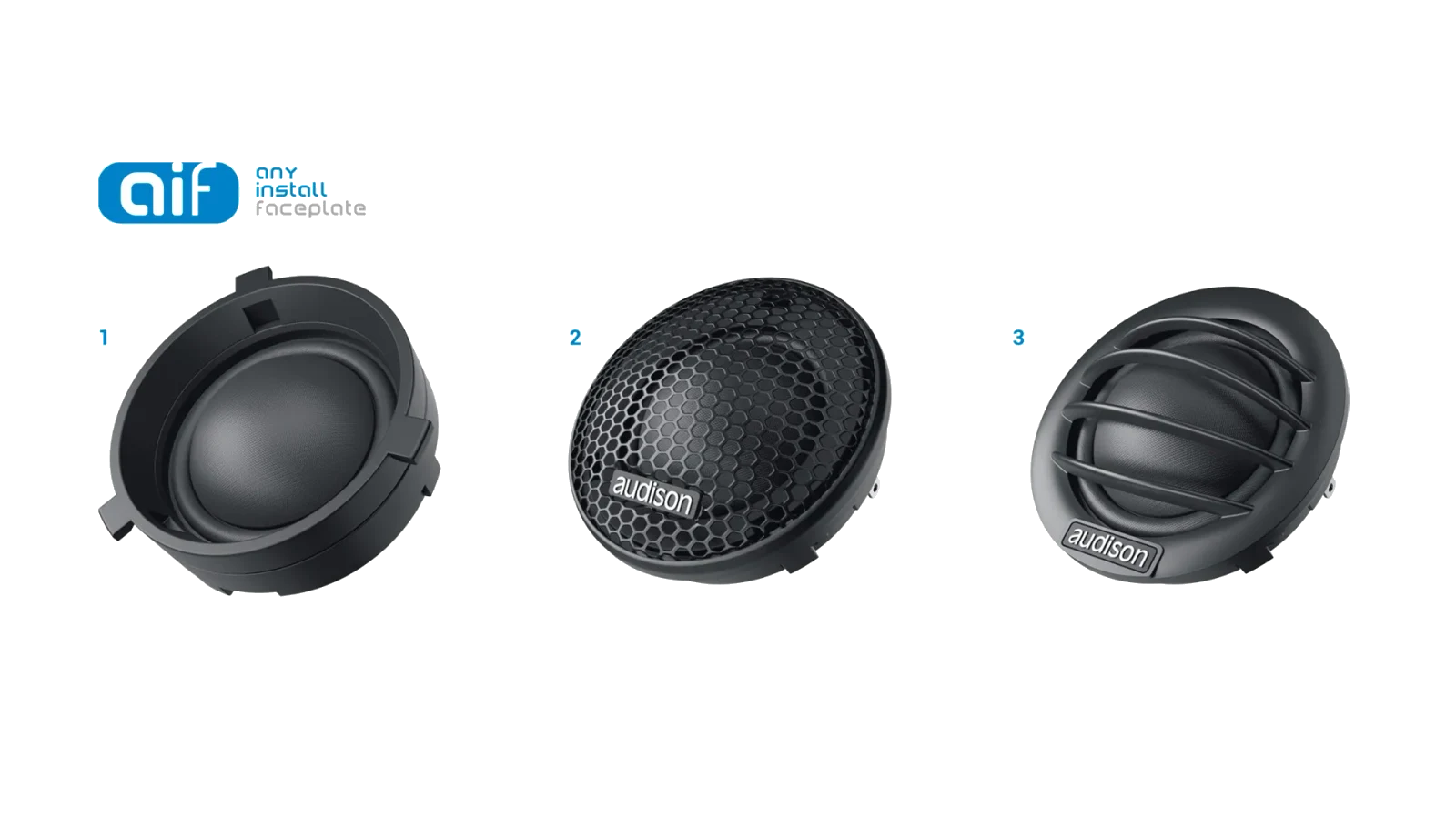

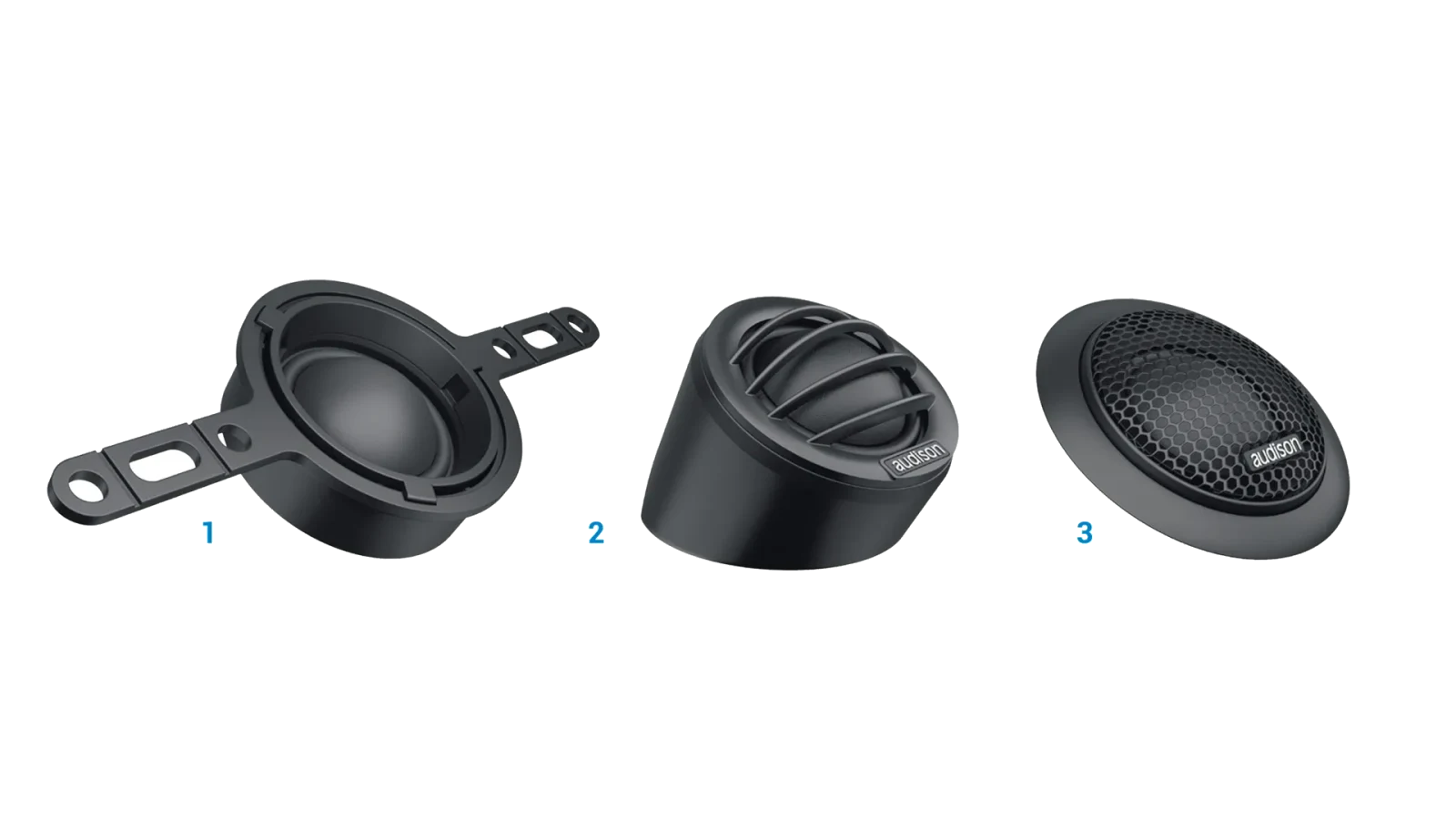

- The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1 in. CCAW voice coil ensures an outstanding dynamic response. AIF technology, to support OEM integration, provides the specialist with three different types of faceplates: OEM, for an easy and correct factory placement Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations. Spoke grille: for maximum acoustic performance with a-pillar installations Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario. It is supplied with three mounting accessories that make the AP 1P install a breeze: Watch band; Double-angle cup; Flush Mounting Ring; Metal mounting spring
Highlights
Key features
- AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
- Three mounting accessories are supplied to provide a solution for any type of installation.
- Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
- 1 in. CCAW voice coil for superior dynamic response.
- Dome profile optimized with FEM simulations for a wide off-axis dispersion
Specs
Technical Specs
13
| Nominal diameter | 29 mm (1.14 in) |
| Impedance | 8 Ohm |
| Power Handling - Peak | 150 W |
| Sensitivity | 92 dB |
| Frequency Response | 1,2 ÷ 25k Hz |
| Voice Coil Ø | 25 mm (0.98 in) |
| Magnet Material | NEODYMIUM |
| Magnet size D x d x h | 22 x 2,5 (0.87 x 0.1) mm |
| Dome Material | TELOTON FIBRE |
| Power Handling Crossover | Hi-pass filtered @2.5 kHz 12dB/oct |
| Crossover name | APCX P 2T |
| Crossover Type | High Pass 12 dB/oct. |
| Crossover adjustment | Tweeter Level: 0 / +3 dB |
Electric-acoustic Specs
9
| Re | 5.75 Ohm |
| Fs | 1600 Hz |
| Le | 0.04 mH |
| Mms | 0.23 g (0.008 oz) |
| Cms | 0.05 mm/N |
| BL | 2.7 T•m |
| Qts | 1.21 |
| Qes | 1.74 |
| Qms | 4 |
General
2
| Weight | 0.067 kg |
| Crossover Weight | 0.065 kg |
Dimensions
7
| Dimension A | 43.7 mm (1.72 in) |
| Dimension B | 40.8 mm (1.61 in) |
| Dimension C | 21.8 mm (0.86 in) |
| Dimension D | 12.2 mm (0.48 in) |
| Dimension G | 72 mm |
| Dimension H | 45.5 mm |
| Dimension I | 23 mm |
