Audison

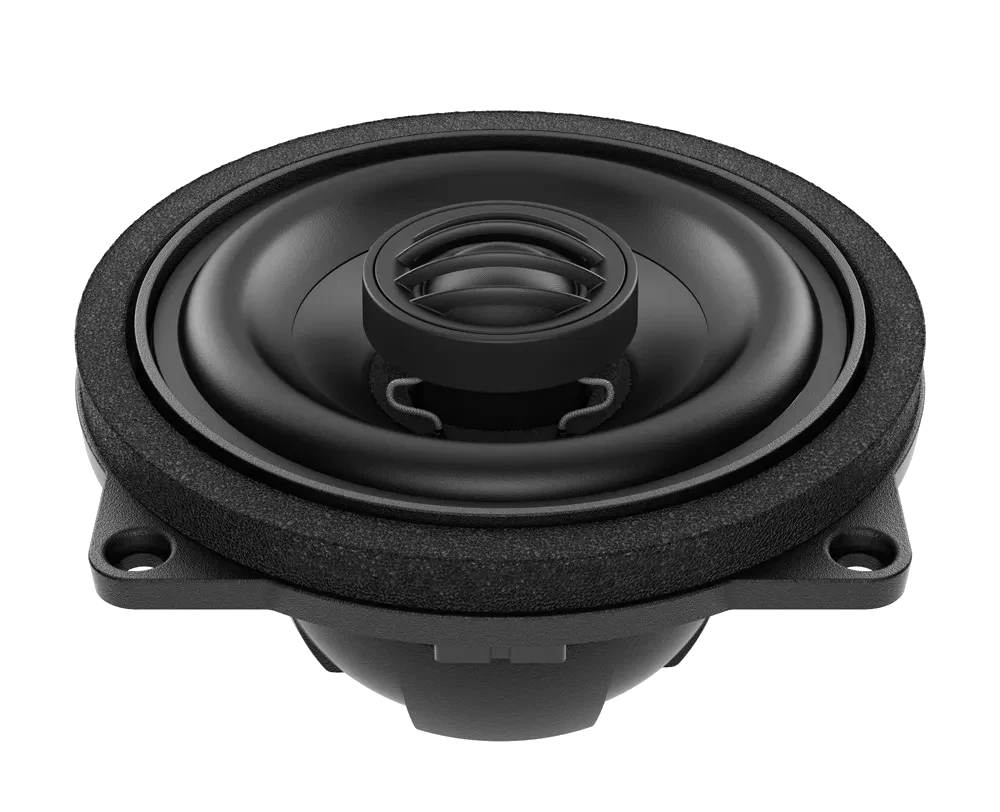

APBMWX4EAPBMWX4E 100 mm Coaxial Speakers
Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front or for rear seat upgrade; Neodymium Magnetic group to maximize performance while minimizing bulk and weight; 25 mm (1″) fiberglass woofer voice coil for high power...
Highlights
- Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front or for rear seat upgrade;
- Neodymium Magnetic group to maximize performance while minimizing bulk and weight;
- 25 mm (1″) fiberglass woofer voice coil for high power dissipation and stiffness;
- Waterproof pressed-paper cone for medium natural frequencies free from any plastic resonance;
Key specs
Full specs- Woofer Size
- 100 mm
- Impedance
- 4 Ohm
- Power Handling - Peak
- 80 W
- Power Handling - Continuous
- 40 W
- Sensitivity
- 88 dB
- Frequency Response
- 100 ÷ 22k
- Voice Coil Diameter
- 25 mm (0.79 in)
- Magnet Size
- 50 x 29 x 3
Key specs
Full specs- Woofer Size
- 100 mm
- Impedance
- 4 Ohm
- Power Handling - Peak
- 80 W
- Power Handling - Continuous
- 40 W
Highlights
Overview- Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front or for rear seat upgrade;
- Neodymium Magnetic group to maximize performance while minimizing bulk and weight;
- 25 mm (1″) fiberglass woofer voice coil for high power dissipation and stiffness;
Overview
- Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front or for rear seat upgrade;
- Neodymium Magnetic group to maximize performance while minimizing bulk and weight;
- 25 mm (1″) fiberglass woofer voice coil for high power dissipation and stiffness;
- Waterproof pressed-paper cone for medium natural frequencies free from any plastic resonance;
- 20 mm (0.8″) Tetolon coil tweeter with dispersion characteristics optimized with FEM simulations;
- BMW-Mini compatible aluminum die-cast basket with Plug & Play connectors;
- 30 cm extension provided featuring Plug & Play connectors, for high flexibility of installation;
- Damping removable motor cover.
- The APBMW X coaxials have been designed for BMW-MINI models that do not allow the installation of a two-way system on the front or the upgrade of the rear system. The 100 mm (4 in.) APBMW X4E, with basket and fixing screws dedicated to the specific car model, feature a water-repellent pressed-paper cone for natural and color-free mid-range frequencies. The 20 mm coil and Tetolon dome tweeter, a material boasting lightness and damping properties, offers optimized dispersion features for OEM placement, elevating the sound stage to a realistic level.
Highlights
Key features
- Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front or for rear seat upgrade;
- Neodymium Magnetic group to maximize performance while minimizing bulk and weight;
- 25 mm (1″) fiberglass woofer voice coil for high power dissipation and stiffness;
- Waterproof pressed-paper cone for medium natural frequencies free from any plastic resonance;
- 20 mm (0.8″) Tetolon coil tweeter with dispersion characteristics optimized with FEM simulations;
- BMW-Mini compatible aluminum die-cast basket with Plug & Play connectors;
- 30 cm extension provided featuring Plug & Play connectors, for high flexibility of installation;
- Damping removable motor cover.
Specs
Technical Specs LF
9
| Woofer Size | 100 mm |
| Impedance | 4 Ohm |
| Power Handling - Peak | 80 W |
| Power Handling - Continuous | 40 W |
| Sensitivity | 88 dB |
| Frequency Response | 100 ÷ 22k |
| Voice Coil Diameter | 25 mm (0.79 in) |
| Magnet Size | 50 x 29 x 3 |
| Xmax | 0.5 mm (0.02 in) |
Technical Specs HF
2
| Tweeter Size | 24 mm (0.94 in) |
| Voice Coil Diameter | 20 mm (0.79 in) |
Electric-acoustic Specs
10
| Re | 3.4 Ohm |
| Fs | 100 Hz |
| Mms | 5.8 g (0.2 oz) |
| Cms | 0.5 |
| Bl | 5.4 |
| Qms | 6.2 |
| Qes | 0,4 |
| Qts | 0.38 |
| Vas | 1.8 l (0.06 ft) |
| LE | 0.32 mH |
General
1
| Weight | 0.5 kg |
Dimensions
5
| Dimension A | 119 mm (4.69 in) |
| Dimension A3 | 143 mm |
| Dimension B | 100 mm (3.94 in) |
| Dimension C | 67.5 mm (2.66 in) |
| Dimension D | 39 mm (1.54 in) |
