Audison

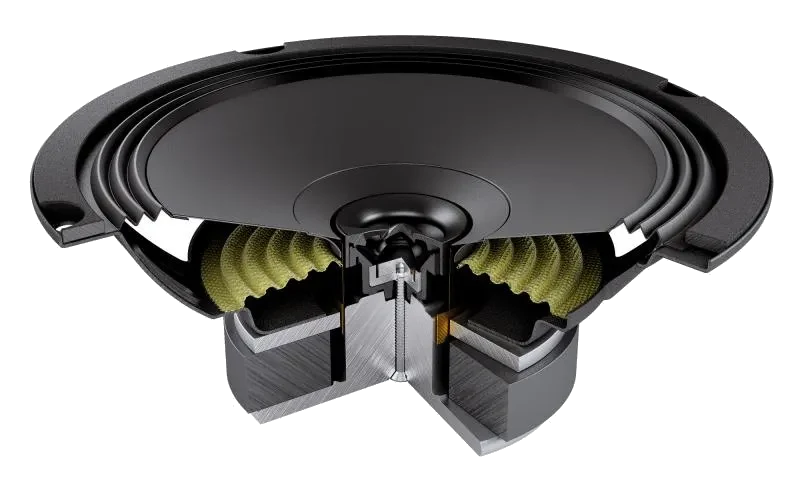

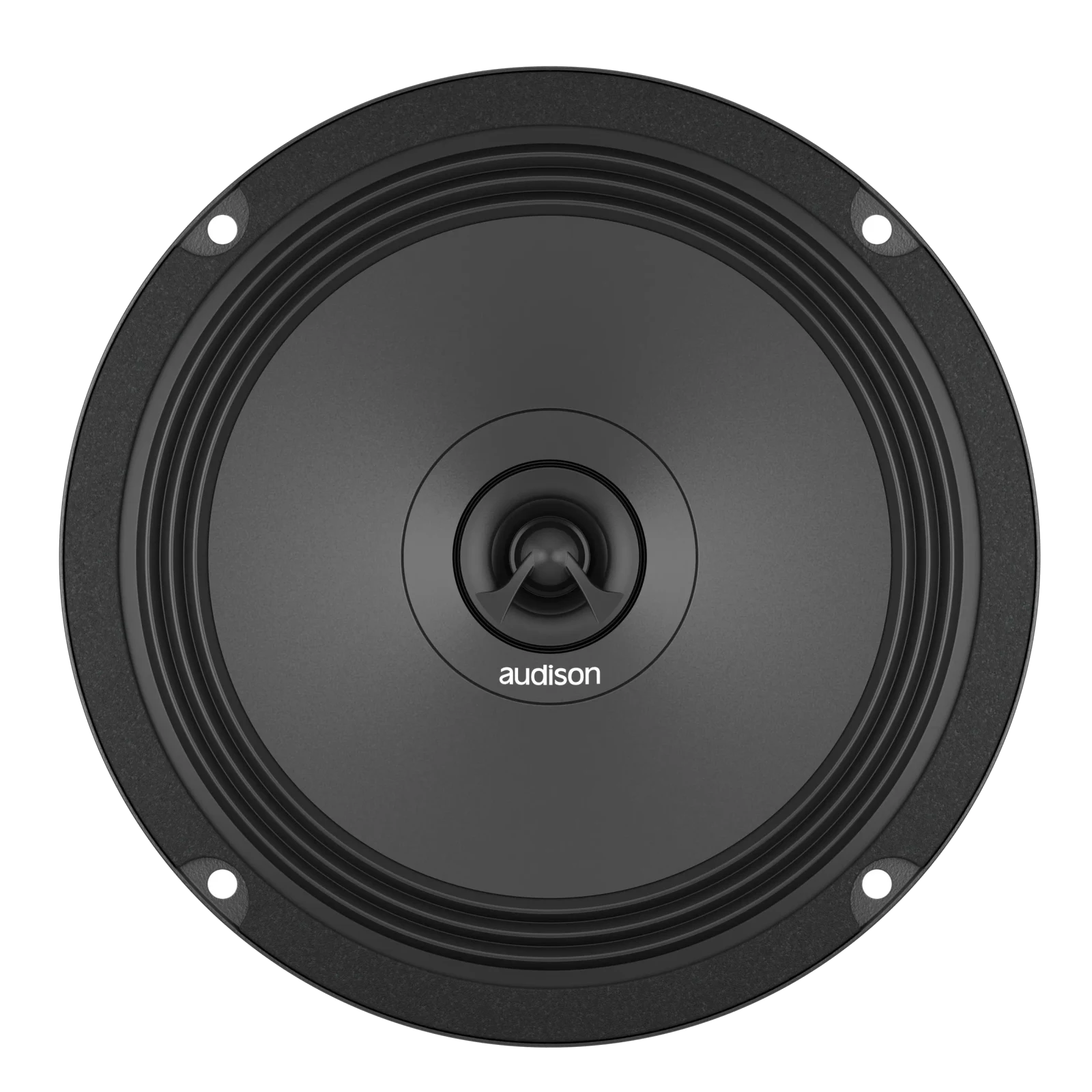

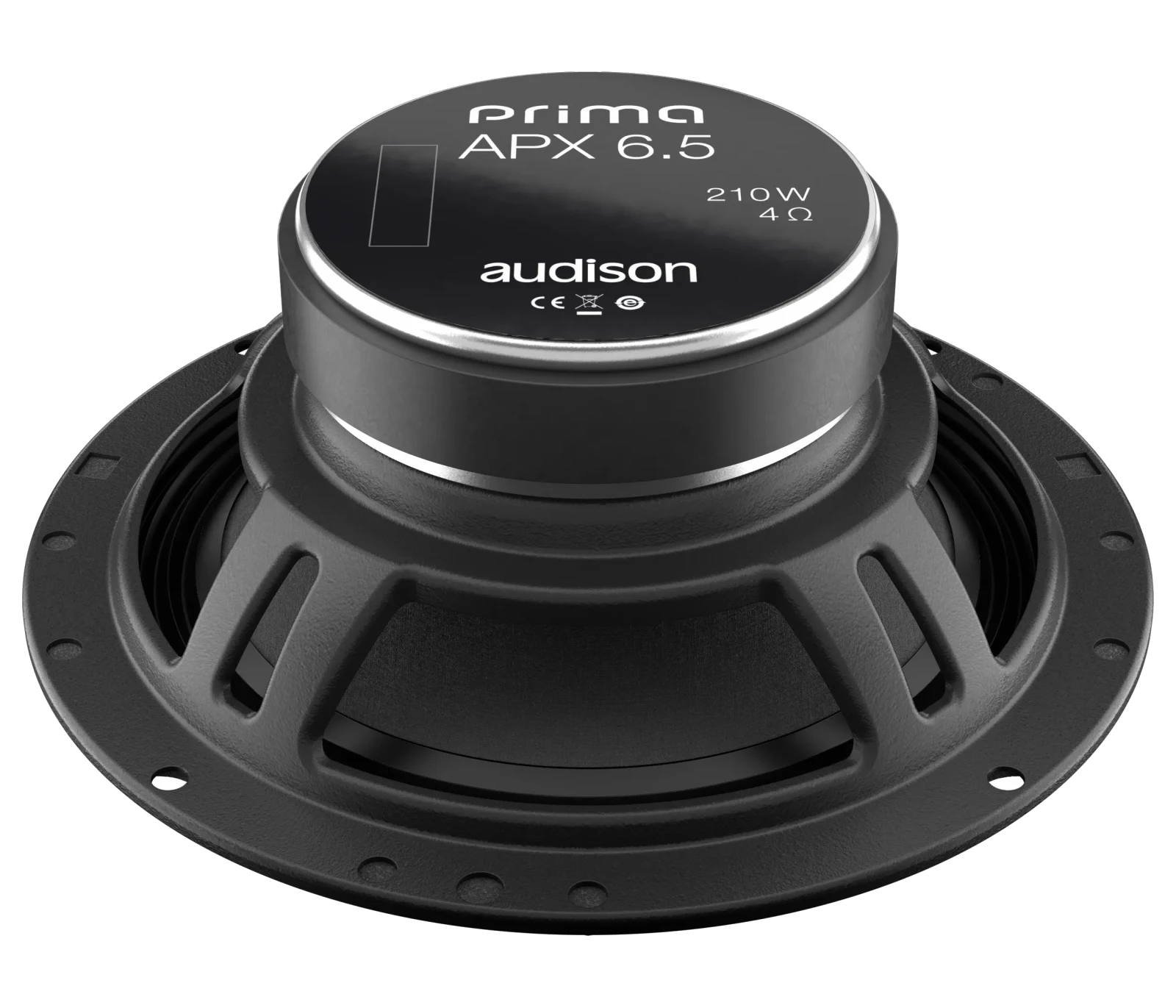

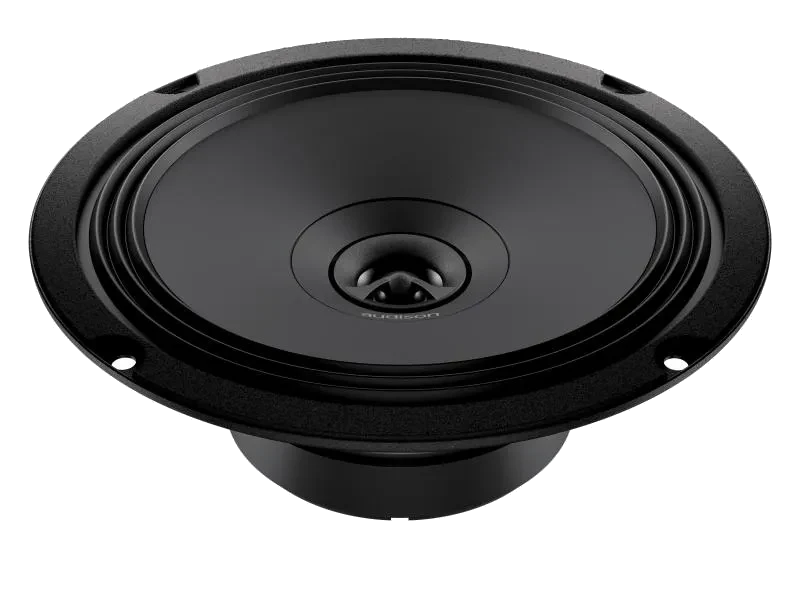

APX6.5APX6.5 165 mm Coaxial Speakers
Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
Highlights
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 210 W
- Power Handling - Continuous
- 70 W
- Frequency Response
- 60 ÷ 23k
- Voice Coil Diameter
- 32 mm (0.59 in)
- Magnet Size
- 85 x 40 x 15
- Xmax
- 2 mm (0.08 in)
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 210 W
- Power Handling - Continuous
- 70 W
Highlights
Overview- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
Overview
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite. –
- APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.The cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.
Highlights
Key features
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite. –
Specs
Technical Specs LF
8
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 210 W |
| Power Handling - Continuous | 70 W |
| Frequency Response | 60 ÷ 23k |
| Voice Coil Diameter | 32 mm (0.59 in) |
| Magnet Size | 85 x 40 x 15 |
| Xmax | 2 mm (0.08 in) |
Technical Specs HF
3
| Tweeter Size | 24 mm (0.94 in) |
| Sensitivity | 94 dB |
| Voice Coil Diameter | 15 mm (0.59 in) |
Electric-acoustic Specs
10
| Re | 3.1 Ohm |
| Fs | 80 Hz |
| Mms | 11.5 g (0.41 oz) |
| Cms | 0.33 |
| Bl | 4.6 |
| Qms | 5.4 |
| Qes | 0,84 |
| Qts | 0.73 |
| Vas | 8.1 l (0.29 ft) |
| LE | 0.1 mH |
General
1
| Weight | 0.87 kg |
Dimensions
4
| Dimension A | 165 mm (6.5 in) |
| Dimension B | 141 mm (5.55 in) |
| Dimension C | 60 mm (2.36 in) |
| Dimension D | 57 mm (2.24 in) |
