Audison

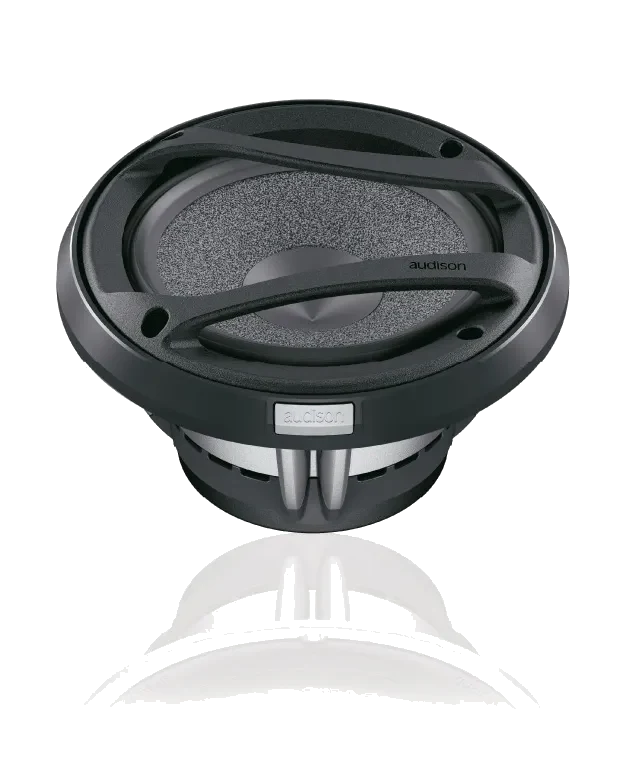

AV6.5AV6.5 165 mm Woofers
The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections. The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
Highlights
- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- Cotton-fibre pressed paper cone with Light Damping treatment.
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 200 W
- Power Handling - Continuous
- 100 W
- Sensitivity
- 91 dB
- Frequency Response
- 50 ÷ 7k Hz
- Voice Coil Ø
- 30 mm
- Magnet size D x d x h
- 90 x 40 x 15 mm
Key specs
Full specs- Nominal diameter
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 200 W
- Power Handling - Continuous
- 100 W
Highlights
Overview- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
Overview
- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- Cotton-fibre pressed paper cone with Light Damping treatment.
- The Radial Venting System ensures high thermal capability, power handling and reliability.

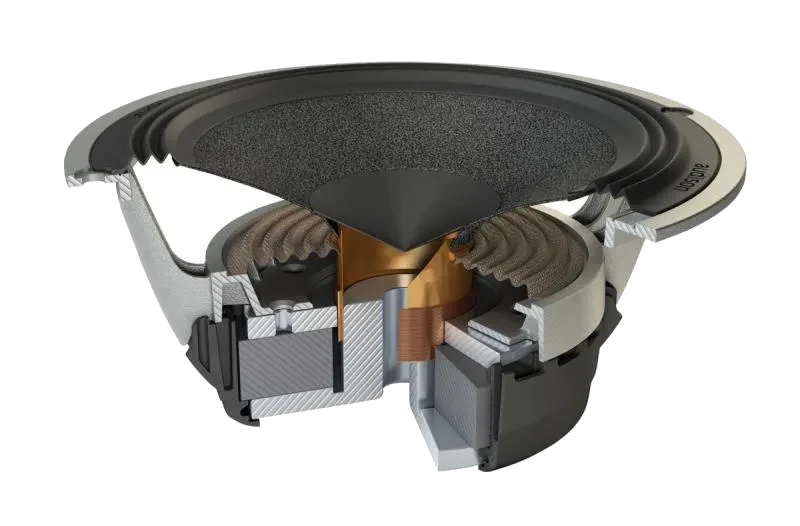

- Originating directly from the experience of the Thesis line components, the Voce woofer features an aluminium basket with a great aerodynamic structure, a cotton-fibre paper pressed cone with Light Damping treatment, a Triple Wave surround in butyl rubber and extremely light Copper Clad Aluminium Wire coils.
Highlights
Key features
- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- Cotton-fibre pressed paper cone with Light Damping treatment.
- The Radial Venting System ensures high thermal capability, power handling and reliability.
Specs
Technical Specs
10
| Nominal diameter | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 200 W |
| Power Handling - Continuous | 100 W |
| Sensitivity | 91 dB |
| Frequency Response | 50 ÷ 7k Hz |
| Voice Coil Ø | 30 mm |
| Magnet size D x d x h | 90 x 40 x 15 mm |
| Voice Coil Material | CCAW |
| Xmax | 3 mm (0.12 in) |
Electric-acoustic Specs
10
| Re | 3.5 Ohm |
| Fs | 68 Hz |
| Le | 0.31 mH |
| Vas | 8.2 l (0.29 ft) |
| Mms | 16.1 g (0.568 oz) |
| Cms | 0.34 mm/N |
| BL | 5.5 T•m |
| Qts | 0.74 |
| Qes | 0,82 |
| Qms | 7.84 |
General
1
| Weight | 1.2 kg |
Dimensions
7
| Dimension A | 167 mm (6.57 in) |
| Dimension B | 146 mm (5.75 in) |
| Dimension C | 76 mm (2.99 in) |
| Dimension D | 69 mm (2.72 in) |
| Dimension E | 156 mm |
| Dimension G | 30 mm |
| Dimension H | 193 mm |
