Audison

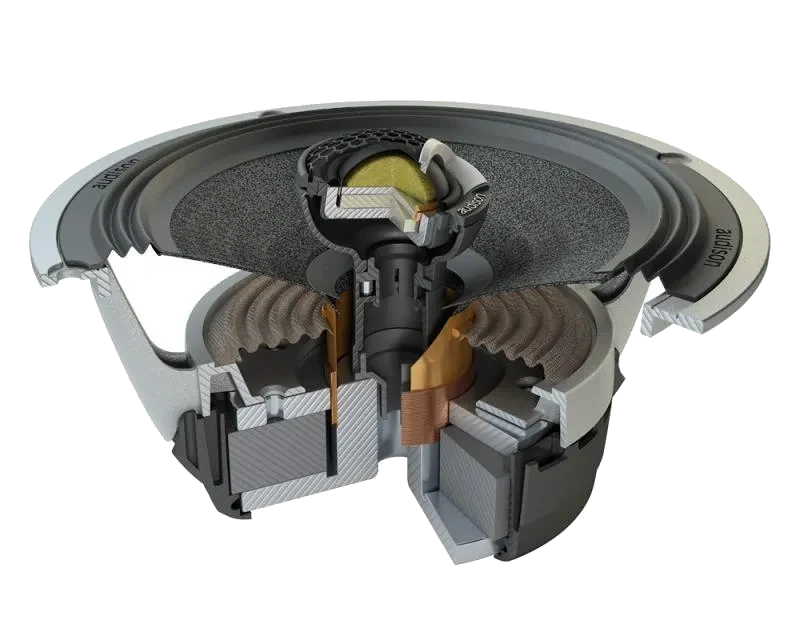

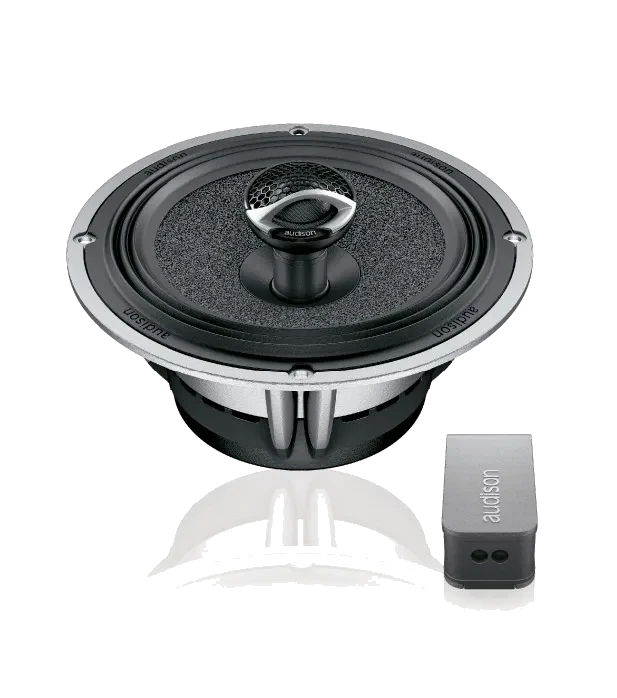

AVX6.5AVX6.5 165 mm Coaxial Speakers
The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections. The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
Highlights
- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- The Radial Venting System ensures high thermal capability, power handling and reliability.
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 200 W
- Power Handling - Continuous
- 100 W
- Sensitivity
- 91 dB
- Frequency Response
- 50 ÷ 22k
- Voice Coil Diameter
- 30 mm (1.18 in)
- Magnet Size
- 90 x 40 x 15
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 200 W
- Power Handling - Continuous
- 100 W
Highlights
Overview- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
Overview
- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- The Radial Venting System ensures high thermal capability, power handling and reliability.
- Cotton-fibre pressed paper cone with Light Damping treatment.
- Orientable High Frequency Tuning: high range controlled dispersion for the best performance in the listening point.
- Tetolon dome Neodymium tweeter.
- On-wire dedicated crossover network, for best performance at crossover frequencies.
- The AV X5 and AV X6.5 coax speakers are the evolution of the woofer from the same line, thanks to the introduction of an excellent 1 Tetolon dome tweeter. The Orientable High Frequency Tuning technology also provides the ability to optimize dispersion in high range to achieve the best performance in the listening point, while the woofer used the aerodynamic basket, the Triple Wave surround profile in butyl rubber, the CCAW voice coil wound on double layer and exclusive Cotton-fibre pressed paper cone with Light Damping treatment. The coaxial element is perfected by a refined on-wire dedicated crossover, supplied with the product.
Highlights
Key features
- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- The Radial Venting System ensures high thermal capability, power handling and reliability.
- Cotton-fibre pressed paper cone with Light Damping treatment.
- Orientable High Frequency Tuning: high range controlled dispersion for the best performance in the listening point.
- Tetolon dome Neodymium tweeter.
- On-wire dedicated crossover network, for best performance at crossover frequencies.
Specs
Technical Specs LF
10
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 200 W |
| Power Handling - Continuous | 100 W |
| Sensitivity | 91 dB |
| Frequency Response | 50 ÷ 22k |
| Voice Coil Diameter | 30 mm (1.18 in) |
| Magnet Size | 90 x 40 x 15 |
| Xmax | 3 mm (0.12 in) |
| Recommended Crossover | 3.5 kHz @ 6/12 dB/Oct. |
Technical Specs HF
2
| Tweeter Size | 25 mm (0.98 in) |
| Tweeter Magnet Size | 25 x 3,5 |
Electric-acoustic Specs
10
| Re | 3.5 Ohm |
| Fs | 68 Hz |
| Mms | 16.1 g (0.57 oz) |
| Cms | 0.34 |
| Bl | 5.5 |
| Qms | 7.84 |
| Qes | 0,82 |
| Qts | 0.74 |
| Vas | 8.2 l (0.29 ft) |
| LE | 0.59 mH |
General
1
| Weight | 1.3 kg |
Dimensions
8
| Dimension A | 167 mm (6.57 in) |
| Dimension B | 146 mm (5.75 in) |
| Dimension C | 75.5 mm (2.97 in) |
| Dimension D | 69 mm (2.72 in) |
| Dimension E | 156 mm |
| Dimension F | 88 |
| Dimension G | 30 mm |
| Dimension H | 193 mm |
