Audison

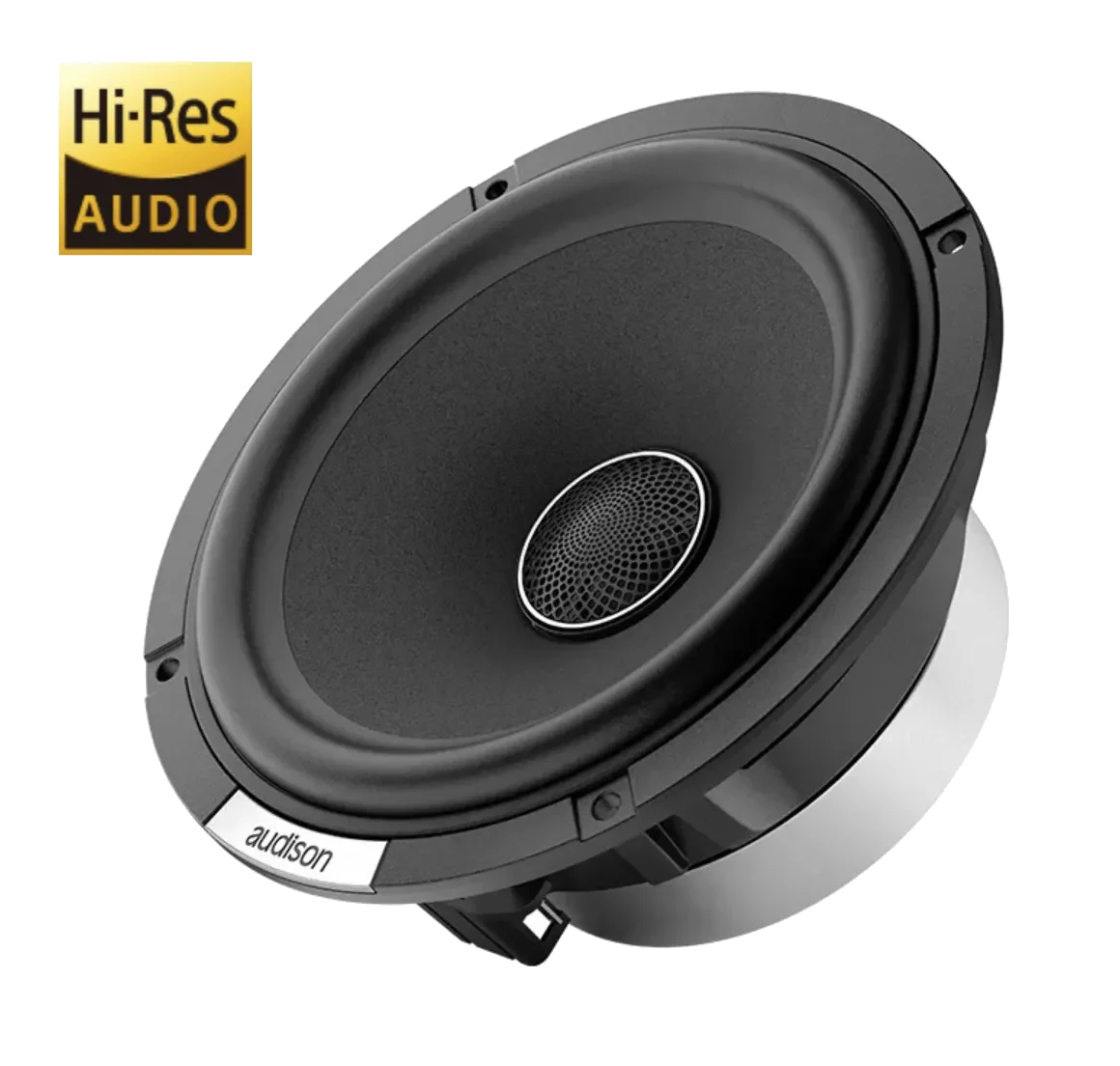

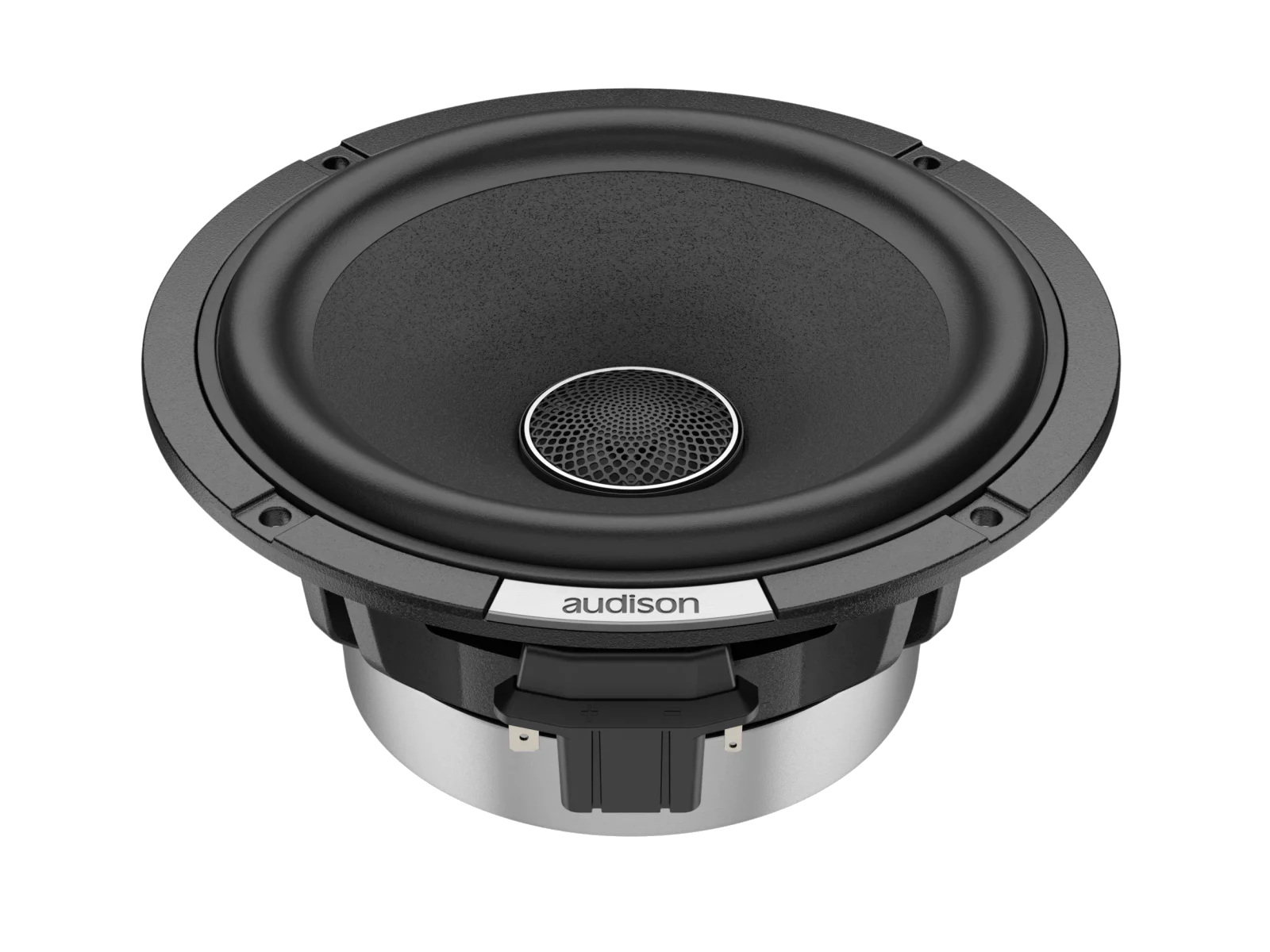

AVX6.5IIAVX6.5II 165 mm (6.5 in.) Coaxial Speakers
Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Highlights
- Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
- Concentric coaxial tweeter: Integrated within the woofer coil to create a single point of sound emission, providing an immersive soundstage that mirrors the experience of a live performance.
- Cone optimized through FEM simulations: Jointly designed between woofer and tweeter to improve frequency response and sound dispersion, ensuring uniform and precise sound coverage, ideal for car installations.

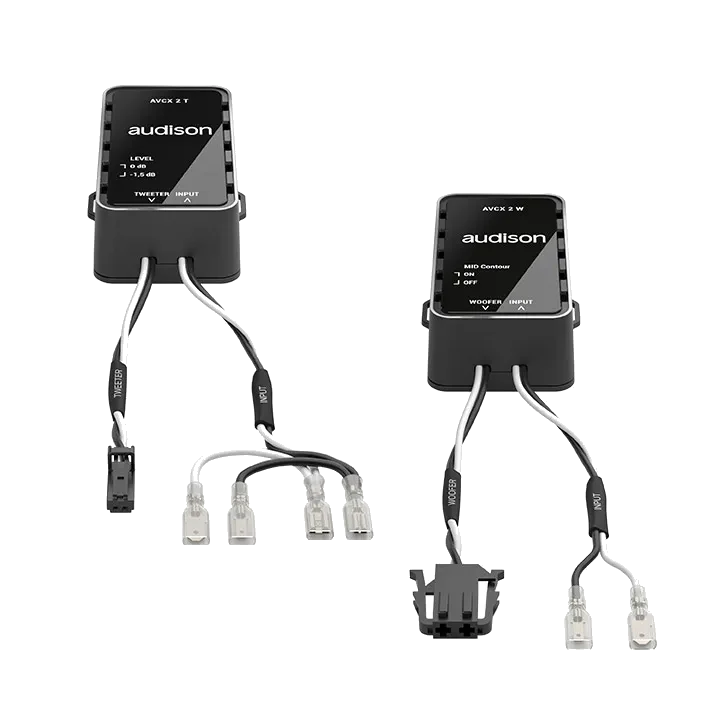

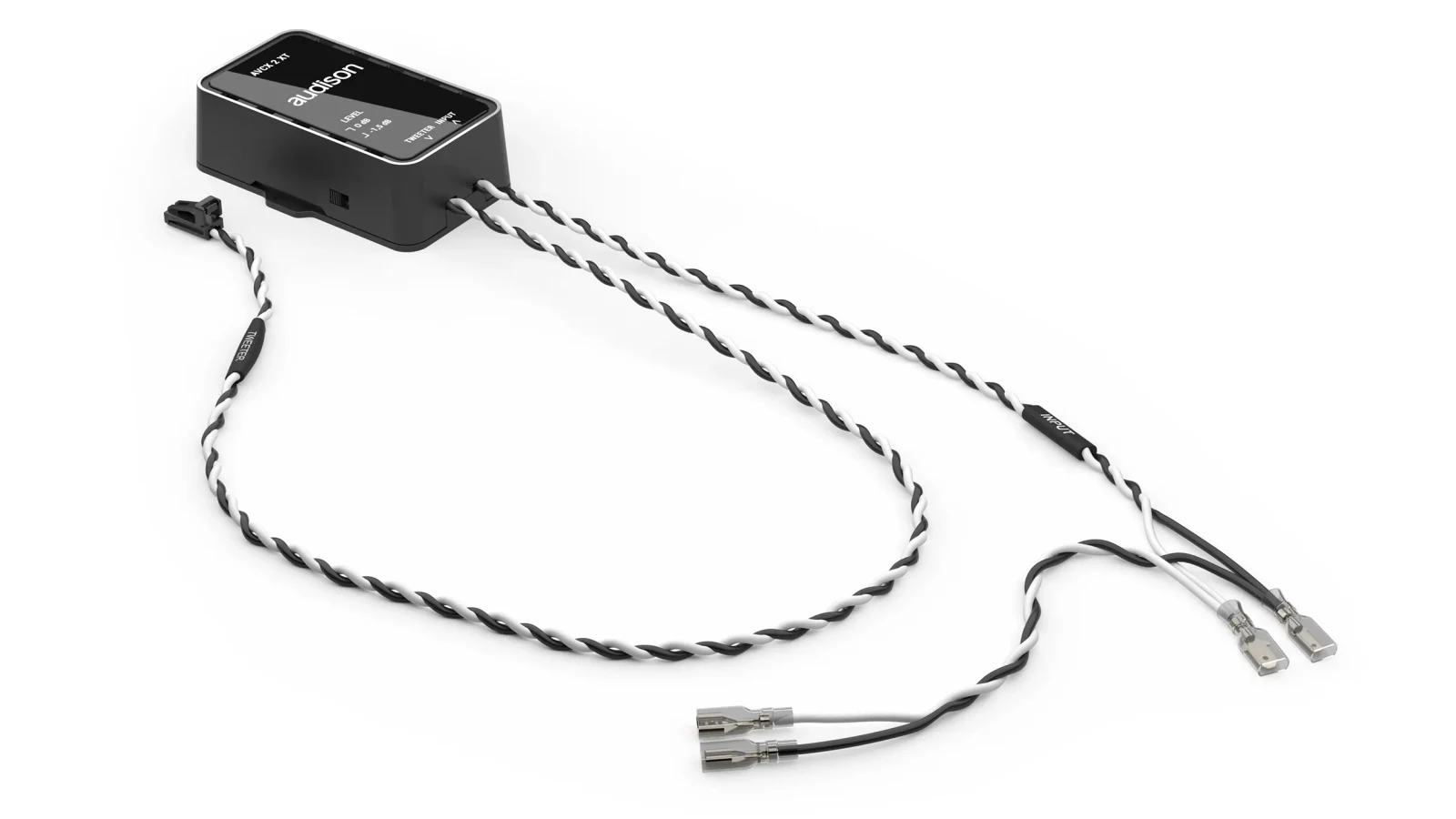

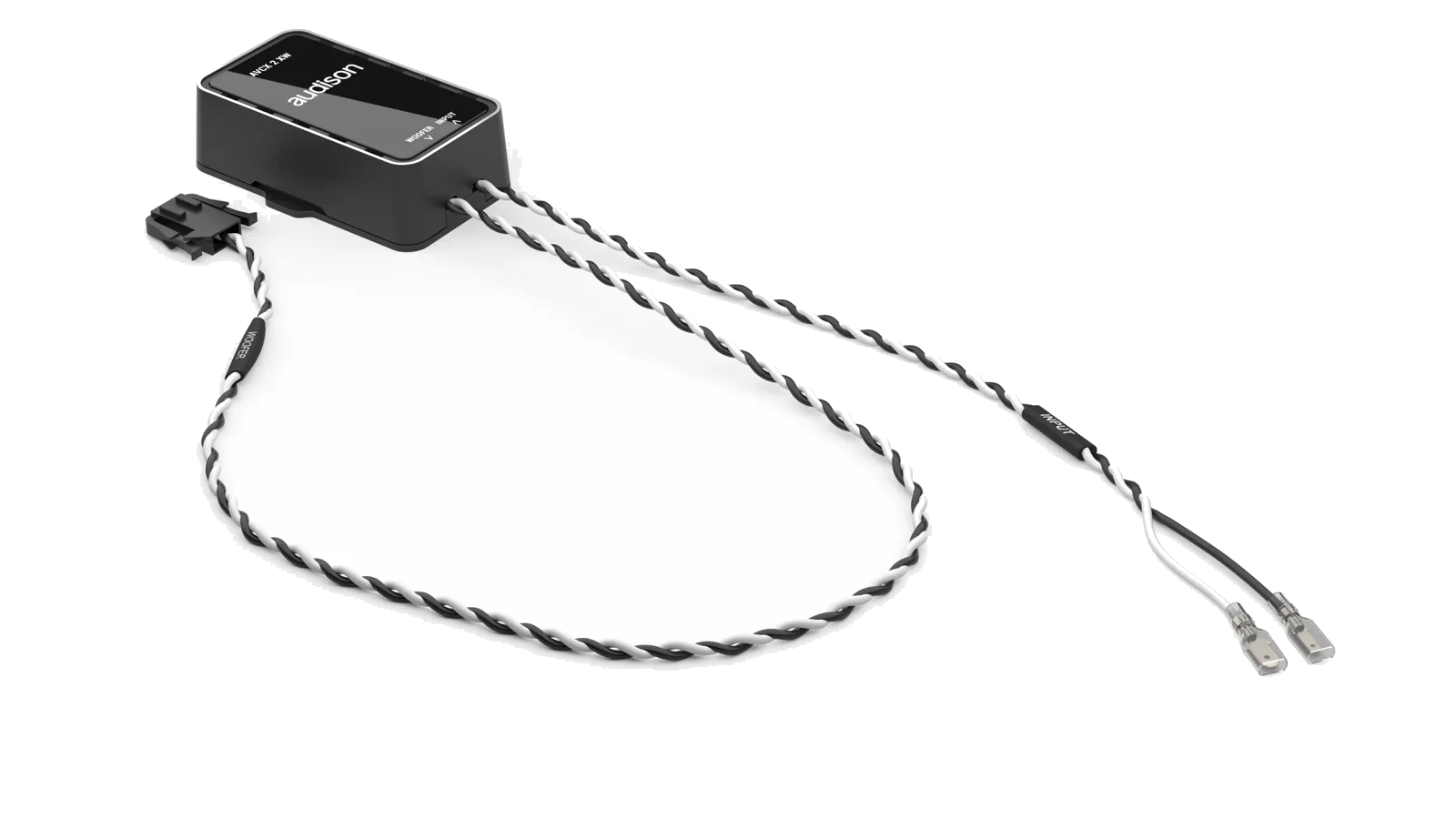

- Dual Crossover Design with Active Filtering: The AVX 6.5 II features independent AVCX 2 XT and AVCX 2 XW crossovers for the woofer and tweeter, offering precise frequency control for unmatched clarity. With active filtering compatibility, it delivers professional-grade customization and seamless integration into high-end audio systems.
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Minimum Impedance
- 3.1 Ohm
- Power Handling - Peak
- 240 W
- Power Handling - Continuous
- 120 W
- Sensitivity
- 91.5 dB
- Frequency Response
- 45 ÷ 40000
- Voice Coil Diameter
- 40 mm (1.6 in)
Key specs
Full specs- Woofer Size
- 165 mm (6.5 in)
- Impedance
- 4 Ohm
- Minimum Impedance
- 3.1 Ohm
- Power Handling - Peak
- 240 W
Highlights
Overview- Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
- Concentric coaxial tweeter: Integrated within the woofer coil to create a single point of sound emission, providing an immersive soundstage that mirrors the experience of a live performance.
- Cone optimized through FEM simulations: Jointly designed between woofer and tweeter to improve frequency response and sound dispersion, ensuring uniform and precise sound coverage, ideal for car installations.
Overview
- Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
- Concentric coaxial tweeter: Integrated within the woofer coil to create a single point of sound emission, providing an immersive soundstage that mirrors the experience of a live performance.
- Cone optimized through FEM simulations: Jointly designed between woofer and tweeter to improve frequency response and sound dispersion, ensuring uniform and precise sound coverage, ideal for car installations.
- Dual Crossover Design with Active Filtering: The AVX 6.5 II features independent AVCX 2 XT and AVCX 2 XW crossovers for the woofer and tweeter, offering precise frequency control for unmatched clarity. With active filtering compatibility, it delivers professional-grade customization and seamless integration into high-end audio systems.
- 1” (25 mm) Tetolon soft dome with integrated mesh grille: Designed with advanced technologies, it offers warm and natural sound reproduction, ensuring smooth and extended response across all frequencies.
- 1.6” (40 mm) Woofer voice coil in CCAW: Maximizes heat dissipation and excursion capability, allowing the woofer to achieve 100W RMS power for powerful and deep bass.
- Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
- Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.

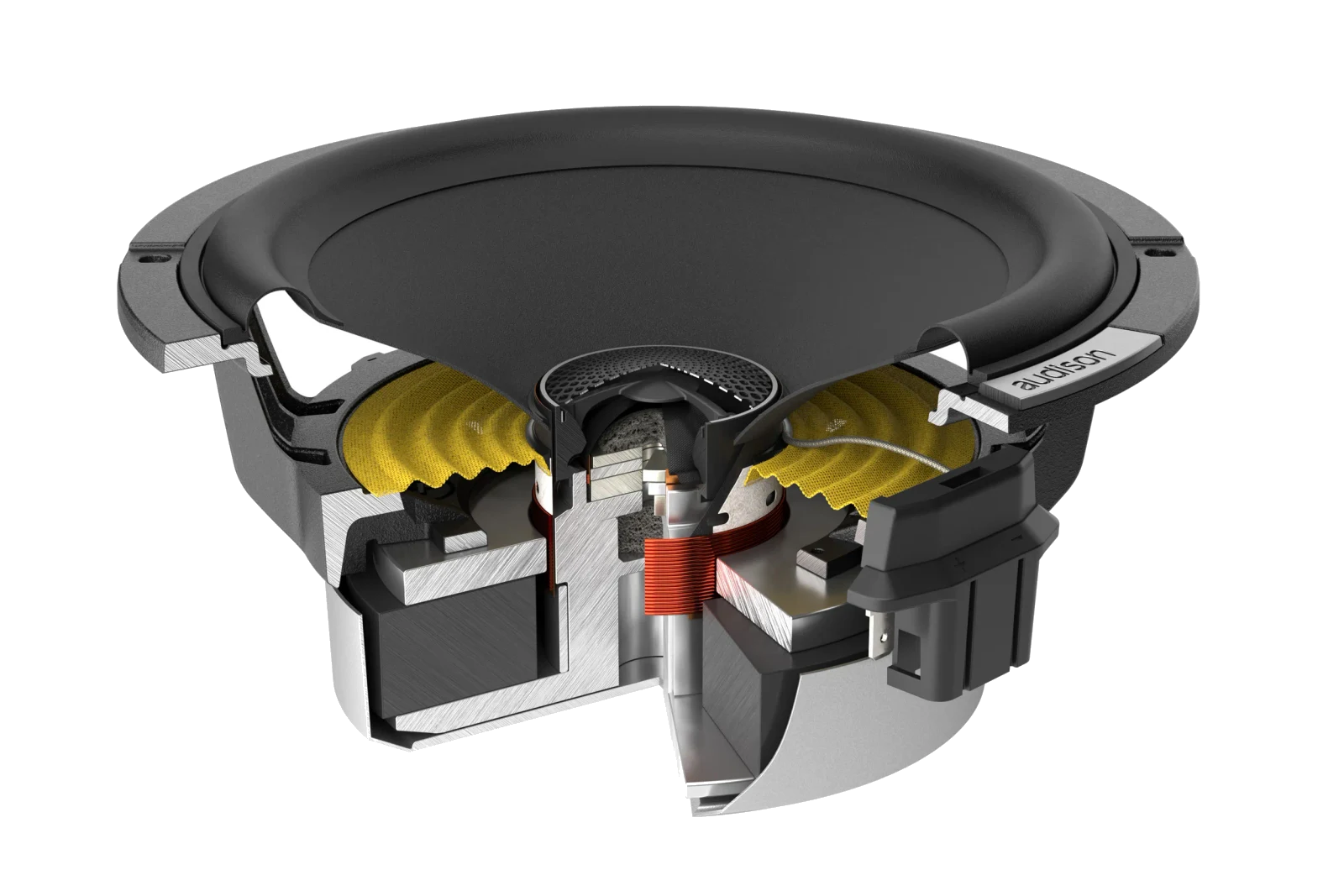

- FEM optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
- Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for a wide frequency response and clean reproduction, even in midrange frequencies.

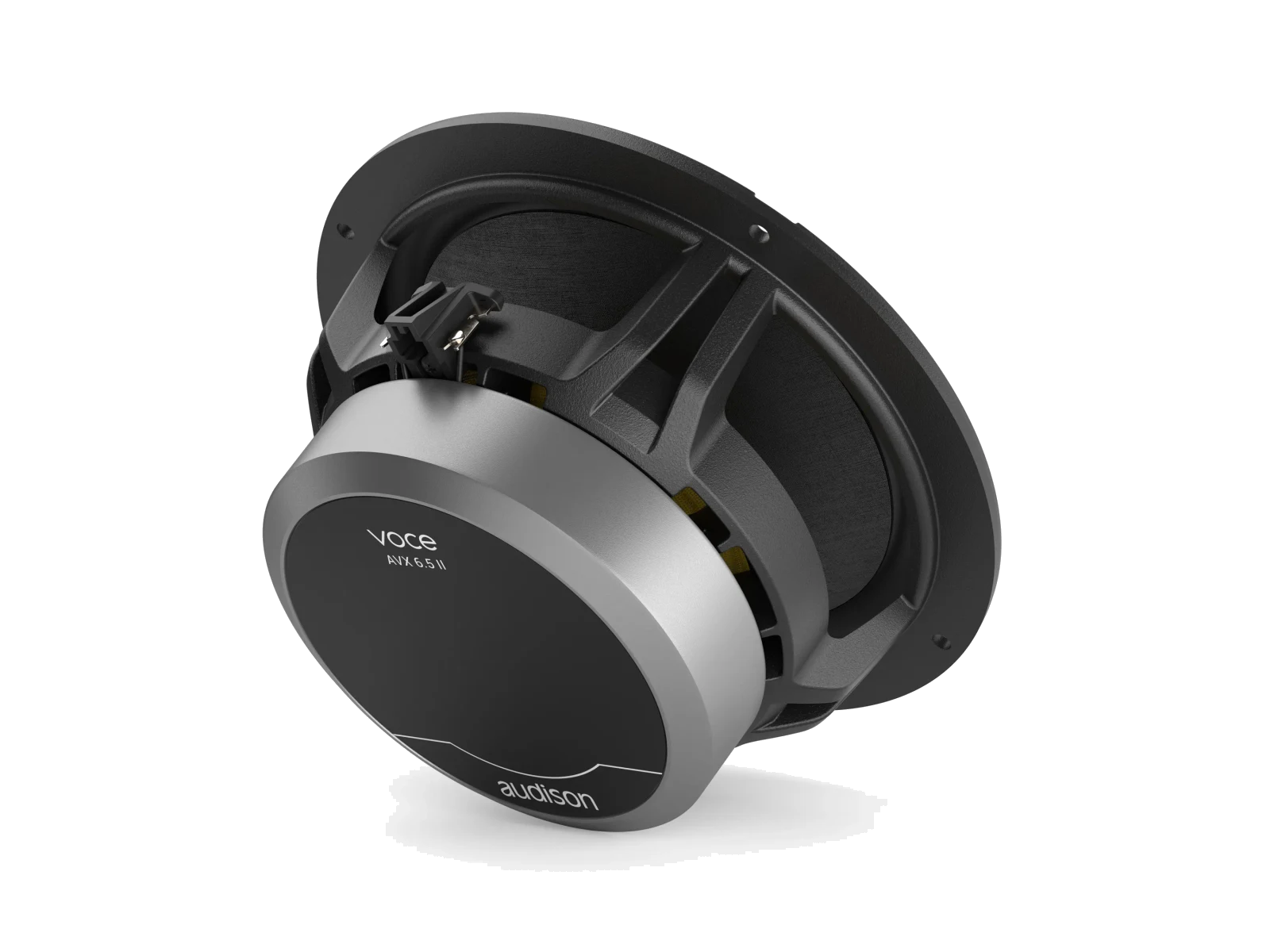

- Die-Cast Aluminum Basket with magnet cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance over time, even during prolonged use.
- High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
- Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
- Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
- eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

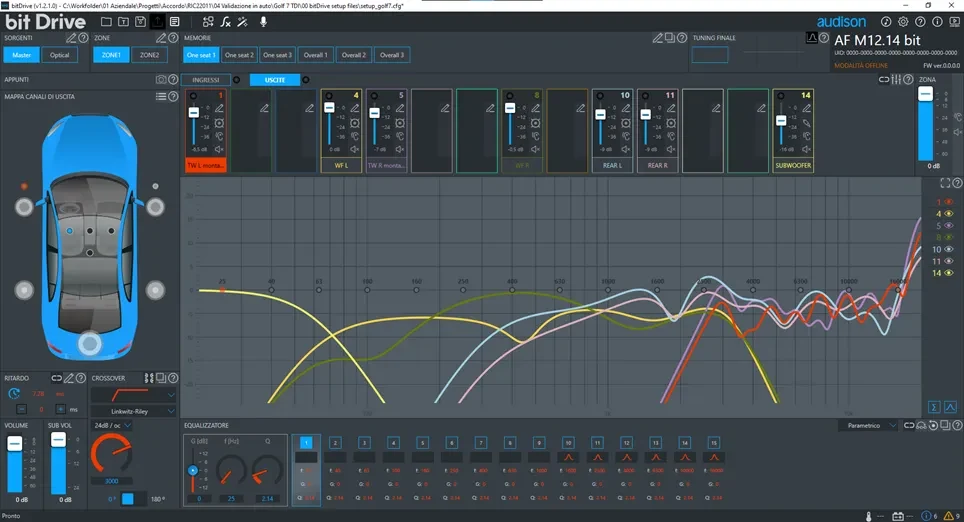

- The Audison VOCE II AVX 6.5 coaxial speaker is a standout component in the VOCE II line, offering a unique combination of a 6.5-inch woofer and a 1-inch Hi-Res certified dome tweeter. Achieving Hi-Res Audio certification for a coaxial setup is particularly significant, reflecting the meticulous design of every element from the grille to the basket. Designed for bi-amplification, this speaker can be actively optimized with a DSP while maintaining the flexibility of separate passive crossovers for each driver. It also includes versatile OEM-style connectors, enhancing integration and performance in any vehicle setup.
Highlights
Key features
- Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
- Concentric coaxial tweeter: Integrated within the woofer coil to create a single point of sound emission, providing an immersive soundstage that mirrors the experience of a live performance.
- Cone optimized through FEM simulations: Jointly designed between woofer and tweeter to improve frequency response and sound dispersion, ensuring uniform and precise sound coverage, ideal for car installations.
- Dual Crossover Design with Active Filtering: The AVX 6.5 II features independent AVCX 2 XT and AVCX 2 XW crossovers for the woofer and tweeter, offering precise frequency control for unmatched clarity. With active filtering compatibility, it delivers professional-grade customization and seamless integration into high-end audio systems.
- 1” (25 mm) Tetolon soft dome with integrated mesh grille: Designed with advanced technologies, it offers warm and natural sound reproduction, ensuring smooth and extended response across all frequencies.
- 1.6” (40 mm) Woofer voice coil in CCAW: Maximizes heat dissipation and excursion capability, allowing the woofer to achieve 100W RMS power for powerful and deep bass.
- Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
- Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
- FEM optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
- Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for a wide frequency response and clean reproduction, even in midrange frequencies.
- Die-Cast Aluminum Basket with magnet cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance over time, even during prolonged use.
- High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
Specs
Technical Specs LF
20
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Minimum Impedance | 3.1 Ohm |
| Power Handling - Peak | 240 W |
| Power Handling - Continuous | 120 W |
| Sensitivity | 91.5 dB |
| Frequency Response | 45 ÷ 40000 |
| Voice Coil Diameter | 40 mm (1.6 in) |
| Chassis Material | ALUMINIUM |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet Size | 100-45-18 |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | SEMI-PRESSED PAPER |
| Surround Material | RUBBER |
| Flux Density | 0.84 |
| Xmax | 4.95 mm (0.19 in) |
| Xmech | 7.5 mm (0.3 in) |
| Gap Height | 6 mm (0.24 in) |
| Voice Coil Winding Height | 13 mm (0.51 in) |
Technical Specs HF
13
| Tweeter Size | 25.4 mm (1 in) |
| Impedance | 4 Ohm |
| Minimum Impedance | 3.7 Ohm |
| Program Power | 20 W |
| Aes Power Rating | 10 W |
| Sensitivity | 98 dB |
| Frequency Response | 1500 - 40000 |
| Voice Coil Diameter | 25 mm (0.98 in) |
| Voice Coil Material | CCAW |
| Former Material | ALUMINIUM |
| Dome Material | TELOTON FIBRE |
| Surround Material | TETOLON FIBRE |
| Magnet Material | NEODYMIUM |
Electric-acoustic Specs
12
| D | 128.35 cm² (19.89 in²) |
| Re | 2.9 Ohm |
| Fs | 67 Hz |
| Mms | 14.9 g (0.53 oz) |
| Cms | 0.38 |
| Bl | 5.4 |
| Qms | 8 |
| Qes | 0.62 |
| Qts | 0.58 |
| Vas | 9.1 l (0.32 ft) |
| LE | 0.3 mH |
| Reference Efficiency | 90.5 |
General
1
| Weight | 1.6 kg |
Dimensions
4
| Dimension A | 165 mm (6.5 in) |
| Dimension B | 140 mm (5.51 in) |
| Dimension C | 74.2 mm (2.92 in) |
| Dimension D | 69.8 mm (2.75 in) |
